The Orange Surge RS 29er Electric Bike will take on the biggest terrain, and is not shy when is comes to sending those gaps. Excelling where the uplift doesn't go.
Orange Bikes

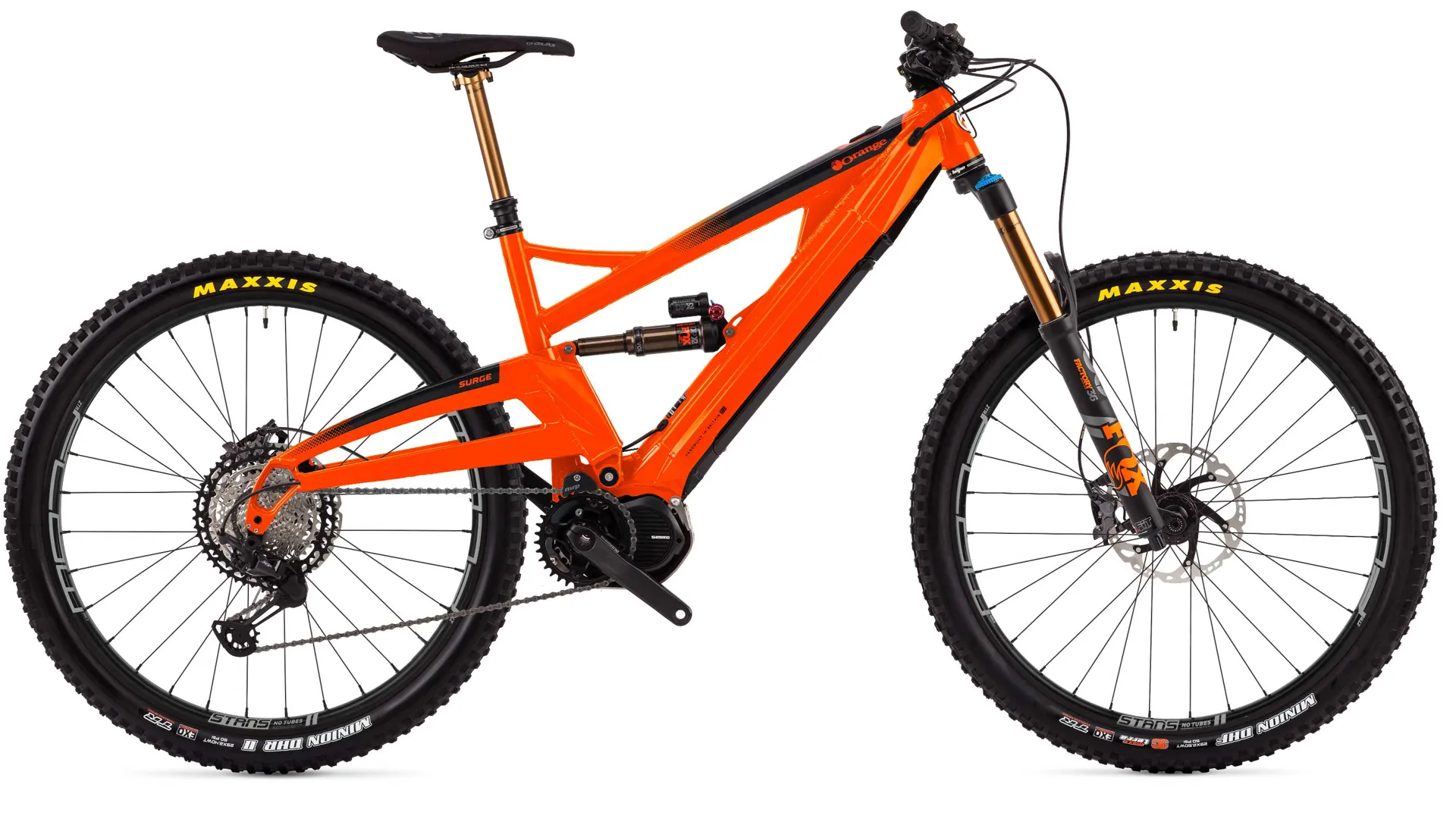

Orange Surge RS 29er Electric Bike 2020 Fizzy Orange

£7,400.00
Click & Collect for Free
Earn
 in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

You Pre-Order is prioritised (at no additional charge); meaning that, as soon as the product arrives with us, we can wrap it straight back up and get it sent out to you - it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery Dates

Estimated Delivery Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery Dates provided on product pages.

The Current Estimated Delivery Date is Undetermined
Earn Rewards
You will earn of rewards points to spend on your next purchase from us, anything online and instore when you purchase this item.

Not happy with your purchase? Send it back to us or return in any of our stores and we will give you a full refund or exchange!

Extended Returns Period - Coronavirus - 60 days

Due to the recent COVID-19 pandemic, we wanted to make returns as easy & stress-free as possible for you. So we're extending our returns period up to 60 days on any orders placed after the 16th of March 2020. We hope this extended period of time will allow you to follow government advice regarding self-isolation properly, and also cover you in the case of any disruption to the postal services. For more information on ensuring the safety and wellbeing of yourselves and others, please visit https://www.nhs.uk/conditions/coronavirus-covid-19/ - Our returns policy is otherwise exactly the same!

Returns

In the unlikely event that you are dissatisfied with your purchase please feel free to return your goods within 60 days of the purchase date for a full exchange or refund. Any item (excluding food and underwear) can be returned to us for any reason provided it is returned in ‘showroom condition’, with its original packaging, tags and a valid receipt/delivery note.

It is your responsibility to ensure that the item is returned to us in a safe and secure manner, and in the event of a refund or exchange, in saleable condition (in original packaging and including all warranty, cards, manuals and accessories).

Customers are accountable for return shipping charges.

Return Items by Post

  1. You should always keep proof of postage and we advise you to use a ‘signed for service’ when returning goods.
  2. Send your package using a recorded delivery method (always keep a copy of your receipt!) to the following address:

Leisure Lakes Bikes,
Unit 9 Centurion Industrial Estate,
Centurion Way,
Leyland,
PR25 4GU

Checkout by Amazon Returns

If you used the pay by Amazon option when checking out then please send your package using a recorded delivery method (always keep a copy of your receipt!) with a note inside stating whether you want an exchange (what you want it exchanging for) or refund, to the following address:

Leisure Lakes Bikes
Unit 9 Centurion Industrial Estate
Centurion Way
Leyland,
PR25 4GU

Bike & Bulky Item Returns

If you wish to return your bike to us please keep it in the box it arrived in and call us on 01772 644340 and we will arrange a collection.

Please note the following:

  • a) If we have sent you the incorrect bicycle, we will cover the cost of collection and delivery of the correct model.
  • b) If we have delivered the bicycle you ordered, but upon inspection you decide it is not the bike for you, we will charge you £50.00 for the collection.

Please do not ride the bike as a full refund cannot be given if the bike has been used or damaged.

Return Items to a store

Any item (excluding food and underwear) can be returned to any Leisure Lakes Bikes store not just the one you made your purchase at, including those made online. The item must be returned in ‘showroom condition’, with its original packaging, tags and with a valid receipt/delivery note.

Returning goods from EU

If returning something from Europe you are responsible for the delivery cost. You should always keep proof of postage and we advise you to use a ‘signed for service’ when returning goods. 1) Log in and go to ‘my account’ 2) Select ‘orders’ from the menu and select the order you wish to return 3) Fill in the required fields 4) Print off your returns lable, stick it visibly on your package and send using a recorded delivery method. Always keep a copy of your receipt! 5) Log in to your account online for status updates on your return

How to return your item(s)?

  1. You should always keep proof of postage and we advise you to use a ‘signed for service’ when returning goods.
  2. Send your package using a recorded delivery method (always keep a copy of your receipt!) to the following address:

Leisure Lakes Bikes,
Unit 9 Centurion Industrial Estate,
Centurion Way,
Leyland,
PR25 4GU

Wrong size or you don't like the item?

If returning items that are not suitable for either refund or exchange you are accountable for the delivery cost in returning it to us. You should always keep proof of postage and we advise you to use a ‘signed for service’ when returning goods.

New faulty items/ Wrong Item Received

If you have received items that are faulty or not what you ordered send them back to us (using the steps above) and we will cover the delivery cost of the return if it is within 14 days of delivery. If we have supplied the correct product, it is not faulty or it is outside of the 14 days we can not be liable for your postage charges. You should always keep proof of postage and we advise you to use a ‘signed for service’ when returning goods.

In the event that you have received items that are fault or not what you ordered, please send them back to us as soon as possible. Only in these cases will we cover the cost of the return shipping charges.

Faulty Items

If you have received items that are faulty please send them back to us using the steps above. Please include a covering letter describing the fault and if you would like the item replacing or refunding. Once the item arrives back at our Mail Order Centre you will receive an email notifying you about the progress. Faulty items are then forwarded onto the suppliers to confirm the warranty issue. Please be patient with us as we need to receive this confirmation from the suppliers before we can process your request for a replacement/refund.

When returning the item please use Royal Mail 1st Class Recorded* so that you have a tracking reference just in case! If your item arrived faulty we will refund your postage cost. If the item was in full working order at the time of delivery to you, we can not refund your return postage cost.

*In the event that you return a faulty/incorrect item we will refund your postage charge as long as it is 1st Class Recorded or a lesser value service. We do not refund premium services.

Refunds

Refunds will be processed using the same method of payment used for the original purchase. Credit and debit card refunds must be made to the card used for the original transaction, cheque payments will be refunded in cash but due to banking restrictions can only be refunded at least 14 days after the original purchase date. Due to the high incidence of fraud we regret that we are unable to offer any refund without a valid receipt/delivery note.

Refunds will be made for faulty or incorrect items, including any delivery charge incurred by the buyer (excluding ‘Special Delivery’) in the return of the item. If the products you ordered are delivered to you in good condition but you wish to return them for any reason we will refund the full value of the goods excluding any carriage charge upon receipt of your returned goods.

Items won’t be considered lost until after 15 working days of items being dispatched. Once the 15 working days are up we will issue a refund or replacement.

Not received your order?

If you have not received your order please call us on 01772 644340 and a member of staff can confirm the shipping date. Unfortunately we cannot consider an item to be lost until 15 working days has passed (according to Royal Mail procedure). Once the 15 working days have passed we will be able to issue a full refund or resend your order.



Orange Surge RS 29er Electric Bike 2020 Fizzy Orange

Season : 2020

Brand : Orange Bikes

Code : B20SRG29RS-FIOR-ORANGE20

At Orange Bikes it's all about the ride, and we've made substantial improvements to our e-bike chassis which deliver the most engaging trail feel, The 170mm travel Orange Surge RS 29er Electric Bike  will take on the biggest terrain, and is not shy when is comes to sending those gaps. Excelling where the uplift doesn't go. Some of the best trails lie beyond where your lift pass takes you – enter the Surge.

The second generation of the Surge E.P.O. model incorporates the new Shimano 8035 battery technology which has allowed us to revise of the ergonics of power assist controls - it's one those little things that can feel like a big difference.

Big adventures and an e-bike with big ideas, way above the lift station. Fast and sure footed, the stability in the Surge's geometry will give you confidence on any trail.

The updated Surge is a revelation and we urge you to try one. E-bikes can be a devisive topic, but once you are bitten by the bug they are hard to resist.

CONSTRUCTION
Something that was painstakingly pored over was the suspension characteristic of the new Alpine 6, with everything we gained from that bike we wanted it to translate across into the Surge. Revisions have been made to the shock mounts to accommodate the new metric rear shock (230x65) and the increase in travel from 160 to 165mm, we have also focussed on increasing the amount of progression in the system which has seen a substantial increase, reduced the bike's anti-squat value and decreased the amount of pedal kickback in the system.

The new Surge’s redesigned front triangle accomodates the new Shimano 8035 battery system in under an integrated battery cover within the reprofiled downtube. The profifle of the frame is now much more streamlined and the battery is easily removable for charging.

While the rear swingarm has taken cues from our 327 DH bike in its profile, this has been done to help deal with the large amounts of torque being produced by the motor, the additional overall weight of the bike and the fact that this bike acts like your own personal uplift vehicle where descents are the order of the day.

THE DRIVE UNIT

We've chosen to work with Shimano, using the E8000 pedal assist system. The features it offers work extremely well for us.
Due to the size of the drive unit, no change to bike geometry is necessary. The E-bike you see here is the exact same geometry as our Alpine 6 model.

The power is delivered when the rider starts pedalling. We've found with the Shimano E8000 unit the power is smooth and controllable, even in boost mode. This is crucial on the technical terrain we love to ride.

Unlike other drive units on the market, the Shimano E8000 crankset has the same Q-factor as the human powered cranks you are used to, this means no awkward changes to your pedalling position. This drive unit also has a zero-drag feature, so as you surge past the assisted power, often into descents, all of your pedal input goes into the drive, rather than dragging the motor's "gearbox". This gives a really responsive feel, when you're hitting those high-velocity descents. You soon forget you're riding an E-bike until the assist kicks in again to help power you up the next climb.

Shimano E=8000

TECHNICAL SPECS
Here are the technical specifications of the Shimano E8000 drive unit.

PEDAL ASSIST MODES
All three support modes will assist until 16mph.

ECO - Riding support while enabling maximum range
TRAIL - Gradual support for encouraging sportive riding
BOOST - Full support for maximum boost and uncompromised climbing
WALK ASSIST - As additional mode, walk assist can be easily enabled with the assist switch
COMPACT CONCEPT
Short chainstays (shorter chainstay length ensuring better manoeuvrability)
Narrow Q-factor of 177mm (compact and lightweight design for better handling with same Q-factor as current Shimano XT)

PERFORMANCE
Maximum power: 500 W
Nominal power: 250 W
Maximum torque: 70 Nm

WEIGHT OF DRIVE UNIT
Under 3 kg

LI-ION BATTERY
Integrated version (504Wh)
Charging: 80% after 2,5 hrs / 5 hrs from 0 to 100%
Battery life: 1,000 cycles

Orange Surge Rs 29er Electric Bike Features

  • F: 160MM | R: 150MM | W: 29
  • Frame designed and built in Britain
  • 5 year frame warranty with Limited Lifetime Crash Replacement
  • New slimmer downtube with Shimano 8035 battery
  • New Quick release battery
  • New 'On' switch on top tube
  • Boost 148mm rear hub spacing
  • Alpine-trail honed geometry
  • Reduced offset fork
  • Long top tube short stem for high-speed stability
  • Shimano E8000 250W drive unit with 70Nm torque
  • 504Wh Lithium Ion battery for up to 100km assist
  • Same 177mm Q-Factor as a standard XT crankset
  • Choose from 4 custom colours

Battery Info

For optimum battery charging we have designed the battery to be removed and optimally charged at room temperature between 10° and 20°C.

Stored batteries in a cool, indoor location with stable temperature between approximately 10° to 20°C

Do leave leave the removed battery exposed to direct sunlight or rain or in an environment likely to drop below 10° C.

IMPORTANT! Avoid freezing temperatures.

Charge battery to around 70% before storing fro a period of time

Every six months, always charge battery back up to around 70%

Before using battery again, charge it completely



  • €8,332.27
    EUR
  • $11,235.42
    AUD
  • $10,734.07
    CAD
  • $11,799.97
    NZD
  • $8,228.97
    USD
  • CHF7,502.73
    CHF
  • kr85,084.59
    SEK
  • kr1,118,274.98
    ISK
  • kr62,030.97
    DKK
  • kr74,091.15
    NOK
  • ¥859,457.71
    JPY
  • Technical Information
    FRAME AND FORK
    6061-T6 Monocoque UK Formed Custom Aluminium Tubing. Wheel Size: 29. Rear wheel travel: 150.

    Swingarms Bolt Type Allen Key Head (Boost 148mm Hub)

    Rear Shocks Fox Float DPX2 Factory 230x57.5

    Headsets
    Hope Black - 49mm for Tapered Steerer --- Please Select --- Hope Orange - 49mm for Tapered Steerer (£0.00)

    Forks Fox Factory 36 160mm 29 (black) --- Please Select --- Fox Factory 36 160mm 29 (orange) (£0.00)

    DRIVETRAIN
    Chains Shimano XT 12spd

    Shifters Shimano XT 12spd

    Cassettes Shimano XT 10-51T

    Chain Device MRP 1x E-bike

    Bottom Brackets Shimano E8000 DU Integrated

    Chainsets Shimano E8050 34t Ring

    Rear Mech Shimano XT 12spd

    WHEEL AND TYRES

    Wheelsets Stans Flow Mk3 (Silver) + Hope Pro 4 (Black) 29

    Tyres Maxxis Minion DHF 2.5 3c EXO+ / DHR II 2.4 3c EXO+ 29

    BRAKING
    Brakes
    Shimano XT Trail 203/203 --- Please Select --- Hope Tech 3 E4 Black 203/203 (£50.00) Hope Tech 3 E4 Orange 203/203 (£50.00)

    FINISHING KIT
    Saddles SDG Radar Steel Rail Black/Black

    Handlebars Renthal Fat Bar 800mm M35

    Grips Strange 130 Single Lock-On Black

    Seatposts Fox Factory Transfer 150mm Drop --- Please Select --- Fox Factory Transfer 170mm Drop (£0.00)

    Seat Clamps Hope Bolted Black --- Please Select --- Hope Bolted Orange (£0.00)

    Stems Hope M35 x 35mm Black

    POWER ASSIST
    Drive Units Shimano E8000

    Control Switches Shimano E7000

    Drive Displays Shimano E8000 Cycle Computer

    Batteries Shimano E8035 504wh Integrated battery
    TECHNICAL INFO
    FORK TRAVEL
    OPTIMUM MAXIMUM MINIMUM
    160 mm 160 mm 160 mm
    Shock Length 230 x 65 mm
    Rear Hub 148 x 12 mm
    Rear Axle Maxle 142 x 12mm (Length 174mm)
    Seatpost Ø 30.9 mm
    Seatclamp Ø 34.9 mm
    Front Derailleur N/A
    BB Shell 73 mm ISCG05
    Tapered Headset Upper: ZS49/28.6
    Lower: EC49/40

    2020 Surge 29 Geometry

    SURGE 29 GEOMETRY
    Monocoque/6061-T6 Custom Butted Aluminium tubing
    Frame Size M L XL
    Seat Tube Length 17" 18" 19"
    A. Head Angle 64° 64° 64°
    B. Seat Angle 76° 76° 76°
    C. Top Tube 616 635 655
    D. Top Tube (effective) 625 645 665
    E. BB Height (from ground) 343 343 343
    BB height (from axles -27 -27 -27
    F. Chainstay 457 457 457
    G. Head Tube 110 110 120
    H. Wheel base 1266 1286 1308
    J. Reach 467 488 505
    K. Stack 630 630 638
    O. Fork Offset 42 42 42
    T. Rear Travel 150 150 150
    Standover 724 752 775
    Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. Bottom bracket height measured from ground with



    Sizing Information
    S
    5'0" — 5'6"
    M
    5'3" — 5'8"
    L
    5'7" — 6'2"
    XL
    6'0" — 6'5"

    How To Measure Yourself

    Measure Your Height

    Our handy size charts match your height to the appropriate frame size so you need to be sure you’ve measured your height accurately.

    1. Take off your shoes and stand with your back against a wall.
    2. Make sure legs are together and your shoulders are back.
    3. Place a pencil on top of your head and mark the wall (the best and easiest way to do this properly is with a friend to help you).
    4. Measure from the floor to the pencil mark you have just made with a tape measure.

    Range of Reach

    For most people to get the right frame size, measuring your height will suffice. However, you may find that your height is on the borderline of the range we suggest for a particular frame. If this occurs you need to measure the range of your reach or “Ape Index”. This will ensure you get a comfortable distance between the handlebars and your saddle.

    1. Stand up straight with your back against a wall.
    2. Life your arms out horizontally either side of you.
    3. Measure the distance from fingertip of one hand to fingertip of the other. This will give you your arm span.
    4. Subtract your height from this figure to get your Ape Index.
    5. If the result is positive (your arm span is greater than your height) you should go for the larger size of bike.
    6. If the result is negative (your arm span is less than your height you need the smaller size.

    Stand Over Height

    You should also consider your inside leg measurement when choosing your bike to ensure adequate stand over height. Stand over height is the clearance between the top tube and the bottom of your crotch. For mountain bikes we recommend a distance of 2-4 inches and for road or hybrid bikes 1-2 inches of clearance is required. This will ensure comfort when you’re stopped and standing astride the bike.

    Our bike sizing charts take stand over height into consideration but if you have a particularly long or short inside leg measurement in relation to your height you will need to bear this in mind when selecting your frame size.

    Riding Style

    The way you ride and the type of bike you are into will also impact the frame size you should choose. For example, a trail devotee looking for an aggressive ride may prefer a smaller, more manoeuvrable bike size. It all comes down to personal preference and how the bike feels to you.

    Our sizing charts aim to be as specific as possible so you can look up the particular type, make and model of bike you’re looking for. Remember, the sizes given in our guides are suggestions and should be used for general advice only. For the best possible fit  we recommend popping in to your local Leisure Lakes Bikes store, or call 0800 083 0888 for expert advice tailored to you.
