Orange Surge Pro 27.5 Electric Mountain Bike 2021 Sandy Playa

Season:2021

Brand:Orange Bikes

Code:B21SRGPROSAPL-ORG21

At Orange Bikes it's all about the ride, and we've made substantial improvements to our e-bike chassis which deliver the most engaging trail feel, The 170mm travel Surge will take on the biggest terrain, and is not shy when is comes to sending those gaps. Excelling where the uplift doesn't go. Some of the best trails lie beyond where your lift pass takes you – enter the Surge.

The second generation of the Surge E.P.O. model incorporates the new Shimano 8035 battery technology which has allowed us to revise of the ergonics of power assist controls - it's one those little things that can feel like a big difference.

Big adventures and an e-bike with big ideas, way above the lift station. Fast and sure footed, the stability in the Surge's geometry will give you confidence on any trail.

The updated Surge is a revelation and we urge you to try one. E-bikes can be a devisive topic, but once you are bitten by the bug they are hard to resist.

CONSTRUCTION

Something that was painstakingly pored over was the suspension characteristic of the new Alpine 6, with everything we gained from that bike we wanted it to translate across into the Surge. Revisions have been made to the shock mounts to accommodate the new metric rear shock (230x65) and the increase in travel from 160 to 165mm, we have also focussed on increasing the amount of progression in the system which has seen a substantial increase, reduced the bike's anti-squat value and decreased the amount of pedal kickback in the system.

The new Surge’s redesigned front triangle accomodates the new Shimano 8035 battery system in under an integrated battery cover within the reprofiled downtube. The profifle of the frame is now much more streamlined and the battery is easily removable for charging.

While the rear swingarm has taken cues from our 327 DH bike in its profile, this has been done to help deal with the large amounts of torque being produced by the motor, the additional overall weight of the bike and the fact that this bike acts like your own personal uplift vehicle where descents are the order of the day.

SHIMANO EP8 DRIVE UNIT

We have worked closely with Shimano since the introduction of the very first Electric Powered Orange model. The Shimano drive assist philosophy is very much like our own. Their system does what it needs to do, then stays out of the way when it's done its job, letting you ride the way you want to.

The brand new Shimano EP8 unit is an improvement in every way to the previous model, making what we considered the best even better. The new drive unit is slimmer, sleeker and more compact than its predecessor, but don’t let its size deceive you. The EP8 packs a punch with enough power to get you to the top of any epic climb. The streamlined, integrated design not only looks the part, but it also allows for increased ground clearing for when the trail gets technical.

Everything about the EP8 is designed to allow you to focus on the ride. The new unit operates with little noise, letting you to focus on the natural sound of the trails without distraction. The newly refined Trail Mode utilises all 85Nm of the EP8’s power to effortlessly and intuitively assist you on your ride. Whether tackling loose sand or steep mountain ranges, the drive unit rapidly and seamlessly self-adjusts so that you can be safe in the knowledge that you’ll always have maximum traction and control. The harder you push, the more power will be delivered to assist you, meaning that no trail is off-limits.

The lightest full-power system, weighing in at just 2.6kg and with a 36% reduction in drag compared to the previous model, the EP8 will not hold you back. An improved clutch mechanism makes for a more responsive ride, with a smoother cut-off when pedalling above 25km/h. All of this puts you in complete control of the bike, with fluid pedalling and no surprises. The EP8 also offers an improved Walk Assist Mode, fully supporting you to push your bike with a one button control, allowing you to hop on and off with ease.

With the E-Tube Project App you can choose from 10 levels of assistance and set the maximum amount of torque best suited to your ride style across three modes, allowing for a fully customised ride before you’ve even put on your helmet. Preferences can be saved to different profiles so that you can quickly and easily switch between them for different terrains, or if swapping from the daily commute to weekend trails.

The EP8 also offers peace of mind. The smart, heat-conducting magnesium materials and a completely redesigned motor housing means that the unit handles rising temperatures on climbs easily, guaranteeing you maximum torque for longer. The new colour display is also fitted with an anti-theft mount and is optimised to be visible in bright sunlight, meaning that you can spend less time with your head down and more time enjoying what the bike has to offer.

TECHNICAL SPECS
Here are the technical specifications of the Shimano EP8 drive unit.

PEDAL ASSIST MODES
All three support modes will assist until 16mph.
  • ECO - Riding support while enabling maximum range
  • TRAIL - Gradual support for encouraging sportive riding
  • BOOST - Full support for maximum boost and uncompromised climbing
  • WALK ASSIST - As additional mode, walk assist can be easily enabled with the assist switch
COMPACT CONCEPT
Short chainstays (shorter chainstay length ensuring better manoeuvrability)
Narrow Q-factor of 177mm (compact and lightweight design for better handling with same Q-factor as current Shimano XT)

PERFORMANCE
Maximum power: 504 W
Nominal power: 250 W
Maximum torque: 85 Nm

WEIGHT OF DRIVE UNIT
2.6 kg

LI-ION BATTERY
Integrated version (504Wh)
Charging: 80% after 2,5 hrs / 5 hrs from 0 to 100%
Battery life: 1,000 cycles

WHY THE SURGE?

ELECTRIC POWERED ORANGE

F: 170MM | R: 165MM | W: 27.5
  • Frame designed and built in Britain
  • 5 year frame warranty with Limited Lifetime Crash Replacement
  • Brand New Shimano EP8 Drive Assist
  • Slim downtube with Shimano 8035 battery
  • Quick release battery
  • 'On' switch on top tube
  • Boost 148mm rear hub spacing
  • Alpine-trail honed geometry
  • Reduced offset fork
  • Long top tube short stem for high-speed stability
  • Choose from 6 custom colours
NEW SHIMANO EP8 FEATURES
  • 85Nm max torque - Max assist ratio: 400%
  • 2.6kg total weight
  • 10% reduced volume (compared with E8000)
  • 36% less drag
  • Shimano E8000 250W drive unit with 70Nm torque
  • 504Wh Lithium Ion battery for up to 100km assist
  • Same 177mm Q-Factor as a standard XT crankset
  • 4 Assist Modes (Walk/Eco/Trail/Boost)
  • Mechanical Walk Assist improved to the level of Intelligent Walk Assist (Di2)

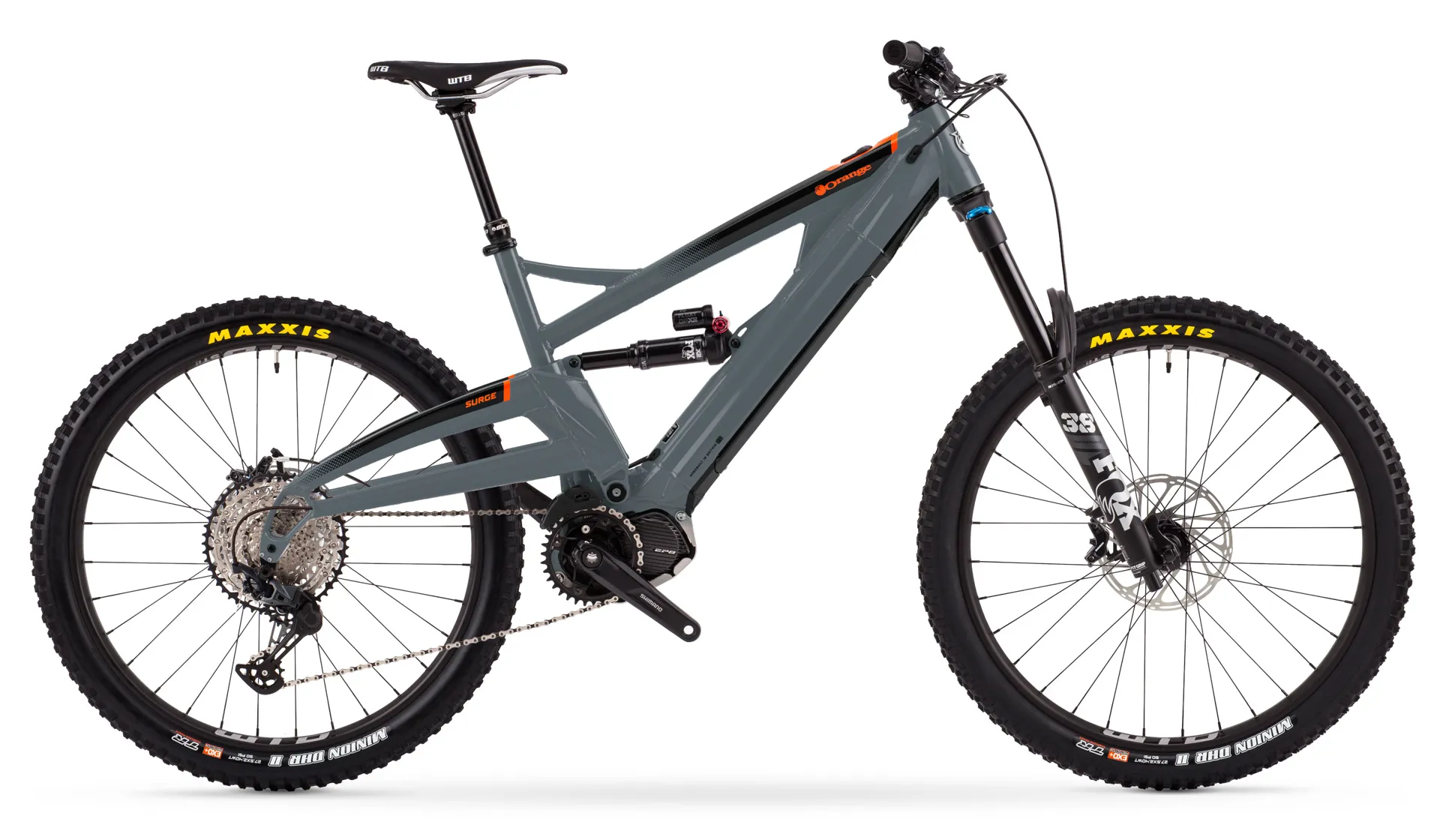

(Please note that the colour displayed is "Norlando Grey" and is an example to show the specification of the bike)
Technical Information
Frame & Fork
Tubeset6061-T6 Monocoque UK Formed Custom Aluminium Tubing. Wheel Size: 27.5. Rear wheel travel: 165.
Rear ShockRockShox Super Deluxe Select 230x65
HeadsetCane Creek 49mm for Tapered Steerer
ForkRockShox Yari RC 170mm 27.5
SwingarmBolt Type Allen Key Head (Boost 148mm Hub)
Wheels & Tyres
WheelsetWTB ST Light i30 on Strange Pro 27
TyresMaxxis Minion DHR II 2.4 EXO TR 27.5
Drivetrain
Chain DeviceShimano CDE80
Bottom BracketShimano EP8 DU Integrated
CranksetShimano M600 165 E 34t
Rear MechSRAM SX Eagle 12spd
ChainSRAM SX Eagle
ShiftersSRAM SX Eagle - Single Click
CassesteSRAM SX 1210 11-50T Eagle
Braking
BrakesSRAM Guide RE 200/200
Finishing Kit
SeatpostSDG Tellis 150mm
Seat ClampStrange Bolted
StemRace Face Chester M35 x 40mm
SaddleWTB Silverado Comp
HandlebarsRaceFace Chester 780mm M35
GripsStrange Grappler Lock-On
PedalsNot Included
POWER ASSIST
Control SwitchShimano E8000
Drive DisplayShimano E8000 Cycle Computer
BatteryShimano E8035 504wh Integrated battery
Drive UnitShimano EP8

Technical Info
FORK TRAVEL
OPTIMUMMAXIMUMMINIMUM
170 mm170 mm160 mm
Shock Length230 x 65 mm
Rear Hub148 x 12 mm
Rear AxleMaxle 142 x 12mm (Length 174mm)
Seatpost Ø30.9 mm
Seatclamp Ø34.9 mm
Front DerailleurN/A
BB Shell73 mm ISCG05
Tapered HeadsetUpper: ZS49/28.6
Lower: EC49/40
GEOMETRY
Monocoque/6061-T6 Custom Butted Aluminium tubing
Frame SizeSMLXL
Seat Tube Length16"17"18"19"
A. Head Angle64°64°64°64°
B. Seat Angle (Actual)72°72°72°72°
B. Seat Angle (Effective)74°74°74°74°
C. Top Tube596615634655
D. Top Tube (Effective)620640660680
E. BB Height (from ground)342342342342
E. BB height (from axles)-12-12-12-12
F. Chainstay441441441441
G. Head Tube120120130140
H. Wheel base1226124612681290
J. Reach442462480497
K. Stack615615624633
T. Rear Travel165165165165
Standover716724752775
Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. Bottom bracket height from ground is
