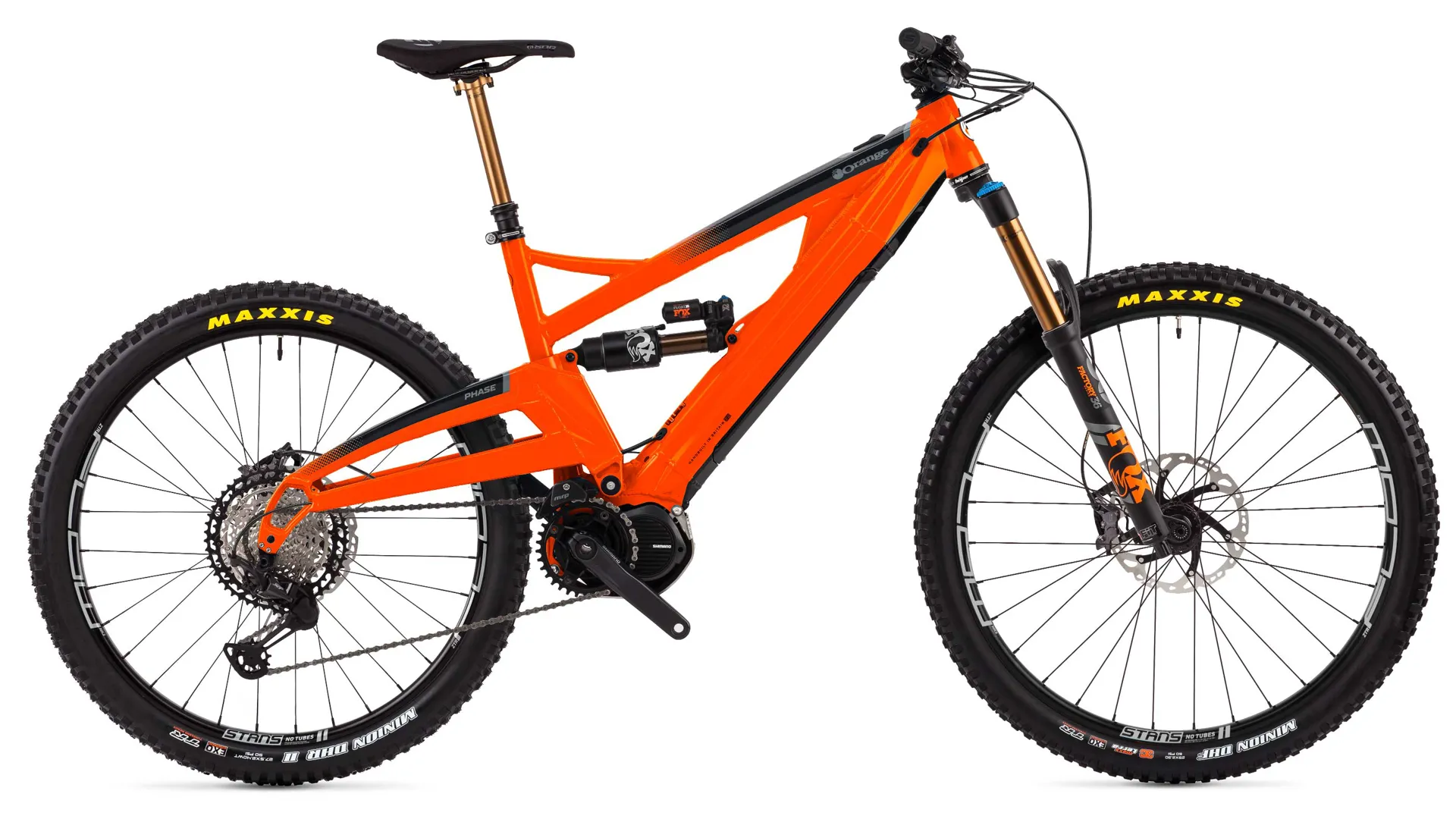

Orange Phase Factory 29er Electric Bike 2020 Fizzy Orange Information

Season : 2020

Brand : Orange Bikes

Code : B20PHSFAC-FIOR-ORANGE20

The Phase is our first mixed size wheelset E.P.O model. The positives which made us consider the producing the Switch 6 were also applicable to an E-bike and from then on the concept for the Phase was born. With a 29” front wheel paired with a 27.5 rear wheel and 160 mm of travel at both ends, this could potentially be our most versatile E.P.O model to date.

The Phase will be fitted with a Shimano 8035 battery, will have a keyless battery removal system with the power button fitted to the top tube. The phase has a 64° head angle and a 76° seat angle with a reach measurement on a size large being 488, the bike will also be fitted with a 230x65 metric shock and a reduced offset fork. We will have 4 specs available (Pro, RS, Factory and XTR) with four custom colour options.

CONSTRUCTION
Something that was painstakingly pored over was the suspension characteristic of the new Alpine 6, with everything we gained from that bike we wanted it to translate across into the Surge. Revisions have been made to the shock mounts to accommodate the new metric rear shock (230x65) and the increase in travel from 160 to 165mm, we have also focussed on increasing the amount of progression in the system which has seen a substantial increase, reduced the bike's anti-squat value and decreased the amount of pedal kickback in the system.

The Surge’s revised construction and shape is one of the biggest leaps forward over its predecessor, revisions to the front triangle in both construction and tubing profile have helped improve the bike's stiffness while still remaining compliant enough that the bike isn’t harsh, the new down tube is substantially slimmer and has a much more organic profile that the one that went before it.

While the rear swingarm has taken cues from our 327 DH bike in its profile, this has been done to help deal with the large amounts of torque being produced by the motor, the additional overall weight of the bike and the fact that this bike acts like your own personal uplift vehicle where descents are the order of the day.

The final piece of the puzzle was to have a battery that was easily removable. Hearing of riders doing “double battery rides” is very much a reality and we wanted a system that allowed this to happen as easily as possible. The battery is now removable with the use of just a key, so there are no more bolts to undo and it should take a matter of seconds to swap. Second batteries will be available from Orange and will come with the protective cover as standard.

THE DRIVE UNIT
We've chosen to work with Shimano, using the E8000 pedal assist system. The features it offers work extremely well for us.
Due to the size of the drive unit, no change to bike geometry is necessary. The E-bike you see here is the exact same geometry as our Alpine 6 model.

The power is delivered when the rider starts pedalling. We've found with the Shimano E8000 unit the power is smooth and controllable, even in boost mode. This is crucial on the technical terrain we love to ride.

Unlike other drive units on the market, the Shimano E8000 crankset has the same Q-factor as the human powered cranks you are used to, this means no awkward changes to your pedalling position. This drive unit also has a zero-drag feature, so as you surge past the assisted power, often into descents, all of your pedal input goes into the drive, rather than dragging the motor's "gearbox". This gives a really responsive feel, when you're hitting those high-velocity descents. You soon forget you're riding an E-bike until the assist kicks in again to help power you up the next climb.

Shimano E=8000

TECHNICAL SPECS
Here are the technical specifications of the Shimano E8000 drive unit.

PEDAL ASSIST MODES
All three support modes will assist until 16mph.

ECO - Riding support while enabling maximum range
TRAIL - Gradual support for encouraging sportive riding
BOOST - Full support for maximum boost and uncompromised climbing
WALK ASSIST - As additional mode, walk assist can be easily enabled with the assist switch
COMPACT CONCEPT
Short chainstays (shorter chainstay length ensuring better manoeuvrability)
Narrow Q-factor of 177mm (compact and lightweight design for better handling with same Q-factor as current Shimano XT)

PERFORMANCE
Maximum power: 500 W
Nominal power: 250 W
Maximum torque: 70 Nm

WEIGHT OF DRIVE UNIT
Under 3 kg

LI-ION BATTERY
Integrated version (504Wh)
Charging: 80% after 2,5 hrs / 5 hrs from 0 to 100%
Battery life: 1,000 cycles

Features

  • F: 160MM | R: 160MM | W: 29/27.5
  • Frame designed and built in Britain
  • 5 year frame warranty with Limited Lifetime
  • Crash Replacement
  • New 29 front/27.5 rear mixed size wheelset
  • New Slimmer downtube with Shimano 8035 battery
  • New Quick release battery
  • New 'On' switch on top tube
  • Boost 148mm rear hub spacing
  • Orange trail honed geometryReduced offset fork
  • Long top tube short stem for high-speed stability
  • Shimano E8000 250W drive unit with 70Nm torque
  • 504Wh Lithium Ion battery for up to 100km assist
  • Same 177mm Q-Factor as a standard XT crankset
  • Choose from 4 custom colours
  • €8,974.10
    EUR
  • $12,116.63
    AUD
  • $11,601.66
    CAD
  • $12,738.51
    NZD
  • $8,923.33
    USD
  • CHF8,096.09
    CHF
  • kr90,973.31
    SEK
  • kr1,205,009.97
    ISK
  • kr66,784.27
    DKK
  • kr78,753.11
    NOK
  • ¥930,989.18
    JPY
  • Technical Information
    FRAME AND FORK 6061-T6 Monocoque UK Formed Custom Aluminium Tubing. Wheel Size: 29/27.5. Rear wheel travel: 160.

    Swingarms Bolt Type Allen Key Head (Boost 148mm Hub)

    Rear Shocks Fox Float X2 Factory 230x65

    Headsets Hope Black - 44mm for Tapered Steerer

    Forks Fox Factory 36 160mm 29 (black)

    DRIVETRAIN
    Chains Shimano XT 12spd

    Shifters Shimano XT 12spd

    Cassettes Shimano XT 10-51T

    Chain Device MRP 1x E-bike

    Bottom Brackets Shimano E8000 DU Integrated

    Chainsets Shimano E8050 34t Ring

    Rear Mech Shimano XT 12spd

    WHEEL AND TYRES

    Wheelsets Stans Flow Mk3 (Silver) + Hope Pro 4 (Black) 29+27

    Tyres Maxxis Minion DHF 2.5 3c EXO+ 29 / DHR II 2.4 3c EXO+ 27.5

    BRAKING
    Brakes Shimano XT Trail 203/203

    FINISHING KIT
    Saddles SDG Radar Steel Rail Black/Black

    Handlebars Renthal Fat Bar 800mm M35

    Grips Strange 130 Single Lock-On Black

    Seatposts Fox Factory Transfer 150mm Drop

    Seat Clamps Hope Bolted Black

    Stems Hope M35 x 35mm Black

    POWER ASSIST
    Drive Units Shimano E8000

    Control Switches Shimano E7000

    Drive Displays Shimano E8000 Cycle Computer

    Batteries Shimano E8035 504wh Integrated battery
    TECHNICAL INFO
    FORK TRAVEL
    OPTIMUM MAXIMUM MINIMUM
    160 mm 160 mm 160 mm
    Shock Length 230 x 65 mm
    Rear Hub 12 x 148 mm Boost
    Fork Offset 42 mm
    Seatpost Ø 30.9 mm
    Seatclamp Ø 34.9 mm
    Front Derailleur N/A
    BB Shell 73 mm ISCG05
    Tapered Headset Upper: ZS49/28.6
    Lower: EC49/40

    Geometry

    2020 Phase Geometry

      PHASE GEOMETRY
    Monocoque/6061-T6 Custom Butted Aluminium tubing
    Frame Size L XL
    Seat Tube Length 17" 18" 19"
    A. Head Angle 64° 64° 64°
    B. Seat Angle 76° 76° 76°
    C. Top Tube 616 635 655
    D. Top Tube (effective) 625  645 665
    E. BB Height (from ground) 343 343 343
    BB height (from axles -27 -27 -27
    F. Chainstay 439 439 439
    G. Head Tube 110 110 120
    H. Wheel base 1248  1268 1290
    J. Reach 467 488 505
    K. Stack 622 629 638
    O. Fork Offset 42 42 42
    T. Rear Travel 160 160 160
    Standover 724 752 775
    Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. Bottom bracket height measured from ground with 740 mm Ø tyre.



    Sizing Information
    BIKE SIZING GUIDELINES
    M
    5'3" — 5'8"
    L
    5'7" — 6'2"
    XL
    6'0" — 6'5"


    How To Measure Yourself

    Measure Your Height

    Our handy size charts match your height to the appropriate frame size so you need to be sure you’ve measured your height accurately.

    1. Take off your shoes and stand with your back against a wall.
    2. Make sure legs are together and your shoulders are back.
    3. Place a pencil on top of your head and mark the wall (the best and easiest way to do this properly is with a friend to help you).
    4. Measure from the floor to the pencil mark you have just made with a tape measure.

    Range of Reach

    For most people to get the right frame size, measuring your height will suffice. However, you may find that your height is on the borderline of the range we suggest for a particular frame. If this occurs you need to measure the range of your reach or “Ape Index”. This will ensure you get a comfortable distance between the handlebars and your saddle.

    1. Stand up straight with your back against a wall.
    2. Life your arms out horizontally either side of you.
    3. Measure the distance from fingertip of one hand to fingertip of the other. This will give you your arm span.
    4. Subtract your height from this figure to get your Ape Index.
    5. If the result is positive (your arm span is greater than your height) you should go for the larger size of bike.
    6. If the result is negative (your arm span is less than your height you need the smaller size.

    Stand Over Height

    You should also consider your inside leg measurement when choosing your bike to ensure adequate stand over height. Stand over height is the clearance between the top tube and the bottom of your crotch. For mountain bikes we recommend a distance of 2-4 inches and for road or hybrid bikes 1-2 inches of clearance is required. This will ensure comfort when you’re stopped and standing astride the bike.

    Our bike sizing charts take stand over height into consideration but if you have a particularly long or short inside leg measurement in relation to your height you will need to bear this in mind when selecting your frame size.

    Riding Style

    The way you ride and the type of bike you are into will also impact the frame size you should choose. For example, a trail devotee looking for an aggressive ride may prefer a smaller, more manoeuvrable bike size. It all comes down to personal preference and how the bike feels to you.

    Our sizing charts aim to be as specific as possible so you can look up the particular type, make and model of bike you’re looking for. Remember, the sizes given in our guides are suggestions and should be used for general advice only. For the best possible fit  we recommend popping in to your local Leisure Lakes Bikes store, or call 0800 083 0888 for expert advice tailored to you.
