Orbea Terra H40 Gravel Bike 2022/23 Mango

Season:2023

Brand:Orbea

Code:22-ORB-M105-DA

A more capable Terra

Orbea says this bike is more capable, covering a wide range of uses. It can be completely
customized for different terrains. Thanks to its options for personalization, its geometry was
designed for comfort and precision. No matter where you are, you can configure it however
you like to make it a perfect fit for you.

Proof of its capacity is the ability to mount 700c wheels with tires as wide as 45 mm when we
want speed and efficiency on bumpy roads. Or 650B wheels with tires of up to 50 mm, if
what we want is durability, traction and extreme comfort, particularly recommended for light
bikepacking.

Just the opposite of most gravel bicycles, Terra’s specific frame allows a wide range of
brackets and tires without sacrificing wheel arch. Its design with asymmetrical chainstays
means you can choose whatever tooth configuration you want for a 1X or 2X drive-train ,
where the small chainring can have a diameter as large as 34T.

Comfort and control in every circumstance

The gravel discipline means that today you’re riding on the road and trails, and tomorrow on
dirt and gravel. Your bicycle needs to be comfortable and give you the control you need in
any of these situations.

To pull this off, Orbea has worked meticulously to adjust the rigidity of the frame and thus
ensure the rider’s comfort, regardless of the terrain that lies ahead. Its shorter seat tube at a
more relaxed angle permits adequate flex of the 27.2 mm seatpost mounted on it.

The amount of material in the seat tube and bottom bracket has been adjusted to provide
just the right amount of rigidity. The Terra also has a specific, longer fork that helps absorb
impacts and vibrations from a wide variety of terrain.

Specific geometry for gravel

From this blank slate came an entirely revamped geometry, making the bike longer and taller
and giving the rider an optimal position of precision and control in all 6 sizes available,
ranging from XS to XXL.

The chainstays were shortened to 420 mm to optimize agility and acceleration. The height of
the bottom bracket was lowered to 78 mm for greater stability and control on fast, uneven
terrain. To make it more manageable, the new Terra has a longer reach, combined with shorter stems and an optimized head angle, resulting in a specific trail length for each size.

Everything you need with you

Lockr is what Orbea calls the storage space designed for the new Terra. A port in the frame
lets you store a spare tube, pump, a Co2 cartridge or tools.

In addition to space for two bottle holders on all sizes, the frame has a ton of anchoring
points to meet your every need: under the diagonal tube for accessories and on the through
axles for any kind of fenders, ensuring a wheel arch of up to 35 mm.

The wiring is another characteristic that received a lot of attention in the form of a clean,
attractive and quiet solution that is perfectly compatible with carrying bags on the frame or
handlebars for light bikepacking adventures.

The power of personalization

The Terra range has seven carbon models in three different base colors. This makes
Orbea’s personalization offer the most complete on the market: your choice of a single
chainring, double chainrings, electronic, mechanical, Shimano, Sram, Campagnolo, Vittoria
or Pirelli tires, ergonomic adjustments and your choice of colors. Orbea’s offering is so
meticulously thought-out, that it's hard to find such a variety in any other gravel bike.

The handlebars are key on gravel. In this case, Orbea offers you handlebars with a flare of
either a 12 or 16o.The OC Gravel handlebars with a 12o flare provide stability and control
downhill and are available in compact and double height versions for a more relaxed
position. If you're looking for handlebars with greater flare, there’s always the Easton EC90,
with a 16o flare.

Features

Frame: Orbea Terra Hydro disc, hydroformed triple butted aluminium
Fork: Orbea Terra OMR carbon disc fork, full carbon steerer,
Handlebar Plugs: Orbea Eva
Shifters: Shimano ST-RX400
Brakes: Shimano RX400 Hydraulic Disc
Technical Information
Frame: Orbea Terra Hydro disc, hydroformed triple butted aluminium, HS 1,5”, PF, Thru Axle 12mm x 142mm rear, thread M12x2 P1, DT internal cable routing, 27,2mm seat tube, MMS system
Fork: Orbea Terra OMR carbon disc fork, full carbon steerer,
Crankset: Shimano GRX RX600-10 30x46t
Headset: FSA 1-1/2” Integrated Aluminium Cup
Handlebar: OC GR30-R Gravel Riser, Reach 70, Drop 125, Flare 12, Rise 15, w/Di2 hole
Handlebar Plugs: Orbea Eva
Stem: OC RP21 Road Performance ICR, -6º, IFC01 Computer mount interface
Shifters: Shimano ST-RX400
Brakes: Shimano RX400 Hydraulic Disc
Rear Derailleur: Shimano RD-RX400
Front Derailleur: Shimano GRX RX400
Chain: KMC X10
Wheels: Orbea wheel: Ready GR with 12mm E-Thru
hubset: Shimano RS470 28H
Cassette: Shimano Tiagra HG-500 11-34t 10-Speed
Rear Hub: Orbea Thru Axle 12x142mm M12x2 P1 Solid inner threaded
Front Hub: Orbea Thru Axle 12x100mm M12x2 P1 Solid
Tyres: Vittoria Terreno Dry Gravel G2.0 TNT 700x38c
Kit Tubeless: Orbea Kit tubeless (2 x 44mm brass valve +10m x 23mm tape)
Seatpost OC2 Carbon 27.2 Offset 20
Saddle: Fizik Aliante R5
Mudguard: Orbea SKS 46S 700x45C + Pirelli Cinturato™ Velo 700x35C TLR

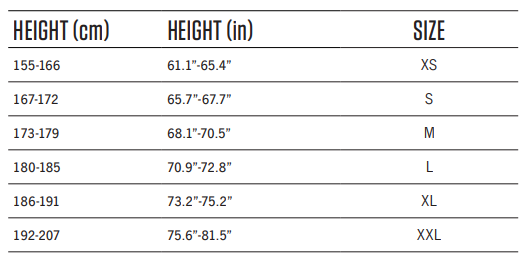

Sizing Information
