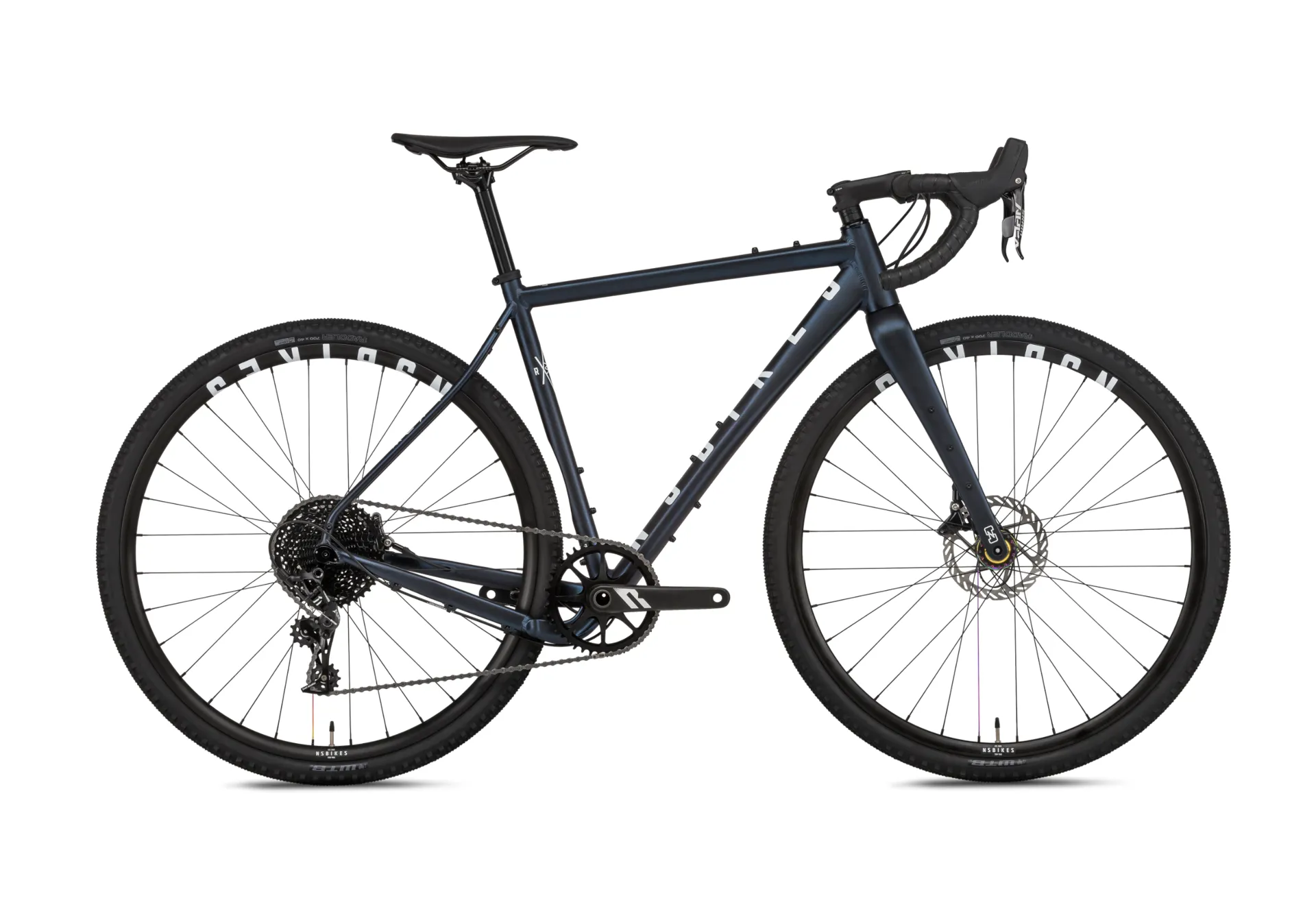

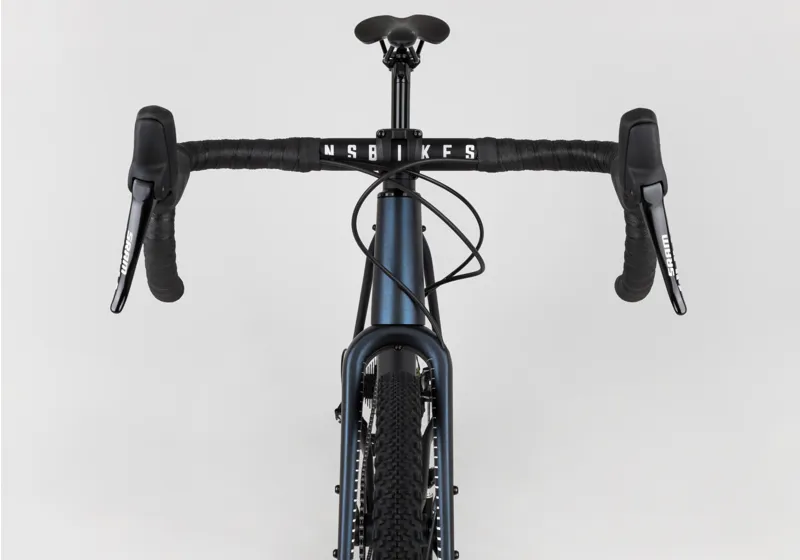

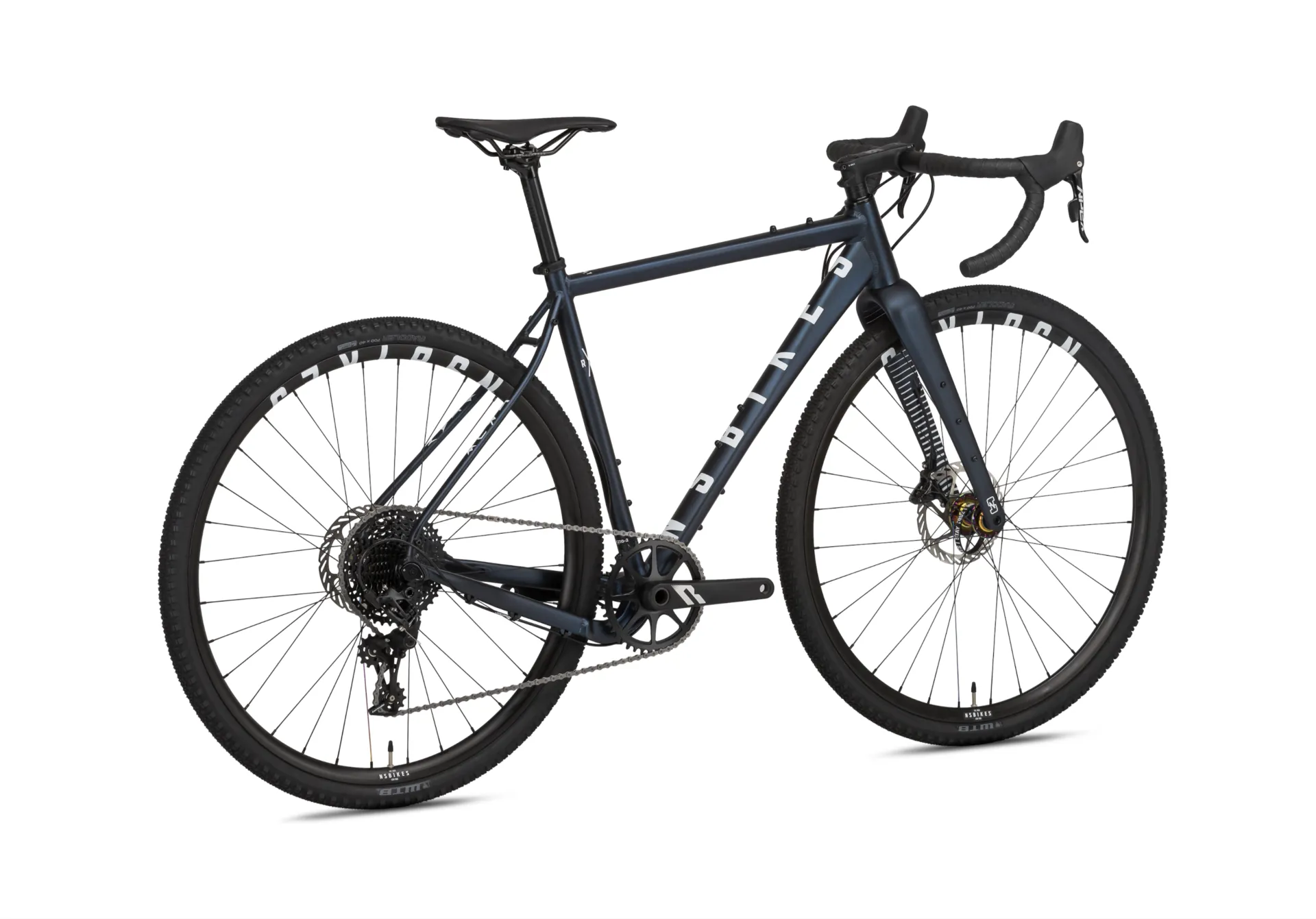

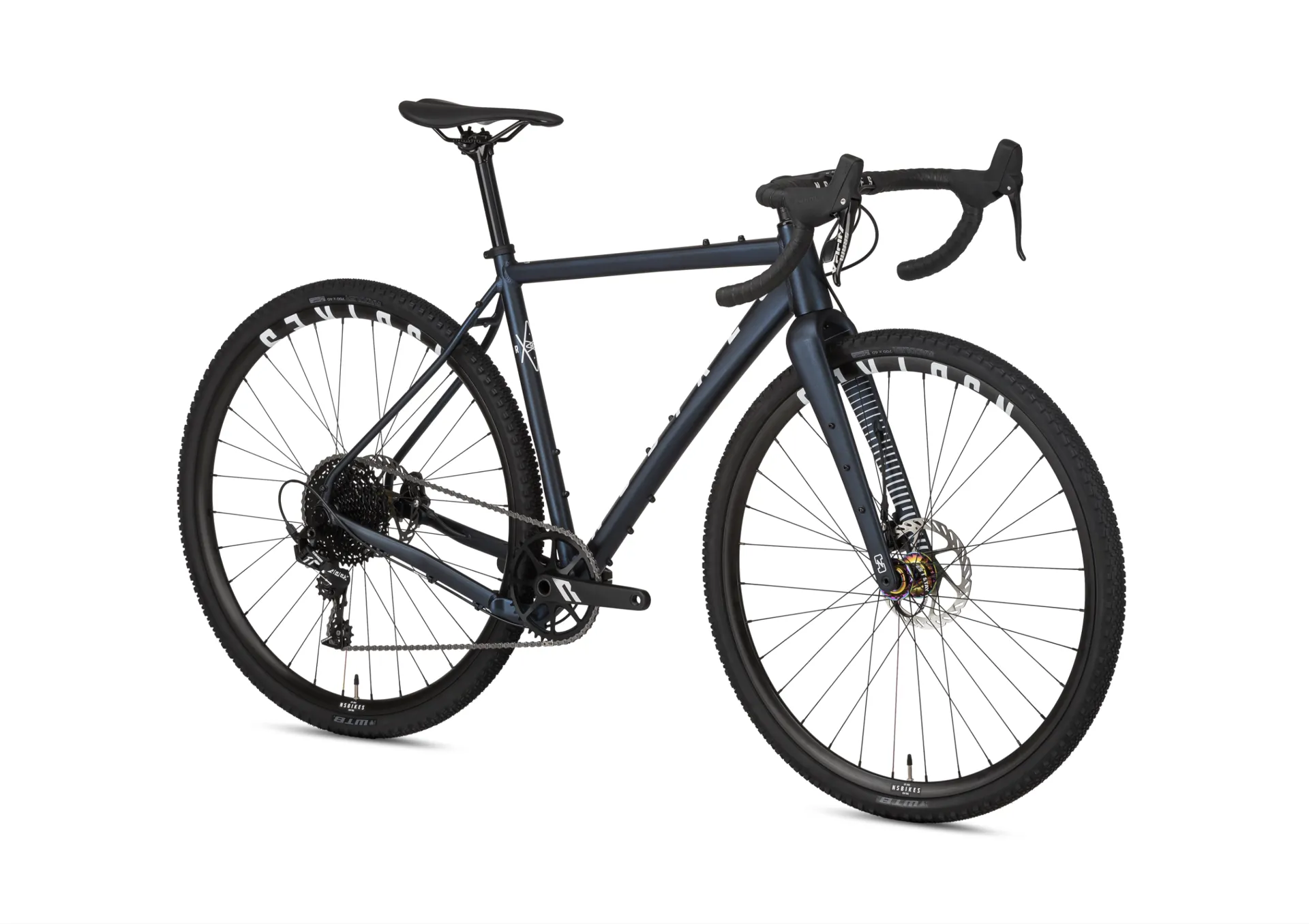

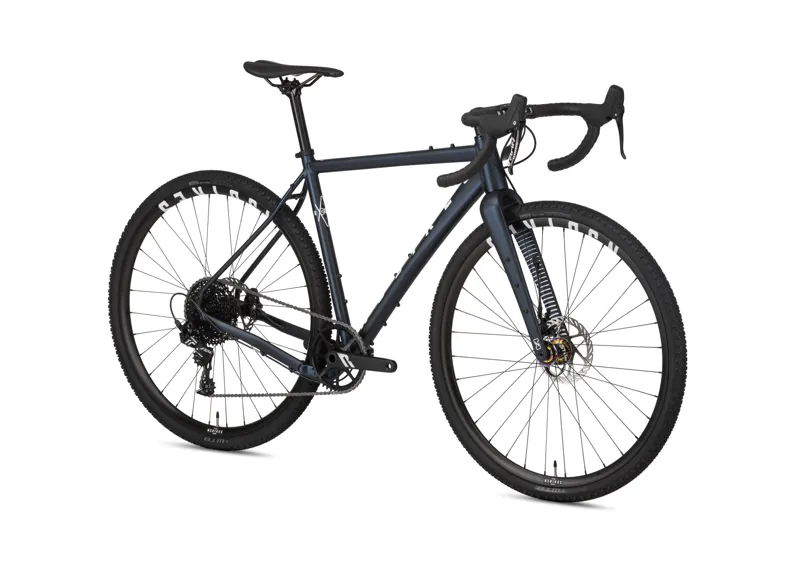

NS BIKES RAG +1 SRAM Apex 11Spd Disc Gravel Bike 2021 Deep Blue

Brand:NS Bikes

Code:796089M

Gravel Cycling has exploded recently and it's no wonder.

The Rag + Series from NS Bikes are truly the do-everything machines. Nicknamed the Mountain Biker's Gravel Bike. A thrashable yob. In the game from the beginning with a gravel bike designed solely with dirt heritage in it's DNA. The RAG +1 has become a favourite from many differrent types of riders , even those who would never even consider a drop bar bike before. The range of applications is endless, from commuting to amateur CX racing, or multi day loaded adventure touring.

RAG, short for Road & Gravel and the + is there because you can run it with the standard 700c road tyres (upto 45mm) or 27.5" rims, with tyres as wide as 2.2". Perfect for anyone who wants a real all round, do anything all conquering drop bar bike.

MAIN FEATURES

FRAME:

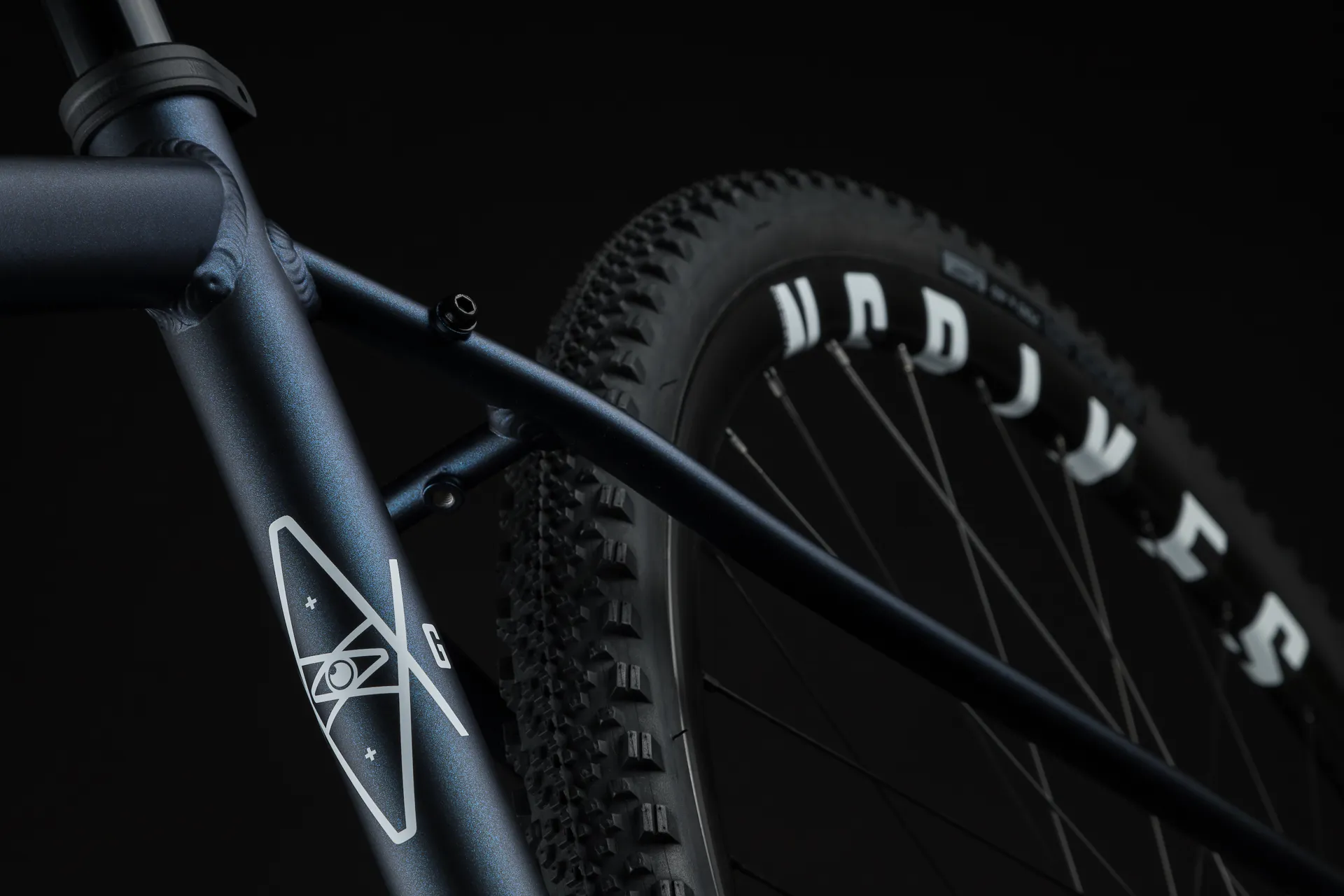

Tough and light Aluminium A6061 - T6, custom formed and butted tubing, with full carbon fibre fork.
HUGE TYRE CLEARANCE:
Fitted with WTB Raddler TCS 700c x 40mm, though with a Clearance for 650B tyres of up to 2.2" should the roads run out.
TECHNOLOGY:
Thru-axles, a 1X drivetrain, hydraulic disc brakes, tubeless ready rims: everything that makes a true modern adventure gravel bike rock!
A UNIQUE DESIGN:
A Hardcore design heritage is in the DNA of all NS Bikes, even if they have drop bars!
Technical Information
FRAME

NS AL6061-T6 custom formed and butted tubes, tapered integrated headtube, 142x12mm dropouts

FORK

NS Gravel+ full carbon fork, 15mm dropouts, NS thru axle

HEADSET

GW integrated tapered IS42/52, sealed

STEM

RAG+ Stem 31.8 S:80mm, M:90mm, L:100mm, XL:110mm, angle, - 8°

HANDLEBAR

NS Flare 31.8, 420mm, 440mm or 460mM

BAR TAPE

Velo VLT-8111

BRAKES

SRAM Apex hydraulic disc, 160mm rear & front

SHIFTER

SRAM Apex 11spd

REAR DERAILLEUR

Sram Apex type 2.1, long cage, 11spd

BOTTOM BRACKET

Shimano PF 86.5mm

CHAINSET

Rondo Direct S:170mm, M:172.5mm, L:175mm 42t

CHAIN

SRAM, 11 Speed

CASSETTE

Sun Race CSMS7 11-42

WHEELSET

Alex Rims Draw 2.1P Asymmetrical, 32H, Tubeless Ready

HUBS

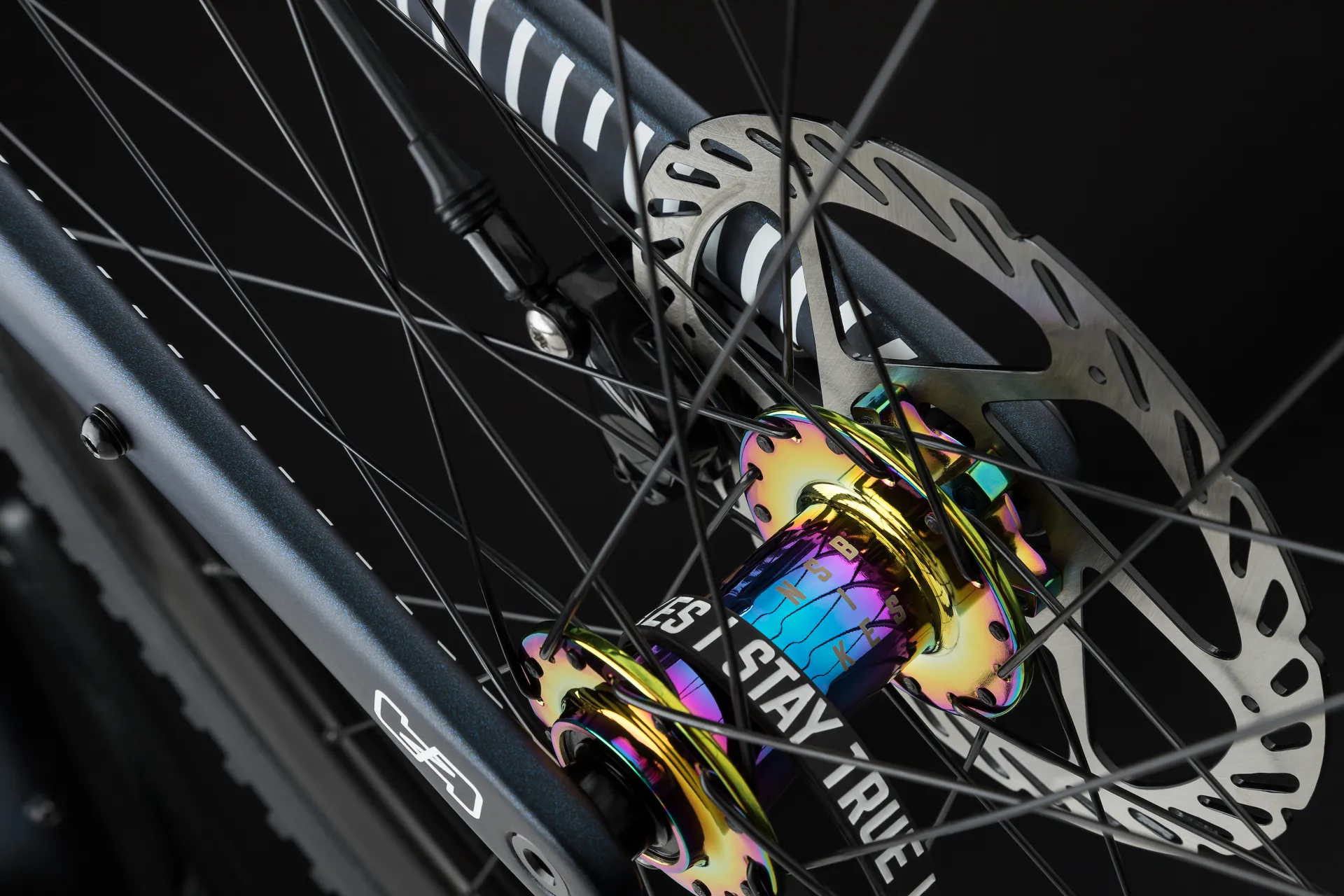

NS Rotary 15 disc (sealed bearing), NS Rotary Cassette 142 (sealed bearings)

SPOKES

Butted 2.0-1.5-2.0 w/ 14mm nipples

TYRES

WTB Raddler TCS 700 x 40mm

SEATPOST

Kalloy 27.2mm

SADDLE

Octane One Crit, CrMo hollow rails

WEIGHT

9.6 kg (M size on tubeless ready setup, w/o pedals)

PEDALSNo Pedals Included*

**
With so many preferences and options in todays cycling pedals this bike does not come with pedals as standard. You can choose your perfect set by clicking the link below.

Shop Pedals Here



TECHNICAL SPECIFICATIONS

TUBESA6061 T6 Custom form, Butted Aluminium
HEAD TUBEIntegrated Tapered IS42/ IS52
FITS FORKSFits forks Standard 1 1/8 or tapered 1.5 - 11/8 steerer tubes
BOTTOM BRACKETPush Fit (PF) 86.5mm
MAX CHAINRING FITMENTup to 1X 46T
HUB SPACING142x 12mm
DISC BRAKE MOUNTFlat Mount
MAX RECOMMENDED TYRE700x x 40 / 650b x 2.2"
SEAT POST CLAMP27.2 / 31.8
REAR DERAILLEURHanger Included
FRAME WEIGHT1800 grams
Sizing Information

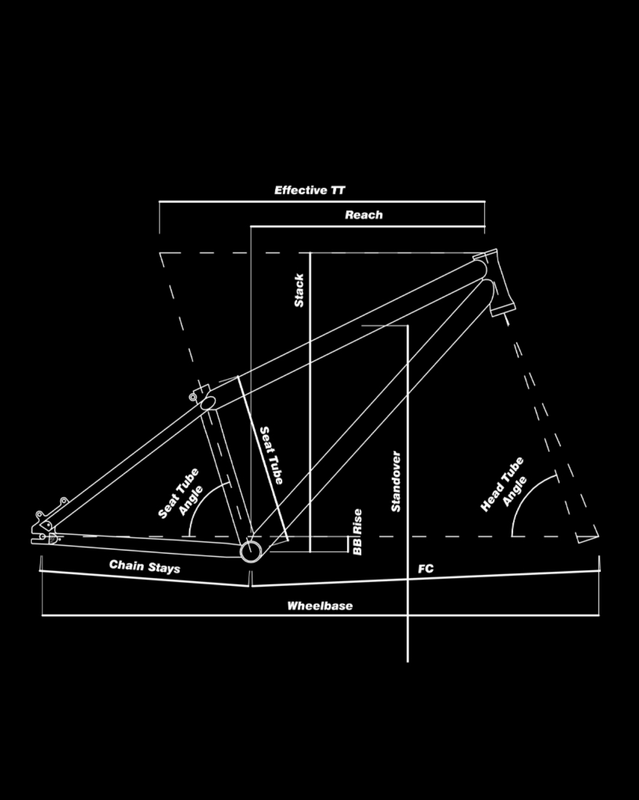

NS Bikes Rag+ Geometry

Rag + 2SMLXL
Wheelsize
ForktravelA-C 400mmA-C 400mmA-C 400mmA-C 400mm
Crank lengthmm170170175175
Stem lengthmm8090100110
Handlebar lengthmm420420440440
Reachmm374382391400
in14,715,015,415,7
FCmm591597615630
in23,323,524,224,8
Standovermm759788817844
in29.931,032,233,1
Stackmm536559587605
in21,122,023,123,8
Effective TTmm538553570585
in21,221,822,423,0
Actual TTmm515530548564
in20,320,921,622,2
Seat tubemm475510540570
in18,721,021,322,4
Chain staysmm420420420420
in16,516,516,516,5
BB risemm-70-70-70-70
in-2,8-2,8-2,8-2,8
Headtubeangle70,571,571,571,5
mm110130160180
ST angleeffective73,073,073,073,0
Wheelbasemm1001100610251040
in39,439,640,440,9
