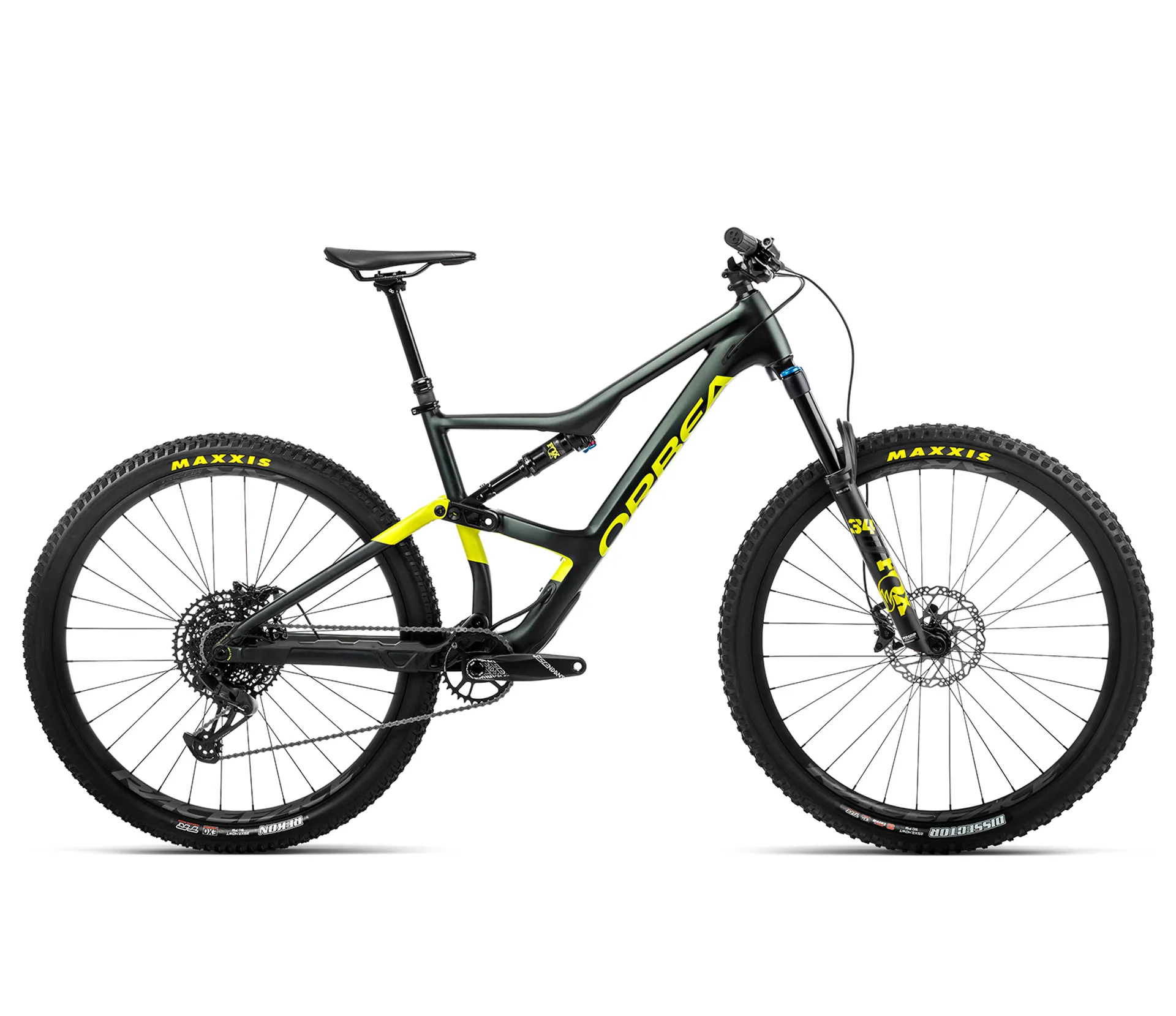

Orbea Occam H20 SRAM Eagle 12Spd Mountain Bike 2022/23 Dark Green/Lime

Season:2023

Brand:Orbea

Code:22-ORB-M251-LO



Do your best routes frequently involve pushing up and down trails that aren’t on any map? Do your favorite rides begin or end with bike lights on full beam? Does your bike have to do everything well to get you there and back again? If you think you might be this rider, then the 2002 Orbea Occam should be your bike.

In 2020 Orbea launched the Occam with fantastic success, winning many MTB awards. The feedback from the media and users is that people love the versatility of the Occam. Striking the perfect balance between its pedalling efficiency and overall lightweight agility combined with its modern geometry and uper smooth suspension performance. Riders love its aesthetics with the asymmetric design. Its a bike with serious game and pedigree with fast and funderous speed in it's backbone.

The 2022 Occam is now lighter and simpler, thanks to savings from complex yokes and additional pivot axles and hardware. Now stiffer through an updated design of moving the pivot to the rear axle, increasing precission and handling and better braking performance with significantly reduced feedback under rough terrain.


ONE OCCAM.TWO VARIATIONS.
With mountain bikes reaching bigger summits and descending lines before unthinkable, what we are seeing is a wide range of different OCCAM users.

On one hand we see all round users and adventure riders who want the Occam for epic rides and value the climbing efficiency and light weight combined with the confidence the geometry and suspension offers for the descents.
On the other hand we see other users who value the descending ability of the Occam above all and are using the bike in a much more aggressive way and value the nimble, fun descending characteristics of the bike. For these reasons we are going to offer two versions of the Occam, the standard Occam and the Occam LT.



ORBEA OCCAM 2022 FRAME HIGHLIGHTS
For 2022, Orbea have given the Occam a new two-part linkage design. Fewer pieces mean fewer interfaces. Resulting in greater rigidity and stifness with drasticaly lower chances of something working loose through miles of off road mountain trail abuse.

With an Asymmetrical rear shock design, the Occam offsets the rear shock to the left side of the frame, providing ample amounts of super plush suspension travel over the less efficent "shock tunnel" design.


YOUR SUSPENSION. YOUR WAY.
Today's modern trail bikes are used for an impressive variety of terrain and need to be adaptable. The Occam is designed to work well with both 140mm or 150mm of front and rear suspension travel, the progressive rear suspension works well both, with either an air or a coil shock.



THE 2022 ORBEA OCCAM H20 FEAURES


THE FRAME
The Occams well-balanced geometry is fast, efficient, and above all fun, making it perfect for trails and light enduro. Its Hydro High Polished Aluminium frame is triple butted with 140mm of rear suspension travel, Boost spacing of 12mm x 148mm spacing, 29" wheel.

THE SUSPENSION
With a FOX Float DPS Performance, featuring 3 position adjust set Assymetric through Occam design, 140mm trave, Custom tunable 210x50mm.
FOX 34 Float Performance front suspension Boost fork. with 140mm travel. 15mm x 110mm Boost Axle.

THE GROUPSET:
Features SRAM's super compliant NX and GX Eagle 12 Speed mountain bike specific groupset, 11 - 50T cassette for a wide range of variable terrain.

Technical Information
FRAMEOrbea Occam Hydro Polished Triple Butted Aluminium, 140mm Travel, 29" Wheel Size, Boost™ 12mmx148mm Axle Spacing
SUSPENSION SHOCKFOX Float DPS Performance 3-Position EVOL custom tune 210mmx50mm
SUSPENSION FORKFOX 34 Float Performance 140 3-position QR 15mmx110mm
CRANKSETSRAM Descendant 6K Eagle DUB Boost 32T
HEADSETOC1 35mm 1-1/8 - 1-1/2" Integrated
HANDLEBAROC1 35mm 12mm Rise / Width: 780mm
STEMOC1 3D Forged 35mm Interface 7°
SHIFTERSRAM NX Eagle
BRAKESShimano M6100 Hydraulic Disc
CASSETTESRAM PG 1230 Eagle 11-50T 12 Speed
REAR DERAILLEURSRAM GX Eagle Lunar
CHAINSRAM NX Eagle 12 Speed
WHEELSETRace Face AR 30c Tubeless Ready
FRONT TYREMaxxis Dissector 2.4" 60 Tpi 3C Maxx Terra EXO Tubeless Ready
REAR TYREMaxxis Rekon 2.4" FB 60 TPi Dual EXO Tubeless Ready
SEATPOSTOC2 Dropper 31.6mm
SEATPOST LEVERShimano SL MT500 l-Spec EV
SADDLEFizik Taiga S-Alloy Rail
PEDALSNot Included
Sizing Information


ORBEA OCCAM 2022 FRAME GEOMETRY

SIZESmallMediumLargeX-Large
1SEAT TUBE (C-T)381419457508
2TOP TUBE (EFF)565592619649
3HEAD TUBE95105120140
4CHAINSTAY440mm
5BB HEIGHT336mm
6BB DROP35353535
7WHEELBASE1165119412241259
8HEAD ANGLE66º66º66º66º
9SEAT ANGLE77º77º77º77º
10STANDOVER710736766776
11REACH425450474500
12STACK604613627646
13FORK LENGTH547mm
FORK RAKE44mm
* All measurements are in millimetres.


SPECIFICATION MEASUREMENTS

SIZECRANKSTEMHANDLEBARDROPPER SEATPOST
Small170mm45mm780mm390 Length / 125mm Travel
Medium170mm45mm780mm440 Length / 150mm Travel
Large175mm55mm780mm440 Length / 150mm Travel
X-Large175mm55mm780mm480 Length /170mm Travel


RIDER HEIGHT INFORMATION

FRAME SIZEHEIGHT ( CM )HEIGHT ( IN )
SMALL150-16559.1"- 65.0"
MEDIUM160-17563.0"- 68.9"
LARGE170-18566.9"- 72.8"
X-LARGE180-19870.9"- 78.0"
