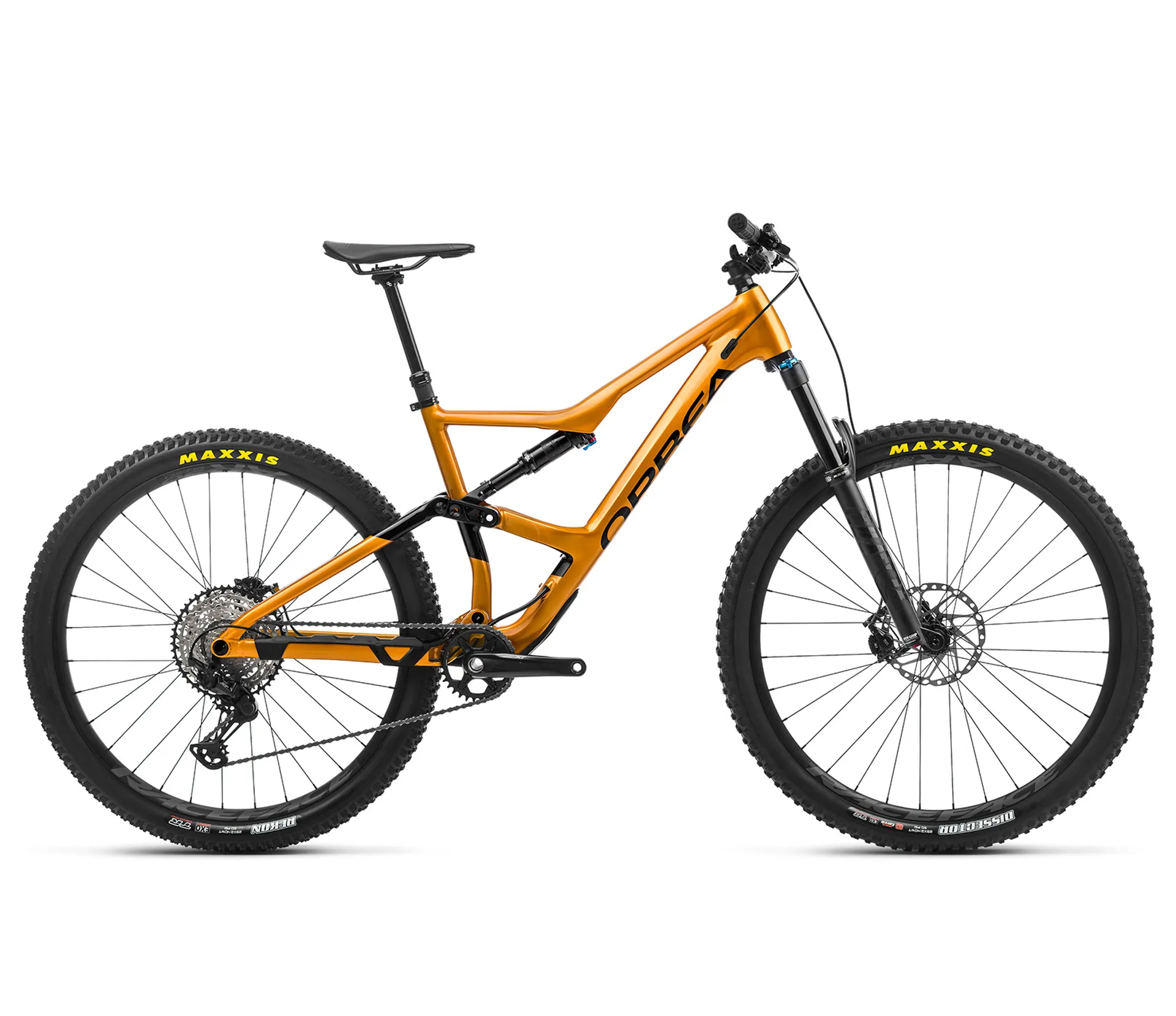

Orbea Occam H10 Shimano XT 12Spd Mountain Bike 2022/23 Orange Black

£2,549.00 £4,099.00 38% off
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Not happy with your purchase? Send it back to us or return in any of our stores and we will give you a full refund or exchange!

Returns

In the unlikely event that you are dissatisfied with your purchase please feel free to return your goods within 60 days of the purchase date for a full exchange or refund. Any item (excluding food and underwear) can be returned to us for any reason provided it is returned in ‘showroom condition’, with its original packaging, tags and a valid receipt/delivery note.

Simply box up your items for return, include a cover note with the word REFUND or EXCHANGE inside & follow the below steps for safe return to our warehouse; where your return will be processed promptly.

Return Items by Post

It is your responsibility to ensure that the item is returned to us in a safe and secure manner, and in the event of a refund or exchange, in saleable condition (in original packaging and including all warranty, cards, manuals and accessories).

Customers are accountable for return shipping charges.

  1. You should always keep proof of postage and we advise you to use a ‘signed for service’ when returning goods.
  2. Send your package using a recorded delivery method (always keep a copy of your receipt!) to the following address:

Leisure Lakes Bikes Returns,
Unit 1 Osprey Place
Titan Way,
Leyland,
PR26 7EW

Checkout by Amazon Returns

If you used the pay by Amazon option when checking out then please send your package using a recorded delivery method (always keep a copy of your receipt!) with a note inside stating whether you want an exchange (what you want it exchanging for) or refund, to the following address:

Leisure Lakes Bikes Returns,
Unit 1 Osprey Place
Titan Way,
Leyland,
PR26 7EW

Bike & Bulky Item Returns

If you wish to return your bike to us please keep it in the box it arrived in and call us on 01772 644340 and we will arrange a collection.

Please note the following:

  • a) If we have sent you the incorrect bicycle, we will cover the cost of collection and delivery of the correct model.
  • b) If we have delivered the bicycle you ordered, but upon inspection you decide it is not the bike for you, we will charge you £50.00 for the collection.

Please do not ride the bike as a full refund cannot be given if the bike has been used or damaged.

Return Items to a store

Any item (excluding food and underwear) can be returned to any Leisure Lakes Bikes store not just the one you made your purchase at, including those made online. The item must be returned in ‘showroom condition’, with its original packaging, tags and with a valid receipt/delivery note.

Wrong size or you don't like the item?

If returning items that are not suitable for either refund or exchange you are accountable for the delivery cost in returning it to us. You should always keep proof of postage and we advise you to use a ‘signed for service’ when returning goods.

New faulty items/ Wrong Item Received

If you have received items that are faulty or not what you ordered send them back to us (using the steps above) and we will cover the delivery cost of the return if it is within 14 days of delivery. If we have supplied the correct product, it is not faulty or it is outside of the 14 days we can not be liable for your postage charges. You should always keep proof of postage and we advise you to use a ‘signed for service’ when returning goods.

In the event that you have received items that are fault or not what you ordered, please send them back to us as soon as possible. Only in these cases will we cover the cost of the return shipping charges.

Faulty Items

If you have received items that are faulty please send them back to us using the steps above. Please include a covering letter describing the fault and if you would like the item replacing or refunding. Once the item arrives back at our Mail Order Centre you will receive an email notifying you about the progress. Faulty items are then forwarded onto the suppliers to confirm the warranty issue. Please be patient with us as we need to receive this confirmation from the suppliers before we can process your request for a replacement/refund.

When returning the item please use Royal Mail1stClass Recorded* so that you have a tracking reference just in case! If your item arrived faulty we will refund your postage cost. If the item was in full working order at the time of delivery to you, we can not refund your return postage cost.

*In the event that you return a faulty/incorrect item we will refund your postage charge as long as it is 1stClass Recorded or a lesser value service. We do not refund premium services.

Refunds

Refunds will be processed using the same method of payment used for the original purchase. Credit and debit card refunds must be made to the card used for the original transaction, cheque payments will be refunded in cash but due to banking restrictions can only be refunded at least 14 days after the original purchase date. Due to the high incidence of fraud we regret that we are unable to offer any refund without a valid receipt/delivery note.

Refunds will be made for faulty or incorrect items, including any delivery charge incurred by the buyer (excluding ‘Special Delivery’) in the return of the item. If the products you ordered are delivered to you in good condition but you wish to return them for any reason we will refund the full value of the goods excluding any carriage charge upon receipt of your returned goods.

Items won’t be considered lost until after 15 working days of items beingdispatched. Once the 15 working days are up we will issue a refund or replacement.

Not received your order?

If you have not received your order please call us on 01772 644340 and a member of staff can confirm the shipping date. Unfortunately we cannot consider an item to be lost until 15 working days has passed (according to Royal Mail procedure). Once the 15 working days have passed we will be able to issue a full refund or resend your order.

Orbea Occam H10 Shimano XT 12Spd Mountain Bike 2022/23 Orange Black

Season:2023

Brand:Orbea

Code:22-ORB-M253-LN



Do your best routes frequently involve pushing up and down trails that aren’t on any map? Do your favorite rides begin or end with bike lights on full beam? Does your bike have to do everything well to get you there and back again? If you think you might be this rider, then the Orbea Occam should be your bike.

Orbea launched the Occam with fantastic success, winning many MTB awards. The feedback from the media and users is that people love the versatility of the Occam. Striking the perfect balance between its pedalling efficiency and overall lightweight agility combined with its modern geometry and uper smooth suspension performance. Riders love its aesthetics with the asymmetric design. Its a bike with serious game and pedigree with fast and funderous speed in it's backbone.

The Occam is now lighter and simpler, thanks to savings from complex yokes and additional pivot axles and hardware. Now stiffer through an updated design of moving the pivot to the rear axle, increasing precission and handling and better braking performance with significantly reduced feedback under rough terrain.


ONE OCCAM.TWO VARIATIONS.
With mountain bikes reaching bigger summits and descending lines before unthinkable, what we are seeing is a wide range of different OCCAM users.

On one hand we see all round users and adventure riders who want the Occam for epic rides and value the climbing efficiency and light weight combined with the confidence the geometry and suspension offers for the descents.
On the other hand we see other users who value the descending ability of the Occam above all and are using the bike in a much more aggressive way and value the nimble, fun descending characteristics of the bike. For these reasons we are going to offer two versions of the Occam, the standard Occam and the Occam LT.



ORBEA OCCAM FRAME HIGHLIGHTS
Orbea have given the Occam a new two-part linkage design. Fewer pieces mean fewer interfaces. Resulting in greater rigidity and stifness with drasticaly lower chances of something working loose through miles of off road mountain trail abuse.

With an Asymmetrical rear shock design, the Occam offsets the rear shock to the left side of the frame, providing ample amounts of super plush suspension travel over the less efficent "shock tunnel" design.


YOUR SUSPENSION. YOUR WAY.
Today's modern trail bikes are used for an impressive variety of terrain and need to be adaptable. The Occam is designed to work well with both 140mm or 150mm of front and rear suspension travel, the progressive rear suspension works well both, with either an air or a coil shock.



THE ORBEA OCCAM H10 FEAURES


THE FRAME
The Occams well-balanced geometry is fast, efficient, and above all fun, making it perfect for trails and light enduro. Its Hydro High Polished Aluminium frame is triple butted with 140mm of rear suspension travel, Boost spacing of 12mm x 148mm spacing, 29" wheel.

THE SUSPENSION
With a FOX Float DPS Performance, featuring 3 position adjust set Assymetric through Occam design, 140mm trave, Custom tunable 210x50mm.
FOX 34 Float Performance front suspension Boost fork. with 140mm travel. 15mm x 110mm Boost Axle.

THE GROUPSET:
Features Shimano's rapid shifting and super compliant and XT 12 Speed mountain bike specific groupset, 10 - 51T cassette for a wide range of variable terrain.

Technical Information
FRAMEOrbea Occam Hydro Polished Triple Butted Aluminium, 140mm Travel, 29" Wheel Size, Boost™ 12mmx148mm Axle Spacing
SUSPENSION SHOCKFOX Float DPS Performance 3-Position EVOL custom tune 210mmx50mm
SUSPENSION FORKFOX 34 Float Performance 140 3-position QR 15mmx110mm
CRANKSETShimano XT M8100 32T
HEADSETOC1 35mm 1-1/8 - 1-1/2" Integrated
HANDLEBAROC1 35mm 12mm Rise / Width: 780mm
STEMOC1 3D Forged 35mm Interface 7°
SHIFTERShimano XT M8100 l-Spec EV
BRAKESShimano M8100 Hydraulic Disc
CASSETTEShimano CS M7100 10-51T 12 Speed
REAR DERAILLEURShimano XT M8100 SGS Shadow Plus
CHAINShimano M6100
WHEELSETRace Face AR 30c Tubeless Ready
FRONT TYREMaxxis Dissector 2.4" 60 Tpi 3C Maxx Terra EXO Tubeless Ready
REAR TYREMaxxis Rekon 2.4" FB 60 TPi Dual EXO Tubeless Ready
SEATPOSTOC2 Dropper 31.6mm
SEATPOST LEVERShimano SL MT500 l-Spec EV
SADDLEFizik Taiga S-Alloy Rail
PEDALSNot Included
Sizing Information



ORBEA OCCAM 2022 FRAME GEOMETRY

SIZESmallMediumLargeX-Large
1SEAT TUBE (C-T)381419457508
2TOP TUBE (EFF)565592619649
3HEAD TUBE95105120140
4CHAINSTAY440mm
5BB HEIGHT336mm
6BB DROP35353535
7WHEELBASE1165119412241259
8HEAD ANGLE66º66º66º66º
9SEAT ANGLE77º77º77º77º
10STANDOVER710736766776
11REACH425450474500
12STACK604613627646
13FORK LENGTH547mm
FORK RAKE44mm
* All measurements are in millimetres.


SPECIFICATION MEASUREMENTS

SIZECRANKSTEMHANDLEBARDROPPER SEATPOST
Small170mm45mm780mm390 Length / 125mm Travel
Medium170mm45mm780mm440 Length / 150mm Travel
Large175mm55mm780mm440 Length / 150mm Travel
X-Large175mm55mm780mm480 Length /170mm Travel


RIDER HEIGHT INFORMATION

FRAME SIZEHEIGHT ( CM )HEIGHT ( IN )
SMALL150-16559.1"- 65.0"
MEDIUM160-17563.0"- 68.9"
LARGE170-18566.9"- 72.8"
X-LARGE180-19870.9"- 78.0"
