Cube's top-flight XC bike. for riders seeking the fastest, stiffest & lightest bike to help achieve their race goals. It's everything you could wish for in a bike built to get from A - B via fun trails, as fast as possible.
Cube's top-flight XC bike. for riders seeking the fastest, stiffest & lightest bike to help achieve their race goals. It's everything you could wish for in a bike built to get from A - B via fun trails, as fast as possible.
Cube

Cube AMS 100 C:68 Race Carbon Mountain Bike 2020 Carbon/Grey

Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Not happy with your purchase? Send it back to us or return in any of our stores and we will give you a full refund or exchange!

Returns

In the unlikely event that you are dissatisfied with your purchase please feel free to return your goods within 60 days of the purchase date for a full exchange or refund. Any item (excluding food and underwear) can be returned to us for any reason provided it is returned in ‘showroom condition’, with its original packaging, tags and a valid receipt/delivery note.

Simply box up your items for return, include a cover note with the word REFUND or EXCHANGE inside & follow the below steps for safe return to our warehouse; where your return will be processed promptly.

Return Items by Post

It is your responsibility to ensure that the item is returned to us in a safe and secure manner, and in the event of a refund or exchange, in saleable condition (in original packaging and including all warranty, cards, manuals and accessories).

Customers are accountable for return shipping charges.

  1. You should always keep proof of postage and we advise you to use a ‘signed for service’ when returning goods.
  2. Send your package using a recorded delivery method (always keep a copy of your receipt!) to the following address:

Leisure Lakes Bikes,
Unit 9 Centurion Industrial Estate,
Centurion Way,
Leyland,
PR25 4GU

Checkout by Amazon Returns

If you used the pay by Amazon option when checking out then please send your package using a recorded delivery method (always keep a copy of your receipt!) with a note inside stating whether you want an exchange (what you want it exchanging for) or refund, to the following address:

Leisure Lakes Bikes
Unit 9 Centurion Industrial Estate
Centurion Way
Leyland,
PR25 4GU

Bike & Bulky Item Returns

If you wish to return your bike to us please keep it in the box it arrived in and call us on 01772 644340 and we will arrange a collection.

Please note the following:

  • a) If we have sent you the incorrect bicycle, we will cover the cost of collection and delivery of the correct model.
  • b) If we have delivered the bicycle you ordered, but upon inspection you decide it is not the bike for you, we will charge you £50.00 for the collection.

Please do not ride the bike as a full refund cannot be given if the bike has been used or damaged.

Return Items to a store

Any item (excluding food and underwear) can be returned to any Leisure Lakes Bikes store not just the one you made your purchase at, including those made online. The item must be returned in ‘showroom condition’, with its original packaging, tags and with a valid receipt/delivery note.

Wrong size or you don't like the item?

If returning items that are not suitable for either refund or exchange you are accountable for the delivery cost in returning it to us. You should always keep proof of postage and we advise you to use a ‘signed for service’ when returning goods.

New faulty items/ Wrong Item Received

If you have received items that are faulty or not what you ordered send them back to us (using the steps above) and we will cover the delivery cost of the return if it is within 14 days of delivery. If we have supplied the correct product, it is not faulty or it is outside of the 14 days we can not be liable for your postage charges. You should always keep proof of postage and we advise you to use a ‘signed for service’ when returning goods.

In the event that you have received items that are fault or not what you ordered, please send them back to us as soon as possible. Only in these cases will we cover the cost of the return shipping charges.

Faulty Items

If you have received items that are faulty please send them back to us using the steps above. Please include a covering letter describing the fault and if you would like the item replacing or refunding. Once the item arrives back at our Mail Order Centre you will receive an email notifying you about the progress. Faulty items are then forwarded onto the suppliers to confirm the warranty issue. Please be patient with us as we need to receive this confirmation from the suppliers before we can process your request for a replacement/refund.

When returning the item please use Royal Mail1stClass Recorded* so that you have a tracking reference just in case! If your item arrived faulty we will refund your postage cost. If the item was in full working order at the time of delivery to you, we can not refund your return postage cost.

*In the event that you return a faulty/incorrect item we will refund your postage charge as long as it is 1stClass Recorded or a lesser value service. We do not refund premium services.

Refunds

Refunds will be processed using the same method of payment used for the original purchase. Credit and debit card refunds must be made to the card used for the original transaction, cheque payments will be refunded in cash but due to banking restrictions can only be refunded at least 14 days after the original purchase date. Due to the high incidence of fraud we regret that we are unable to offer any refund without a valid receipt/delivery note.

Refunds will be made for faulty or incorrect items, including any delivery charge incurred by the buyer (excluding ‘Special Delivery’) in the return of the item. If the products you ordered are delivered to you in good condition but you wish to return them for any reason we will refund the full value of the goods excluding any carriage charge upon receipt of your returned goods.

Items won’t be considered lost until after 15 working days of items beingdispatched. Once the 15 working days are up we will issue a refund or replacement.

Not received your order?

If you have not received your order please call us on 01772 644340 and a member of staff can confirm the shipping date. Unfortunately we cannot consider an item to be lost until 15 working days has passed (according to Royal Mail procedure). Once the 15 working days have passed we will be able to issue a full refund or resend your order.

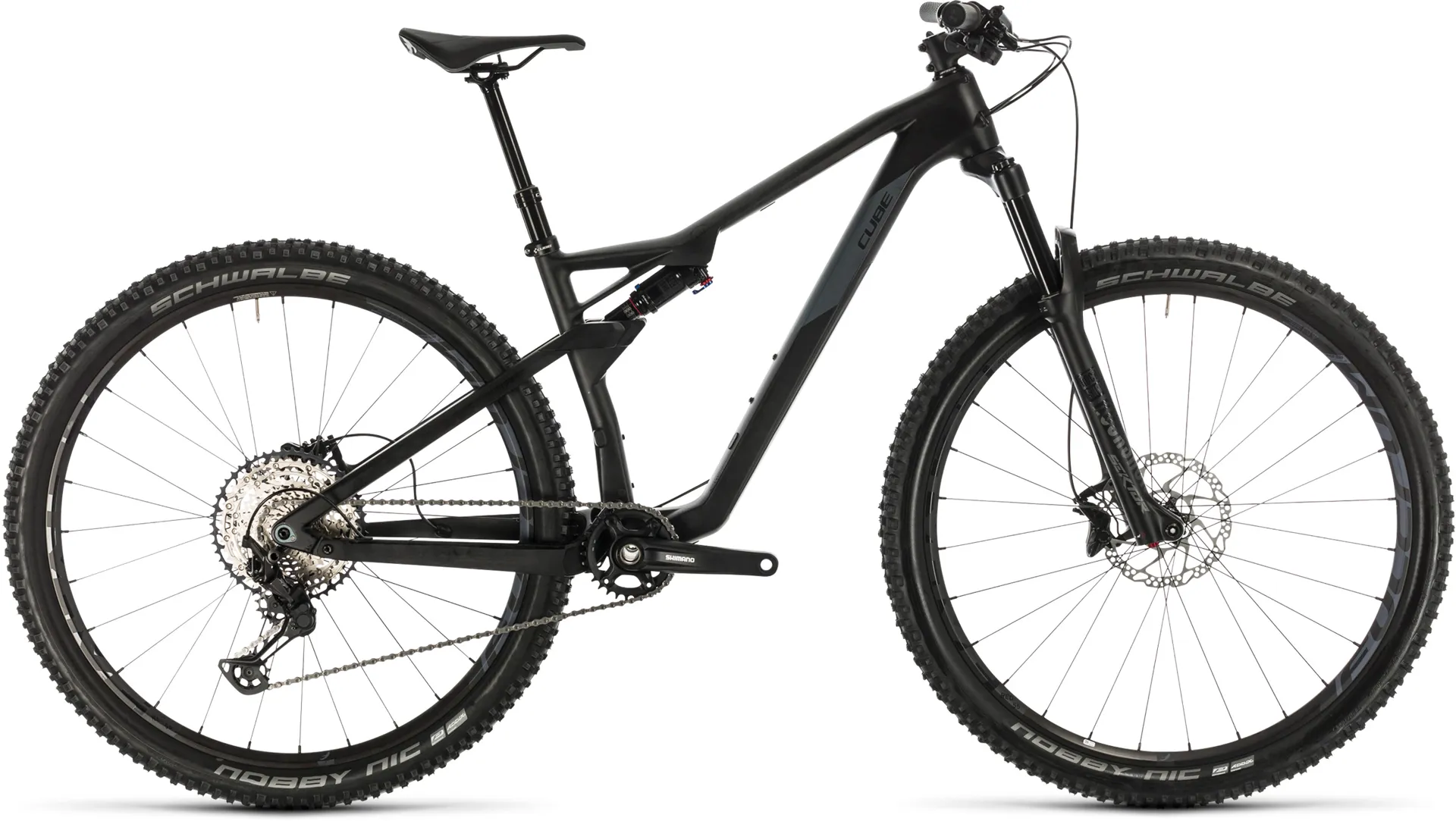

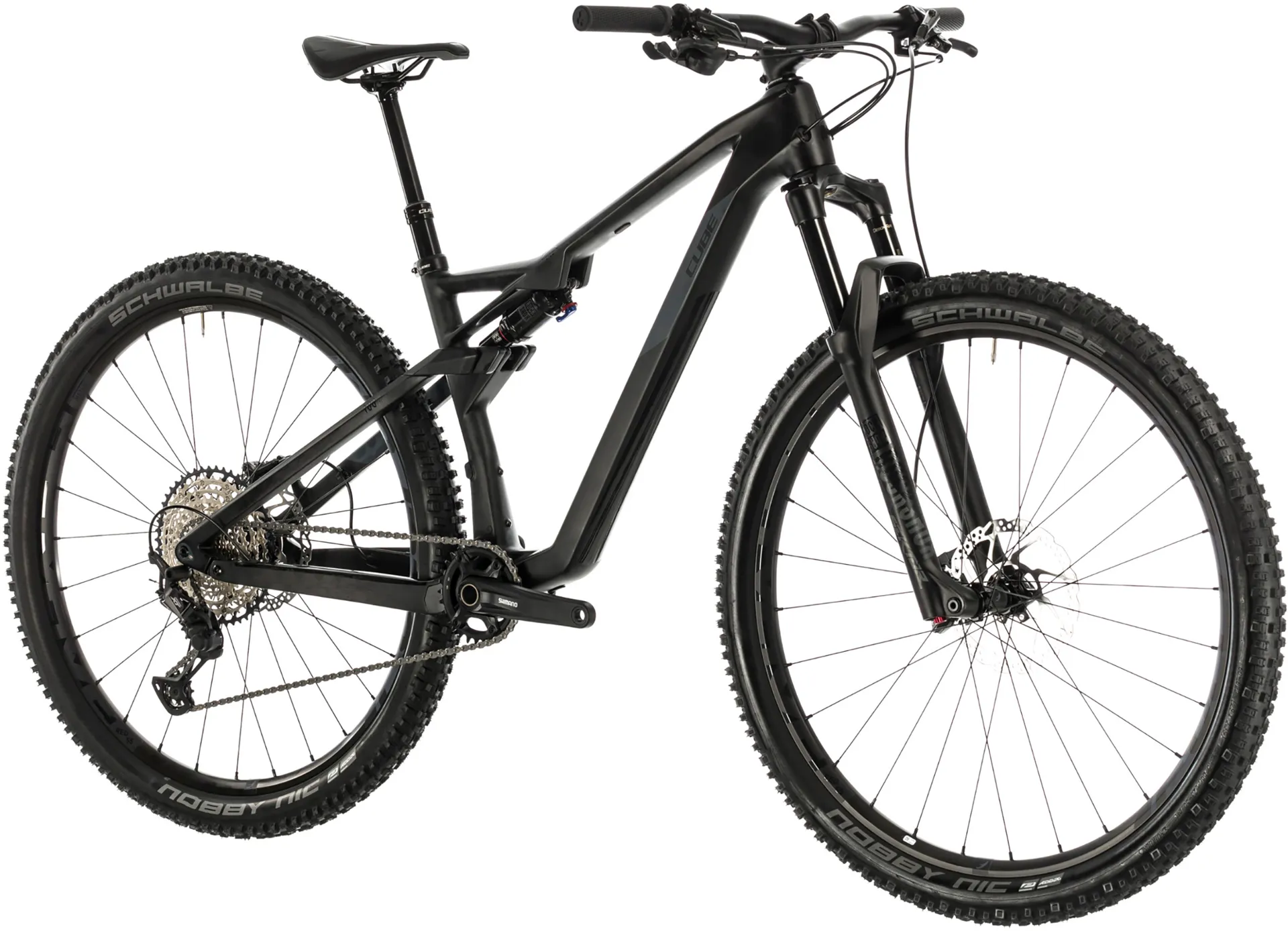

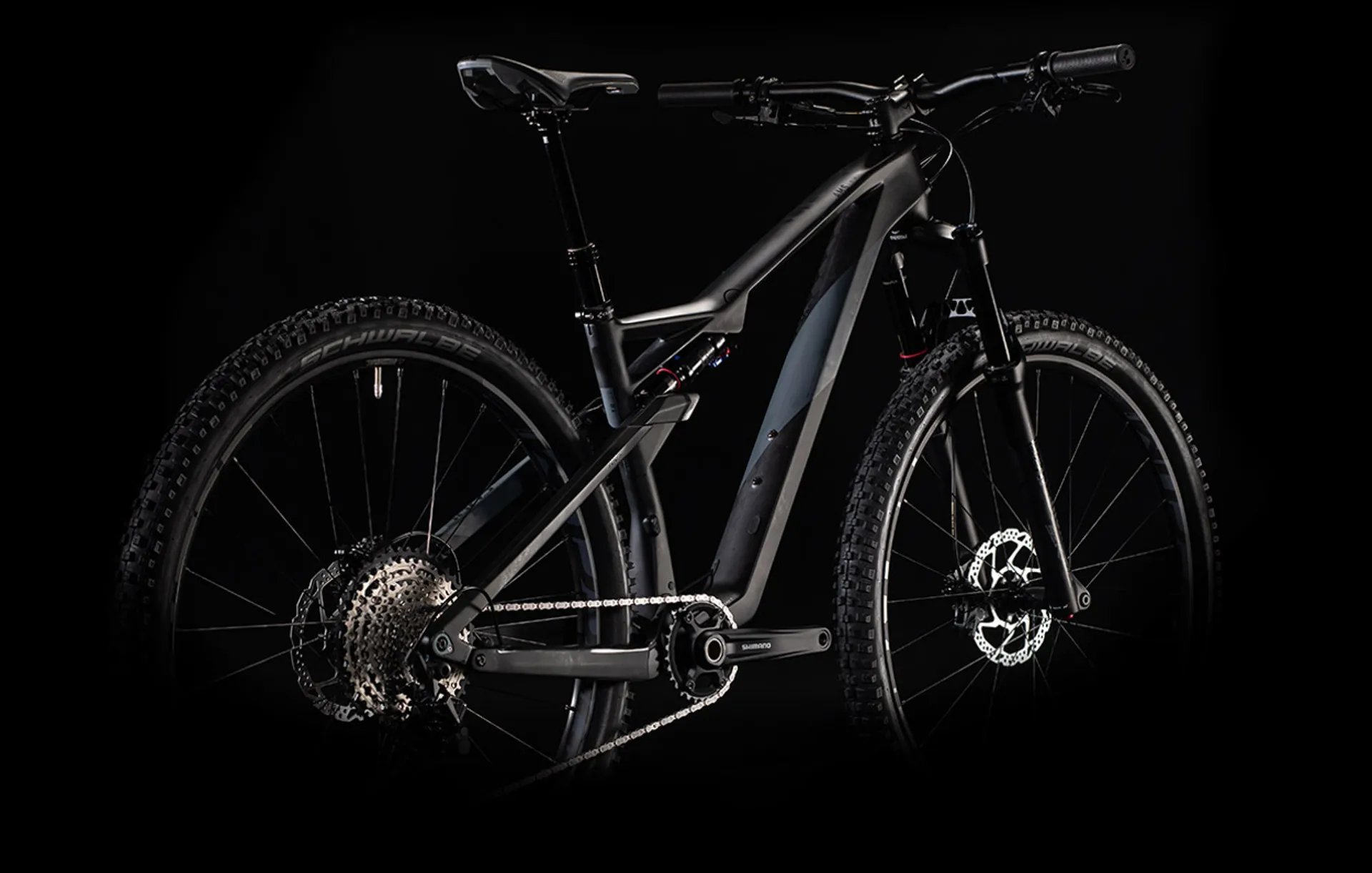

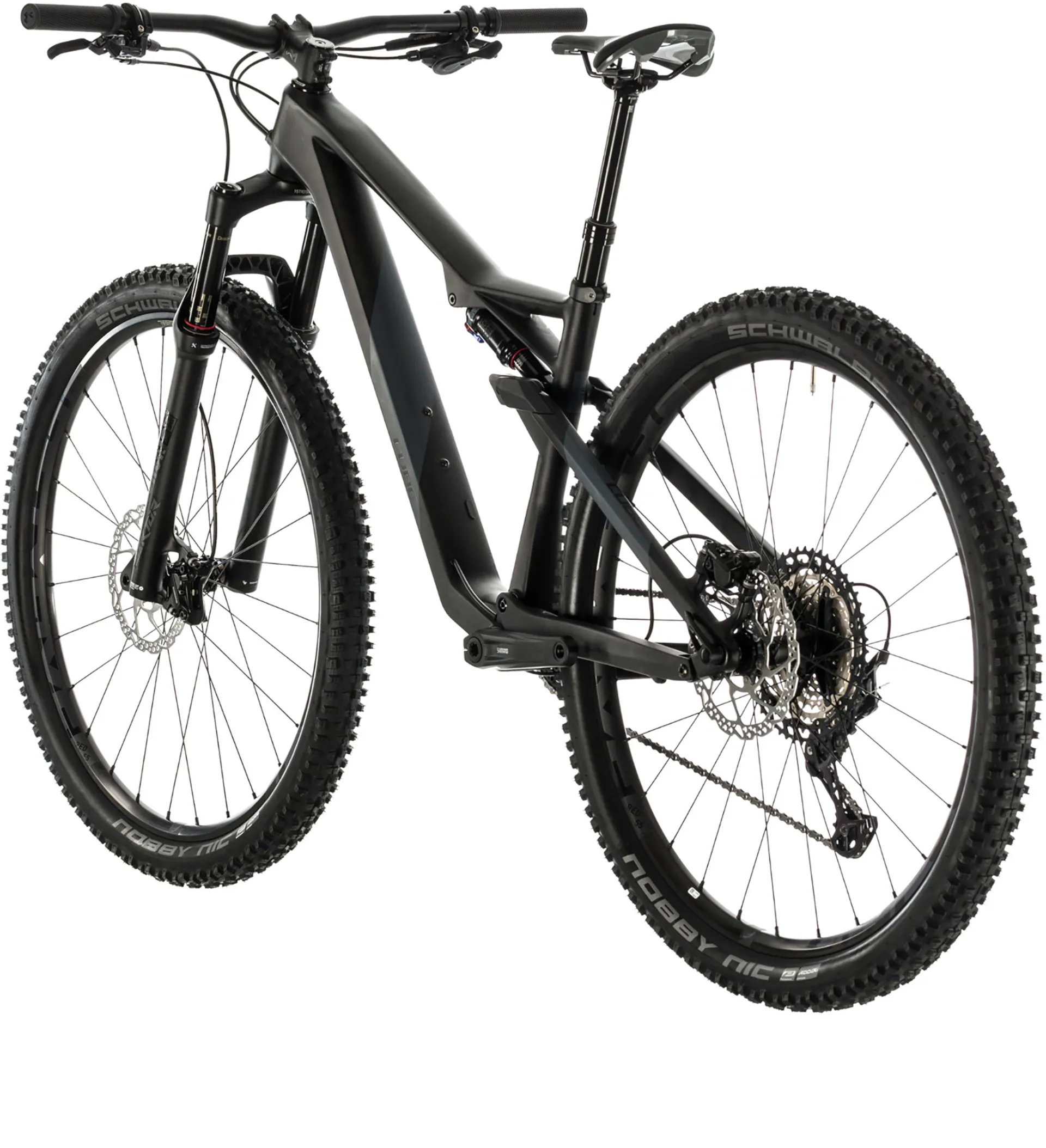

Cube AMS 100 C:68 Race Carbon Mountain Bike 2020 Carbon/Grey

Season:2020

Brand:Cube

Code:35210016-CUBE20

Image of 4

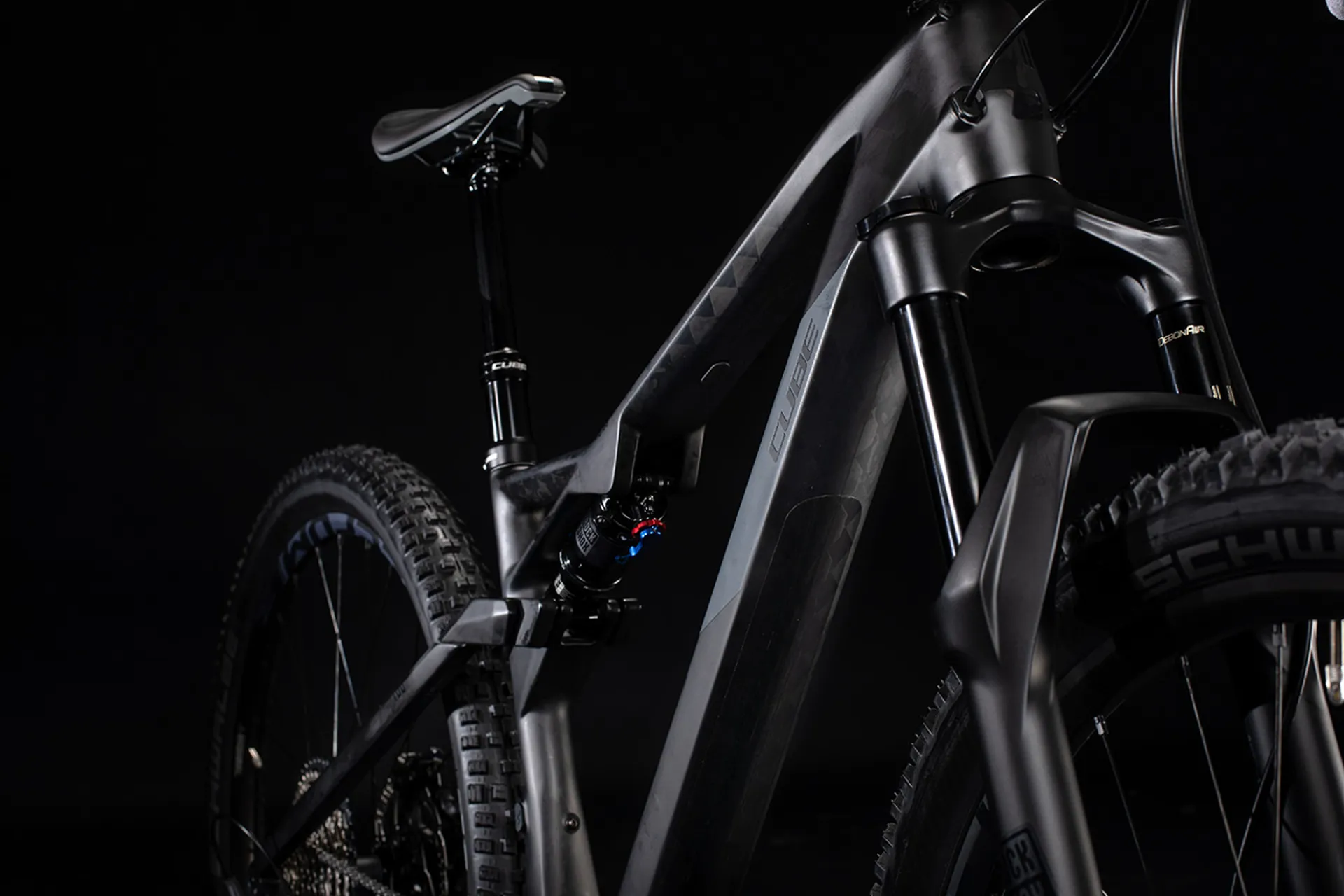

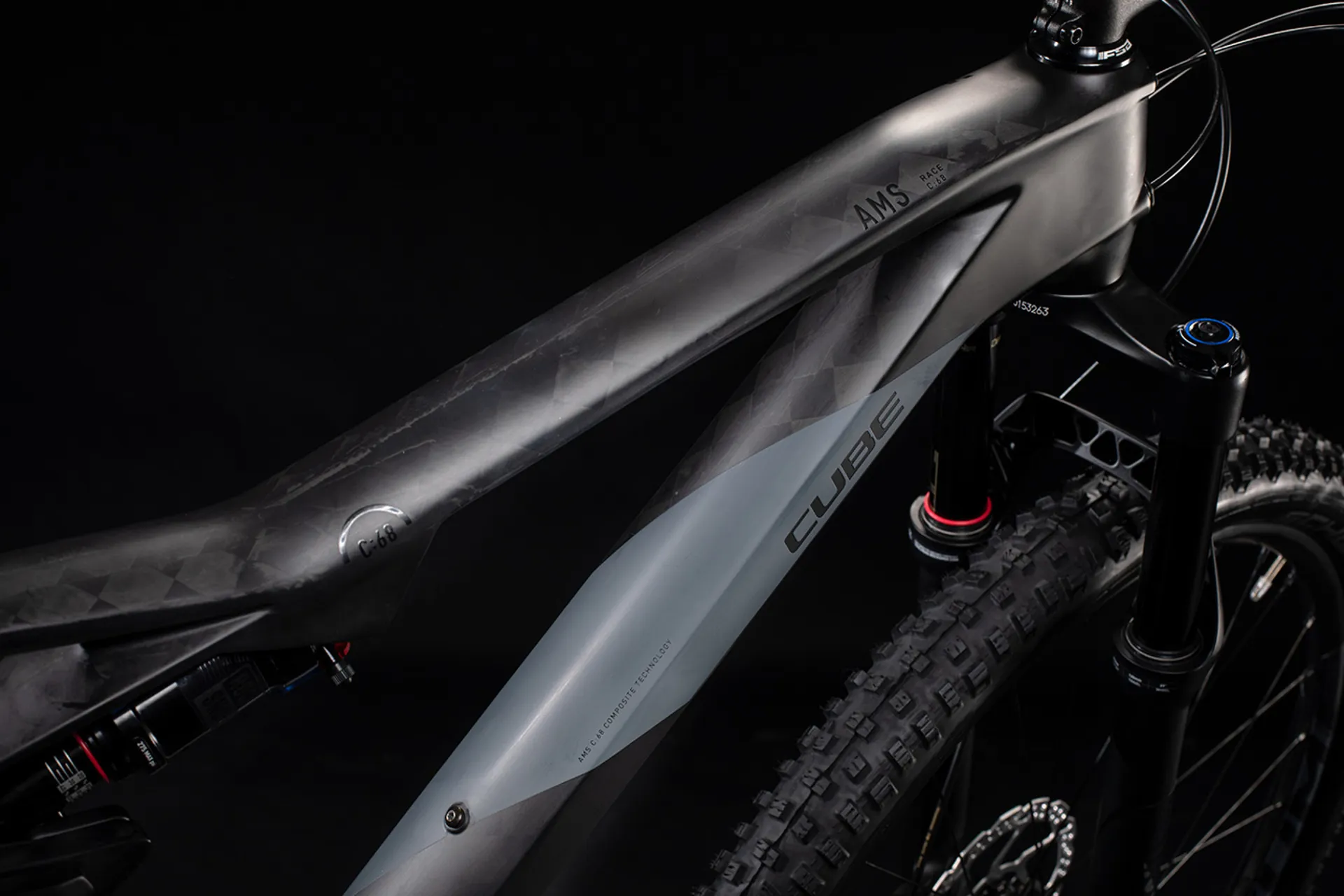

Cube's top-flight cross-country race machine resets the bar for riders seeking the fastest, stiffest and lightest bike to help them achieve their race goals. Building on the proven efficiency of our well-established four-bar suspension platform, our engineers designed the AMS 100 C:68 Race 29's chassis around our proprietary C:68 featherweight carbon technology. Advanced Twin Mold technology allowed them to create a fast trail bike that blends low weight, ground-hugging control and supreme efficiency. But they didn't stop there. RockShox suspension technology - with a Boost rear end, tapered steerer and thru-axle fork - keeps both wheels glued to the trail for the ultimate in forward propulsion and steering accuracy, with a full 120mm of travel up front. Newmen cockpit components and a CUBE 130mm dropper post make tackling tricky trail obstacles a breeze, while Shimano's 12-speed transmission and hydraulic disc brakes - with 4-piston front calliper - deliver precise power exactly when you need it. Big-volume Schwalbe tyres on a Fulcrum Red 55 wheelset round off the package. Add it all up and it's everything the you could wish for in a bike built to get from A to B via the most fun trails, as fast as possible.

Cube have more than a decade and a half's experience making fast, light cross-country full-suspension bikes. Everything they've learnt during that time has gone into this frame. From the Boost 148 rear end and tapered head tube - which contribute to the AMS 100's superlative pedalling efficiency and uncannily accurate steering - to the superlight C:68 carbon construction and Advanced Twin Mold technology, everything about this frame serves one purpose: to make it the fastest way to get from A to B cross country. Stealth dropper post compatibility makes for a simple upgrade, internal cable routing keeps gear shifts clean even on the muddiest of race courses, and the super-clean appearance is given a helping hand by hiding bolts and pivots away.





Cube AMS 100 C:68 Carbon Build Features

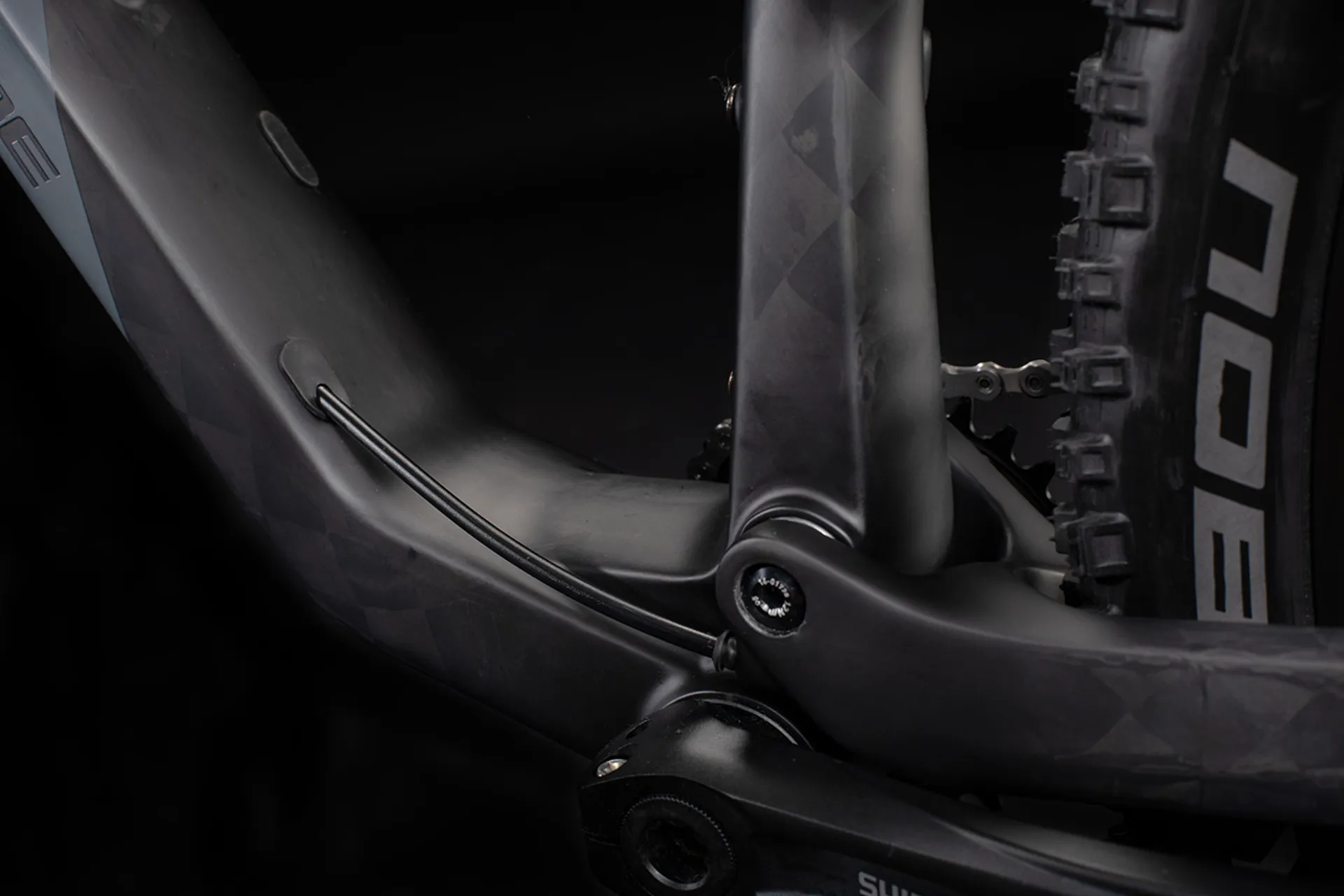

  • C:68 Monocoque Advanced Twin Mold Carbon 4-Link Frame, Boost™ 148mm AXH
  • RockShox Sektor RL Air 15x110mm Taoered Suspension Fork with 120mm travel
  • Shimano BR-MT520/MT500, Hydraulic Disc Brakes (180mm/180mm) rotors

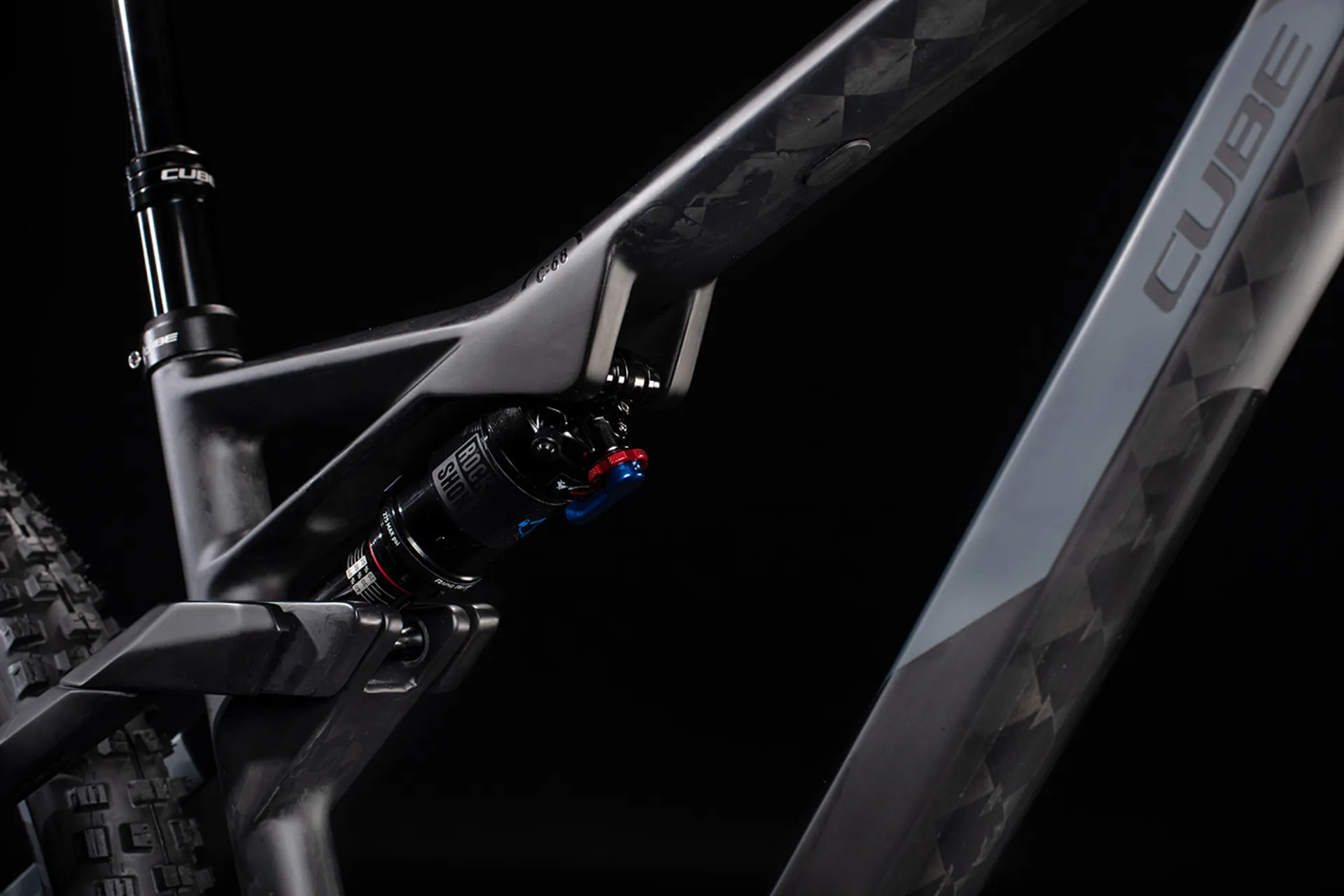

  • RockShox Monarch RL, Rear Shock 165x38mm
  • Fulcrum Red 55 28H Wheelset, Tubeless Ready

































































Technical Information
FRAME C:68 Monocoque Advanced Twin Mold Technology, ARG, ERC, FSP 4-Link, Boost 148, AXH
SIZES AVAILABLE 16", 18", 20", 22"
FORK RockShox Sektor RL Air, 15x110mm, Tapered, 120mm
SHOCK RockShox Monarch RL, 165x38mm
HEADSET FSA Orbit I-t, Integrated, Top 1 1/8", Bottom 1 1/2"

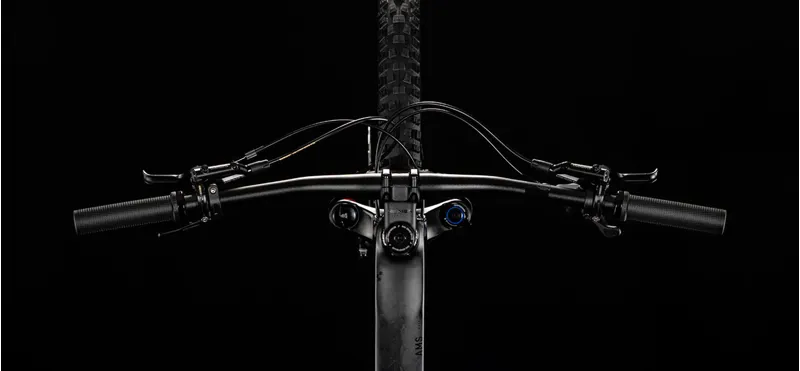

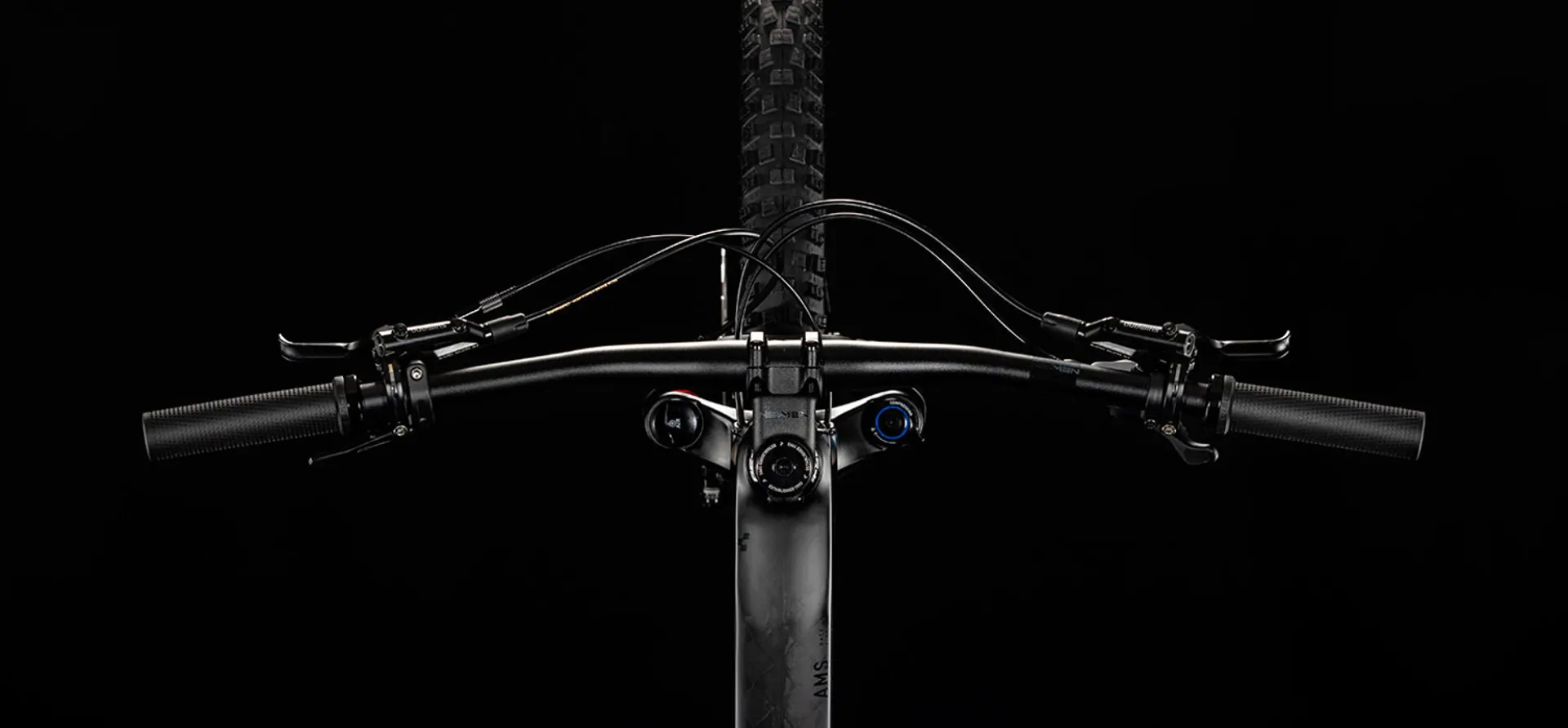

STEM Newmen Evolution 318.4, 31.8mm
HANDLEBAR Newmen Evolution 318.20, 760mm
GRIPS CUBE Race SL Grip 29.5mm, 1-Clamp
BRAKE SYSTEM Shimano BR-MT520/MT500, Hydr. Disc Brake (180/180)
CRANKSET Shimano FC-MT610, Boost, 30T, 175mm (170mm for 16" frame size)
CHAIN Shimano CN-M7100
COLOUR Carbon´n´grey
SHOCK HARDWARE Front: 30x8mm, Rear: 30x8mm
WHEELSET Fulcrum Red 55, 28/28 Spokes, 15x110mm / 12x148mm, 622x23C, Tubeless Ready
TYRES Schwalbe Nobby Nic, Addix Performance, Kevlar, 2.35
SADDLE Natural Fit Nuance Lite
SEAT POST CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm, 425x130mm (403x120mm for smallest frame size)
SEATCLAMP CUBE Screwlock, 34.9mm
WEIGHT 12,6 kg
PEDALS Not Included

CHILDREN‘S BICYCLES WHEEL SIZE 16“-24“

Image of 4

CLASSIFICATION: CATEGORY 0

Kids bikes for paved ways like:

  • Tarmac roads not used by motor driven vehicles and bicycle routes
  • Ways paved by gravel, sand or similar materials (e.g.  re road, dirt road) not used by motor driven vehicles

In doing so the wheels have constant contact to the ground (-> no jumps, no riding on one wheel neither front nor rear, no braking that causes the rear wheel to lift up)

Parents/guardian responsibility:

The intended use (correct use of the bicycle), the instruction how to use, the control and the proper functioning of the bicycle are the parent/guardian responsibility.





Sizing Information
FRAME SIZE 16" 18" 20" 22"
SEAT TUBE
370 420 470 520
TOP TUBE HORIZONTAL
565 590 613 636
SEAT TUBE ANGLE
74.5° 74.5° 74.5° 74.5°
HEAD TUBE ANGLE
70° 70° 70° 70°
CHAIN STAYS
443 443 443 443
HEAD TUBE ANGLE
97 107 117 127
WHEELBASE
1099 1125 1149 1172
BB-HEIGHT TO HUB
-42 -42 -42 -42
REAR TRAVEL
100 100 100 100
REACH
405 427 447 467
STACK
590 600 609 618
WHEELSIZE
29 29 29 29
