Cube set out to make a lighter, more capable all-mountain e-mtb – and the Cube AMS Hybrid 177 C:62 Super TM Electric Bike frame is the heart of it.
Cube set out to make a lighter, more capable all-mountain e-mtb – and the Cube AMS Hybrid 177 C:62 Super TM Electric Bike frame is the heart of it.
Cube

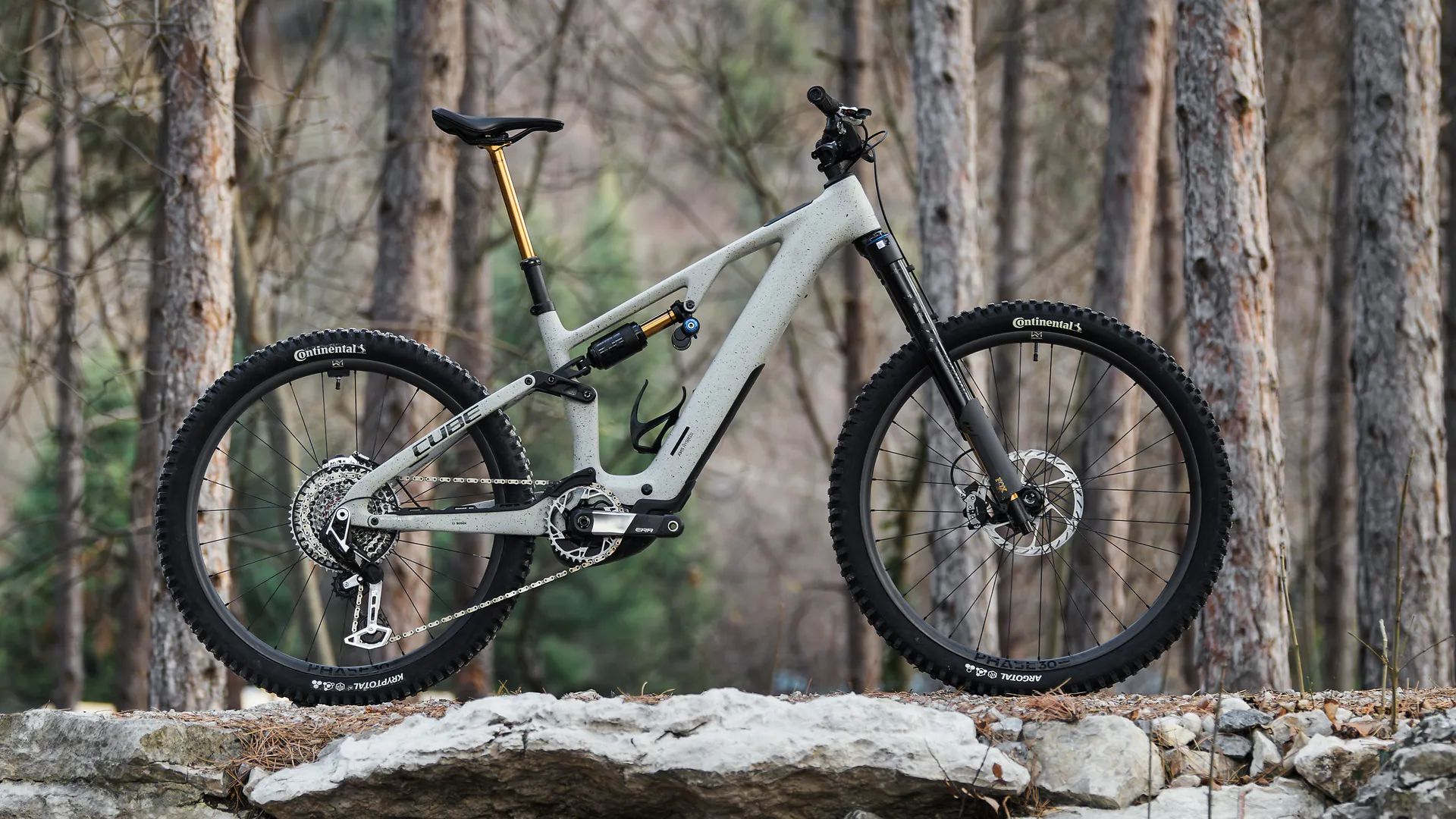

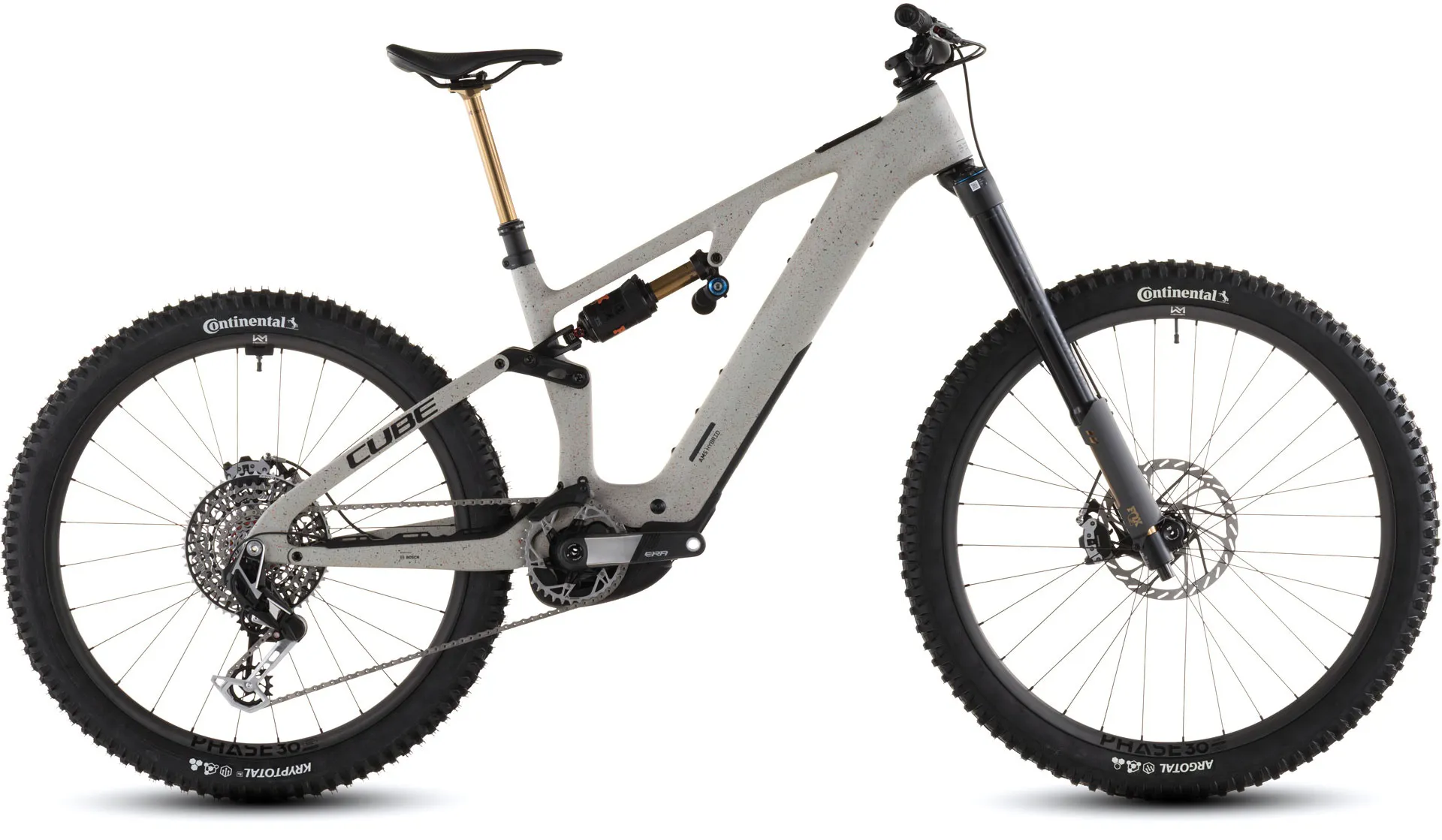

Cube Ams Hybrid One77 C62 Super TM 600X Electric Bike 2026 Reed Beige Grit/Orange

£9,999.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Not happy with your purchase? Send it back to us or return in any of our stores and we will give you a full refund or exchange!

Returns

In the unlikely event that you are dissatisfied with your purchase please feel free to return your goods within 60 days of the purchase date for a full exchange or refund. Any item (excluding food and underwear) can be returned to us for any reason provided it is returned in ‘showroom condition’, with its original packaging, tags and a valid receipt/delivery note.

Simply box up your items for return, include a cover note with the word REFUND or EXCHANGE inside & follow the below steps for safe return to our warehouse; where your return will be processed promptly.

Return Items by Post

It is your responsibility to ensure that the item is returned to us in a safe and secure manner, and in the event of a refund or exchange, in saleable condition (in original packaging and including all warranty, cards, manuals and accessories).

Customers are accountable for return shipping charges.

  1. You should always keep proof of postage and we advise you to use a ‘signed for service’ when returning goods.
  2. Send your package using a recorded delivery method (always keep a copy of your receipt!) to the following address:

Leisure Lakes Bikes Returns,
Unit 1 Osprey Place
Titan Way,
Leyland,
PR26 7EW

Checkout by Amazon Returns

If you used the pay by Amazon option when checking out then please send your package using a recorded delivery method (always keep a copy of your receipt!) with a note inside stating whether you want an exchange (what you want it exchanging for) or refund, to the following address:

Leisure Lakes Bikes Returns,
Unit 1 Osprey Place
Titan Way,
Leyland,
PR26 7EW

Bike & Bulky Item Returns

If you wish to return your bike to us please keep it in the box it arrived in and call us on 01772 644340 and we will arrange a collection.

Please note the following:

  • a) If we have sent you the incorrect bicycle, we will cover the cost of collection and delivery of the correct model.
  • b) If we have delivered the bicycle you ordered, but upon inspection you decide it is not the bike for you, we will charge you £50.00 for the collection.

Please do not ride the bike as a full refund cannot be given if the bike has been used or damaged.

Return Items to a store

Any item (excluding food and underwear) can be returned to any Leisure Lakes Bikes store not just the one you made your purchase at, including those made online. The item must be returned in ‘showroom condition’, with its original packaging, tags and with a valid receipt/delivery note.

Wrong size or you don't like the item?

If returning items that are not suitable for either refund or exchange you are accountable for the delivery cost in returning it to us. You should always keep proof of postage and we advise you to use a ‘signed for service’ when returning goods.

New faulty items/ Wrong Item Received

If you have received items that are faulty or not what you ordered send them back to us (using the steps above) and we will cover the delivery cost of the return if it is within 14 days of delivery. If we have supplied the correct product, it is not faulty or it is outside of the 14 days we can not be liable for your postage charges. You should always keep proof of postage and we advise you to use a ‘signed for service’ when returning goods.

In the event that you have received items that are fault or not what you ordered, please send them back to us as soon as possible. Only in these cases will we cover the cost of the return shipping charges.

Faulty Items

If you have received items that are faulty please send them back to us using the steps above. Please include a covering letter describing the fault and if you would like the item replacing or refunding. Once the item arrives back at our Mail Order Centre you will receive an email notifying you about the progress. Faulty items are then forwarded onto the suppliers to confirm the warranty issue. Please be patient with us as we need to receive this confirmation from the suppliers before we can process your request for a replacement/refund.

When returning the item please use Royal Mail1stClass Recorded* so that you have a tracking reference just in case! If your item arrived faulty we will refund your postage cost. If the item was in full working order at the time of delivery to you, we can not refund your return postage cost.

*In the event that you return a faulty/incorrect item we will refund your postage charge as long as it is 1stClass Recorded or a lesser value service. We do not refund premium services.

Refunds

Refunds will be processed using the same method of payment used for the original purchase. Credit and debit card refunds must be made to the card used for the original transaction, cheque payments will be refunded in cash but due to banking restrictions can only be refunded at least 14 days after the original purchase date. Due to the high incidence of fraud we regret that we are unable to offer any refund without a valid receipt/delivery note.

Refunds will be made for faulty or incorrect items, including any delivery charge incurred by the buyer (excluding ‘Special Delivery’) in the return of the item. If the products you ordered are delivered to you in good condition but you wish to return them for any reason we will refund the full value of the goods excluding any carriage charge upon receipt of your returned goods.

Items won’t be considered lost until after 15 working days of items beingdispatched. Once the 15 working days are up we will issue a refund or replacement.

Not received your order?

If you have not received your order please call us on 01772 644340 and a member of staff can confirm the shipping date. Unfortunately we cannot consider an item to be lost until 15 working days has passed (according to Royal Mail procedure). Once the 15 working days have passed we will be able to issue a full refund or resend your order.

Cube Ams Hybrid One77 C62 Super TM 600X Electric Bike 2026 Reed Beige Grit/Orange

Season:2026

Brand:Cube

Code:105400L-CUBE26

Cube set out to make a lighter, more capable all-mountain e-mtb – and the Cube AMS Hybrid 177 C:62 Super TM Electric Bike frame is the heart of it. Built from C:62® carbon, it features a built-in 600Wh PowerTube battery. They've tweaked the geometry and kinematics to suit a bike built to take on rowdy, technical trails at high speed. Mullet wheels and 170mm travel front and rear deliver epic handling, and an angle-adjustable headset means you can tweak the geometry to suit your own preference. Internal Cable Routing complements the frame's clean aesthetic and, of course, there's a UDH gear hanger and Direct Mount chain guard. Bring it on!

Zero compromise, maximum performance. Cube built the AMS Hybrid 177 C:62 Super TM 600X to be the ultimate all-mountain machine, with Bosch's powerful CX-R drive and a wishlist of range-topping components. There's no better way to beat the lift queues and rack up miles of mountain descents.

A special bike needs special treatment, which is why they fitted Bosch's powerful and versatile CX-R drive to the AMS Hybrid 177 C:62 Super TM 600X. With up to 100Nm of torque and 750W peak power – and a 600Wh battery – it has more than enough grunt to get you back to the top for one more run, again and again. Fox's Podium fork and Float X2 Factory shock help deliver 170mm of rock-devouring travel to the Newmen Phase 30 wheelset, shod with Continental Argotal and Kryptotal 2.4in tyres. Sram's Maven Ultimate hydraulic disc brakes and a dropper post help keep you in full control at all times. And Sram's precise XX Eagle Transmission gears with RaceFace Era carbon crank are all you need for long days of Alpine-descending mayhem. Bring it on!

Cube AMS Hybrid 177 C:62 Super TM Electric Bike Highlights

  • C:62 Carbon Fiber Technology - Not all carbon is created equal. With our C:62® carbon we increased the high modulus fibre content, then we reinforced the resulting material with nanoparticles incorporated into the bonding resin. Which is all just a fancy way of saying it's extremely strong, light and durable.
  • Advanced Internal cable Routing - Gear and brake cables need a way to get from handlebar controls to frame – but what if there was no need for holes near the head tube? They came up with a design that takes cables into the frame via the headset, maintaining full internal cable routing but making it even neater and less obtrusive.
  • Fixed Intergrated Battery - Bosch SX technology incorporates a new, lighter and more configurable battery setup. To make the most of the weight saving, they've integrated the new battery fully into the down tube. This means they can position it optimally for the best weight distribution and handling, as well as saving more weight by building a down tube that's precisely the right size to fit, and without the need for an access hatch. And the Power More option means you can add an additional 250Wh battery quickly and simply, for extra range. It's the best of both worlds.
  • Adjustable Headset Angle - When you're harnessing gravity, the trail is challenging and every second counts, the geometry of your CUBE is a critical component. That's why the adjustable headset allows you to tweak head angle, so you can set your bike up just the way you like it. A little slacker for more stability, or a little steeper for better agility. The choice is yours...
  • Agile Trail Geometry - Agile Trail Geometry is a development of the popular and well received Agile Ride Geometry, with a focus on riders who enjoy pushing their limits on the trails. By lowering standover height and allowing more room for the rider to move around over the bike, they've created a setup that rewards adventurous line choices. Because, after all, it's all about having fun.
  • Advanced Twin Mold - With the Advanced Twin Mold process they use two precisely manufactured forms for the C:62®, C:68® and C:68X® carbon frames. The first form is to ensure an accurate layup. The second, inner form keeps every individual fibre precisely where it needs to be while the frame cures. The result is a significantly lighter, stronger frame, with fibre density tailored to anticipated loadings at specific points.
Technical Information
Frame
C:62® Monocoque Advanced Twin Mold Technology, Effiecient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Fixed Integrated Battery, Advanced Internal Cable Routing
sizeM, L, XL
Suspension forkFox Podium Factory GRIPX2, Tapered, 20x110mm, 170mm
shockFox Float X2 Factory, 230x65mm, Adjustable HSC/LSC/HSR/LSR w/ 2-Pos. Lever
shock hardwareFront: 30x8mm, Rear: w/o DU-Bushing 15 mm
drive unitBosch Drive Unit Performance Line CX-R 100Nm (BDU38)
RemoteBosch Mini Remote
batteryBosch PowerTube 600
displayBosch Kiox 400C
chargerBosch 4A
brake systemSram Maven Ultimate, Hydr. Disc Brake (200/200)
rear derailleurSram XX Eagle AXS™ Transmission, 12-Speed, Electronic Shifting System
shiftersSram AXS™ Pod Ultimate Controller
cranksetRace Face ERA E-MTB, 36T
cassetteSram XS-1297, 10-52T
chainSram XX Eagle Transmission
chain guideReverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate
Cockpitheadset
headsetACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment
StemRace Face Turbine R 35
handlebarRace Face ERA 35
gripsACID Disrupt, Soft Compound
wheelsetNewmen Phase 30 base/strong, 28/32 Spokes, 20x110mm/12x148mm, Tubeless Ready
front tyreConti Argotal, Enduro Super Soft, Tubeless Ready, 2.4
rear tyreConti Kryptotal Rear, Downhill Soft, Tubeless Ready, 2.4
saddleACID Venec EMTB Trail 140
seat postFox Transfer Factory 31.6mm, Kashima Coated
pedalsACID PP MTB
extrasSchwalbe Aerothan™ Inner Tubes w/ ClikValve
Sizing Information
Slack/ModerateSMLXL
Seat tube370405420480
Top Tube Horizontal571 / 572596 / 597622 / 624658 / 659
Seat angle77.2° / 76.9°77.1° / 76.9°77.1° / 76.9°77° / 76.8°
Head tube angle63.6° / 64.2°63.6° / 64.2°63.6° / 64.2°63.6° / 64.2°
Chainstays443443443443
Head tube105105111131
Wheelbase1218 / 12101243 / 12351271 / 12631310 / 1302
BB-Height to Hub7 / 67 / 67 / 67 / 6
Protrusion height - 80mm786782781781
Reach427 / 425452 / 450477 / 475507 / 505
Stack631 / 632631 / 632636 / 638654 / 656
