the championship-winning Whyte Kado Works Electric Bike blends a full carbon-fibre frameset with Bosch’s latest CX motor and battery technologies.
the championship-winning Whyte Kado Works Electric Bike blends a full carbon-fibre frameset with Bosch’s latest CX motor and battery technologies.
Whyte

Whyte Kado Works Eletcric Bike 2026 Gun Metal/Black

£9,999.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Not happy with your purchase? Send it back to us or return in any of our stores and we will give you a full refund or exchange!

Returns

In the unlikely event that you are dissatisfied with your purchase please feel free to return your goods within 60 days of the purchase date for a full exchange or refund. Any item (excluding food and underwear) can be returned to us for any reason provided it is returned in ‘showroom condition’, with its original packaging, tags and a valid receipt/delivery note.

Simply box up your items for return, include a cover note with the word REFUND or EXCHANGE inside & follow the below steps for safe return to our warehouse; where your return will be processed promptly.

Return Items by Post

It is your responsibility to ensure that the item is returned to us in a safe and secure manner, and in the event of a refund or exchange, in saleable condition (in original packaging and including all warranty, cards, manuals and accessories).

Customers are accountable for return shipping charges.

  1. You should always keep proof of postage and we advise you to use a ‘signed for service’ when returning goods.
  2. Send your package using a recorded delivery method (always keep a copy of your receipt!) to the following address:

Leisure Lakes Bikes Returns,
Unit 1 Osprey Place
Titan Way,
Leyland,
PR26 7EW

Checkout by Amazon Returns

If you used the pay by Amazon option when checking out then please send your package using a recorded delivery method (always keep a copy of your receipt!) with a note inside stating whether you want an exchange (what you want it exchanging for) or refund, to the following address:

Leisure Lakes Bikes Returns,
Unit 1 Osprey Place
Titan Way,
Leyland,
PR26 7EW

Bike & Bulky Item Returns

If you wish to return your bike to us please keep it in the box it arrived in and call us on 01772 644340 and we will arrange a collection.

Please note the following:

  • a) If we have sent you the incorrect bicycle, we will cover the cost of collection and delivery of the correct model.
  • b) If we have delivered the bicycle you ordered, but upon inspection you decide it is not the bike for you, we will charge you £50.00 for the collection.

Please do not ride the bike as a full refund cannot be given if the bike has been used or damaged.

Return Items to a store

Any item (excluding food and underwear) can be returned to any Leisure Lakes Bikes store not just the one you made your purchase at, including those made online. The item must be returned in ‘showroom condition’, with its original packaging, tags and with a valid receipt/delivery note.

Wrong size or you don't like the item?

If returning items that are not suitable for either refund or exchange you are accountable for the delivery cost in returning it to us. You should always keep proof of postage and we advise you to use a ‘signed for service’ when returning goods.

New faulty items/ Wrong Item Received

If you have received items that are faulty or not what you ordered send them back to us (using the steps above) and we will cover the delivery cost of the return if it is within 14 days of delivery. If we have supplied the correct product, it is not faulty or it is outside of the 14 days we can not be liable for your postage charges. You should always keep proof of postage and we advise you to use a ‘signed for service’ when returning goods.

In the event that you have received items that are fault or not what you ordered, please send them back to us as soon as possible. Only in these cases will we cover the cost of the return shipping charges.

Faulty Items

If you have received items that are faulty please send them back to us using the steps above. Please include a covering letter describing the fault and if you would like the item replacing or refunding. Once the item arrives back at our Mail Order Centre you will receive an email notifying you about the progress. Faulty items are then forwarded onto the suppliers to confirm the warranty issue. Please be patient with us as we need to receive this confirmation from the suppliers before we can process your request for a replacement/refund.

When returning the item please use Royal Mail1stClass Recorded* so that you have a tracking reference just in case! If your item arrived faulty we will refund your postage cost. If the item was in full working order at the time of delivery to you, we can not refund your return postage cost.

*In the event that you return a faulty/incorrect item we will refund your postage charge as long as it is 1stClass Recorded or a lesser value service. We do not refund premium services.

Refunds

Refunds will be processed using the same method of payment used for the original purchase. Credit and debit card refunds must be made to the card used for the original transaction, cheque payments will be refunded in cash but due to banking restrictions can only be refunded at least 14 days after the original purchase date. Due to the high incidence of fraud we regret that we are unable to offer any refund without a valid receipt/delivery note.

Refunds will be made for faulty or incorrect items, including any delivery charge incurred by the buyer (excluding ‘Special Delivery’) in the return of the item. If the products you ordered are delivered to you in good condition but you wish to return them for any reason we will refund the full value of the goods excluding any carriage charge upon receipt of your returned goods.

Items won’t be considered lost until after 15 working days of items beingdispatched. Once the 15 working days are up we will issue a refund or replacement.

Not received your order?

If you have not received your order please call us on 01772 644340 and a member of staff can confirm the shipping date. Unfortunately we cannot consider an item to be lost until 15 working days has passed (according to Royal Mail procedure). Once the 15 working days have passed we will be able to issue a full refund or resend your order.

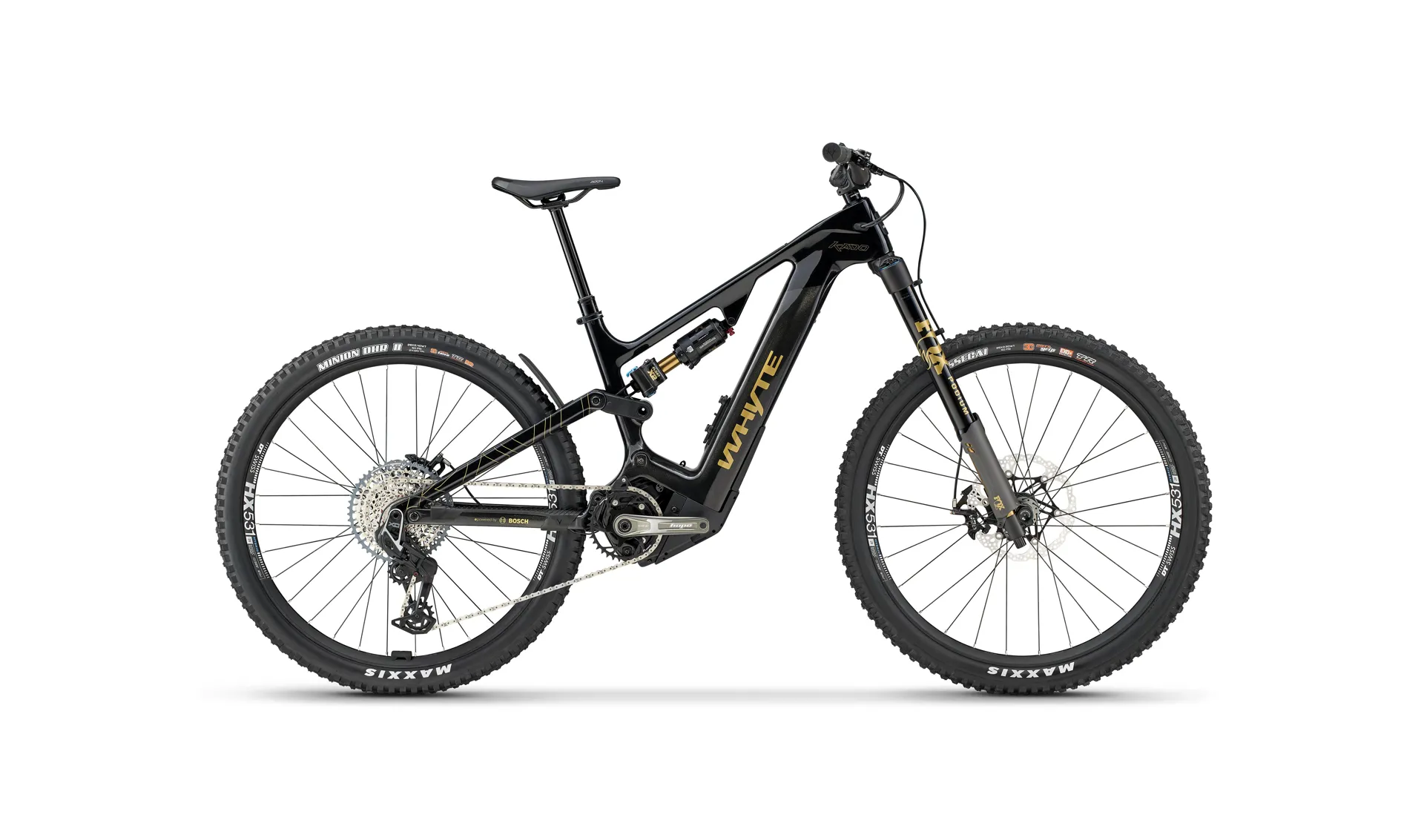

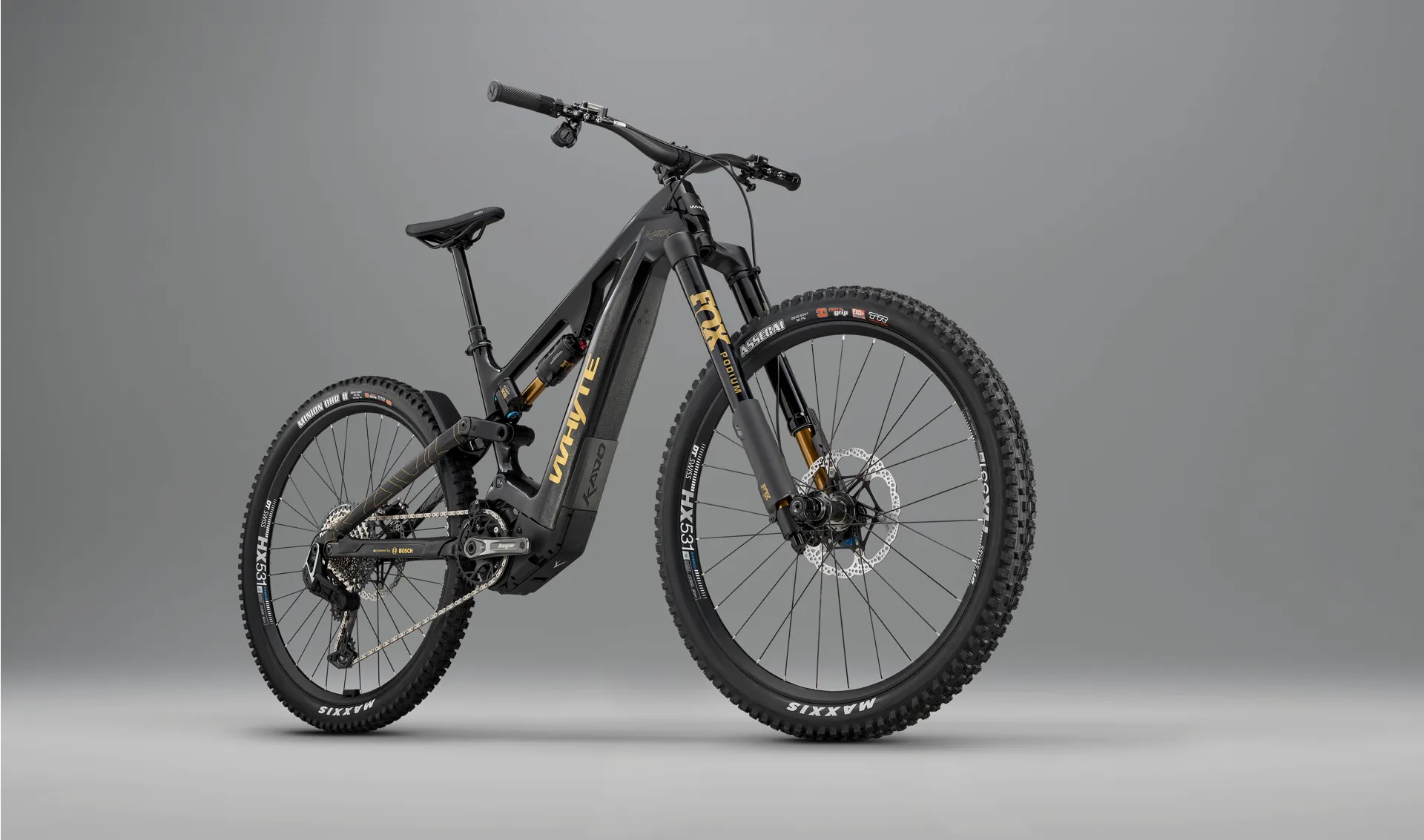

Whyte Kado Works Eletcric Bike 2026 Gun Metal/Black

Season:2026

Brand:Whyte

Code:WEKAW1SV1-WHY26

Designed, developed and proven by the UK’s first ever E-Enduro National Champion and 2024 E-Enduro Series Champion, Sam Shucksmith – both titles won aboard the prototype – the championship-winning Whyte Kado Works Electric Bike blends a full carbon-fibre frameset with Bosch’s latest CX motor and battery technologies. All combined with meticulously custom-tuned suspension performance and the highest performing parts list possible so you can unleash the speed – everywhere.

High performance, unleashed
They’ve poured everything into Kado Works to give you the highest performance possible: an optimised low centre of gravity delivers exceptional cornering agility, high-speed stability, and balanced handling on any terrain – no matter how fast or rowdy things get; custom-tuned suspension for the very best grip, feedback and control; confidence-inspiring geometry, and much more. All combined so you can beat the clock – and your personal best.

Whyte Kado Works Electric Bike Highlights

  • 170mm front + 151mm rear of suspension travel.
  • Fox Podium Factory 29in fork + Fox Float X2 Factory EVOL custom-tuned shock.
  • Uni-directional full carbon fibre frame with geometry adjustment.
  • Bosch's fifth generation Performance Line CX full-torque full-power motor.
  • Ready for the latest software upgrade to unlock E-MTB+ mode + 100Nm torque + 750W peak power.
  • 800Wh removeable internal battery.
  • 29in wheels front and rear + MX ready.

Whyte Kado Works Eletcric Bike

150mm Travel
29"" Wheels
Fox Float X2 Factory Series, EVOL, lock out, 230mm x 57.5mm, custom tuned for Whyte Shock
2026 Fox Podium Factory 29in, 170mm travel, 44mm offset, Grip X2 damper Forks
Bosch PowerTube 800Wh Battery
Bosch Performance Line CX Motor 100Nm torque + 750W peak power.
800Wh Battery Capacity
Low, centered, unstoppable

Low, centered, unstoppable

As part of Whyte's Total Geometry approach, Kado Works has been designed around the lowest, most centred centre of gravity (the point at which an object’s mass is evenly distributed and balanced) to give you the finest handling possible. By positioning the major masses of an eMTB (the motor and batteries) as low and centrally between the tyre contact patches as possible, Kado Works delivers you balanced control, effortless agility, sure-footed stability and absolute confidence. All so you can ride faster and with more poise to master every track.

Switchable batteries

Switchable batteries

With an 800Wh internal battery as standard and compatibility with Bosch’s aftermarket 250Wh ‘PowerMore’ range extender (available separately; fits size M–XL frames), Kado Works is ready to give you up to a 1050Wh of combined battery capacity. Kado Works is also compatible with Bosch’s aftermarket lighter, smaller 600Wh – PT600 – internal battery (just add our battery end caps), so you can pick and choose smaller or larger batteries for different races. And all without needing to adjust any of the battery compartment internals – just slide the old battery out, add the endcaps to the new battery, and slide it in.

Smartly connected

Smartly connected

With the Bosch Smart System – which links up the Kado Works’s top-tube Bosch Kiox 400C LCD display, battery and motor via the eBike Flow app – you have even more information at your fingertips to manage, tailor and personalise your bike just how you want to get even more from your riding: tune the motor support levels; upgrade to the latest motor software updates, and more. We’ve also wired-in SRAM’s AXS wireless electronic rear mech directly into the bike’s main battery, so you’ll never need to remember to charge your gears again.

170mm/150mm travel
Bosch's Performance Line CX full-torque (85Nm)
Optimised low centre of gravity gives you exceptional, confidence-inspiring handling.
29in trail-smoothing wheels front and rear.

Our comprehensive - point review...

/images/myimages/whyte-kado-rsx-electric-bike--silver.jpg?width=1920
Ride farther, faster

Cover more ground than previously possible in the same time when riding an analogue/non-electric mountain bike. Kado let’s you go farther and explore more trails, more easily, so you can expand your riding horizons.

/images/myimages/whyte-kado-rsx-electric-bike-2025climb.jpg?width=1920
Fast-forward the climbs

Conquer climbs more swiftly as Kado smoothly amplifies your efforts by up to 340% – that’s 3.4x you – letting you climb further, faster; take on more challenging and technical ascents, and easily self-shuttle to ride more descents.

/images/myimages/whyte-kado-rsx-electric-bike-2025-trail.jpg?width=1920
Enjoy more fun trails

Whatever trails you love riding – swooping singletrack, techy descents, trail centres, bike parks, or wild trails out in the hills – Kado will let you access them faster and with less effort than ever before. All so you can ride more of what you love.

/images/myimages/whyte-kado-rsx-electric-bike-2025-suisilver.jpg?width=1920
Hone your skills

With Kado you’ll enjoy more quality bike time each time you head out to progress your riding skills and boost your confidence further. And with the power and refined performance of the new Bosch Performance Line CX drive unit, you’ll have the control to help you conquer even more technical terrain than ever before.

Technical Information
COLOURGun metal black
FRAME
Uni-directional carbon mainframe and rear triangle, tapered head tube, internal cable routing, Shape.it Link V2 and 12mm x 148mm Boost dropouts
FORK

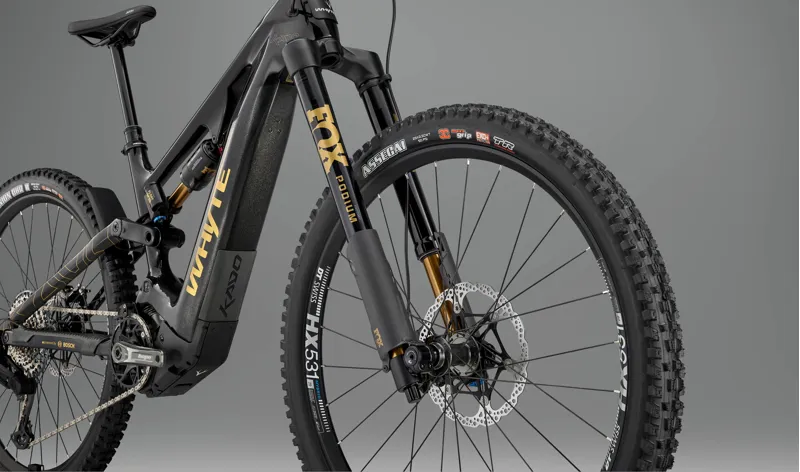

2026 Fox Podium Factory 29in, 170mm travel, 44mm offset, Grip X2 damper, tapered steerer, 110m x 20mm axle
REAR SHOCK

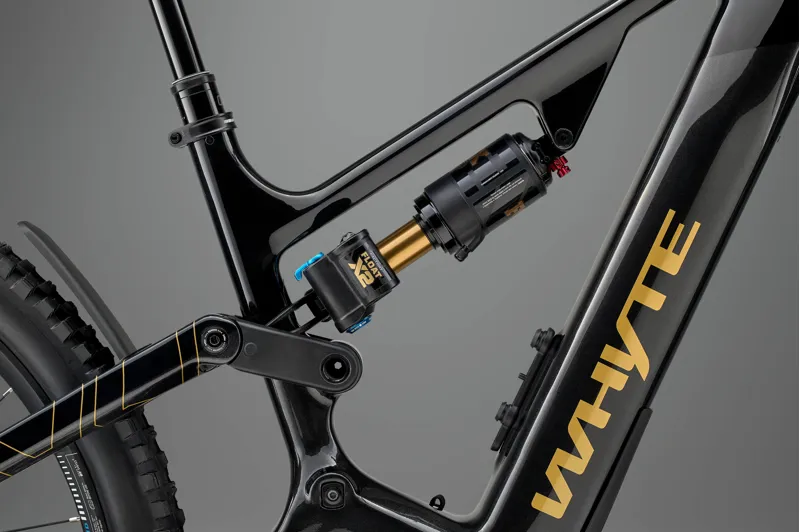

Fox Float X2 Factory Series, EVOL, lock out, 230mm x 57.5mm, custom tuned for Whyte
HEADSETFSA No. 55R, 1-1/8in upper and 1.5in lower
REAR HUB
Hope Pro 5, six bolt, 12mm x 148mm Boost spacing, XD driver, 32 hole
FRONT HUB
Hope Pro 5, six bolt, 20mm x 110mm Boost spacing, 28 hole
SPOKESDT Swiss Elemental
RIMSDT HX531, 30mm internal
TYRES
Maxxis Assigai WT, TR, 29in x 2.5in 120TPI, EXO+ sidewall protection, 3C MaxxGrip, dual compound, folding bead, front; Maxxis Minion DHR 2 WT, TR, 29in x 2.4in 120TPI, Double Down casing, 3C MaxxTerra, dual compound, rear
SHIFT LEVERSSRAM AXS Pod, right, MMX, 12 speed
FRONT MECHN/A

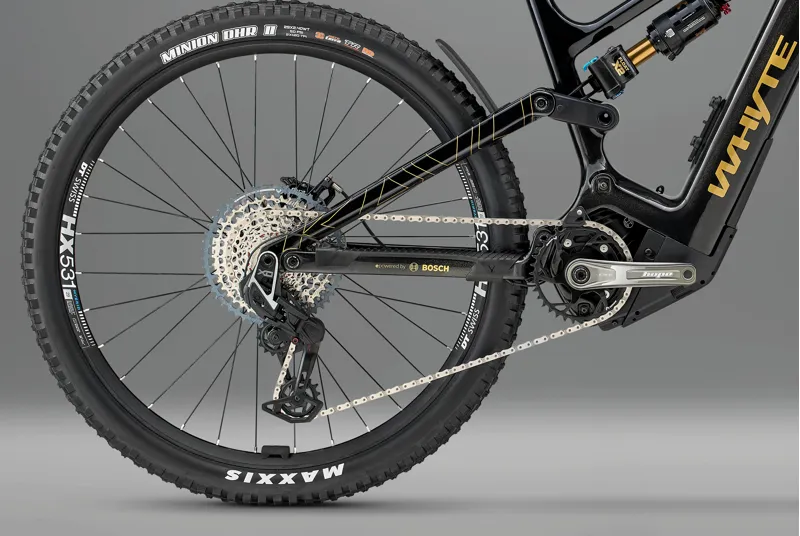

REAR MECH
SRAM XO T-Type AXS, 12 speed, powered off the Bosch CX motor system’s internal battery
WEIGHT
CASSETTESRAM XS 1275, T-Type, 10-52T, 12 speed
CHAINSRAM GX T-Type, 12 speed
CRANKSET
Hope E-Bike cranks, 155mm length, Bosch mounting, 36T chainring T-Type
BOTTOM BRACKETN/A
SEATPOST
One Up Components V3 Dropper Post, MMX Paddle remote lever, size-specific drop (size S: 150mm travel; size M: 170mm travel; size L and XL: 210mm travel)
SADDLE
Fi’zi:k Terra Aidon, 145mm wide, Wingflex, S-Alloy Mobius rail
HANDLEBAR
Race Face ERA Carbon, 20mm rise (sizes S/M) / 40mm rise (sizes L/XL), 35mm bar bore, 800mm wide
STEM
Whyte Trail full CNC, 32mm extension, 35mm bar bore
GRIPSWhyte Enduro lock-on
BRAKES (FRONT)
Hope EVO GR4, four piston hydraulic, 220mm diameter floating disc rotor

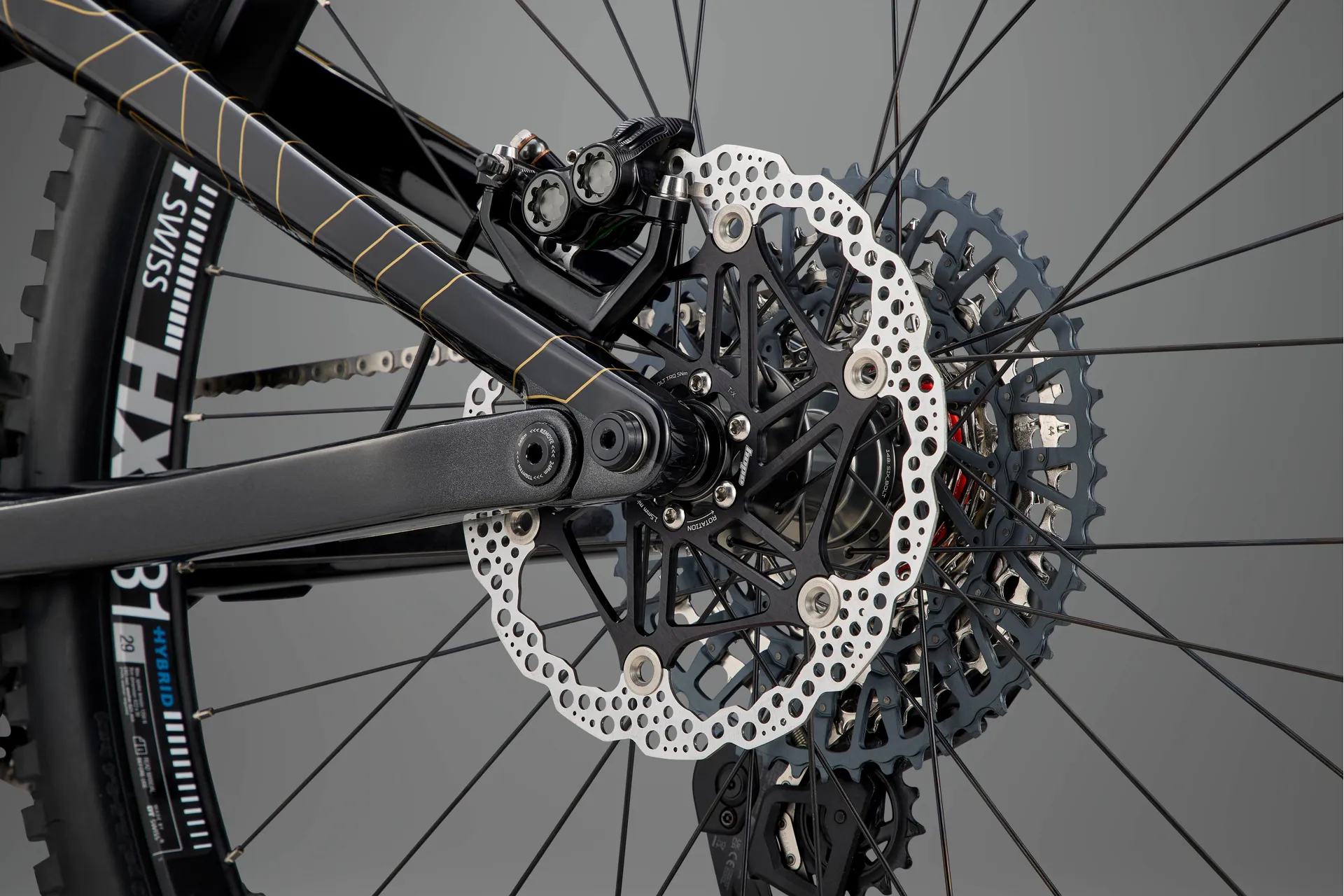

BRAKES (REAR)

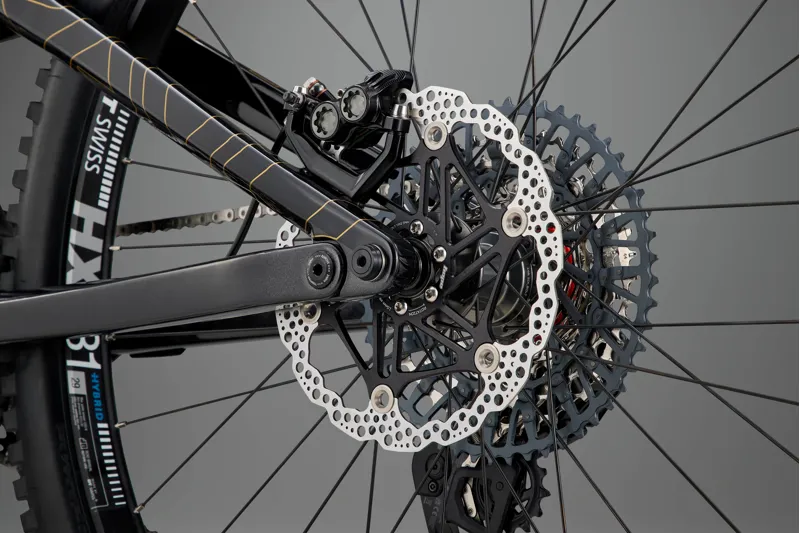

Hope EVO GR4, four piston hydraulic, 200mm diameter floating disc rotor

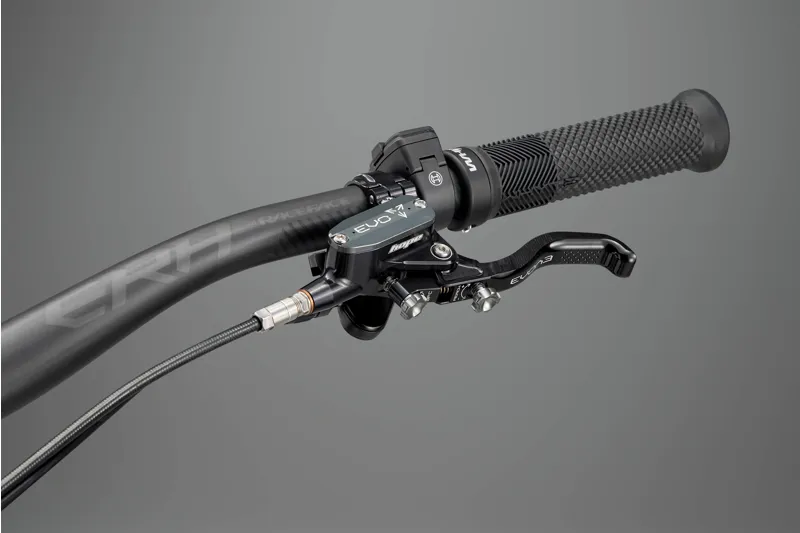

BRAKE LEVERSHope EVO GR4
PEDALSFibre reinforced composite platform
DRIVE UNIT
Bosch Performance Line CX (Smart System) Drive Unit with 100Nm maximum torque, 750W of peak power and 250W of nominal power. Features four power mode settings including Tour+ and eMTB+. AXS derailleur powered off motor.
BATTERY
Bosch PowerTube 800Wh, perfectly integrated into the frame with an intuitive lockable mechanism for easy removal. PowerMore compatible.
DISPLAY

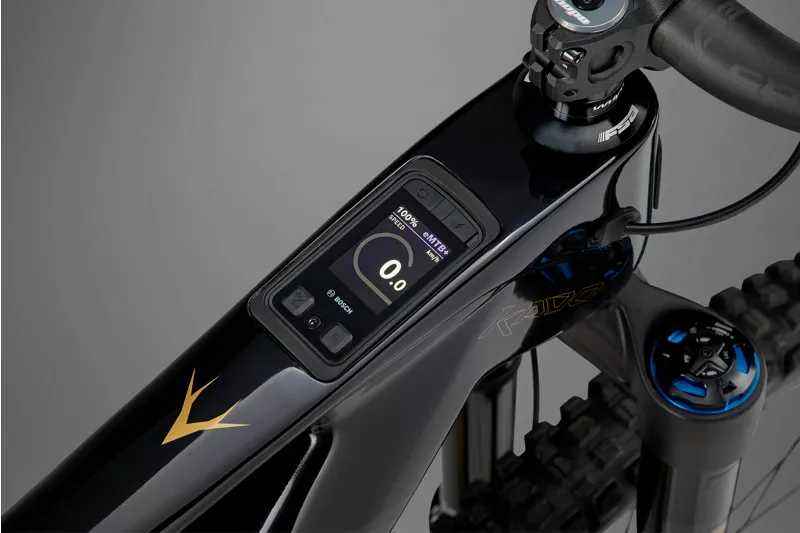

Bosch Kiox 400C LCD display mounted within the top tube, paired with the discrete bar mounted Mini Remote. Also connects to the Bosch eBike Flow smartphone app to give you even more insight and control at your fingertips.
CHARGERCharger 4A (230
Sizing Information
General Size Guide.jpg__PID:ddf10d71-079b-4621-9271-24ce06378e15

FRAME SIZESmallMediumLargeExtra Large
REACH (mm)430455480505
STACK (mm)627638.4650.2663.8
HEAD ANGLE (° degrees)64.5 (63.9)64.5 (63.9)64.5 (63.9)64.5 (63.9)
SEAT ANGLE (° degrees)77.477.377.277
BB HEIGHT (mm)354.2354.2346.3346.3
WHEELBASE (mm)1218.31248.41278.91310.2
REAR CENTRE (mm)450.2450.2450.2450.2
STANDOVER HEIGHT (mm)TBCTBCTBCTBC
SEAT TUBE LENGTH (mm)395420445470
HEAD TUBE LENGTH (mm)104116129144
