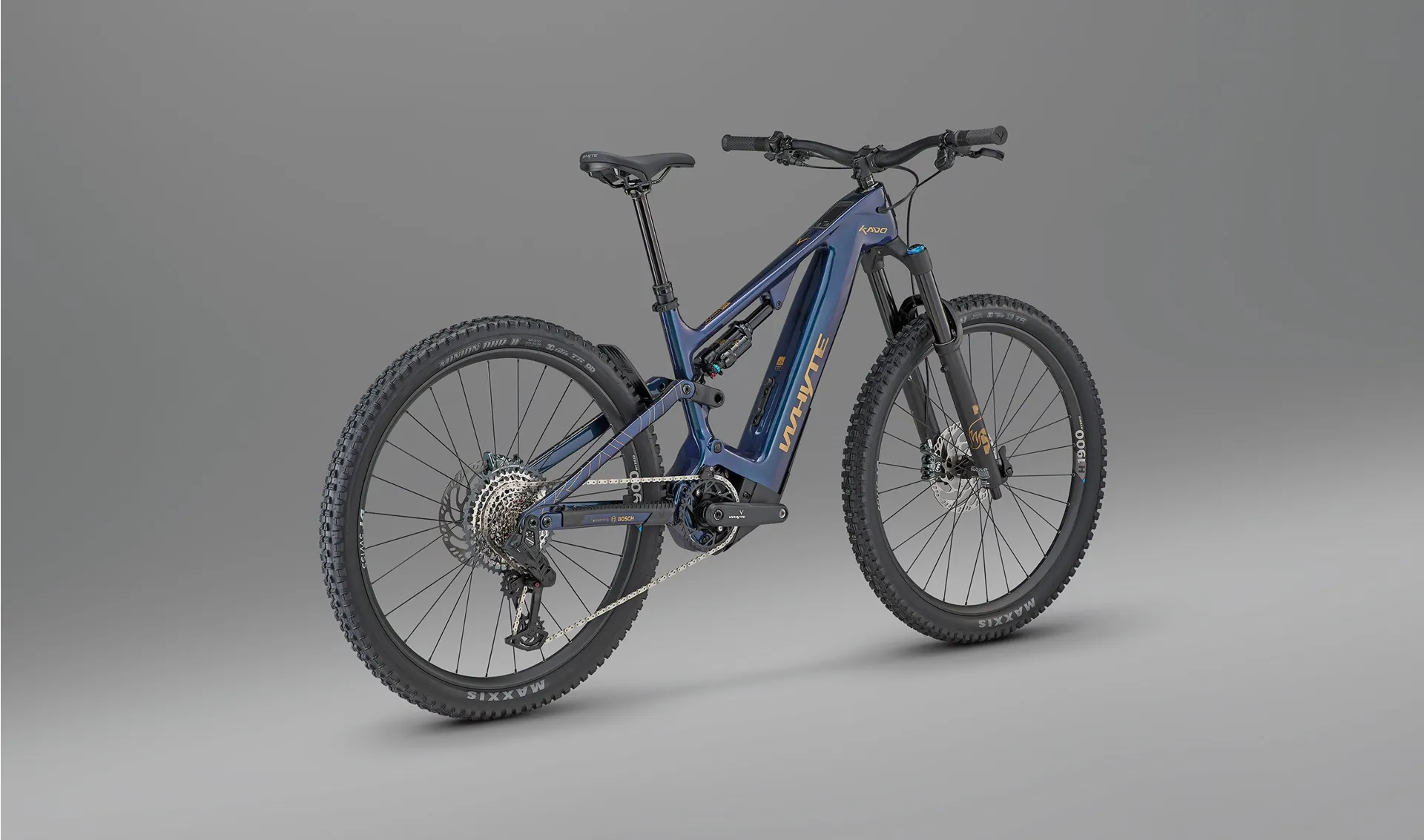

Whyte Kado RSX V2 Electric Bike 2027 Gloss Midnight Blue

£7,199.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Not happy with your purchase? Send it back to us or return in any of our stores and we will give you a full refund or exchange!

Returns

In the unlikely event that you are dissatisfied with your purchase please feel free to return your goods within 60 days of the purchase date for a full exchange or refund. Any item (excluding food and underwear) can be returned to us for any reason provided it is returned in ‘showroom condition’, with its original packaging, tags and a valid receipt/delivery note.

Simply box up your items for return, include a cover note with the word REFUND or EXCHANGE inside & follow the below steps for safe return to our warehouse; where your return will be processed promptly.

Return Items by Post

It is your responsibility to ensure that the item is returned to us in a safe and secure manner, and in the event of a refund or exchange, in saleable condition (in original packaging and including all warranty, cards, manuals and accessories).

Customers are accountable for return shipping charges.

  1. You should always keep proof of postage and we advise you to use a ‘signed for service’ when returning goods.
  2. Send your package using a recorded delivery method (always keep a copy of your receipt!) to the following address:

Leisure Lakes Bikes Returns,
Unit 1 Osprey Place
Titan Way,
Leyland,
PR26 7EW

Checkout by Amazon Returns

If you used the pay by Amazon option when checking out then please send your package using a recorded delivery method (always keep a copy of your receipt!) with a note inside stating whether you want an exchange (what you want it exchanging for) or refund, to the following address:

Leisure Lakes Bikes Returns,
Unit 1 Osprey Place
Titan Way,
Leyland,
PR26 7EW

Bike & Bulky Item Returns

If you wish to return your bike to us please keep it in the box it arrived in and call us on 01772 644340 and we will arrange a collection.

Please note the following:

  • a) If we have sent you the incorrect bicycle, we will cover the cost of collection and delivery of the correct model.
  • b) If we have delivered the bicycle you ordered, but upon inspection you decide it is not the bike for you, we will charge you £50.00 for the collection.

Please do not ride the bike as a full refund cannot be given if the bike has been used or damaged.

Return Items to a store

Any item (excluding food and underwear) can be returned to any Leisure Lakes Bikes store not just the one you made your purchase at, including those made online. The item must be returned in ‘showroom condition’, with its original packaging, tags and with a valid receipt/delivery note.

Wrong size or you don't like the item?

If returning items that are not suitable for either refund or exchange you are accountable for the delivery cost in returning it to us. You should always keep proof of postage and we advise you to use a ‘signed for service’ when returning goods.

New faulty items/ Wrong Item Received

If you have received items that are faulty or not what you ordered send them back to us (using the steps above) and we will cover the delivery cost of the return if it is within 14 days of delivery. If we have supplied the correct product, it is not faulty or it is outside of the 14 days we can not be liable for your postage charges. You should always keep proof of postage and we advise you to use a ‘signed for service’ when returning goods.

In the event that you have received items that are fault or not what you ordered, please send them back to us as soon as possible. Only in these cases will we cover the cost of the return shipping charges.

Faulty Items

If you have received items that are faulty please send them back to us using the steps above. Please include a covering letter describing the fault and if you would like the item replacing or refunding. Once the item arrives back at our Mail Order Centre you will receive an email notifying you about the progress. Faulty items are then forwarded onto the suppliers to confirm the warranty issue. Please be patient with us as we need to receive this confirmation from the suppliers before we can process your request for a replacement/refund.

When returning the item please use Royal Mail1stClass Recorded* so that you have a tracking reference just in case! If your item arrived faulty we will refund your postage cost. If the item was in full working order at the time of delivery to you, we can not refund your return postage cost.

*In the event that you return a faulty/incorrect item we will refund your postage charge as long as it is 1stClass Recorded or a lesser value service. We do not refund premium services.

Refunds

Refunds will be processed using the same method of payment used for the original purchase. Credit and debit card refunds must be made to the card used for the original transaction, cheque payments will be refunded in cash but due to banking restrictions can only be refunded at least 14 days after the original purchase date. Due to the high incidence of fraud we regret that we are unable to offer any refund without a valid receipt/delivery note.

Refunds will be made for faulty or incorrect items, including any delivery charge incurred by the buyer (excluding ‘Special Delivery’) in the return of the item. If the products you ordered are delivered to you in good condition but you wish to return them for any reason we will refund the full value of the goods excluding any carriage charge upon receipt of your returned goods.

Items won’t be considered lost until after 15 working days of items beingdispatched. Once the 15 working days are up we will issue a refund or replacement.

Not received your order?

If you have not received your order please call us on 01772 644340 and a member of staff can confirm the shipping date. Unfortunately we cannot consider an item to be lost until 15 working days has passed (according to Royal Mail procedure). Once the 15 working days have passed we will be able to issue a full refund or resend your order.

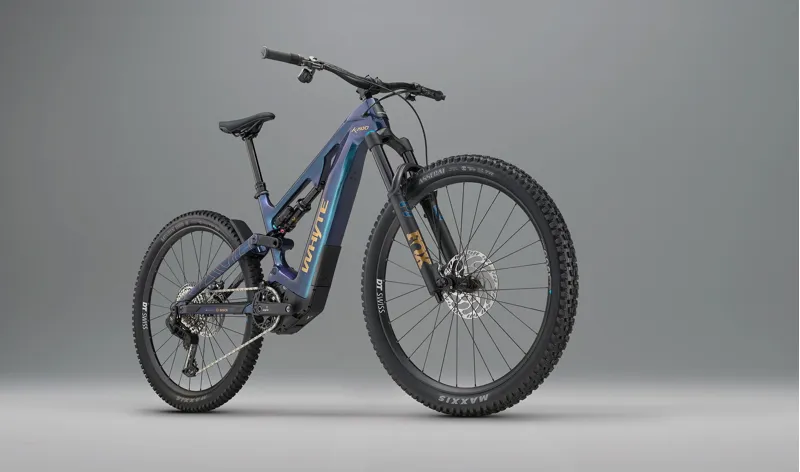

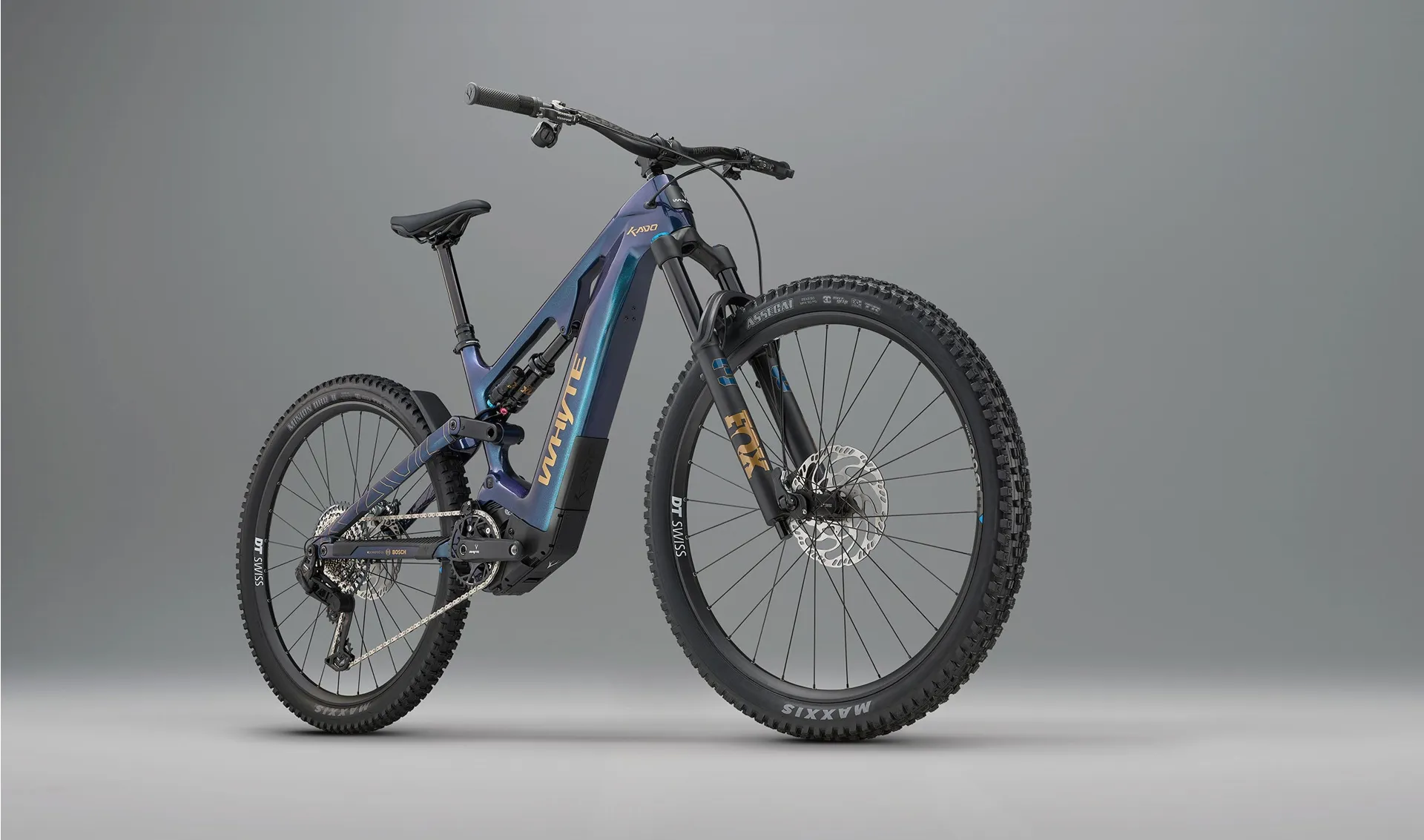

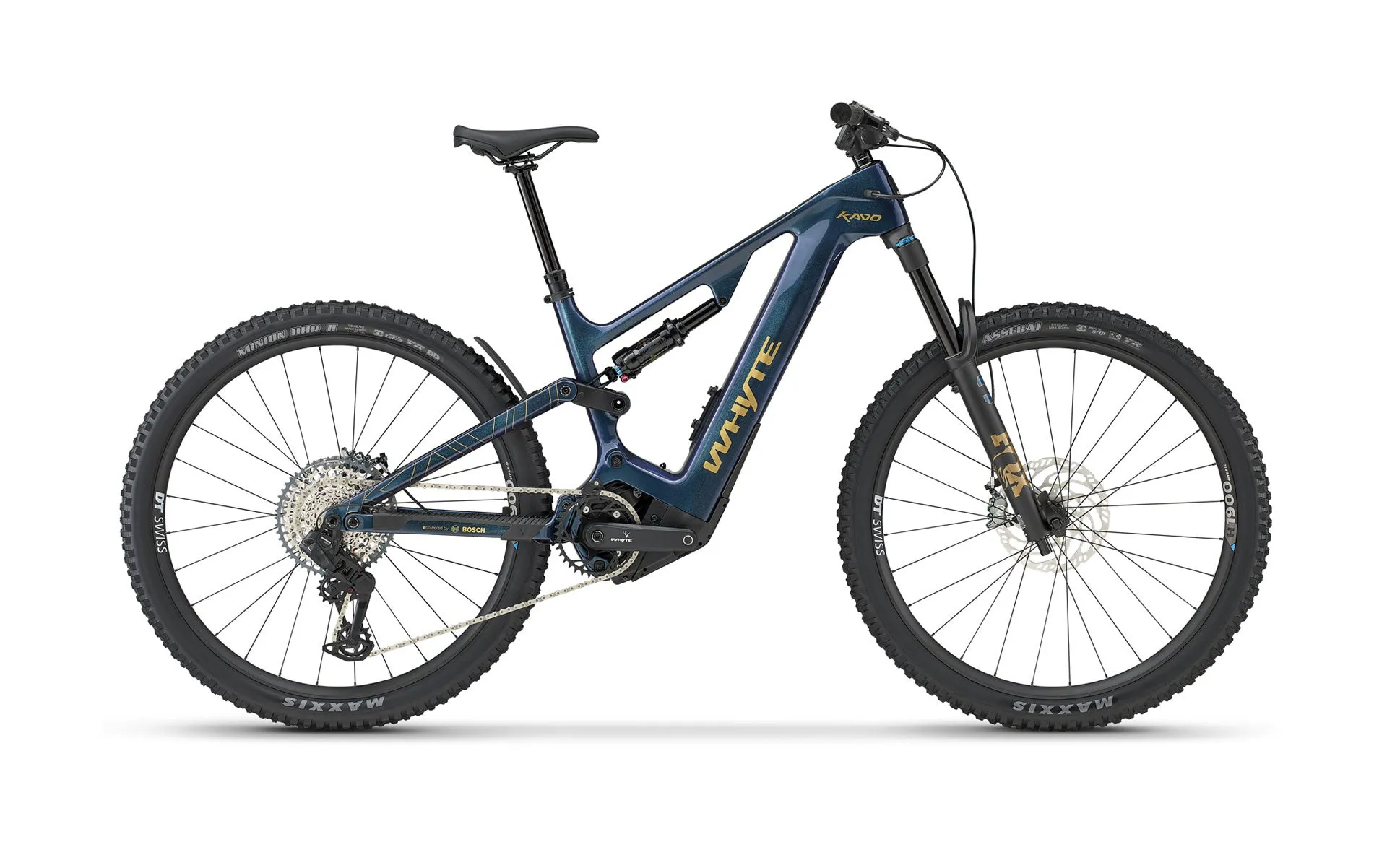

Whyte Kado RSX V2 Electric Bike 2027 Gloss Midnight Blue

Season:2027

Brand:Whyte

Code:WEKARSX2

Go anywhere and do everything with Whyte's most capable eMTB ever. The Whyte Kado RSX Electric Bike's carbon fibre frameset, meticulously custom-tuned suspension, award-winning Total Geometry handling and low centre of gravity design aren't just for show: they deliver a highly capable and confidence-inspiring ride so you can tackle everything with total confidence. We've also carefully combined the finest trail-proven parts with Bosch's latest, powerfully refined and reliable CX motor, display and battery technologies. All to give you the power, control and range to take you - and your riding - further than ever before.

Slide in, slide out

Removing the Kado RSX’s internal battery is a dream for storage, battery swaps, or off-the-bike charging: just open the battery cover, undo the captive bolt, and slide the battery out. To replace, just do the reverse. Simple. Every Kado can also take both 600Wh and 800Wh batteries so if you decide to buy a spare so you can change the stock 800Wh battery out for a smaller capacity battery for shorter rides – or for racing – you can (just add our battery end caps).

Low, centered, unstoppable

As part of their Total Geometry approach, Kado RSX has been designed around the lowest, most centred centre of gravity (the point at which an object’s mass is evenly distributed and balanced) to give you the finest handling possible. By positioning the major masses of an eMTB (the motor and batteries) as low and centrally between the tyre contact patches as possible, Kado RSX delivers you balanced control, effortless agility, sure-footed stability and absolute confidence. All so you can ride faster and with more poise to master every trail.

The range to roam

With an 800Wh internal battery as standard and compatibility with Bosch’s aftermarket 250Wh ‘PowerMore’ range extender (available separately; fits size M–XL frames), Kado RSX is ready to give you up to a 1050Wh of combined battery capacity. But more than that: Bosch’s latest, most efficient ‘PowerTube 800’ battery also gives you more range for less weight than its ‘PowerTube 750’ predecessor. All so you can ride as far – and as wide – as you wish.

Smartly connected

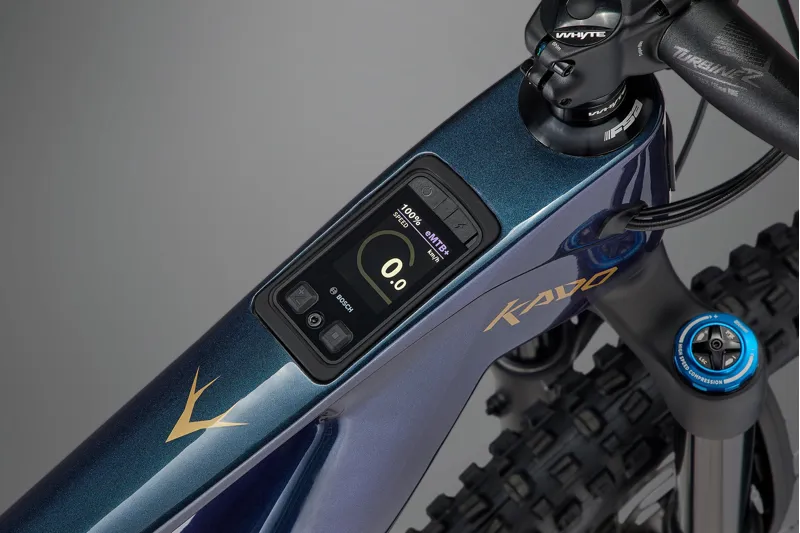

With the Bosch Smart System – which links up the Kado RSX's top-tube Bosch Kiox 400C LCD display, battery and motor via the eBike Flow app – you have even more information at your fingertips (both on the toptube display, and on your smartphone) to manage, tailor and personalise your bike just how you want to get even more from your riding: tune the motor support levels; upgrade to the latest motor software updates, and more. We’ve also wired-in SRAM’s AXS wireless electronic rear mech directly into the bike’s main battery, so you’ll never need to remember to charge your gears again

Whyte Kado RSX Electric Bike Highlights

  • 160mm front + 150mm rear of custom-tuned suspension travel; equipped with Fox's latest 2027 Float 38 Performance Elite fork.
  • Uni-directional full carbon fibre frame with geometry adjustment is light and reassuringly strong.
  • Bosch's fifth generation Performance Line CX full-torque full-power motor with E-MTB+ mode + 100Nm torque + 750W peak power.
  • Bosch Kiox 400-C full-colour 2.0in top-tube display delivers a wealth of information at your fingertips.
  • 800Wh easily removeable, slide-in internal battery so you can ride further.
  • 29in trail-smoothing wheels front and rear + MX ready.
  • Optimised low centre of gravity gives you exceptional, confidence-inspiring handling.

exceptional, confidence-inspiring handling.

Whyte Kado RSX V2 Electric Bike

150mm Travel
29"" Wheels
Fox Float X Performance Elite DPS, EVOL LV, 230 x 57.5mm, custom tuned for Whyte Shock
Fox Float 38 Performance Elite, 160mm travel Forks
Bosch PowerTube 800Wh Battery
Bosch Performance Line CX Motor
800Wh Battery Capacity
Bosch Kiox 400C LCD Display
Whyte Kado RSX

Whyte Kado RSX

Go anywhere and do everything with Whyte's most capable eMTB ever. The Whyte Kado RSX Electric Bike's carbon fibre frameset, meticulously custom-tuned suspension, award-winning Total Geometry handling and low centre of gravity design aren't just for show: they deliver a highly capable and confidence-inspiring ride so you can tackle everything with total confidence. We've also carefully combined the finest trail-proven parts with Bosch's latest, powerfully refined and reliable CX motor, display and battery technologies. All to give you the power, control and range to take you - and your riding - further than ever before.

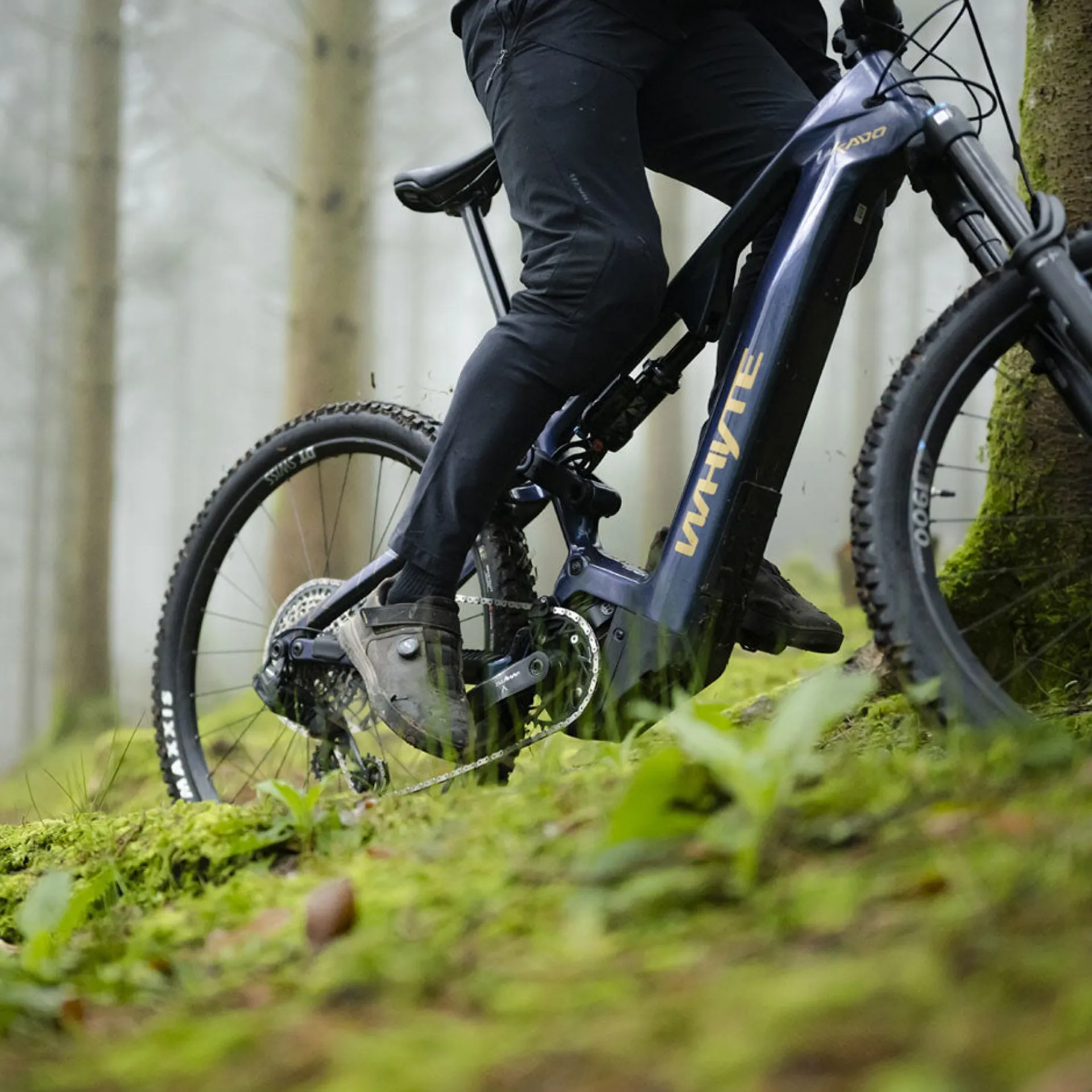

Low, centered, unstoppable

Low, centered, unstoppable

As part of their Total Geometry approach, Kado RSX has been designed around the lowest, most centred centre of gravity (the point at which an object’s mass is evenly distributed and balanced) to give you the finest handling possible. By positioning the major masses of an eMTB (the motor and batteries) as low and centrally between the tyre contact patches as possible, Kado RSX delivers you balanced control, effortless agility, sure-footed stability and absolute confidence. All so you can ride faster and with more poise to master every trail.

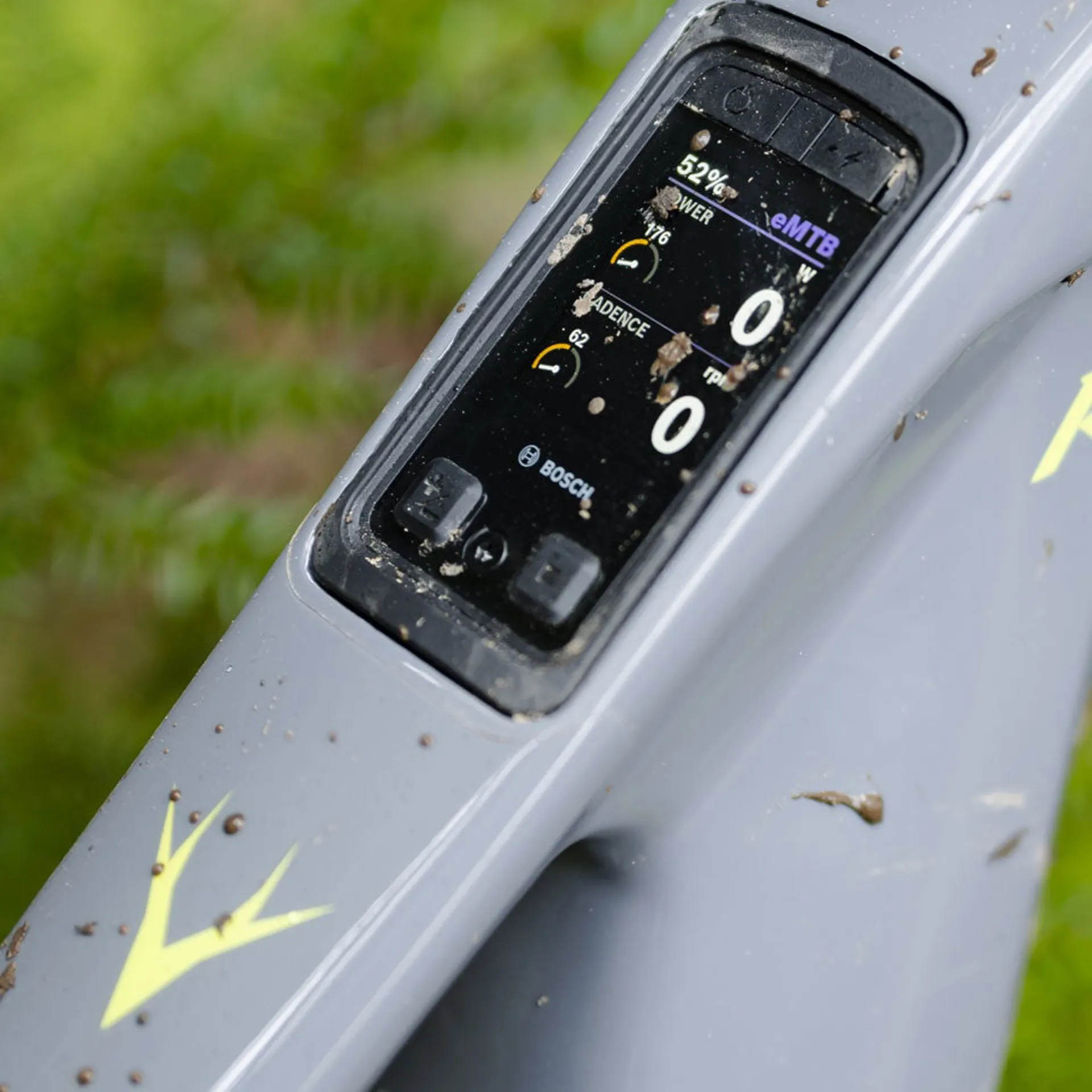

The range to roam

The range to roam

With an 800Wh internal battery as standard and compatibility with Bosch’s aftermarket 250Wh ‘PowerMore’ range extender (available separately; fits size M–XL frames), Kado RSX is ready to give you up to a 1050Wh of combined battery capacity. But more than that: Bosch’s latest, most efficient ‘PowerTube 800’ battery also gives you more range for less weight than its ‘PowerTube 750’ predecessor. All so you can ride as far – and as wide – as you wish.

800Wh internal battery as standard
Bosch Smart System
balanced control, effortless agility, sure-footed stability and absolute confidence
Total Geometry approach

Our comprehensive - point review...

Technical Information
FRAMEUni-directional carbon mainframe and rear triangle, tapered head tube, internal cable routing, Shape.it Link V2 and 12mm x 148mm Boost dropouts
FORKFox Float 38 Performance Elite, 160mm travel, 44mm offset with Grip X2 damper custom tuned for Whyte, tapered steerer, 110mm x 15mm Boost, E-thru axle

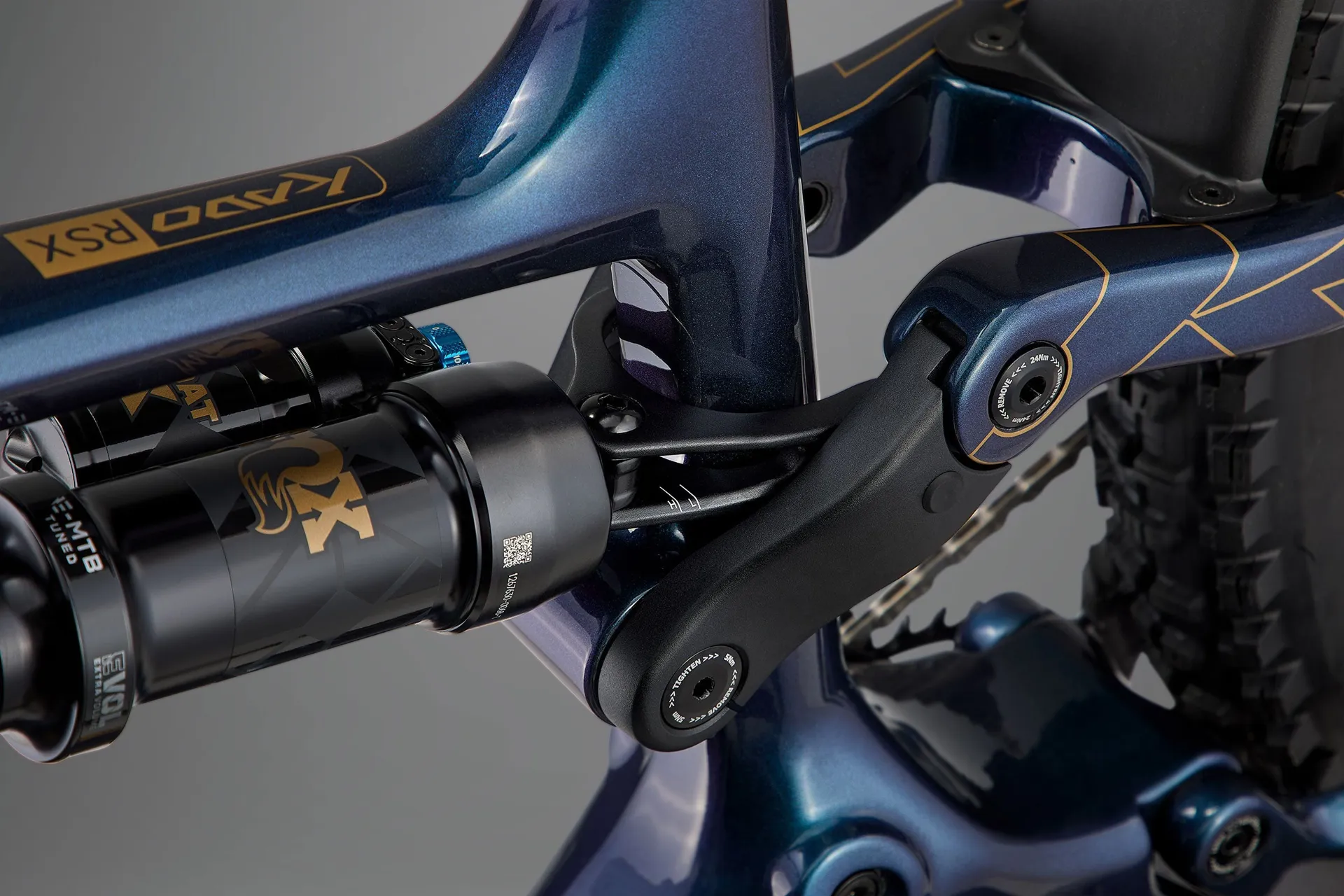

REAR SHOCKFox Float X Performance Elite DPS, EVOL LV, 230 x 57.5mm, custom tuned for Whyte
HEADSETFSA No. 55R, 1-1/8in upper and 1.5in lower
REAR HUBDT Swiss Hybrid H1900, 12mm x 148mm Boost spacing, SRAM XD steel driver, six bolt
FRONT HUBDT Swiss Hybrid H1900, 110mm x 15mm Boost, six bolt
SPOKESDT Swiss Elemental
RIMSDT Swiss Hybrid H1900
TYRESMaxxis Assigai WT, TR, 29 x 2.5in 120TPI, EXO+ Sidewall Protection, 3C MaxxGrip, Dual Compound, folding bead (front); Maxxis Minion DHR 2 WT, TR, 29 x 2.4in 120TPI, Double Down Casing, 3C MaxxTerra, Dual Compound (rear)
SHIFT LEVERSSRAM AXS Pod, right, MMX, 12 speed
FRONT MECHN/A
REAR MECHSRAM S1000 AXS Eagle, 12 speed
CASSETTESRAM XS 1275, T-Type, 10-52T, 12 speed
CHAINSRAM GX T-Type, 12 speed
CRANKSETWhyte 155mm long ISIS crank arms, SRAM direct mount, 36T chainring, T-Type
BOTTOM BRACKETN/A
SEATPOSTTranzX +RAD adjustable dropper post, 34.9mm, frame size specific drop (size S 150mm drop; size M 170mm drop; sizes L-XL 200mm drop)
SEATWhyte Custom
BARRace Face Turbine alloy bar, 35mm bar bore, 35mm rise, 800mm wide
STEMWhyte, 35mm extension, 35mm bar bore
GRIPSWhyte Enduro lock-on

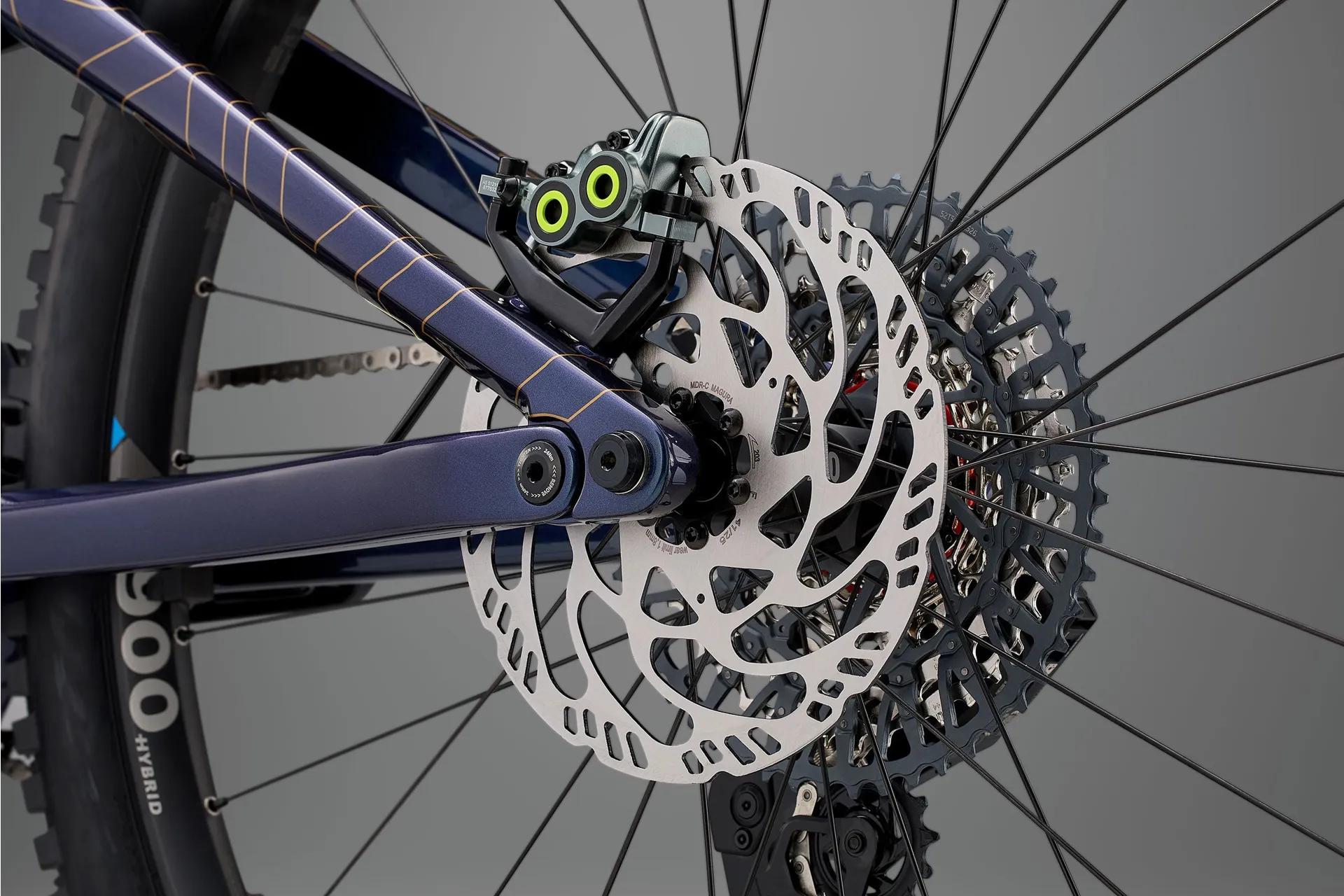

BRAKES FRONTMagura MT7 hydraulic disc brake, 203mm MDRC six bolt rotor
BRAKES REARMagura MT7 hydraulic disc brake, 203mm MDRC six bolt rotor
BRAKE LEVERSMagura MT7 one finger lever
PEDALSFibre reinforced composite platform
DRIVE UNITBosch Performance Line CX (Smart System) drive unit with 100Nm maximum torque, 750W of peak power and 250W of nominal power. Features four power mode settings including Tour+ and eMTB+. AXS derailleur powered off motor.
BATTERYBosch PowerTube 800Wh, perfectly integrated into the frame with an intuitive lockable mechanism for easy removal. Bosch PowerMore 250Wh range extender compatible.

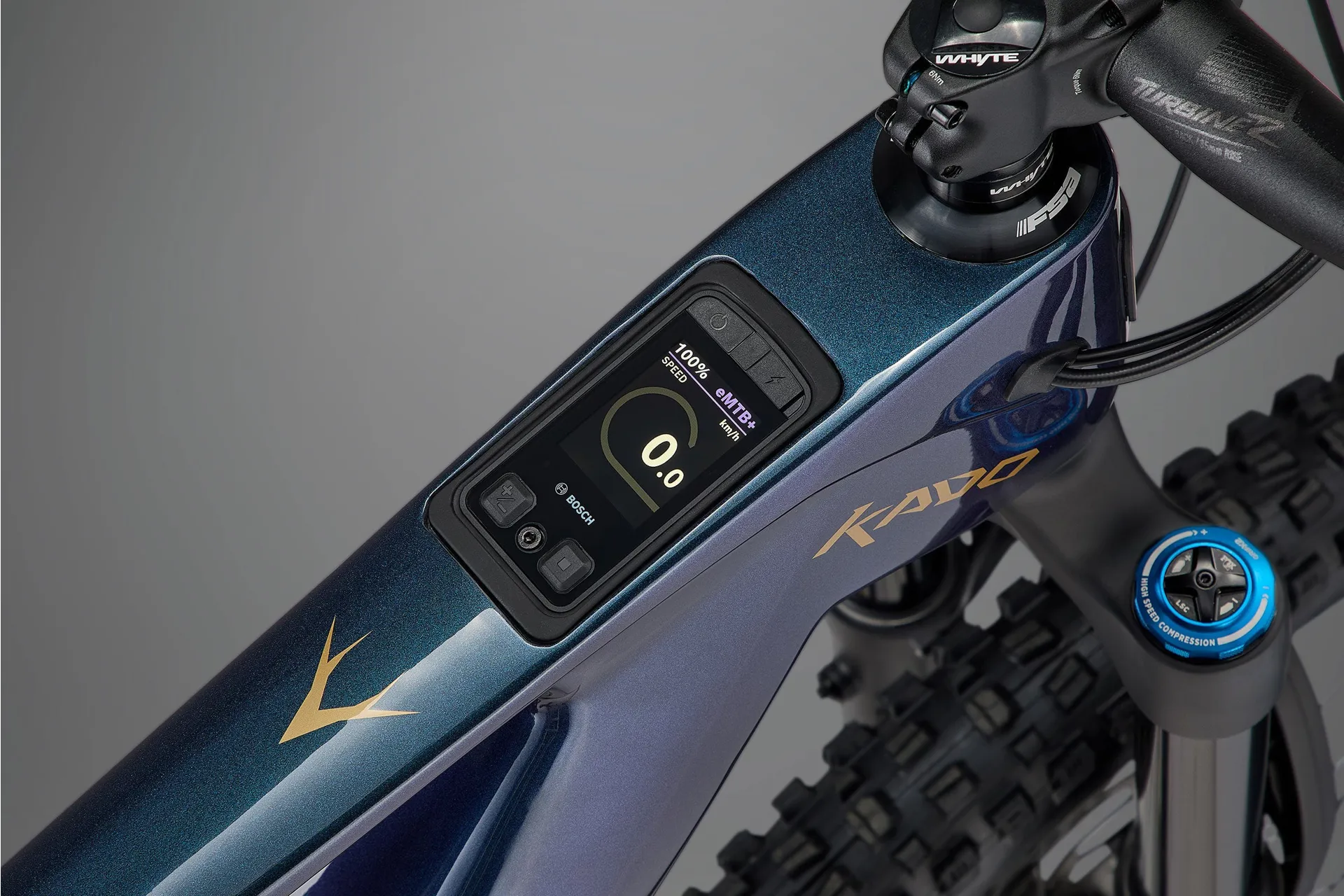

DISPLAYBosch Kiox 400C LCD display mounted within the top tube, paired with the discrete bar mounted Mini Remote. Also connects to the Bosch eBike Flow smartphone app to give you even more insight and control at your fingertips.
CHARGERCharger 4A (230V)
Sizing Information
size

FRAME SIZESmallMediumLargeExtra Large
REACH (mm)435460485510
STACK (mm)623634.4646.2659.8
HEAD ANGLE (° degrees)65 (64.4)65 (64.4)65 (64.4)65 (64.4)
SEAT ANGLE (° degrees)77.977.877.777.5
BB HEIGHT (mm)350350342342
WHEELBASE (mm)1213.11243.21273.71305
REAR CENTRE (mm)450450450450
STANDOVER HEIGHT (mm)765768771774
SEAT TUBE LENGTH (mm)395420445470
HEAD TUBE LENGTH (mm)104116129144
