The Merida eOne Sixty 900e Electric Mountain Bike features 160mm of travel thru Fox components. The Merida eOne Sixty 900e is powered by the reliable Shimano Steps E8000 Drive System.

The Merida eOne Sixty 900e Electric Mountain Bike features 160mm of travel thru Fox components. The Merida eOne Sixty 900e is powered by the reliable Shimano Steps E8000 Drive System.

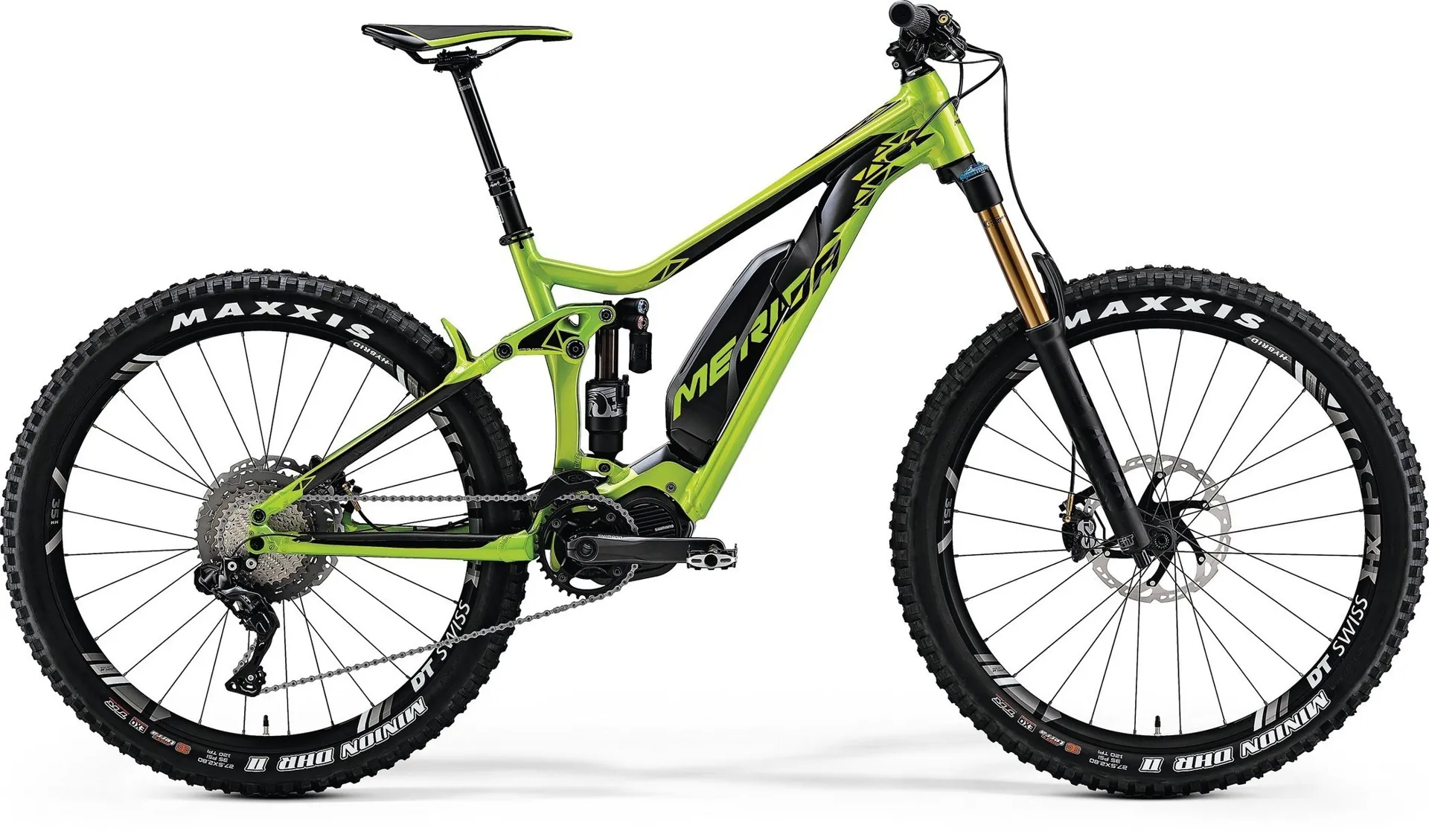

Merida eOne Sixty 900E 27.5 Plus Electric Bike 2018 Green

£4,999.99  £6,350.00  21% off
Click & Collect for Free
 in Customer Rewards when you buy this item today

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or dispatch to you — it often never even hits the stock room shelves!


With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for dispatch to you or collection via Click & Collect on the Undetermined
Earn Rewards
You will earn of rewards points to spend on your next purchase from us, anything online and instore when you purchase this item.

Not happy with your purchase? Send it back to us or return in any of our stores and we will give you a full refund or exchange!

Extended Returns Period - Coronavirus - 60 days

Due to the recent COVID-19 pandemic, we wanted to make returns as easy & stress-free as possible for you. So we're extending our returns period up to 60 days on any orders placed after the 16th of March 2020. We hope this extended period of time will allow you to follow government advice regarding self-isolation properly, and also cover you in the case of any disruption to the postal services. For more information on ensuring the safety and wellbeing of yourselves and others, please visit - Our returns policy is otherwise exactly the same!


In the unlikely event that you are dissatisfied with your purchase please feel free to return your goods within 60 days of the purchase date for a full exchange or refund. Any item (excluding food and underwear) can be returned to us for any reason provided it is returned in ‘showroom condition’, with its original packaging, tags and a valid receipt/delivery note.

It is your responsibility to ensure that the item is returned to us in a safe and secure manner, and in the event of a refund or exchange, in saleable condition (in original packaging and including all warranty, cards, manuals and accessories).

Customers are accountable for return shipping charges.

Return Items by Post

  1. You should always keep proof of postage and we advise you to use a ‘signed for service’ when returning goods.
  2. Send your package using a recorded delivery method (always keep a copy of your receipt!) to the following address:

Leisure Lakes Bikes,
Unit 9 Centurion Industrial Estate,
Centurion Way,
PR25 4GU

Checkout by Amazon Returns

If you used the pay by Amazon option when checking out then please send your package using a recorded delivery method (always keep a copy of your receipt!) with a note inside stating whether you want an exchange (what you want it exchanging for) or refund, to the following address:

Leisure Lakes Bikes
Unit 9 Centurion Industrial Estate
Centurion Way
PR25 4GU

Bike & Bulky Item Returns

If you wish to return your bike to us please keep it in the box it arrived in and call us on 01772 644340 and we will arrange a collection.

Please note the following:

  • a) If we have sent you the incorrect bicycle, we will cover the cost of collection and delivery of the correct model.
  • b) If we have delivered the bicycle you ordered, but upon inspection you decide it is not the bike for you, we will charge you £50.00 for the collection.

Please do not ride the bike as a full refund cannot be given if the bike has been used or damaged.

Return Items to a store

Any item (excluding food and underwear) can be returned to any Leisure Lakes Bikes store not just the one you made your purchase at, including those made online. The item must be returned in ‘showroom condition’, with its original packaging, tags and with a valid receipt/delivery note.

Returning goods from EU

If returning something from Europe you are responsible for the delivery cost. You should always keep proof of postage and we advise you to use a ‘signed for service’ when returning goods. 1) Log in and go to ‘my account’ 2) Select ‘orders’ from the menu and select the order you wish to return 3) Fill in the required fields 4) Print off your returns lable, stick it visibly on your package and send using a recorded delivery method. Always keep a copy of your receipt! 5) Log in to your account online for status updates on your return

How to return your item(s)?

  1. You should always keep proof of postage and we advise you to use a ‘signed for service’ when returning goods.
  2. Send your package using a recorded delivery method (always keep a copy of your receipt!) to the following address:

Leisure Lakes Bikes,
Unit 9 Centurion Industrial Estate,
Centurion Way,
PR25 4GU

Wrong size or you don't like the item?

If returning items that are not suitable for either refund or exchange you are accountable for the delivery cost in returning it to us. You should always keep proof of postage and we advise you to use a ‘signed for service’ when returning goods.

New faulty items/ Wrong Item Received

If you have received items that are faulty or not what you ordered send them back to us (using the steps above) and we will cover the delivery cost of the return if it is within 14 days of delivery. If we have supplied the correct product, it is not faulty or it is outside of the 14 days we can not be liable for your postage charges. You should always keep proof of postage and we advise you to use a ‘signed for service’ when returning goods.

In the event that you have received items that are fault or not what you ordered, please send them back to us as soon as possible. Only in these cases will we cover the cost of the return shipping charges.

Faulty Items

If you have received items that are faulty please send them back to us using the steps above. Please include a covering letter describing the fault and if you would like the item replacing or refunding. Once the item arrives back at our Mail Order Centre you will receive an email notifying you about the progress. Faulty items are then forwarded onto the suppliers to confirm the warranty issue. Please be patient with us as we need to receive this confirmation from the suppliers before we can process your request for a replacement/refund.

When returning the item please use Royal Mail 1st Class Recorded* so that you have a tracking reference just in case! If your item arrived faulty we will refund your postage cost. If the item was in full working order at the time of delivery to you, we can not refund your return postage cost.

*In the event that you return a faulty/incorrect item we will refund your postage charge as long as it is 1st Class Recorded or a lesser value service. We do not refund premium services.


Refunds will be processed using the same method of payment used for the original purchase. Credit and debit card refunds must be made to the card used for the original transaction, cheque payments will be refunded in cash but due to banking restrictions can only be refunded at least 14 days after the original purchase date. Due to the high incidence of fraud we regret that we are unable to offer any refund without a valid receipt/delivery note.

Refunds will be made for faulty or incorrect items, including any delivery charge incurred by the buyer (excluding ‘Special Delivery’) in the return of the item. If the products you ordered are delivered to you in good condition but you wish to return them for any reason we will refund the full value of the goods excluding any carriage charge upon receipt of your returned goods.

Items won’t be considered lost until after 15 working days of items being dispatched. Once the 15 working days are up we will issue a refund or replacement.

Not received your order?

If you have not received your order please call us on 01772 644340 and a member of staff can confirm the shipping date. Unfortunately we cannot consider an item to be lost until 15 working days has passed (according to Royal Mail procedure). Once the 15 working days have passed we will be able to issue a full refund or resend your order.


Merida eOne Sixty 900E 27.5 Plus Electric Bike 2018 Green Information

Season : 2019

Brand : Merida

Code : H818-FOCUS19

The Merida eOne Sixty 900e Electric Mountain Bike features 160mm of travel thru Fox components. The Merida eOne Sixty 900e is powered by the reliable Shimano Steps E8000 Drive System, a Shimano 500Wh E8010 battery provides you with enough juice for a days ride. With powerful Shimano Saint hydraulic disc brakes, this bike isn't short on stopping power either. 203mm Disc rotors stop you as faster than you can probably handle.

The frame, made from high-end aluminium (6066) is extremely light and durable. Using triple butted wall thicknesses and hydroforming technology, we can tune the aluminium tubes to give the best possible stiffness to weight ratio. Using a tapered head tube with 1 1/8" bearings in the top and 1 1/4" or 1 1/2" in the bottom creates superb stiffness and precise, confidence inspiring steering. Cables are routed through the frame, entering and exiting through smooth sockets. The bike looks neat, whilst the cables are protected from moisture and dirt.

Merida eOne Sixty 900e Electric Mountain Bike 2018 Features

  • 6066 Aluminum Frame
  • Fox Float 36 with Boost 160mm Travel Fork
  • Fox Factory Float X2 Rear Shock
  • Shimano XT Di2 RD-M8050 Rear Derailleur
  • Shimano Steps E8000 Drive Unit, Shimano E8010 500Wh Battery, Shimano E8000 Display

Shimano E8000 Drive Unit

The powerful Shimano Steps E8000 motor is strong enough to handle the steepest of trails, yet intuitive enough to give you just the right amount of support every pedal stroke along the way. With a maximum power of 70Nm, and designed for bikes with shorter chainstays, the narrow Q factor of 177mm (same as standard XT Chainset) provides an efficient pedal stroke. The motor features are:

  • Designed specifically to give you that natural feel of riding a normal MTB.
  • Weighs only 2.8kg, one of the lightest motors on the market.
  • Stable, smooth intuitive power for improved bike handling over every section of trail.
  • Solidly supports speeds up to 25 km/h.
  • 3 Assist modes: Eco,Trail and Boost.
  • Features a Walk Assist Mode

Shimano E8010 Battery

Weatherproof and waterproof, The Shimano battery has a quick charging time: 80% in 2.5 hours, from 0 to 100% in 5 hours. The LCD display shows battery capacity information based on which gear you are riding, and which support setting you are using. This helps you to easily determine current remaining battery charge. The features are outlined below:

  • Ultra-durable, powerful battery specially designed for the rigors of mountain biking.
  • MTB-dedicated compact, low profile design for improved impact and vibration resistance.
  • High capacity long-lasting Li-Ion battery of 504 Wh to cover more territory.
  • Supported travel up to 100 km on one charge.
  • 1,000 charge cycles with no significant power loss
  • Charging: 80% after 2,5 hrs / 5 hrs from 0 to 100%

Shimano E8000 Display

Wirelessly program your preferences with smartphone, tablet or computer via E-TUBE, SHIMANO’s application that allows you program/update your bicycle's firmware and change Di2 settings. Extensive choice of power-assist settings to match your unique riding style. Compact, easy-to-read display with dynamic visuals when switching between support settings.

  • Further personalize your support settings by choosing Dynamic, Explorer or Custom Mode to perfectly match your riding style and intended terrain.
  • Computer specifically designed to be compact and durable for MTB riding.
  • Easy-to-read LCD - each support setting assigned a unique colour.
  • Sleek bar-mounted computer with dynamic LCD display shows gear number, power assist mode and battery range information.
  • Wirelessly customise your preferences via Bluetooth.


Technical Information
Frame eONE-Sixty 6066 Aluminum
Fork FOX Float 36 with Boost 15mm X 110mm bolt through HSC, LSC, Kashima coating 160mm
Rear Shock Fox Factory Float X2
Size S,M,L
Headset FSA NO.57/55E neck
Handlebars MERIDA EXPERT II 780mm, rise: 20 mm, dia: 35mm, 6°
Grips/Bar Tape
Seatpost Rock Shox Reverb Stealth 30.9mm
Front Brake Shimano XT hydraulic disc brakes, 203mm 6 bolt rotors
Rear Brake Shimano XT hydraulic disc brakes, 203mm 6 bolt rotors
Front Derailleur N/A
Rear Derailleur Shimano XT Di2 RD-M8050
Shifters Shift Switch XT Di2
Cassette Shimano XT, 11 speed, 11-46 teeth
Chain KMC X11e
Chain Device SM-CDE 80 Chainguide
Chainset Shimano CRE80-B 34
Front Tyre Maxxis DHR II 27.5" x 2.8"
Rear Tyre Maxxis DHR II 27.5" x 2.8"
Pedals VPE-537
Motor Shimano E8000
Battery Shimano E8010
Display Shimano E8000
Weight 22.1kg


Sizing Information
Professional Opinion
Product Reviews
Write a review
5.0 As rated by 1 Customers

Write a review for Merida eOne Sixty 900E 27.5 Plus Electric Bike 2018 Green

Your name
Your email address
How would you rate it?
Would You Recomend this product?
Let others know your opinion
Submit Review Close
  • Merida eOne Sixty 900E 27.5 Plus Electric Bike 2018 Green Review by Professional Review from,  On 08/12/2017 10:24:13


    With the new Merida EOne-Sixty 900E they’ve done an amazing job. It has a fun, playful ride quality that few e-bikes can match. While other brands kick-start their long-travel ebikes around the £5k mark, Merida has adopted a different approach; the 160mm travel EOne-Sixty 900E is the top-end bike. It gets a full aluminium frame, Shimano Steps Motor and 500Wh battery back that’s semi-integrated into the downtube. It’s the exact same frame as the entry-level EOne-Sixty 800, and while that bike doesn’t get Shimano XT Di2 gears or Fox suspension, it looks like an absolute bargain for £4,000. One of the main advantages of using the compact Shimano motor is that Merida can maintain a regular 441mm chain stay length and a similar suspension layout to its 160mm travel non-ebikes.

    In fact, all of the numbers on the EOne-Sixty are pretty close to the best 160mm enduro bikes, the exception being the head angle. At a hair under 67 degrees it is too step by modern standards. The size range on the Merida is also limited, so if you’re 6ft or over, you’ll need to take a closer look at the Trek Powerfly or the Rocky Mountain Altitude Powerplay to get an ebike that fits. When Merida launched the EOne-Sixty earlier this year the Fox ebike optimised suspension forks didn’t exist. So the EOne-Sixty comes with a regular Fox 36 RC2 without the thicker wall upper tubes and stiffer crown. Not that we’re complaining, as it’s the top-end Factory level fork so it benefits from the best damping money can buy.

    Because the sizing, geometry and handling on the Merida is so close to a regular 160mm bike, you begin to notice the little things that affect ride quality that sometimes get over looked on ebikes. Like the conical headset top-cap that makes the handlebar position feel too high, and the fact that the 760mm handlebar feels narrow when you normally get 780mm bars on equivalent travel non-ebikes.

    We never really got used to the Shimano Di2 shifting either, even when we reversed the action of the shifter with the E-Tube app. Also it doesn’t offer anything like as positive a shift as SRAM EX1, and it’s sounds like the chain could snap at any moment. Which, it did. To be fair to Shimano though, it was a KMC chain.

    Having a full size 34t chain ring is also a big advantage for UK riding, as it will clear mud much better than the 15/16t driver cogs found on the Bosch system. It’s not all rosy with Shimano Steps though. The battery life indicator isn’t linear, so in a very short space of time you go from having two bars (there are 4 in total) to one, then all of a sudden it’s flashing red and next thing you know your out of juice and pedalling through treacle.

    A more pressing issue is that on the time climbs and acceleration tests that we conducted the Merida was by far the slowest bike. And that was after we swapped the tyres for faster rolling 60a rubber. Not that this stopped us from having a total blast riding the Merida, but it meant that it got dropped on every climb

    Merida has done an amazing job with the EOne-Sixty 900E. It has a fun, playfully ride quality that few ebikes can match, and the price is simply unbeatable. It’s also the only sub 50lb bike in this test, and that’s without a single strand of carbon. It could be even better though. With a two degree slacker head angle and a little more power from the Shimano motor the EOne-Sixty would be able to keep up on the climbs, only to drop the competition on every descent. The biggest issue though, is actually getting hold of one.
