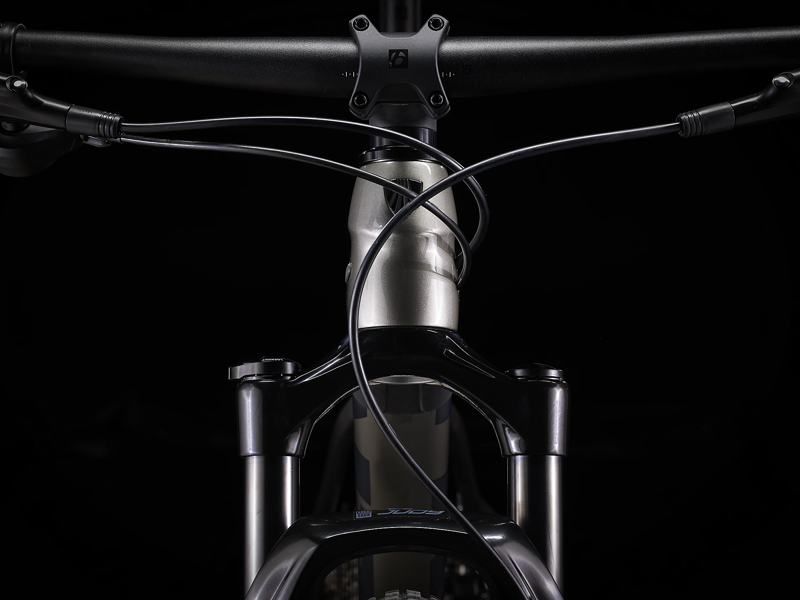

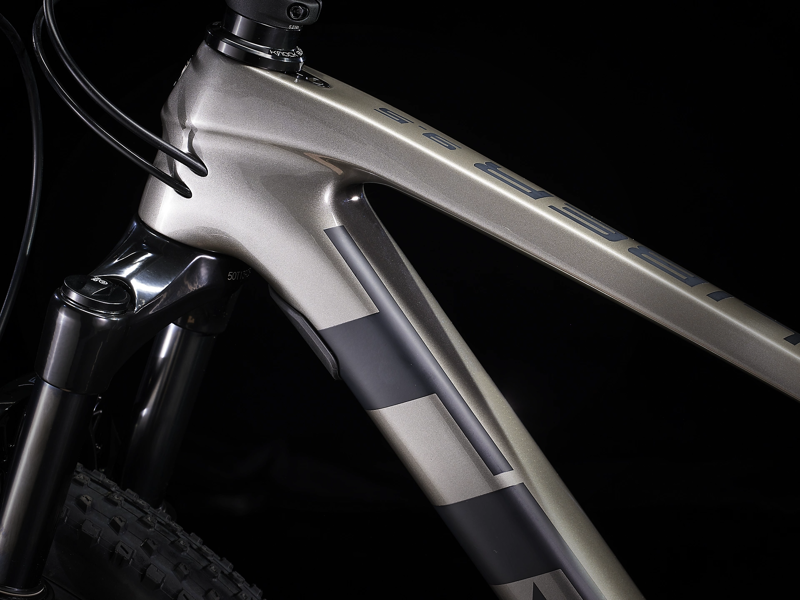

Frame | OCLV Mountain Carbon, IsoSpeed, tapered head tube, Knock Block, internal control routing, balanced post-mount brake, Boost148 |
*Fork | Size: S, M, M/L, L, XL, XXL |
| RockShox Judy SL, Solo Air spring, TurnKey lockout, tapered steerer, Boost110, 15 mm Maxle Stealth, 100 mm travel |
| Size: S, M, M/L, L, XL, XXL |
| RockShox Judy SL, Solo Air spring, TurnKey lockout, tapered steerer, 42 mm offset, Boost110, 15 mm Maxle Stealth, 100 mm travel |
Max compatible fork travel | 120mm (533 axle-to-crown) |
Wheel front | Bontrager Kovee TLR rim/DC-611 Boost hub, 29'', 28H, 15 Gauge Spokes, Black/Black |
Wheel rear | Bontrager Kovee TLR rim/MST148A Boost hub, 29'', 28H, 15 Gauge Spokes, Micro Spline Freehub, Black rim graphics, spokes, and nipples |
Hub front | Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle |
*Hub rear | Size: S, M, M/L, L, XL, XXL |
| Bontrager sealed bearing, Boost148 |
| Size: S, M, M/L, L, XL, XXL |
| Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle |
Rim | Bontrager Kovee, double-wall, Tubeless-Ready, 28-hole, 23 mm width, Presta valve |
Tyre | Bontrager XR2 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29x2.20" |
Tyre part | Bontrager TLR sealant, 180 ml/6 oz |
Max tyre size | Frame: 29x2.40" Fork: See manufacturer |
Shifter | Shimano Deore M6100, 12-speed |

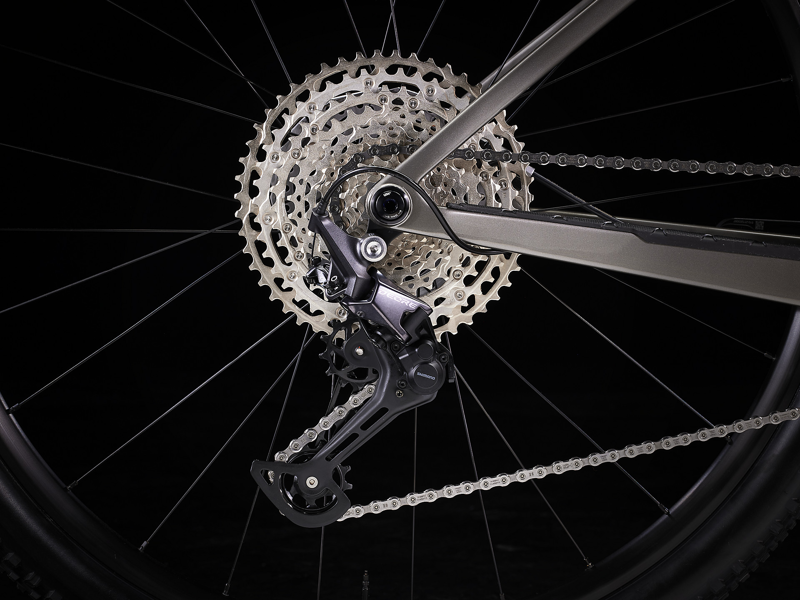

Rear derailleur | Shimano Deore M6100, long cage |
*Crank | Size: S, M |
| Shimano MT511, 30T steel ring, 52 mm chainline, 170 mm length |
| Size: M, M/L, L, XL, XXL |
| Shimano MT511, 30T steel ring, 52 mm chainline, 175 mm length |
Bottom bracket | Shimano MT500, 92 mm, PressFit |
*Cassette | Size: S, M, M/L, L, XL, XXL |
| Shimano Deore M6100, 10-51, 12-speed |
| Size: S, M, M/L, L, XL, XXL |
| SunRace CSMZ800 11-51, 12 speed |
Chain | Shimano Deore M6100 |
Max. chainring size | 36T, Min 30T |
Saddle | Bontrager Arvada, steel rails, 138 mm width |
*Seatpost | Size: S |
| Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length |
| Size: M |
| Bontrager alloy, 31.6 mm, 12 mm offset, 360 mm length |
| Size: M/L, L, XL, XXL |
| Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length |
*Handlebar | Size: S, M, M/L |
| Bontrager Comp, alloy, 31.8 mm, 5 mm rise, 720 mm width |
| Size: L, XL |
| Bontrager Rhythm Comp, alloy, 31.8 mm, 15 mm rise, 750 mm width |
| Size: XXL |
| Bontrager Line, alloy, 35 mm, 15 mm rise, 750 mm width |

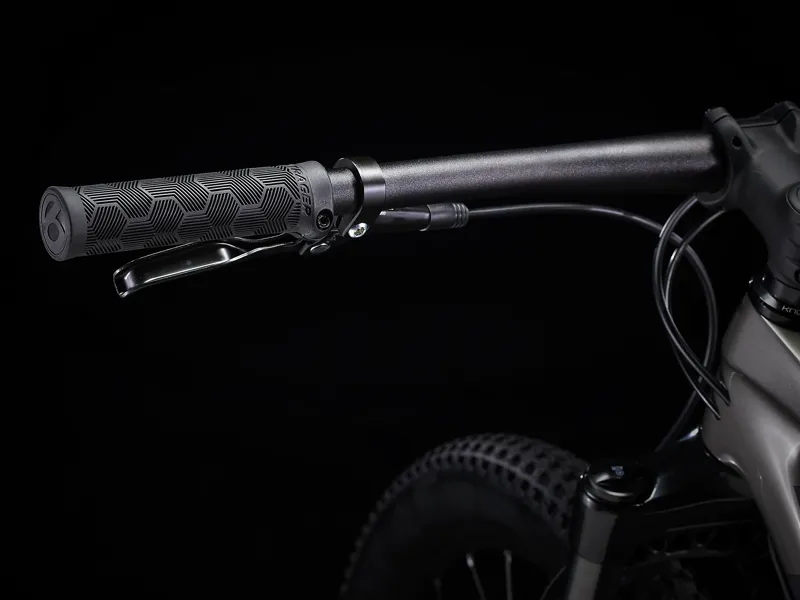

Grips | Bontrager XR Trail Comp, nylon lock-on |
*Stem | Size: S |
| Bontrager Rhythm Comp, 31.8mm, Knock Block, 0-degree, 60 mm length |
| Size: M, M/L |
| Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree, 70 mm length |
| Size: L, XL |
| Bontrager Rhythm Comp, 31.8mm, Knock Block, 0-degree, 80 mm length |
| Size: XXL |
| Bontrager Kovee Pro, 35 mm, Knock Block, Blendr-compatible, 13-degree, 90 mm length |
| Size: XXL |
| Bontrager Elite, 35 mm, 0-degree, 90 mm length |
Brake | Shimano MT200 hydraulic disc |

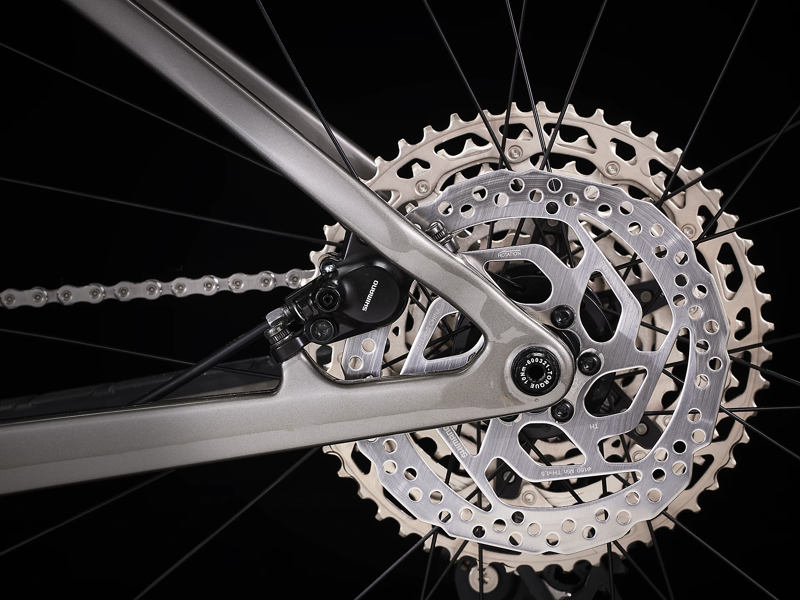

*Brake rotor | Size: S, M, M/L, L, XL, XXL |
| Shimano RT26, 6-bolt,160 mm |
| Size: L, XL, XXL |
| Shimano RT26, 6-bolt,180 mm |
Brake Set | Shimano MT200 hydraulic disc |
Weight | M - 11.88 kg / 26.21 lbs (with TLR sealant, no tubes) |
