The Mondraker Dune XR Electric Bike takes a different path by offering power and performance similar to longer travel, burlier bikes like the SUPERFOXY and LEVEL.
The Mondraker Dune XR Electric Bike takes a different path by offering power and performance similar to longer travel, burlier bikes like the SUPERFOXY and LEVEL.
Mondraker

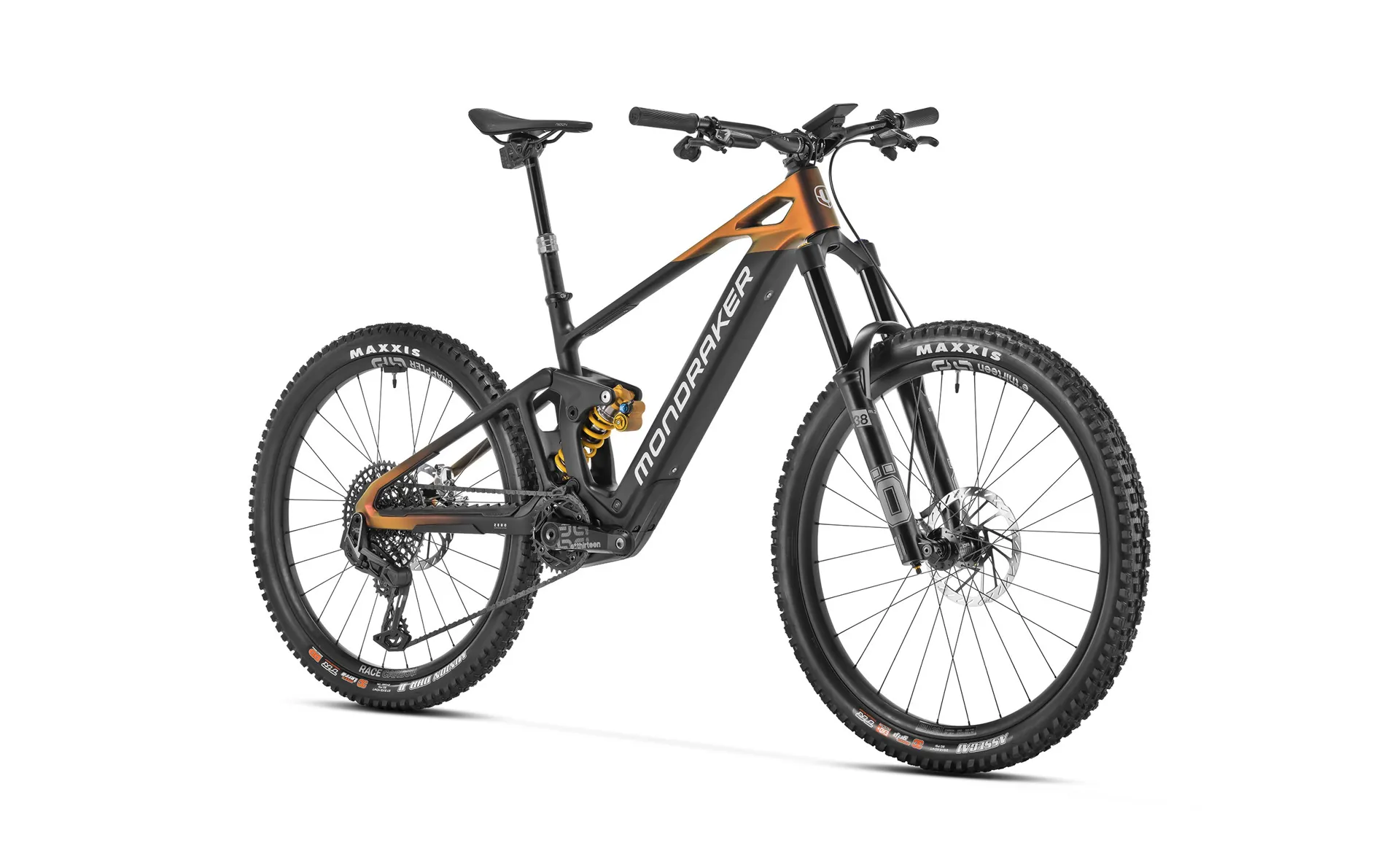

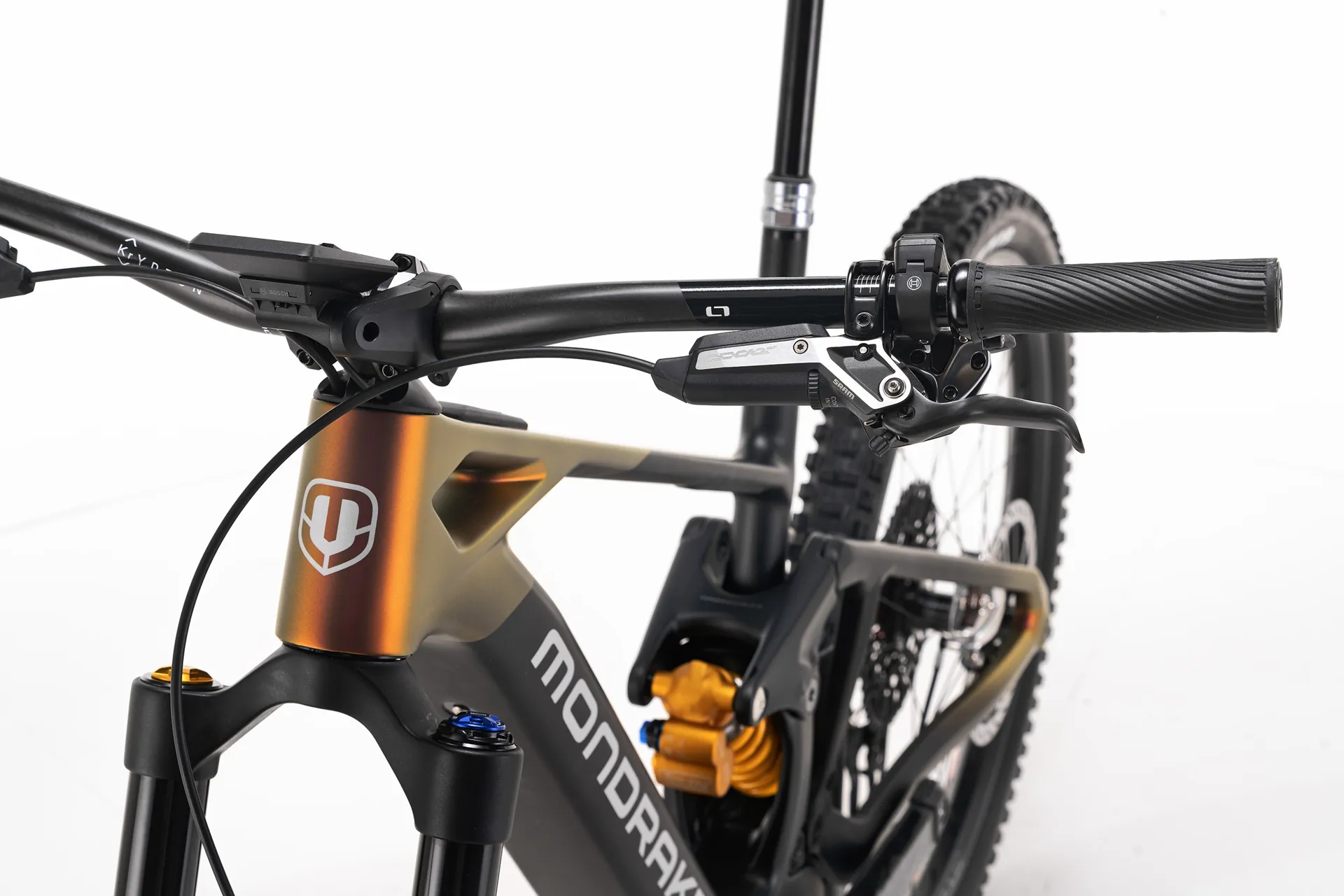

Mondraker Dune XR Electric Bike 2024 Black/Mars/Racing Silver

£11,999.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Not happy with your purchase? Send it back to us or return in any of our stores and we will give you a full refund or exchange!

Returns

In the unlikely event that you are dissatisfied with your purchase please feel free to return your goods within 60 days of the purchase date for a full exchange or refund. Any item (excluding food and underwear) can be returned to us for any reason provided it is returned in ‘showroom condition’, with its original packaging, tags and a valid receipt/delivery note.

Simply box up your items for return, include a cover note with the word REFUND or EXCHANGE inside & follow the below steps for safe return to our warehouse; where your return will be processed promptly.

Return Items by Post

It is your responsibility to ensure that the item is returned to us in a safe and secure manner, and in the event of a refund or exchange, in saleable condition (in original packaging and including all warranty, cards, manuals and accessories).

Customers are accountable for return shipping charges.

  1. You should always keep proof of postage and we advise you to use a ‘signed for service’ when returning goods.
  2. Send your package using a recorded delivery method (always keep a copy of your receipt!) to the following address:

Leisure Lakes Bikes,
Unit 9 Centurion Industrial Estate,
Centurion Way,
Leyland,
PR25 4GU

Checkout by Amazon Returns

If you used the pay by Amazon option when checking out then please send your package using a recorded delivery method (always keep a copy of your receipt!) with a note inside stating whether you want an exchange (what you want it exchanging for) or refund, to the following address:

Leisure Lakes Bikes
Unit 9 Centurion Industrial Estate
Centurion Way
Leyland,
PR25 4GU

Bike & Bulky Item Returns

If you wish to return your bike to us please keep it in the box it arrived in and call us on 01772 644340 and we will arrange a collection.

Please note the following:

  • a) If we have sent you the incorrect bicycle, we will cover the cost of collection and delivery of the correct model.
  • b) If we have delivered the bicycle you ordered, but upon inspection you decide it is not the bike for you, we will charge you £50.00 for the collection.

Please do not ride the bike as a full refund cannot be given if the bike has been used or damaged.

Return Items to a store

Any item (excluding food and underwear) can be returned to any Leisure Lakes Bikes store not just the one you made your purchase at, including those made online. The item must be returned in ‘showroom condition’, with its original packaging, tags and with a valid receipt/delivery note.

Wrong size or you don't like the item?

If returning items that are not suitable for either refund or exchange you are accountable for the delivery cost in returning it to us. You should always keep proof of postage and we advise you to use a ‘signed for service’ when returning goods.

New faulty items/ Wrong Item Received

If you have received items that are faulty or not what you ordered send them back to us (using the steps above) and we will cover the delivery cost of the return if it is within 14 days of delivery. If we have supplied the correct product, it is not faulty or it is outside of the 14 days we can not be liable for your postage charges. You should always keep proof of postage and we advise you to use a ‘signed for service’ when returning goods.

In the event that you have received items that are fault or not what you ordered, please send them back to us as soon as possible. Only in these cases will we cover the cost of the return shipping charges.

Faulty Items

If you have received items that are faulty please send them back to us using the steps above. Please include a covering letter describing the fault and if you would like the item replacing or refunding. Once the item arrives back at our Mail Order Centre you will receive an email notifying you about the progress. Faulty items are then forwarded onto the suppliers to confirm the warranty issue. Please be patient with us as we need to receive this confirmation from the suppliers before we can process your request for a replacement/refund.

When returning the item please use Royal Mail1stClass Recorded* so that you have a tracking reference just in case! If your item arrived faulty we will refund your postage cost. If the item was in full working order at the time of delivery to you, we can not refund your return postage cost.

*In the event that you return a faulty/incorrect item we will refund your postage charge as long as it is 1stClass Recorded or a lesser value service. We do not refund premium services.

Refunds

Refunds will be processed using the same method of payment used for the original purchase. Credit and debit card refunds must be made to the card used for the original transaction, cheque payments will be refunded in cash but due to banking restrictions can only be refunded at least 14 days after the original purchase date. Due to the high incidence of fraud we regret that we are unable to offer any refund without a valid receipt/delivery note.

Refunds will be made for faulty or incorrect items, including any delivery charge incurred by the buyer (excluding ‘Special Delivery’) in the return of the item. If the products you ordered are delivered to you in good condition but you wish to return them for any reason we will refund the full value of the goods excluding any carriage charge upon receipt of your returned goods.

Items won’t be considered lost until after 15 working days of items beingdispatched. Once the 15 working days are up we will issue a refund or replacement.

Not received your order?

If you have not received your order please call us on 01772 644340 and a member of staff can confirm the shipping date. Unfortunately we cannot consider an item to be lost until 15 working days has passed (according to Royal Mail procedure). Once the 15 working days have passed we will be able to issue a full refund or resend your order.

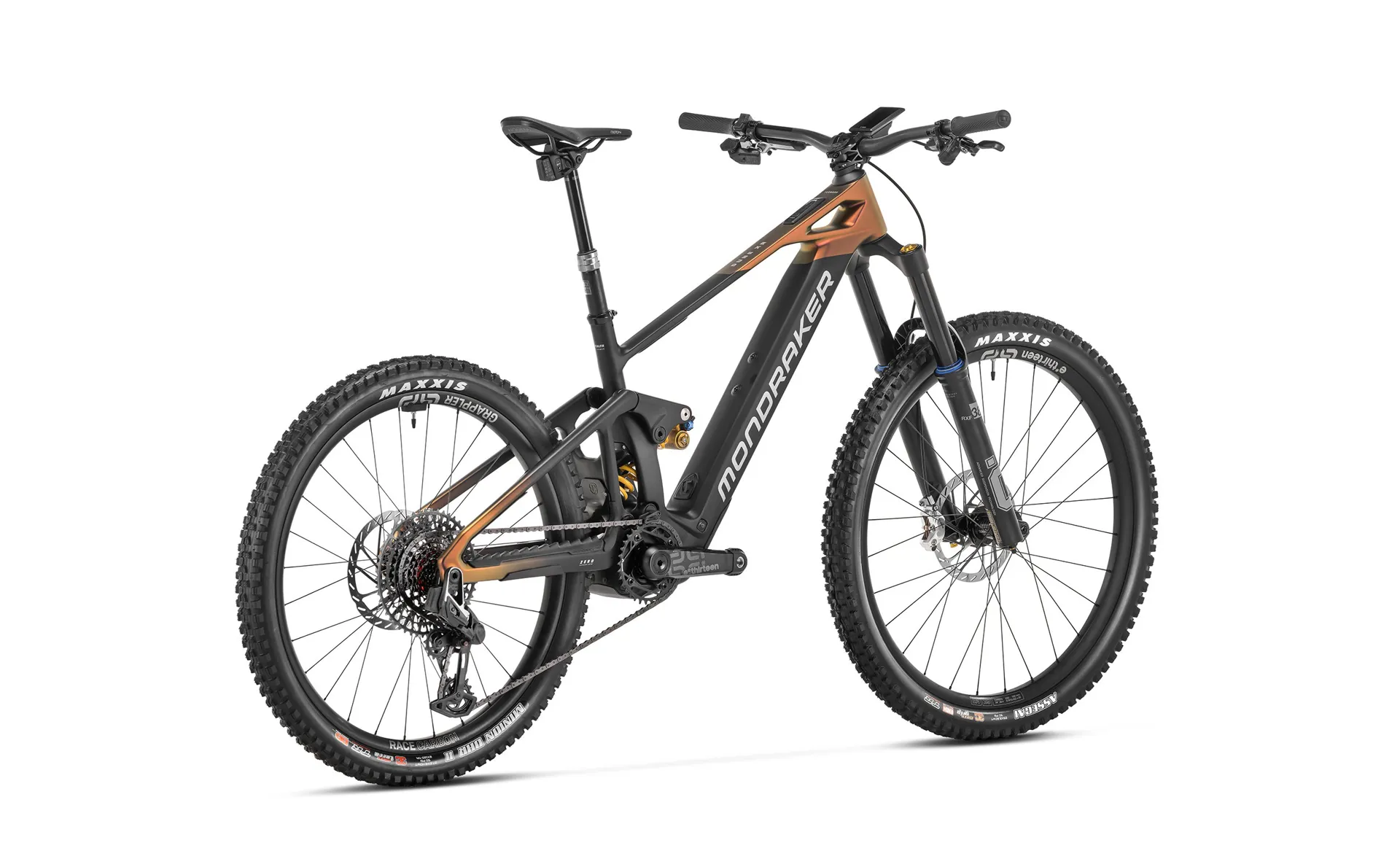

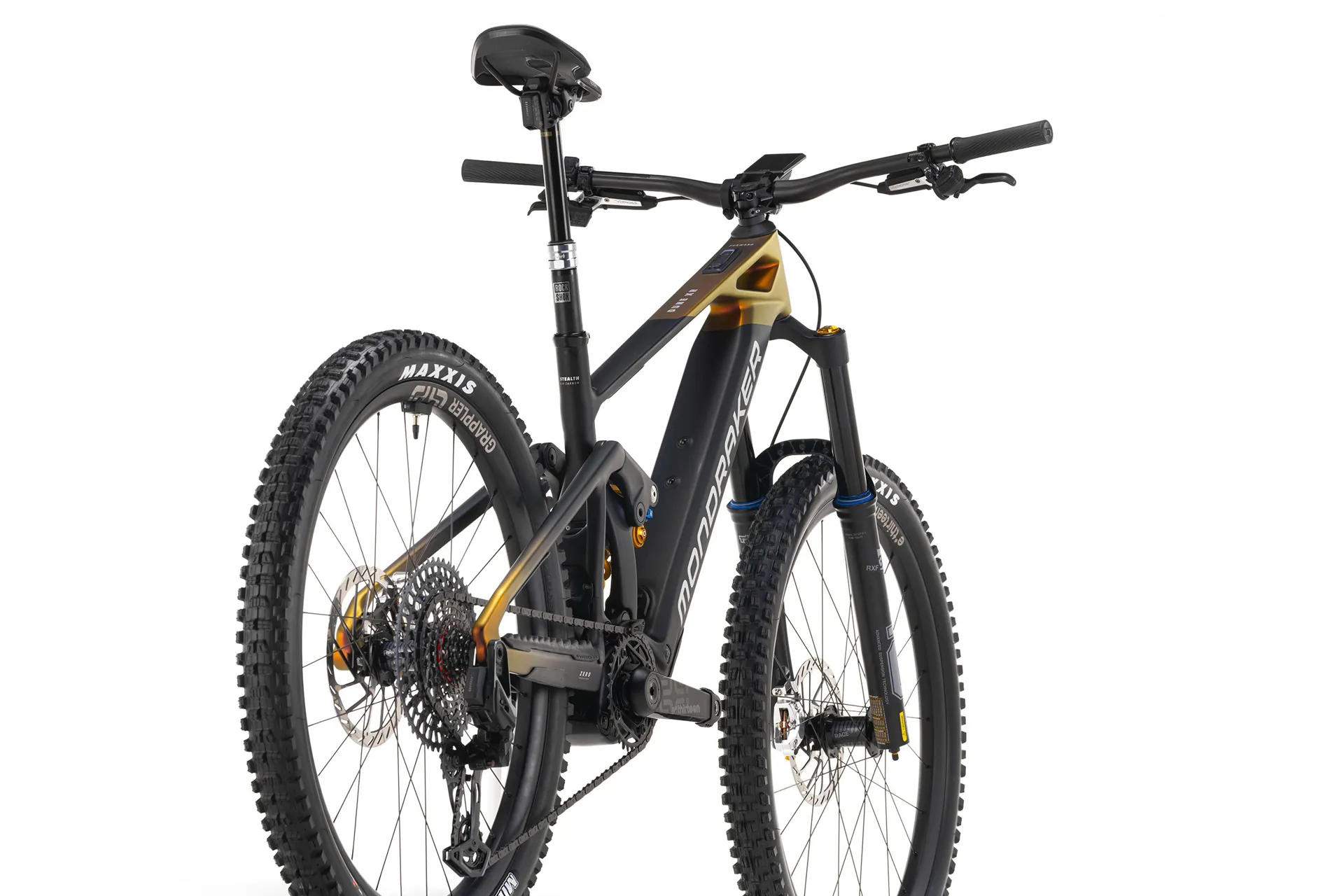

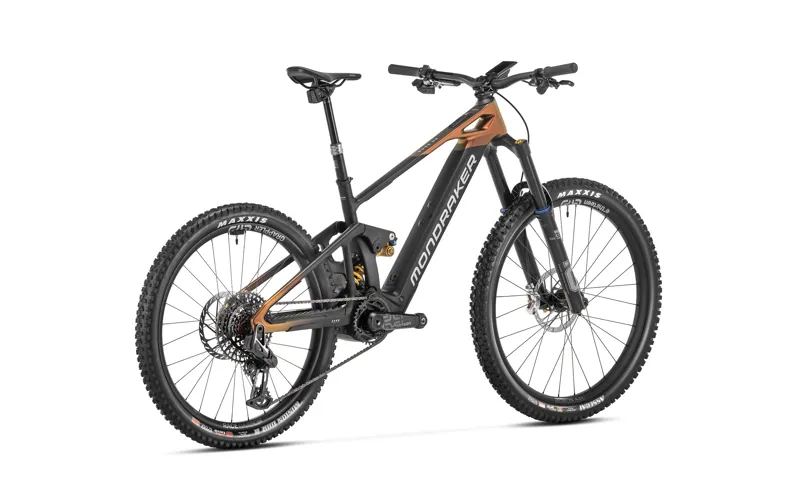

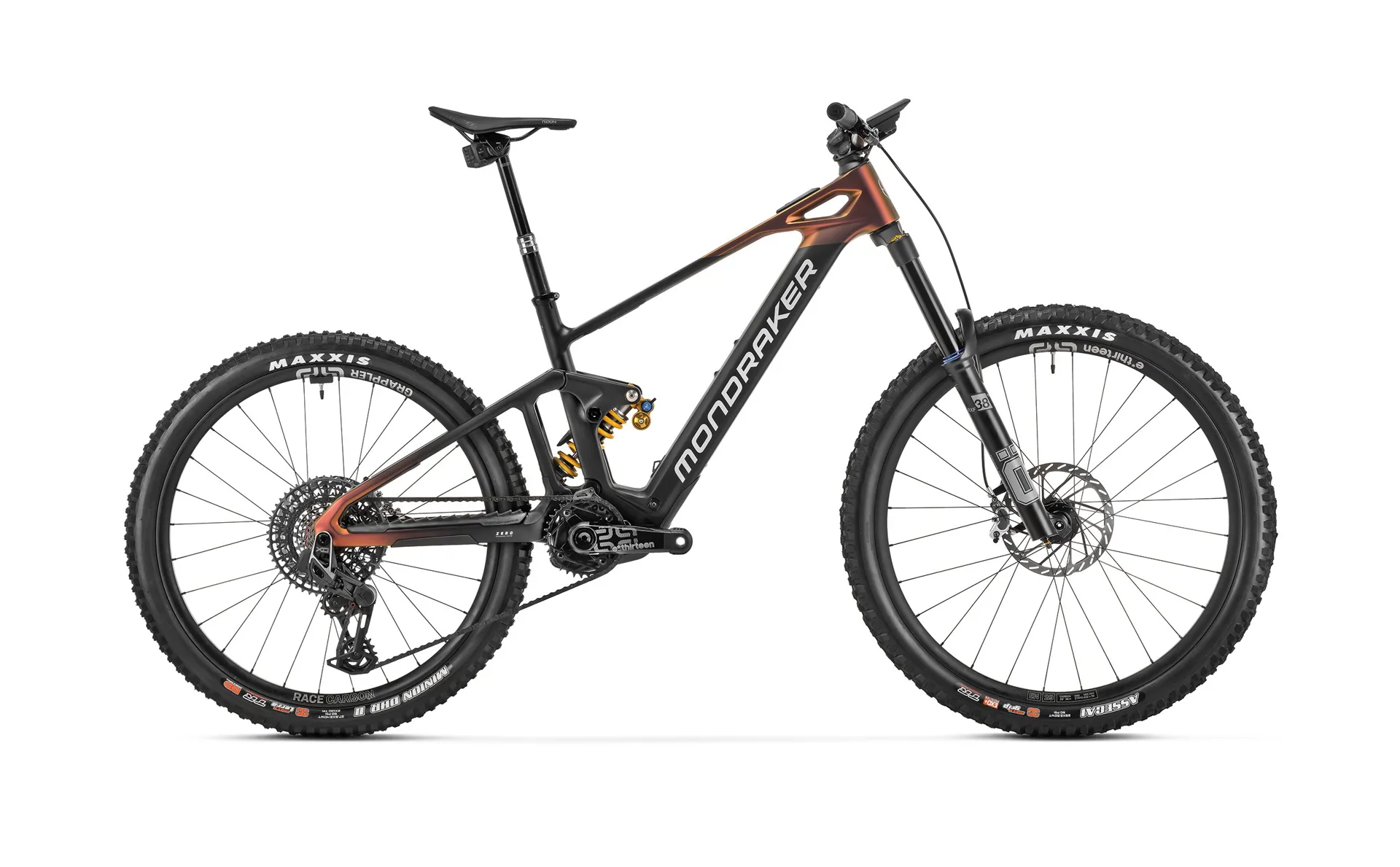

Mondraker Dune XR Electric Bike 2024 Black/Mars/Racing Silver

Season:2024

Brand:Mondraker

Code:010.24262-MON24

DUNE is the last word in Mondraker’s light e-Bike range. Taking after the NEAT in some key aspects such as lightness and agility, the Mondraker Dune XR Electric Bike takes a different path by offering power and performance similar to longer travel, burlier bikes like the SUPERFOXY and LEVEL. DUNE is the black sheep of the family, naughty and nice at the same time, the super enduro of light e-Bikes. Weighing in at under 20kg it’s the waking dream of anyone who’s been torn between a modern enduro bike and a full power ebike but who just couldn’t decide. Now they won’t have to. The foundation of the DUNE is a Stealth Air Carbon frame weighing in at 2.650 grams, combined with the power and light weight of Bosch’s latest offering, the Performance SX. The frame showcases our Updated Zero Suspension and offers 165mm of rear-wheel travel and Forward Geometry specifically tuned for this long-travel hard-hitting light e-Bike.

TWO DUNES: 2009 TO 2024
Back in 2009 the DUNE hit the market as a no-compromise full-on enduro bike, and was, as chance would have it, the first ever Mondraker to feature the Zero Suspension System. An aluminium frame, 160mm travel front and back, and with the option of a 170mm fork if you went for the XR version, it was the perfect tool to take on the fledgling Enduro World Series. That DUNE was in thecatalogue until 2020, and in the last five seasons you could get it with a carbon-fibre frame too.

The folks at Mondraker are convinced that the original DUNE was the most purebred enduro bike they’ve ever made. They managed to take that breeding and improve on it and work it into the FOXY and SUPERFOXY MTBs, but now things have come full circle and this time it’s the DUNE that’s taking all that they learned from its descendants. This time it’s an e Bike that will carry the legacy. DUNE: The natural evolution of enduro.

MOTOR: BOSCH SX. THE SWEET SPOT
DUNE really found its soulmate in the new Bosch Performance Line SX motor. Providing 55Nm of torque, 600W of peak power and reduced overall dimensions and weight, it’s the perfect partner for DUNE.

As well as the integrated 400Wh battery (2.070grams), DUNE and its Bosch SX have been designed to take full advantage of Bosch’s PowerMore 250Wh range extender (1.5Kg) providing you with up to 60% more range (this accessory is an option and is not included with the bike). When fitted, the range extender connects to the charging port on the downtube and gives you a combined 650Wh of power, giving your light e-MTB the range offered my most full-fat e-Bikes while still being significantly lighter and more agile.

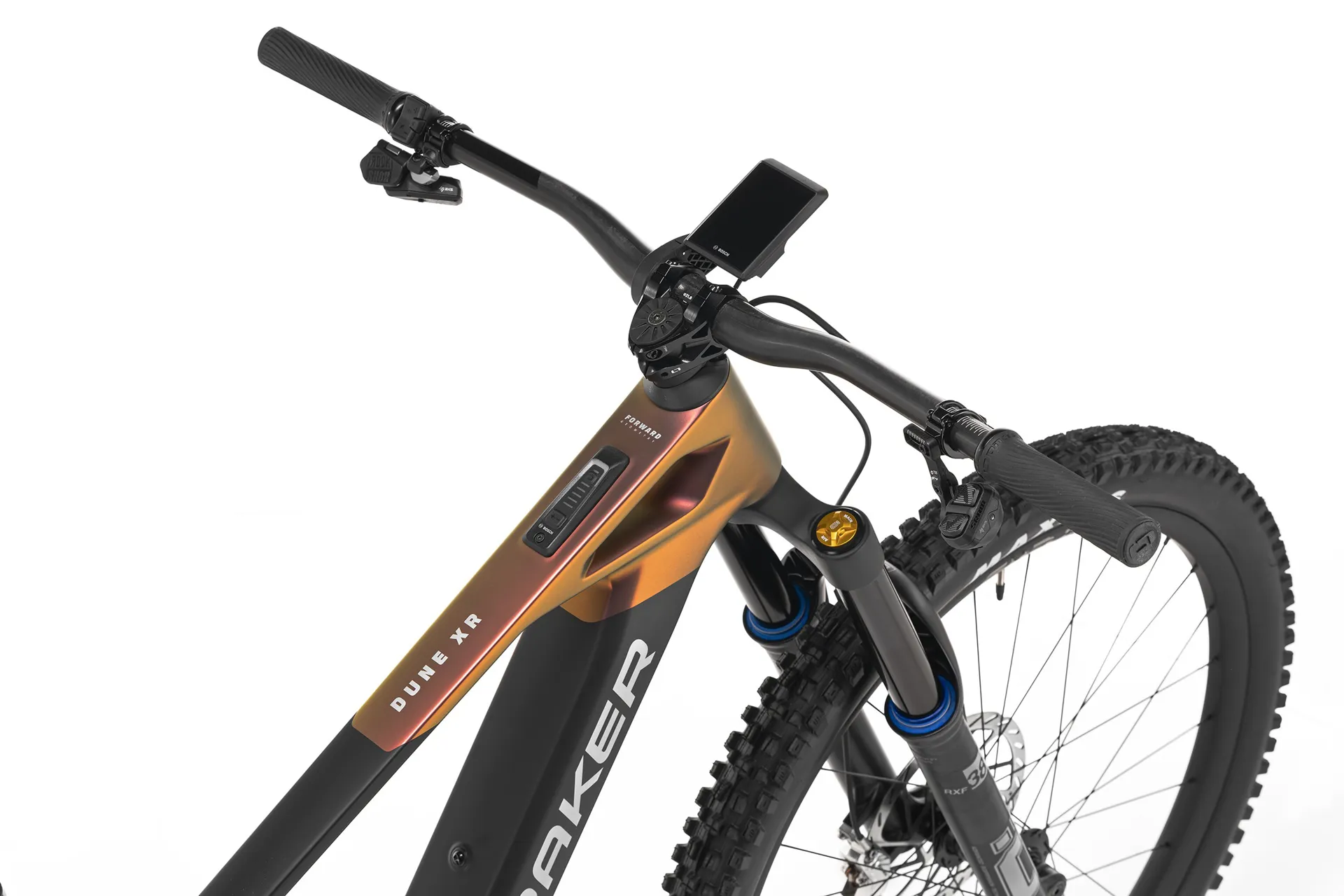

While the Bosch System Controller set into the top tube allows you to turn the motor on and off, control the support mode and visualise the battery level, you also have the Mini Remote and Kiox 500 display on the handlebar to effortlessly switch between modes and have access to a greater range of ride info.

The Bosch Performance Line SX with Smart System offers 4 different riding modes: ECO, TOUR+, eMTB and TURBO, each of which can be individually configured through the eBike Flow app. The handlebar mounted Kiox 500 display shows you your ride data in real time including power, cadence, speed and battery level, while the Mini Remote controller next to your handlebar grip lets you navigate through the menu via three buttons.

Mondraker Dune XR Electric Bike Highlights

  • Stealth Air Carbon frame
  • Updated Zero Suspension System kinematics
  • 170mm front, 165mm rear wheel travel (180mm front on the XR model)
  • 2.65Kg frame weight w/o shock (size M)
  • Mixed wheels: 29” front / 27.5” rear
Technical Information
FRAME

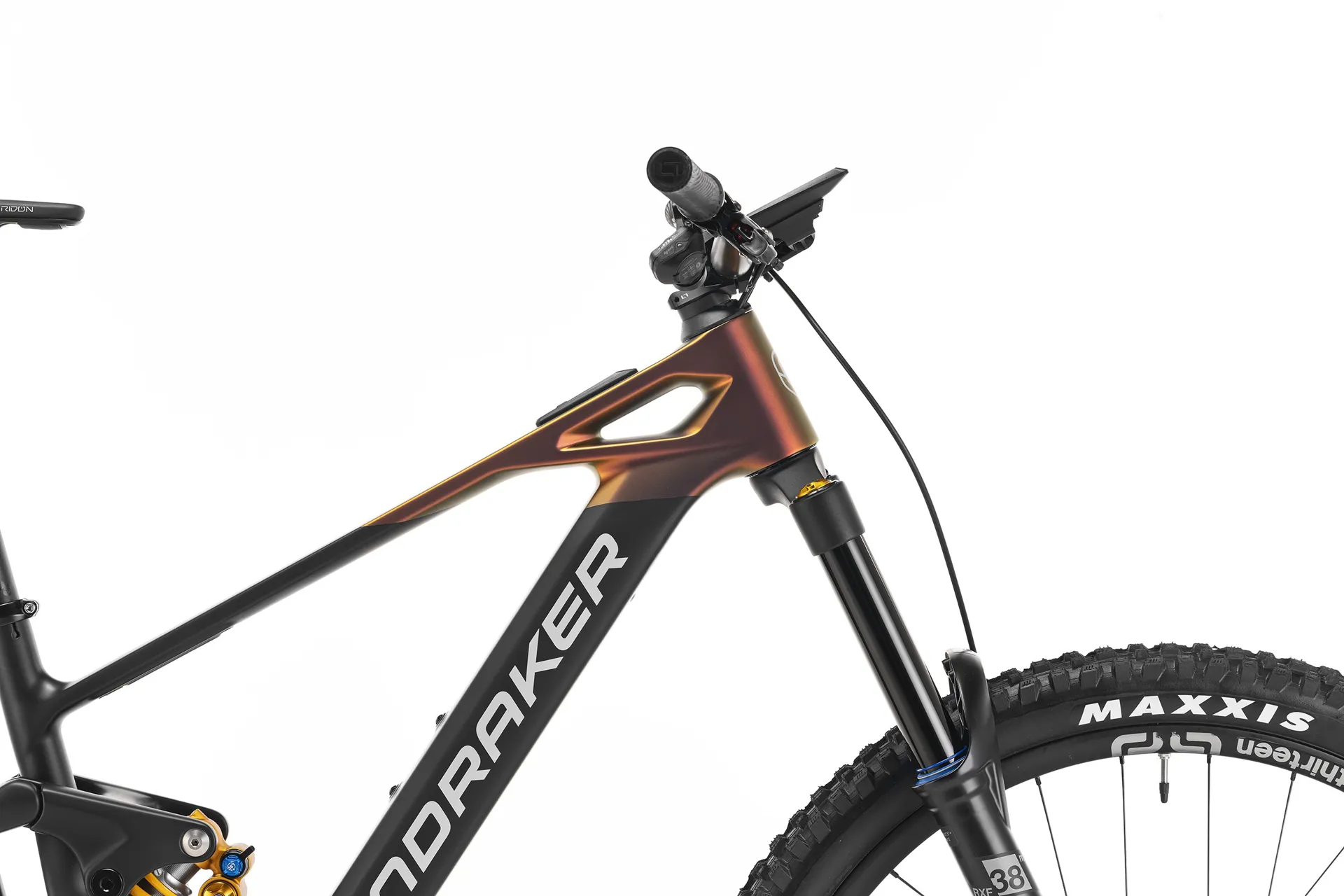

Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, Mullet, 165mm travel, Forward Geometry, internal & removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers
SIZESS: 380mm / M: 420mm / L: 450mm / XL: 490mm
REAR SHOCK
Öhlins TTX22M.2 205x65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings
SHOCK SETTINGS
C10 compression, R35 rebound. Spring rate: S size 343 lbs, M size 411 lbs, L size 457 lbs, XL size 502 lbs
FORK
Öhlins RXF 38 M.2 29, 180mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, lowspeed compression, rebound, air preload, ramp chamber
HEADSET
Acros custom for 1-1/2” head tube, angular contact bearings 40x52x7, Internal cable routing
STEMOnoff Krypton FG 30mm, CNC, 31.8mm barbore
HANDLEBAR
Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
GRIPSOnoff Desert, 1lock-on, 135mm
SEATPOST
RockShox Reverb Stealth AXS, diameter 31.6mm S size: 340x125mm M size: 390x150mm L size: 440x170mm XL size: 440x170mm
SADDLEFizik Terra Aidon Slim X5, 145mm
FRONT BRAKE
Sram Code Ultimate Stealth, oversized 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
REAR BRAKE
Sram Code Ultimate Stealth, oversized 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
BRAKE LEVER
Sram Code Ultimate Stealth, SwingLink and lever pivot bearings, tools-free reach and contact point adjust
RIMS
e*thirteen Grappler Race Carbon, Hookless carbon rim, 30mm internal width, tubeless ready, 28 spokes, 29 front, 27.5 rear
SPOKESe*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
FRONT HUBe*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
REAR HUB
e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub
FRONT TIRE
Maxxis Assegai 29x2.5WT, tubeless ready, 3C MaxxGrip compound, EXO+ casing, 60TPI, folding bead
REAR TIRE
Maxxis Minion DHR II 27.5x2.4 WT, tubeless ready, 3C MaxxTerra compound, DD casing, 2x120TPI, folding bead
CRANKSET
E.13 TRS Race carbon ebike, S size: 165mm M size: 165mm L size: 170mm XL size: 170mm
RINGSSram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD CL55
CHAINSram X0 Eagle T-Type, 12s, Powerlock

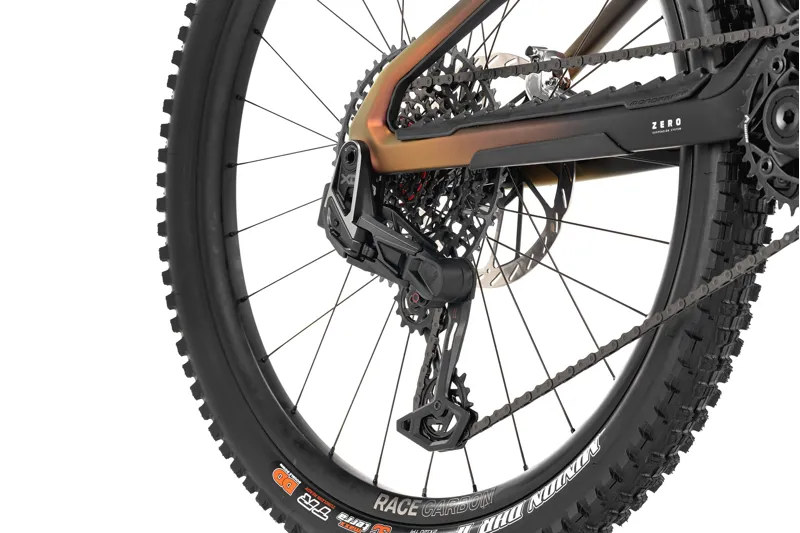

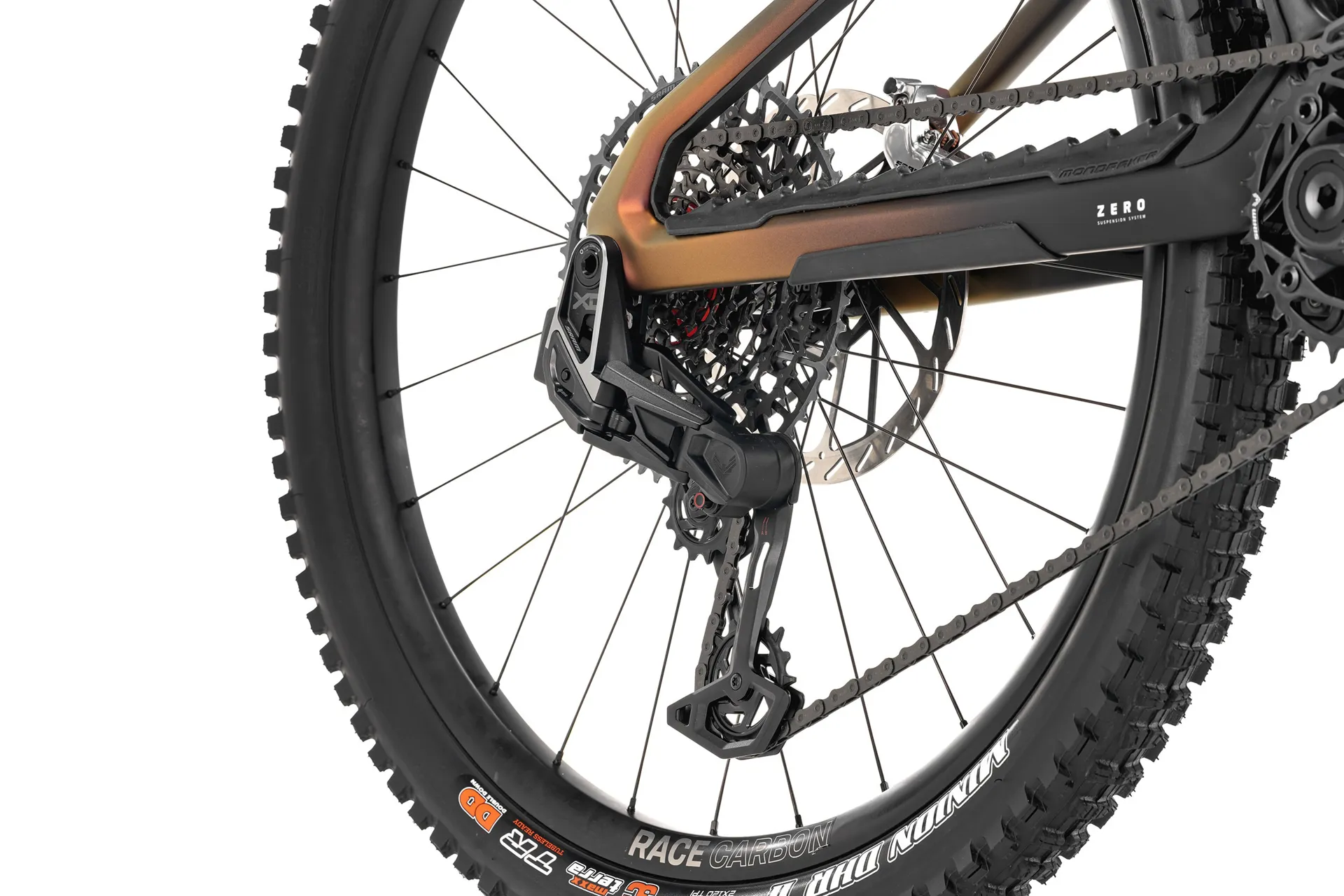

REAR DERRAILLEURSram X0 Eagle AXS, T-Type roller bearing clutch, cage lock, long carbon cage, 1x12s
SHIFT LEVERSSram Eagle AXS Pod MMX, 12s
CASSETTESram XS-1295, 10-52T, T-Type, 12s
MOTORBosch Performance Line SX (25Km/h) GEN4 SMART SYSTEM Diagonal, Wide
BATTERYBosch Compact Powertube 400Wh
DISPLAYBosch Kiox 500 / Bosch Mini Remote / Bosch System Controller
Sizing Information
SizeHeight CM
S<165-170
M168-180
L175-187
XL185->195



FRAME SIZE
SMLXL
ASeattube length380mm420mm450mm490mm
BToptube length600mm620mm645mm665mm
CBottom bracket drop-21/0mm-21/0mm-21/0mm-21/0mm
DBottom bracket height352mm352mm352mm352mm
EChainstay length445mm445 mm445mm445mm
FSeat tube angle74,0º74,0º74,0º74,0º
GEffective seattube angle77,5°77,5°77,5°77,5°
HHeadtube angle64º64º64º64º
IFork Offset44mm44mm44mm44mm
JWheelbase1232mm1260mm1285mm1309mm
KHeadtube length100mm110mm130mm140mm
LReach445mm465mm485mm505mm
MStack621mm630mm648mm658mm
