With the new Merida eOne-Sixty 675 Electric Bike, the next descent is always about to start.
With the new Merida eOne-Sixty 675 Electric Bike, the next descent is always about to start.
Merida

Merida eOne-Sixty 675 Electric Bike Green/White

£5,500.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Not happy with your purchase? Send it back to us or return in any of our stores and we will give you a full refund or exchange!

Returns

In the unlikely event that you are dissatisfied with your purchase please feel free to return your goods within 60 days of the purchase date for a full exchange or refund. Any item (excluding food and underwear) can be returned to us for any reason provided it is returned in ‘showroom condition’, with its original packaging, tags and a valid receipt/delivery note.

Simply box up your items for return, include a cover note with the word REFUND or EXCHANGE inside & follow the below steps for safe return to our warehouse; where your return will be processed promptly.

Return Items by Post

It is your responsibility to ensure that the item is returned to us in a safe and secure manner, and in the event of a refund or exchange, in saleable condition (in original packaging and including all warranty, cards, manuals and accessories).

Customers are accountable for return shipping charges.

  1. You should always keep proof of postage and we advise you to use a ‘signed for service’ when returning goods.
  2. Send your package using a recorded delivery method (always keep a copy of your receipt!) to the following address:

Leisure Lakes Bikes,
Unit 9 Centurion Industrial Estate,
Centurion Way,
Leyland,
PR25 4GU

Checkout by Amazon Returns

If you used the pay by Amazon option when checking out then please send your package using a recorded delivery method (always keep a copy of your receipt!) with a note inside stating whether you want an exchange (what you want it exchanging for) or refund, to the following address:

Leisure Lakes Bikes
Unit 9 Centurion Industrial Estate
Centurion Way
Leyland,
PR25 4GU

Bike & Bulky Item Returns

If you wish to return your bike to us please keep it in the box it arrived in and call us on 01772 644340 and we will arrange a collection.

Please note the following:

  • a) If we have sent you the incorrect bicycle, we will cover the cost of collection and delivery of the correct model.
  • b) If we have delivered the bicycle you ordered, but upon inspection you decide it is not the bike for you, we will charge you £50.00 for the collection.

Please do not ride the bike as a full refund cannot be given if the bike has been used or damaged.

Return Items to a store

Any item (excluding food and underwear) can be returned to any Leisure Lakes Bikes store not just the one you made your purchase at, including those made online. The item must be returned in ‘showroom condition’, with its original packaging, tags and with a valid receipt/delivery note.

Wrong size or you don't like the item?

If returning items that are not suitable for either refund or exchange you are accountable for the delivery cost in returning it to us. You should always keep proof of postage and we advise you to use a ‘signed for service’ when returning goods.

New faulty items/ Wrong Item Received

If you have received items that are faulty or not what you ordered send them back to us (using the steps above) and we will cover the delivery cost of the return if it is within 14 days of delivery. If we have supplied the correct product, it is not faulty or it is outside of the 14 days we can not be liable for your postage charges. You should always keep proof of postage and we advise you to use a ‘signed for service’ when returning goods.

In the event that you have received items that are fault or not what you ordered, please send them back to us as soon as possible. Only in these cases will we cover the cost of the return shipping charges.

Faulty Items

If you have received items that are faulty please send them back to us using the steps above. Please include a covering letter describing the fault and if you would like the item replacing or refunding. Once the item arrives back at our Mail Order Centre you will receive an email notifying you about the progress. Faulty items are then forwarded onto the suppliers to confirm the warranty issue. Please be patient with us as we need to receive this confirmation from the suppliers before we can process your request for a replacement/refund.

When returning the item please use Royal Mail1stClass Recorded* so that you have a tracking reference just in case! If your item arrived faulty we will refund your postage cost. If the item was in full working order at the time of delivery to you, we can not refund your return postage cost.

*In the event that you return a faulty/incorrect item we will refund your postage charge as long as it is 1stClass Recorded or a lesser value service. We do not refund premium services.

Refunds

Refunds will be processed using the same method of payment used for the original purchase. Credit and debit card refunds must be made to the card used for the original transaction, cheque payments will be refunded in cash but due to banking restrictions can only be refunded at least 14 days after the original purchase date. Due to the high incidence of fraud we regret that we are unable to offer any refund without a valid receipt/delivery note.

Refunds will be made for faulty or incorrect items, including any delivery charge incurred by the buyer (excluding ‘Special Delivery’) in the return of the item. If the products you ordered are delivered to you in good condition but you wish to return them for any reason we will refund the full value of the goods excluding any carriage charge upon receipt of your returned goods.

Items won’t be considered lost until after 15 working days of items beingdispatched. Once the 15 working days are up we will issue a refund or replacement.

Not received your order?

If you have not received your order please call us on 01772 644340 and a member of staff can confirm the shipping date. Unfortunately we cannot consider an item to be lost until 15 working days has passed (according to Royal Mail procedure). Once the 15 working days have passed we will be able to issue a full refund or resend your order.

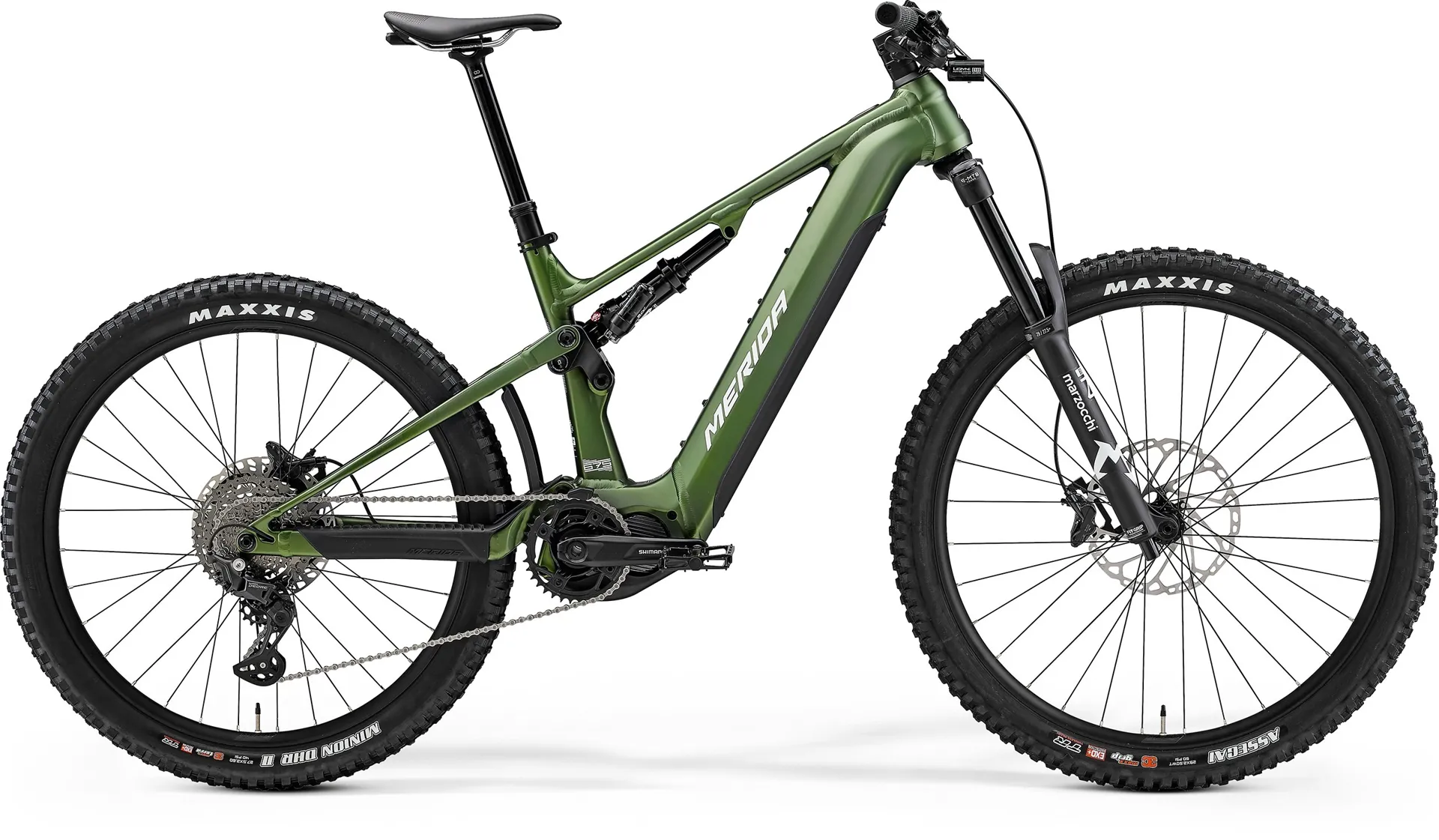

Merida eOne-Sixty 675 Electric Bike Green/White

Season:2024

Brand:Merida

Code:24e160-675GRN/WHT

With the new Merida eOne-Sixty 675 Electric Bike, the next descent is always about to start. The aluminium frame offers great value and maximum battery range, thanks to a powerful Shimano EP801 drive unit paired with a removable 750 Wh battery. A 360 Wh range extender is available separately. The only reason to stop will be because you have to. Merida's capable, uodated geometry has been influenced by the success of the original eOne-Sixty and the award winning One-Sixty; its handling will help conquer the toughest of climbs and the steepest descents. The proven FAST kinematic suspension will take care of anything the trail throws at it. The low maintenance flexstay suspension offers size-tuned progression to maximise performance for all riders and it can be run with the latest coil shocks. The flip chip design enables you to run with mixed size 29" front and 27.5" rear wheels as standard or switch to a focussed full 29er setup without compromising the geometry that's been designed for the toughest enduro trails.

Merida eOne-Sixty 675 Electric Bike Highlights

  • Fourth generation LITE aluminium frame with 174 mm rear wheel travel
  • Shimano EP801 85Nm motor with removable 750 Wh battery
  • Marzocchi Z1 fork with 170 mm travel and Bomber Air rear shock
  • Highly durable Shimano Deore Linkglide drivetrain
  • Merida tubeless-ready wheelset
  • Mixed wheel size as standard with option to full 29"
Technical Information
FRAME
Lite IV - Hydroformed 6061 Double butted aluminium with integrated battery. Internal cable routing via Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Max. tyre size 29" x 2.6"
MOTORShimano Steps EP801; 85Nm
BATTERY
Simplo Trend Power Internal Battery Gen 2; 750Wh
BATTERY CAPACITY750Wh
EBIKE DISPLAYShimano SC-EM800
CHARGERTrend Power Simplo EU Charger; 4A
POWER BUTTONShimano satellite system on/off; EWSW310
MODE SWITCHShimano SW-EM800-L
SHOCKMarzocchi Bomber Air; platform
FORK
Marzocchi Z1 eMTB; Air; 170mm travel; Tapered; 44mm fork offset; Max. tyre size 29" x 2.6"
SHIFTERS
Shimano XT M5130 and Shimano SL -MT500-IL dropper lever
REAR DERAILLEURShimano XT RDM5130 LinkGlide 10 speed
BOTTOM BRACKETPart of Shimano Steps motor
CHAINShimano LG500
CHAINSET
FSA 1x Steel chainring; 36 tooth chainset with Shimano FC-EM600; 165mm length crank all sizes with MRP 1x chainguide
CASSETTEShimano LG400; 11-43 teeth; 10 speed
BRAKE LEVERShimano Deore
FRONT BRAKE
Shimano Deore M6120 4 piston hydraulic disc brake caliper with Shimano RT64 220mm rotor
REAR BRAKE
Shimano Deore M6120 4 piston hydraulic disc brake caliper with Shimano RT-EM910 203mm rotor
GRIPMerida Expert EC
HANDLEBARMerida Expert eTR; 780mm wide; 20mm rise
STEM
Merida Expert eTR II; aluminium; 35mm diameter; 0 degree rise - Stem length: 40mm (all sizes). GoPro & Supernova mount point.
HEAD SETAcros ICR Merida external neck w/ Blocklock
PEDALVP Components - VPE-527
SADDLEMerida Expert CC with V-mount
SEAT POST
Merida Expert TR II; 34.9mm diameter; in-line; XS: 125mm - S: 150mm - M/L/XL: 200mm seat post travel
WHEEL SIZE29" / 27.5"
RIMS
Merida Expert TR II; 28mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included); front 29"; rear 27.5"
SPOKESBlack stainless
FRONT HUB
Shimano TC500-B; 110 x 15mm; 32 spokes; Centerlock
REAR HUB
Shimano TC600-HM-B; 148 x 12mm; 32 spokes; Centerlock with Merida Expert TR axle including removable 6/4mm allen key
FRONT TYRE
Maxxis Assegai; 29" x 2.5"; Kevlar bead; folding; TR EXO+ 3C MaxxGrip
REAR TYRE
Maxxis DHR II; 27.5" x 2.6"; Kevlar bead, folding; 3C EXO+ TR
COLOURGreen/White
FRONT LIGHT
Lezyne Power STVZO E115, reverse Merida Custom Mount
REAR LIGHTLezyne LED FEMTO USB REAR STVZO
OTHERTrend Power On-bike charging cable
Sizing Information
FRAME SIZESHORTMIDLONGXLONG
TYRE SIZES29/27.5"29/27.5"29/27.5"29/27.5"
SEAT TUBES MM410425445465
TOP TUBES MM567589610632
CHAIN STAYS MM446446446446
HEAD TUBE ANGLE [°]64.464.464.464.4
SEAT TUBE ANGLE [°]78.5°78.4°78.4°78.3°
BOTTOM BRACKET DROPS MM9999
HEAD TUBE LENGTHS MM105110115120
FORK LENGTHS MM581581581581
REACH MM439459479499
STACKS MM628633637642
WHEEL BASE MM1221124412661288
STAND OVER HEIGHT MM770765760755
