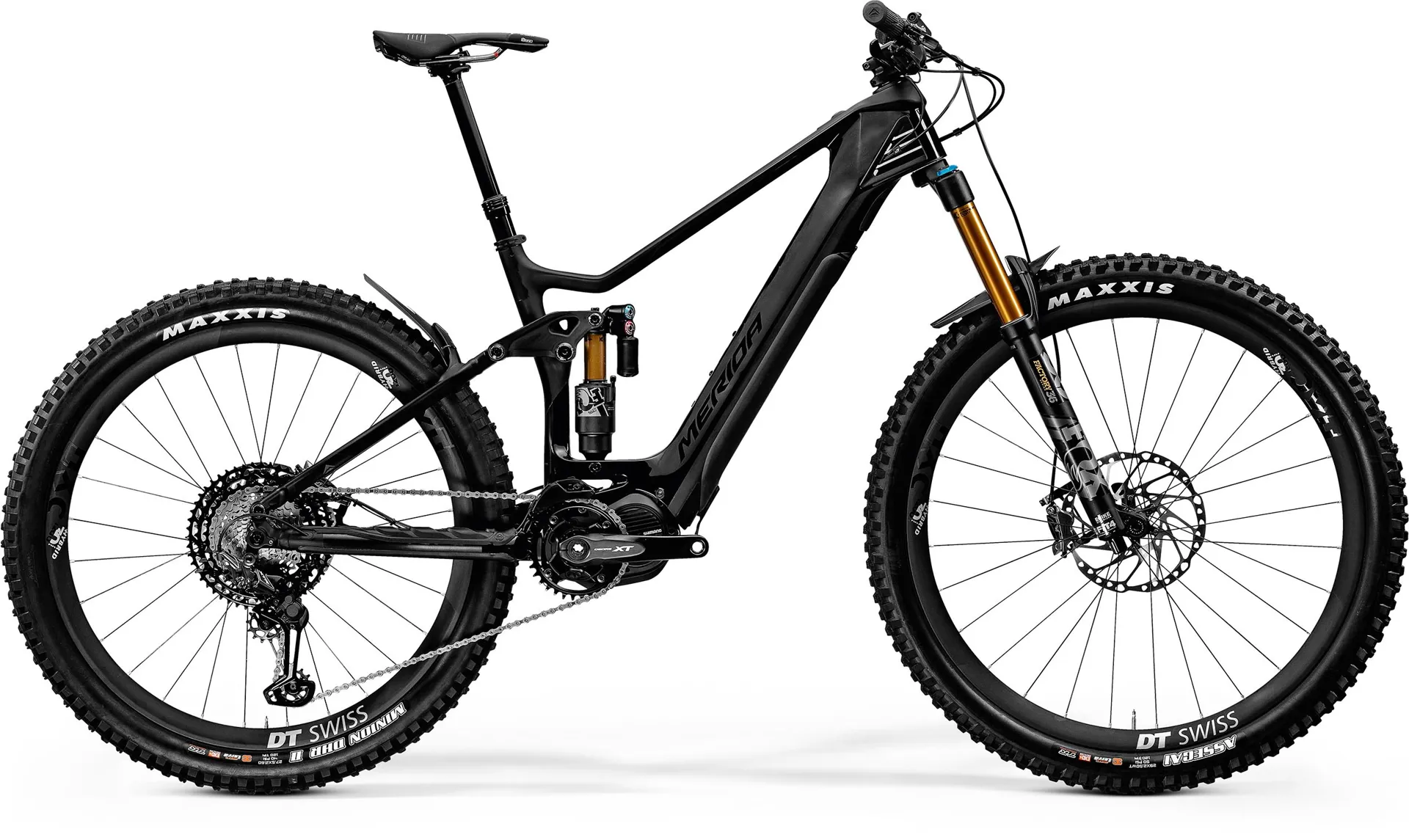

Merida eOne Sixty 10k Electric Bike 2020 Matt Black/Gloss Black

Season:2020

Brand:Merida

Code:K80-10KBLACK



The Merida eOne-Sixty 10k Electric Bike 2020 embodies e-enduro bikes. On downhills, it still feels like a normal bike, agile due to perfectly tuned MTB geometry , but more planted because of the higher weight. It's a fun bike with a clear focus on trail riding. The last few years have shown the eONE-SIXTY is often used as a 'SUV' bike. Because of the advantages of more travel, bigger tyres and comfortable geometry, it offers a fun, comfortable and capable alternative to a ‘normal’ mountain bike. The eONE-SIXTY is a high-end state of the art e-bike. Material, design and integration are cutting edge. Nothing less could be expected after the successful first generation eONE-SIXTY which influenced a whole generation of e-bikes.

Geometry, travel and specification make this bike perfect for demanding trail riding. It doesn’t matter if its a playful easy trail or a hardcore enduro track. The new eONE-SIXTY loves it all. But besides its enduro and trail riding abilities, the eONE-SIXTY is also a hugely capable and enjoyable ‘SUV’ bike. Because of the travel, the comfortable and upright riding position the eONE-SIXTY gives a lot of confidence and offers a real alternative to a ‘normal’ mountain bike. Stiffness was a major focus for us when choosing the frame materials, in particular for the front triangle, but the big hole in the down tube presents a structural disadvantage. Using carbon for the front triangle, we have maintained the stiffness whilst reducing weight despite the design challenges the battery opening presents. Also, carbon gives real design freedom when it comes to creating a unique appearance. The aluminium rear triangle has proven durability and function, it's the same as the first generation eONE-SIXTY and is one of the strongest rear ends MERIDA has ever made. We also have the advantage of spares being interchangeable.

Merida eOne-Sixty 10k Electric Bike 2020 Features

  • Re-setting the benchmark, eOne-Sixty generation II has an integrated battery with simple and easy interfaces and removal.
  • Gen I was legendary for it's ride, handling like a regualr bike, Gen II gets a slightler slacker head angle, steeper seat angle and different size wheel set up. A 29" front wheel gives better rollover performance, whilst the wide 27.5" rear handles traction
  • The daddy of them all, the 10K has the powerful Shimano Steps E8000 70NM motor  powered by not 1 but 2 Shimano Steps E8035 504W batteries. The second battery can be carried in a Merida branded Evoc back pack. Modes are controlled by a Shimano Steps E8000 shift lever and key information is displayed on a colour Shimano Steps E8000 display
  • 2 batteries
  • XTR 4 piston brake › state of the art brake Outstanding shifting performance 1x12 10-51 cassette
  • Fox Factory suspension elements - E-bike version of the fork - Better durability
  • Certified for higher system weight - X2 shock gives the most options for customising the setup
  • MERIDA EXPERT TR dropper seat post
  • DT Swiss XRC 1200 Hybrid wheelset
  • Dedicated e-bike wheelset - Certified to system weight of up to 120kg
  • Carbon - Light and strong!
  • Evoc FR TRAIL E-RIDE 20l backpack - Best e-bike backpack on the market
  • Optimised battery pack
  • Still very flexible (important for a great fit) - Integrated back protector




Merida Frame Technology

Merida Eone-Sixty 10K 2020 Electric Mountain Bike

WHEEL SIZE

Mixed wheel sizes to get the best of both worlds. 29" front wheel for better ‘roll over performance’ with a 2.5" wide tyre for precise steering. 27.5" rear wheel with 2.6" tyres give maximum traction and comfort. The smaller rear wheel size allows shorter chainstays for a more agile and playful character.

INTERNAL BLOCK

To prevent the fork crown hitting the down tube we use an ‘Internal Block’ integrated into the frame. A clamp is installed on the fork steerer. If the steering angle is too extreme the clamp hits the rubber protection block inside the frame. Just in case the clamp does                  rotate on the steere, there's additional rubber protection under the head tube.

EASY CHARGING

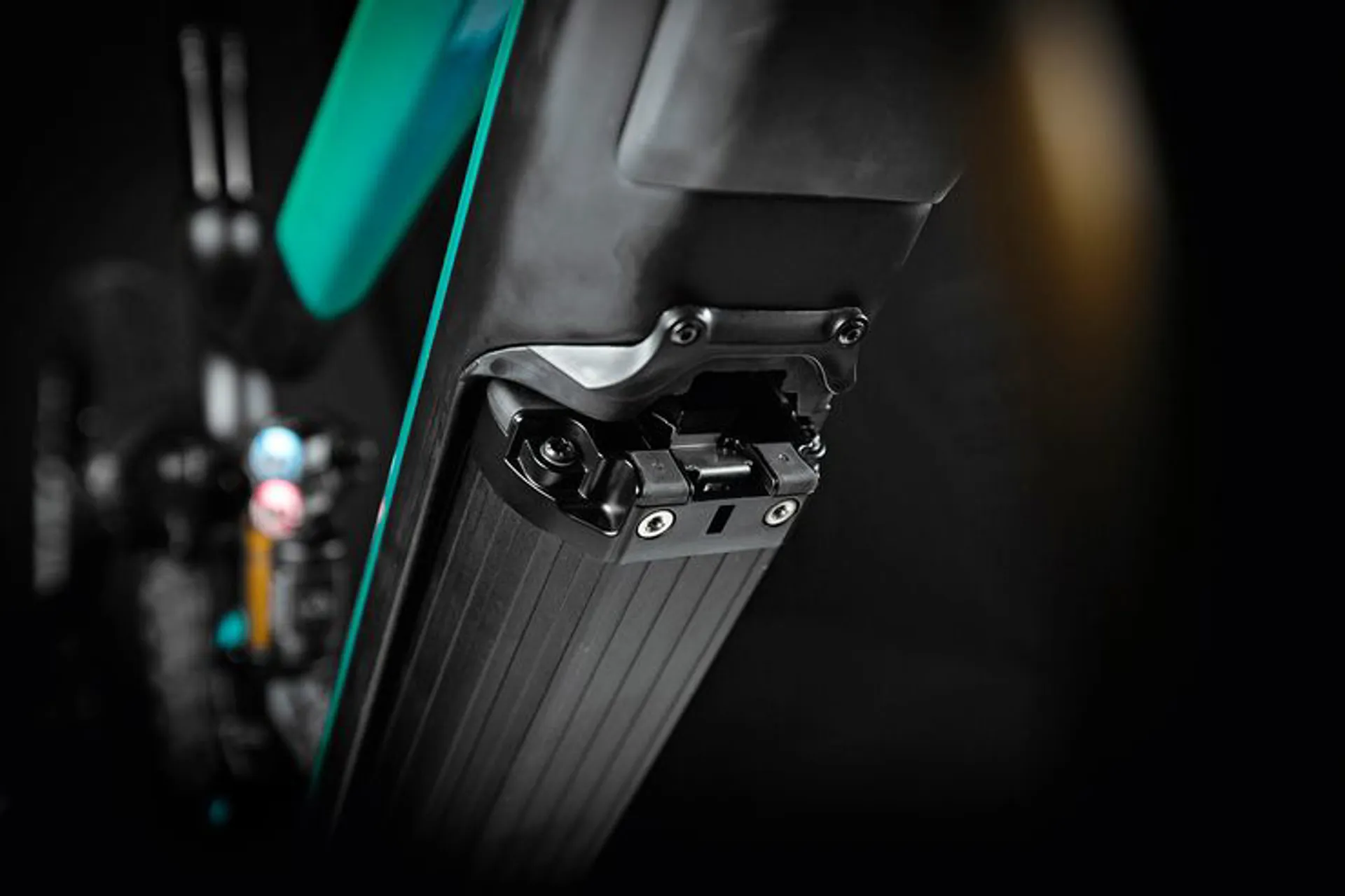

The internal battery can be accessed easily, pulling a rubber strap, sliding forward the panel and opening, the battery can then be removed by a small turn of an Allen Key (provided).  But the battery doesn't need to be removed as a satellite charging port can be                    used.

RATTLE FREE

Two part battery cover, the outer layer reduces noise through its soft material and tight fit, while the hard plastic inner layer gives it the structural shape.  Key components i.e. the rubber strap and o-rings, can be replaced.  Almost all connection points between                        battery and frame have a rubber layer between them too.

          Merida Eone-Sixty 10K 2020 Electric Mountain Bike    Merida Eone-Sixty 10K 2020 Electric Mountain Bike

BATTERY WAKE UP

If the bike has not been used for more than 6 months, or when the battery of the on/off switch is empty (this battery is normally charged by the main battery) it's necessary to wake the battery up again, simply push a 4mm Allen key (on the Merida Expert TR axle) through the hole on the downtube and press the hidden button underneath

LIFETIME WARRANTY

Covers the entire ownership of the original purchaser. This applies to manufacturing and material defects and includes bikes used for racing.*A rider and equipment weight limit of 120kg applies.




Technical Information
E-One Sixty 10K Electric Specification
Frame Carbon front triangle with easily removable integrated battery, satellite on/off switch, on-bike charging port and “thermo gate”
Fork FOX 36 Factory E-Bike+; Air; 160 mm travel; Tapered steerer; 51mm fork offset

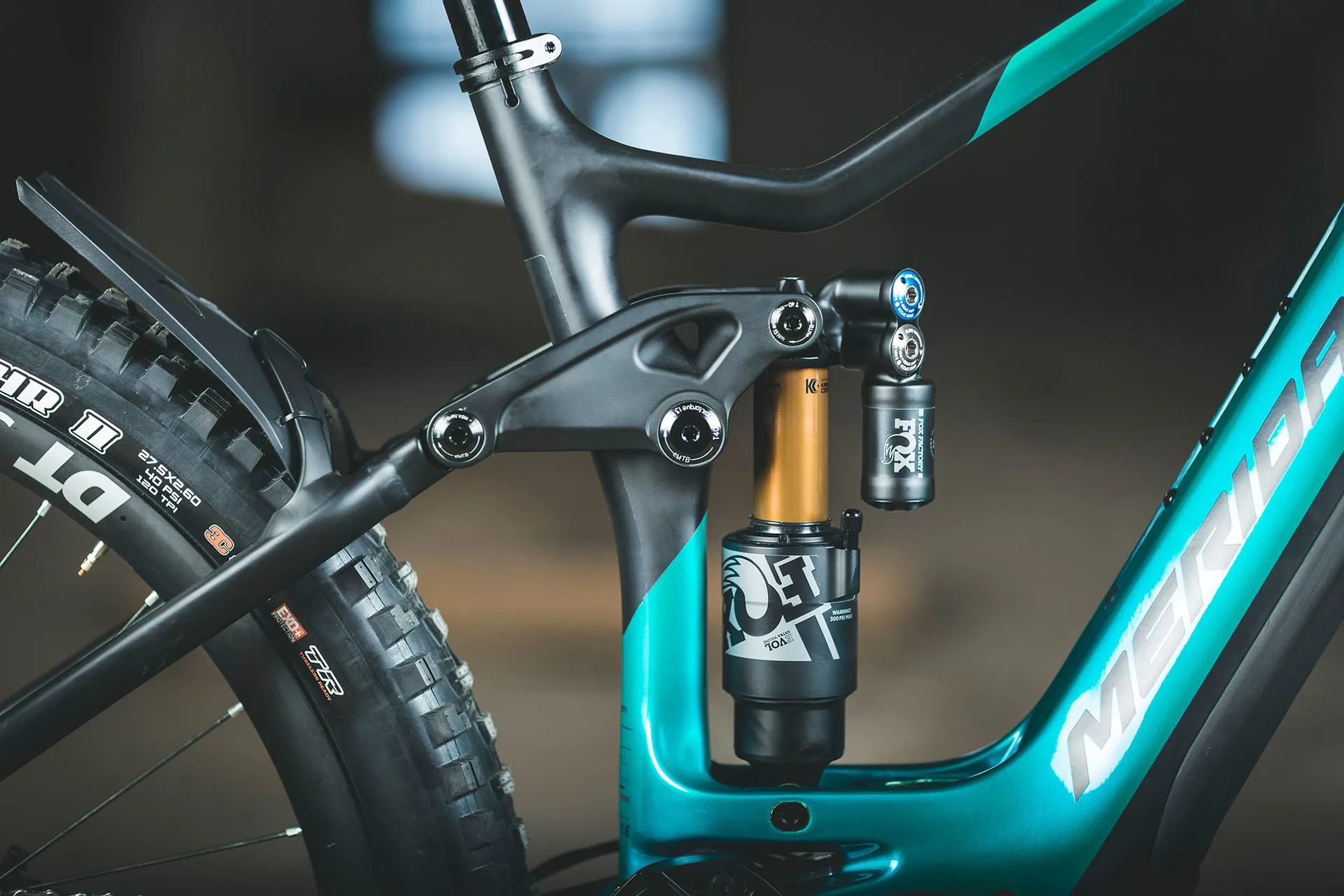

Shock Fox Factory Float X2
Bottom Bracket Shimano Steps E8000; 70Nm motor
Seat Post Size 30.9mm
Brakes Shimano XTR; 4 piston hydraulic disc brakes with Shimano RT-MT900; front and Shimano RT-EM910; 203 mm rear rotors
Handlebar Merida Expert eTR; 780 mm wide; 20 mm rise
Grip Merida Expert EC
Cassette Shimano M9100; 10-51 teeth; 12 speed
Derailleurs Shimano XTR Shadow+
Chainset Shimano CRE80-12-B; 34 teeth with Shimano E8050 hollow crank
Chain Shimano CN-M9100
Stem Merida Expert eTR; 35 mm diameter; 0 degree rise
Headset Merida 1901
Hubs DT Swiss Spline HXC 1200 spline 30 boost wheelset; 110 x 15mm front and 148 x 12mm rear; Centerlock microspline with Merida Comp TR rear axle including removeable lever, 6/4mm allen key
Rims DT Swiss Spline HXC 1200 spline 30 boost wheelset; 30 mm inner width; 29" front and 27.5" rear
Saddle PROXIM W650
Seat Clamp Merida Expert clamp
Seat Post Merida Expert TR; 30.9 mm diameter; 0mm layback XS: 125 mm travel - S/M: 150 mm travel - L/XL 170 mm travel;
Shifters Shimano XTR
Tyres Maxxis Assegai; 29" x 2.5 "; Kevlar bead - folding; 3C EXO+ front and Maxxis DHR II; 27.5" x 2.6 "; Kevlar bead - folding; 3C EXO+ rear
Motor Shimano Steps E8000 70NM
Battery Shimano Steps E8035 504W










Sizing Information

How To Measure Yourself

Measure Your Height

Our handy size charts match your height to the appropriate frame size so you need to be sure you’ve measured your height accurately.

  1. Take off your shoes and stand with your back against a wall.
  2. Make sure legs are together and your shoulders are back.
  3. Place a pencil on top of your head and mark the wall (the best and easiest way to do this properly is with a friend to help you).
  4. Measure from the floor to the pencil mark you have just made with a tape measure.

Range of Reach

For most people to get the right frame size, measuring your height will suffice. However, you may find that your height is on the borderline of the range we suggest for a particular frame. If this occurs you need to measure the range of your reach or “Ape Index”. This will ensure you get a comfortable distance between the handlebars and your saddle.

  1. Stand up straight with your back against a wall.
  2. Life your arms out horizontally either side of you.
  3. Measure the distance from fingertip of one hand to fingertip of the other. This will give you your arm span.
  4. Subtract your height from this figure to get your Ape Index.
  5. If the result is positive (your arm span is greater than your height) you should go for the larger size of bike.
  6. If the result is negative (your arm span is less than your height you need the smaller size.

Stand Over Height

You should also consider your inside leg measurement when choosing your bike to ensure adequate stand over height. Stand over height is the clearance between the top tube and the bottom of your crotch. For mountain bikes we recommend a distance of 2-4 inches and for road or hybrid bikes 1-2 inches of clearance is required. This will ensure comfort when you’re stopped and standing astride the bike.

Our bike sizing charts take stand over height into consideration but if you have a particularly long or short inside leg measurement in relation to your height you will need to bear this in mind when selecting your frame size.

Riding Style

The way you ride and the type of bike you are into will also impact the frame size you should choose. For example, a trail devotee looking for an aggressive ride may prefer a smaller, more manoeuvrable bike size. It all comes down to personal preference and how the bike feels to you.

Our sizing charts aim to be as specific as possible so you can look up the particular type, make and model of bike you’re looking for. Remember, the sizes given in our guides are suggestions and should be used for general advice only. For the best possible fit  we recommend popping in to your local Leisure Lakes Bikes store, or call 0800 083 0888 for expert advice tailored to you.
