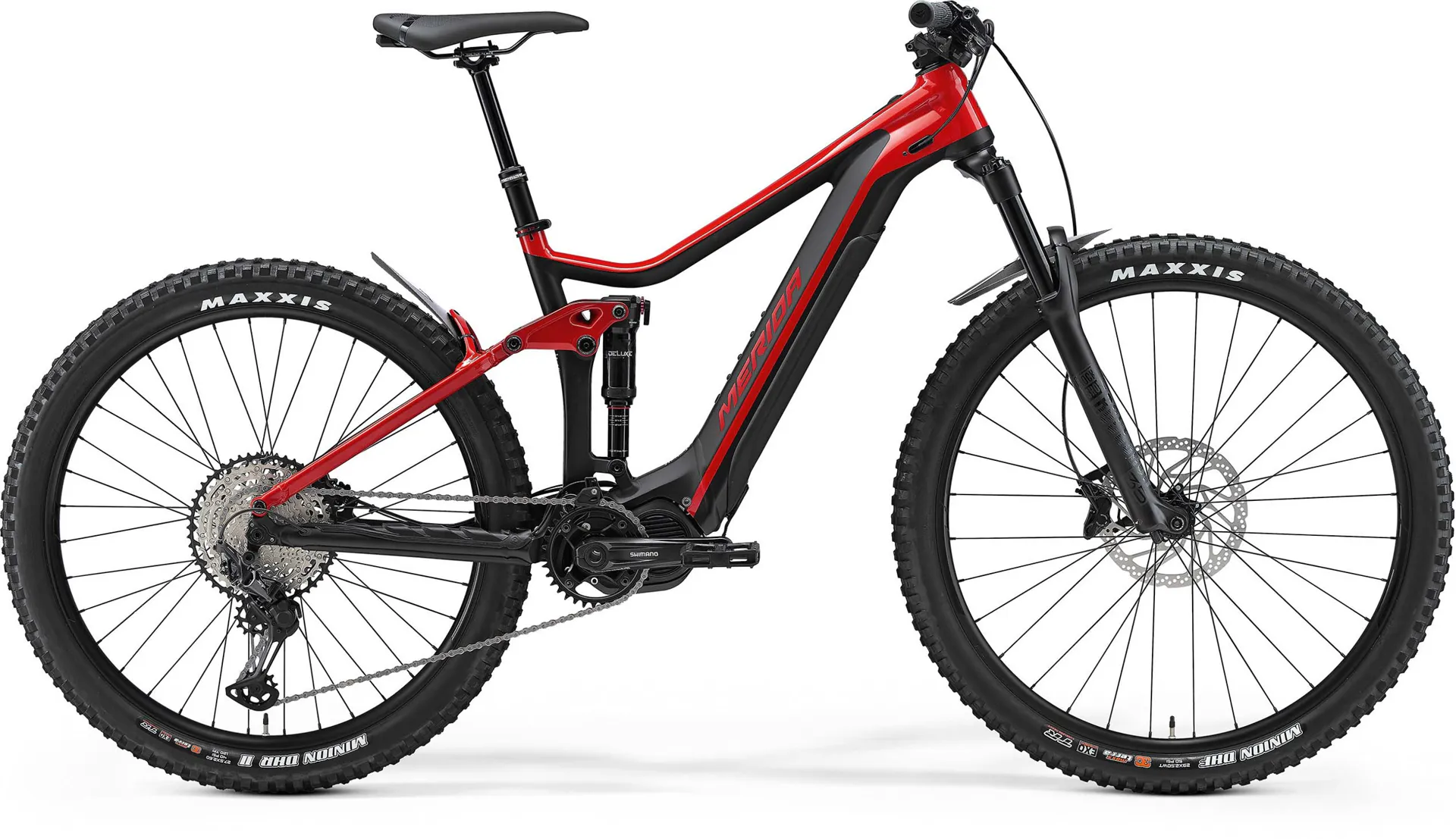

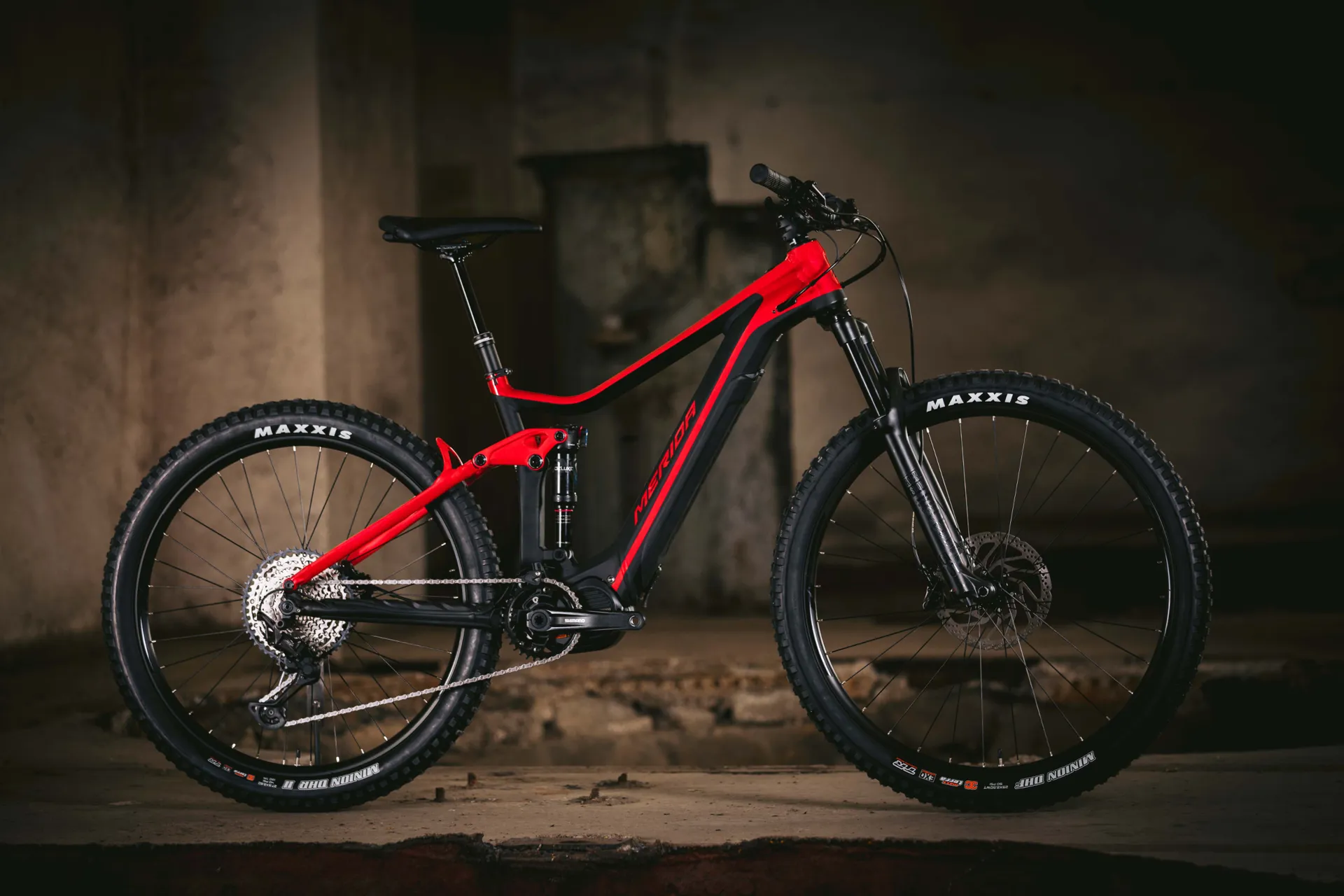

Merida eOne Forty Limited Edition 504Wh 12 Speed Red/Matt Black

Season:2020

Brand:Merida

Code:K91

After three years at the top of the full-suspension e-bike market, the most decorated bike in MERIDA's history, the 'original' eONE-FORTY found its successor in the all-new carbon eONE-FORTY. The new bike would bring a long list of exciting features to the table while preserving the often praised riding characteristics of the 'original' eONE-FORTY.  But MERIDA are very aware that a carbon front triangle might not be everybody's preferred choice and that there is a need to broaden the price range of their e-enduro bikes. These two factors were enough to go back to the drawing board and to develop the all-aluminium version of the bike – welcome to the new Merida eONE-FORTY LIMITED EDITION.

Similarly, to the carbon version, the new eONE-FORTY LIMITED EDITION embodies e-Trail Mountain Bikes, instead of the normally needed slog up the climbs to session your favourite tracks, you have your own built-in engine to assist you to the top. On downhills, it still feels like a normal bike, agile due to its perfectly tuned MTB geometry, but more planted because of the higher weight. But the new eONE-FORTY can be so much more. The last few years have shown that the electric trail bike is often used as a super quck, comfortable and capable 'SUV' bike. Because of the advantages of 140mm travel, bigger tyres and comfortable geometry, it is pure fun even on less demanding tracks and trails, and the new aluminium version is set to make lots of friends among the 'SUV' fraternity.

eONE-FORTY LITE Frame

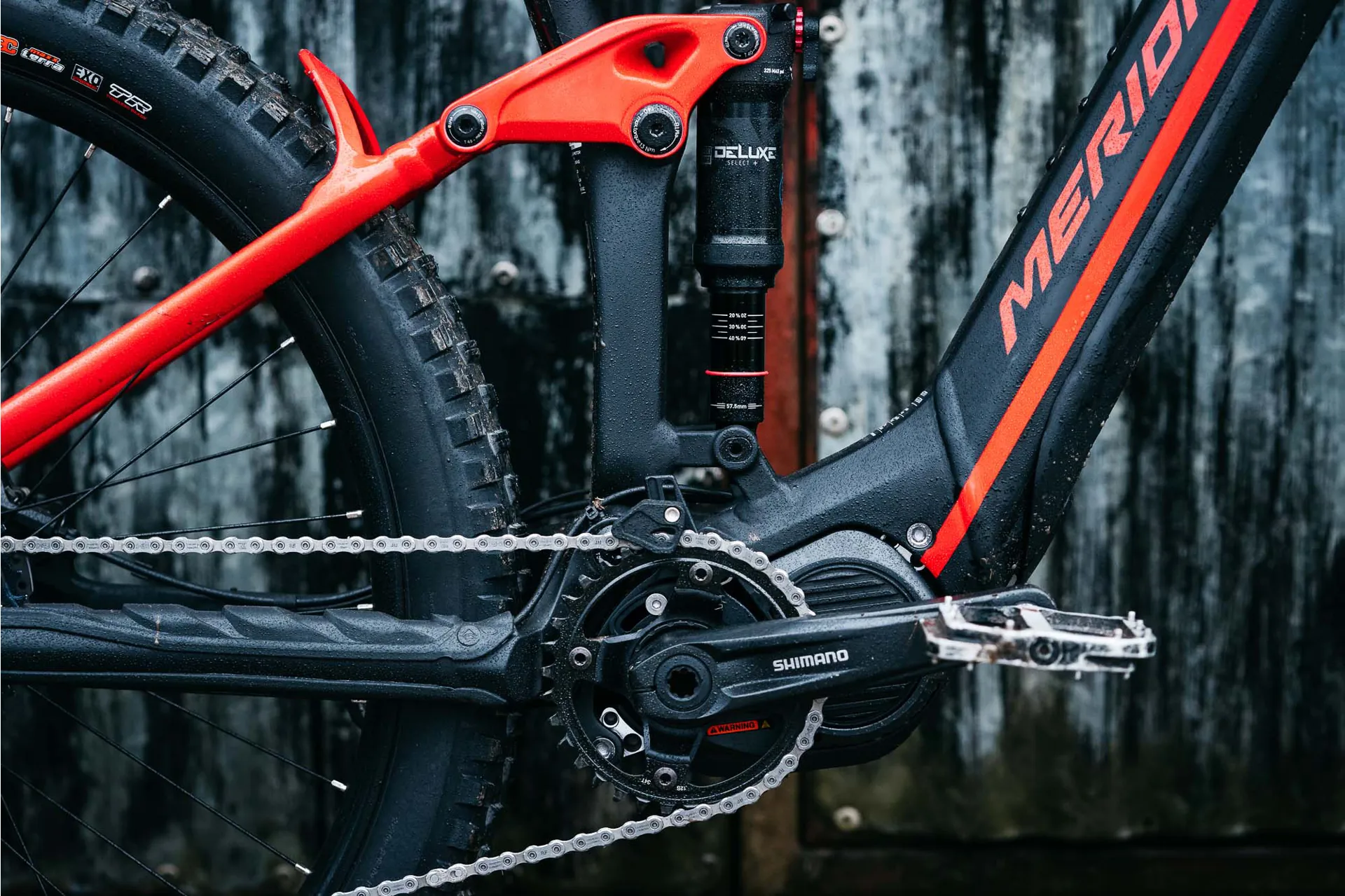

HFS- hydroformed Prolite 66 triple butted aluminium frame featuring internal battery technology and an aggressive trail-bike geometry with 140 mm rear wheel travel. Shimano STePS motor allows for short chain stays delivering agility. ‘Smart Entry’ cable routing for rattle free running. Casting motor bracket creates an integrated appearance of the motor into the frame as well as provides an extremely strong connection between frame and motor.

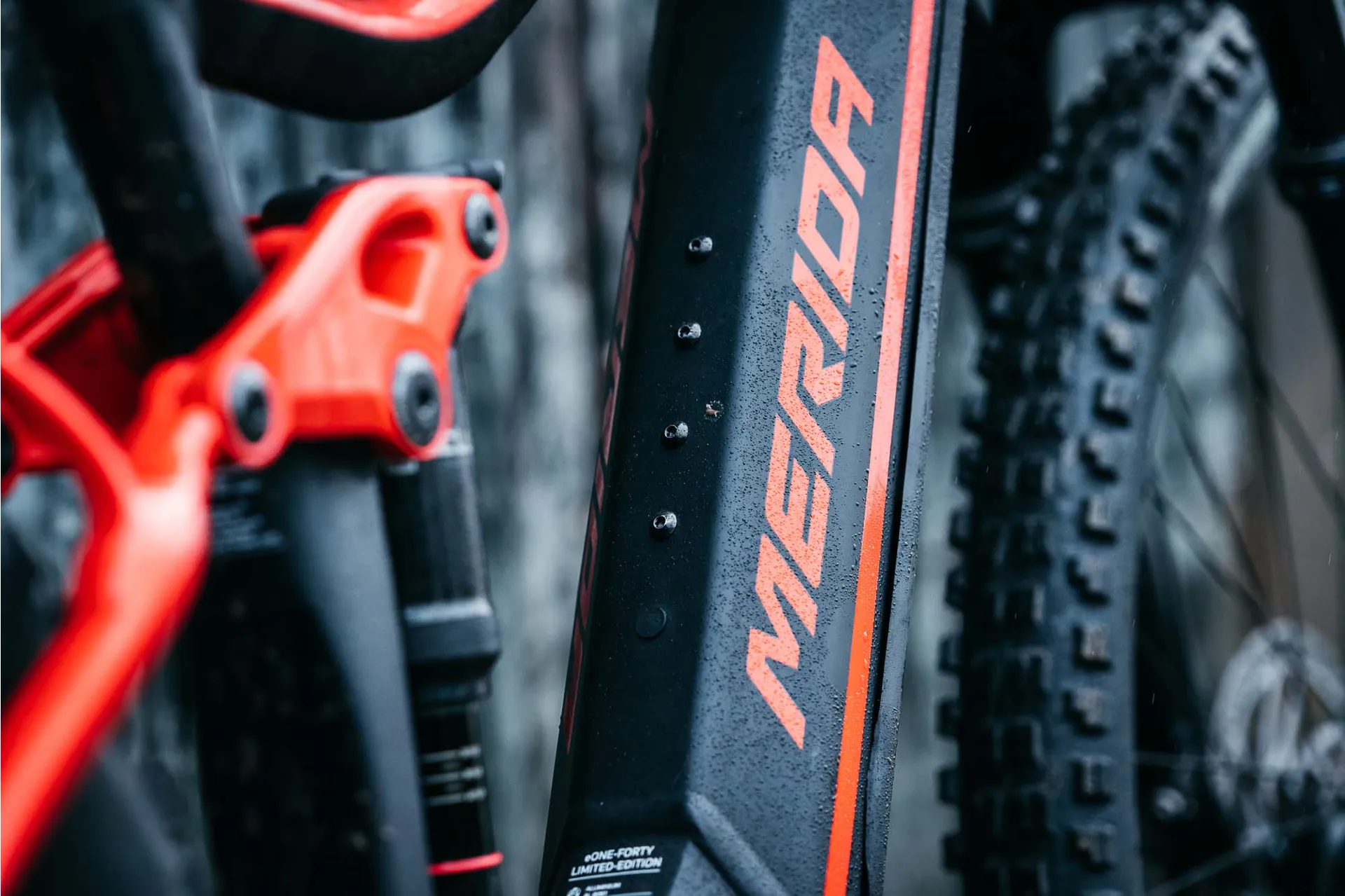

Energy Guard

A two-component battery cover, which offers perfect protection for the internal battery. The softer (outer) layer reduces noises, seals the downtube perfectly and absorbs hits from trail debris easily, while the harder (inner) layer ensures that the battery does not get damaged and gives it the structural shape. All critical parts like the rubber strap and o-rings for perfect fitting can be replaced.

Internal Block

First introduced in our 2015 NINETY-SIX, the new version of the 'Internal Block' is incorporated directly in the frame and prevents the fork crown from hitting the carbon frame in case of a crash or an extreme steering angle. As an extra protection, there are additional rubber bumpers on the frame to avoid any frame damage from the fork crown.

Clever Wheels

To give the eONE-SIXTY precise steering, fantastic ‘rolling over obstacles’ behaviour yet maximum traction, we have combined a 29er front wheel with a 2.5" tyre and a 650B rear wheel, equipped with a slightly wider 2.6" tyre. The perfect combination of precision, playfulness and traction.

Thermo Gate

Specifically located openings on the carbon eONE-SIXTY models near the head tube which work like a chimney and allow the warm air to dissipate to guarantee the optimum operating temperature of the internal battery. The 'Thermo Gate' enables the battery to perform at its best, in any condition.

Water Bottle cage attachment

Due to the integrated battery, we were able to offer water bottle cage fixing points, allowing bottles of up to 0.75l to be fitted into the main frame triangle. Great if you want to keep your back free of hydration packs and backpacks.


2020 Merida eONE-FORTY Limited Edition Build Highlights

Frame: Merida eOne-FORTY LITE Aluminium

Fork: RockShox 35 Gold RL Air

Rear Shock: RockShox Super Deluxe Select+

Brakeset: Shimano MT-500

Drive Unit: Shimano E8000

Battery: Shimano E8035 504Wh

Display: Shimano SC-E7000

Wheel Size:29" x 2.5 front / 29" x 2.6" Rear

Technical Information
FRAME eONE-FORTY LITE ll Aluminium
FRAMES SIZES S/M/L/XL/XXL
FORK RockShox 35 Gold RL
SHOCK RockShox Super Deluxe Select+
BRAKE FRONT Shimano MT520
BRAKE REAR Shimano MT500
ROTOR FRONT Shimano RT30 203mm
ROTOR REAR Shimano RTEM300 180mm
HEADSET merida 1901
HANDLEBAR Merida Expert eTR
STEM Merida Expert eTR
GRIP Merida Expert EC
DERAILLEUR Shimano XT RDM8100 Shadow+
SHIFTER REAR Shimano SLX 12
SEATPOST Merida Comp TR
SEATCLAMP Merida Expert Clamp
SADDLE Merida Comp CC
CHAIN CN-M7100
CHAINWHEEL Shimano CRE8D-12-B
CRANKS Shimano FC- 8000 165mm all sizes
FREEWHEEL Shimano M7100
BOTTOM BRACKET Included in Motor
RIM Merida Comp 29mm wide Tubeless Ready
TYRE FRONT Maxxis Assegai
TYRE REAR Maxxis DHR ll
SPOKES Black Stainless
SPOKES DISC merida Comp TR
DRIVE UNIT Shimano E8000
BATTERY  Shimano E8035 504Wh
DISPLAY Shimano SC-E7000

Bike Frame Geometry Image

GEOMETRY

  FRAME SIZE S M L XL XXL
  FRAME SIZE (CM) 41 42 44 47 50
STA SEAT TUBE  405 420 440 470 500
TT TOP TUBE 560.5 581.5 602.5 626 649.5
CS CHAINSTAY LENGTH 439.5 439.5 439.5 439.5 439.5
HTA HEAD TUBE ANGLE 66.5° 66.5° 66.5° 66.5° 66.5°
STA SEAT TUBE ANGLE 76.5° 76.5° 76.5° 76.5° 76.5°
BD BOTTOM BRACKET DROP 24 24 24 24 24
HT HEAD TUBE ANGLE 110 115 120 135 150
FL FORK LENGTH 551 551 551 551 551
R REACH 410 429.5 449.5 469.5 489.5
S STACK 622 626.5 631 644.5 658
WB WHEELBASE 1160 1182 1204 1230.5 1256.5
