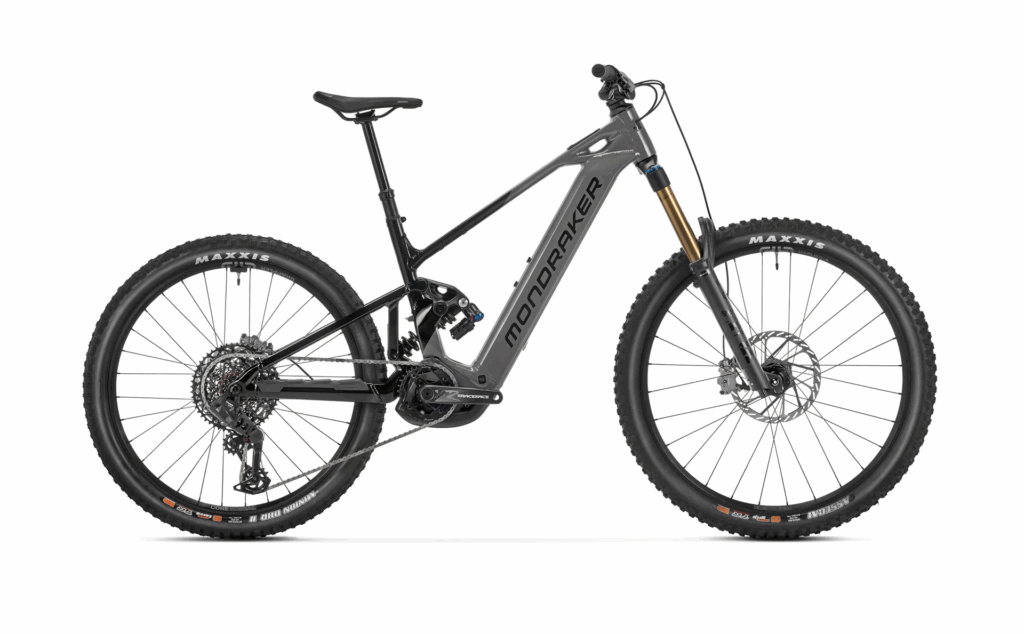

All New: Mondraker Level

The all-new Mondraker Level is here.

Packing 180mm/170mm of travel, 100Nm Torque via its Bosch CX Gen 5, removable 800Wh battery and Mullet wheels. It’s more of everything you want.

Experience full power and full confidence, whether it’s up or down the trail.

Mondraker Level features a Bosch Performance Line CX Gen 5 motor (now with up to 100Nm of torque) powered by a high capacity 800Wh removable battery. The all-new Level is built to slay the most demanding climbs and rowdy descents with ease.

And with a mullet wheel setup for sharper, more playful handling, plus the option to add a 250Wh range extender, it’s the most dynamic & capable eMTB Mondraker has ever created.

Scroll down for the full breakdown of the Mondraker Level. Follow the links for more information on specifications and availability.

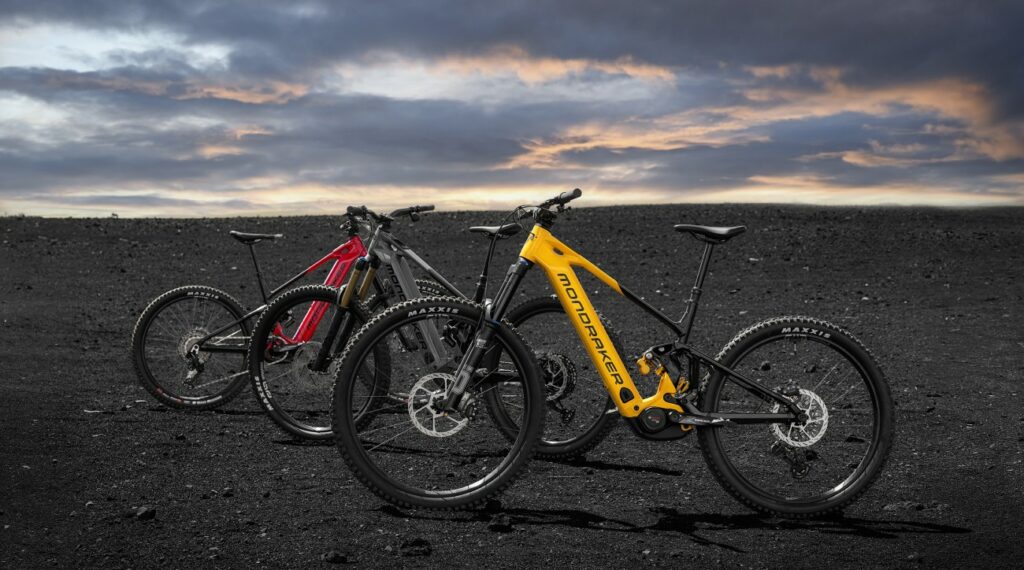

3 BUILDS, ALL WITH 800Wh BATTERIES

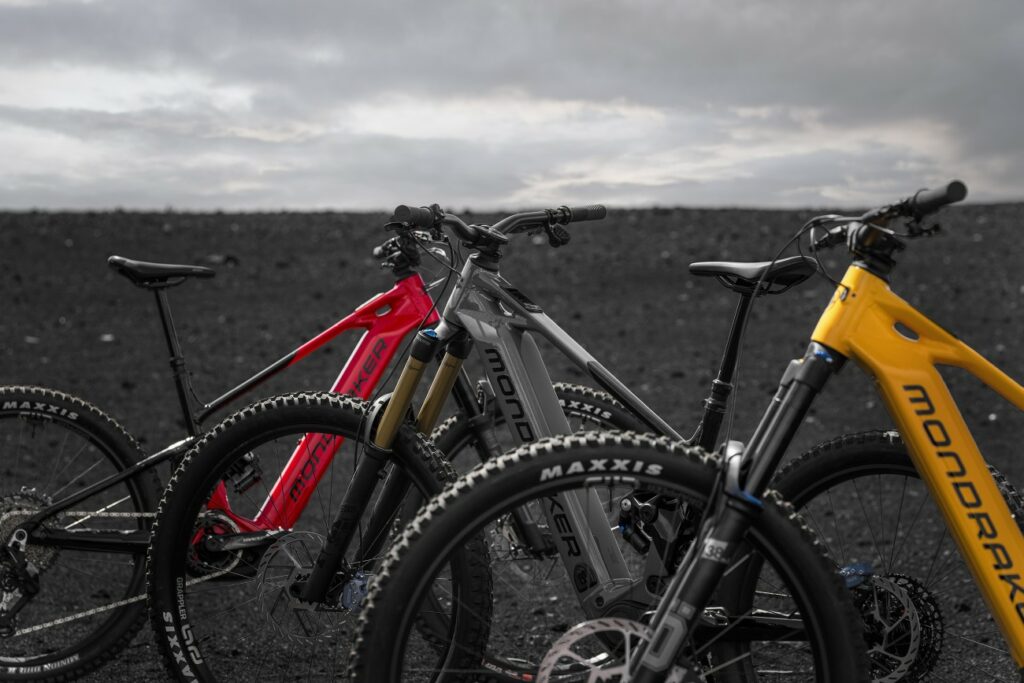

The new Level range features three builds: Level R, Level RR, and Level XR, all built around a newly engineered Stealth aluminium frame and the powerful Bosch Performance Line CX Gen 5 motor.

All three builds come with a removable 800Wh battery, housed under a carbon cover. Thanks to Bosch’s new battery design (featuring identical external dimensions for both 800Wh and 600Wh versions) both batteries are compatible across the whole Level range, thus allowing the fitment of the smaller battery (if you’ve already got one and you want to use it).

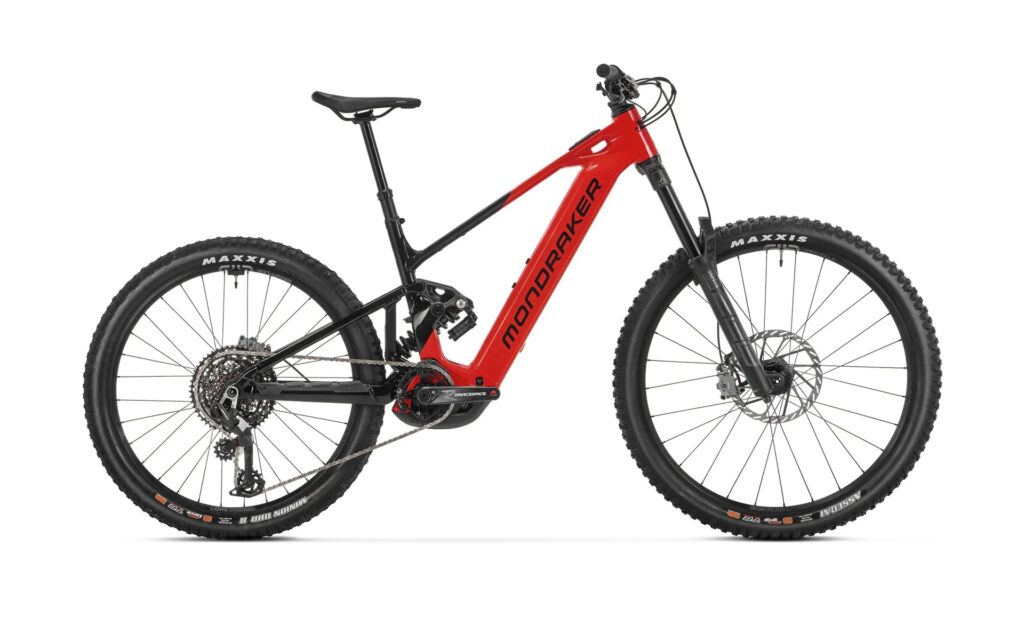

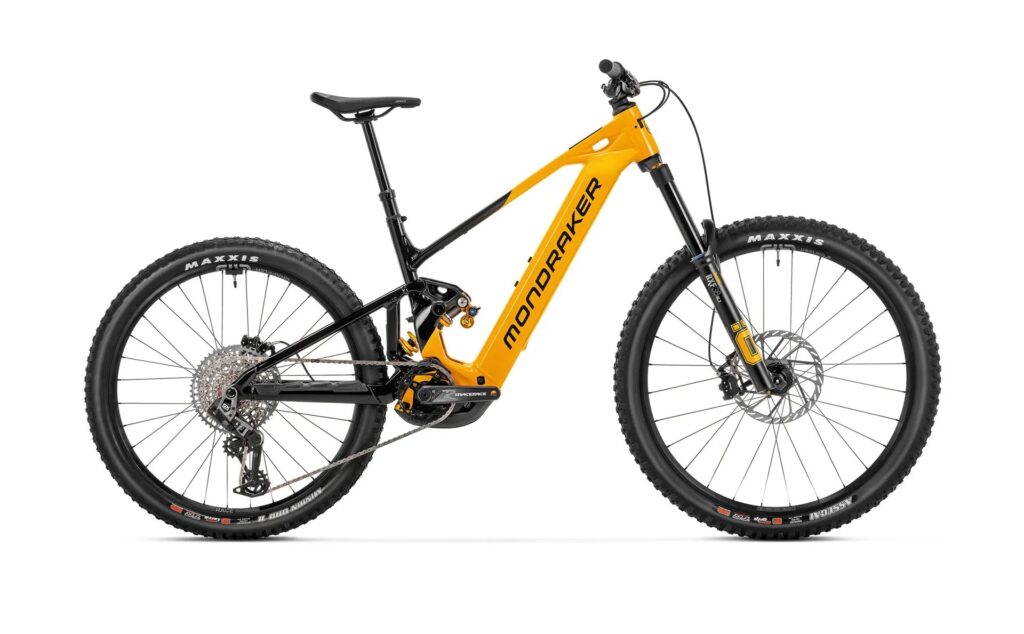

The structure of the lineup remains consistent with the previous generation, with the Level R featuring a RockShox fork and shock, the Level RR coming with Fox suspension and the flagship Level XR having factory-fitted Öhlins suspension, all boasting 180mm travel up front and 170mm out back.

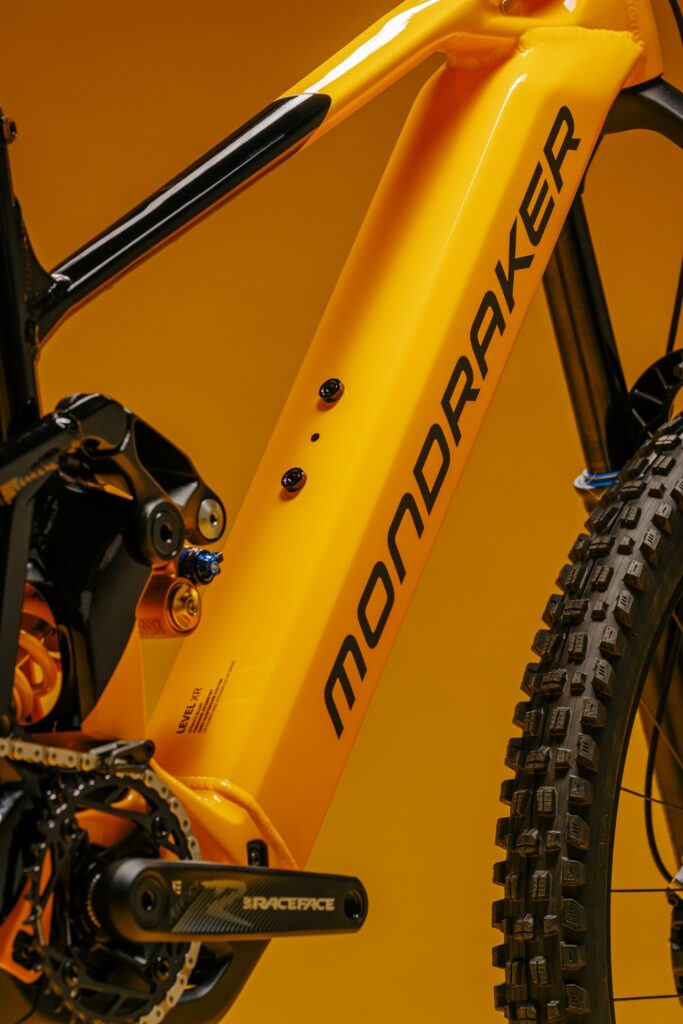

STEALTH EVO ALUMINIUM TECHNOLOGY

Level continues to rely on aluminium for its frame, featuring advanced Stealth Evo technology.

The design language is shaped by the bold lines found across our eMTB range, with Mondraker’s unmistakable identity and aesthetics throughout.

OPTIMISED SIZING AND GEOMETRY

Level is now available in five sizes thanks to the addition of the new ML option.

Forward Geometry has been optimised in combination with two chainstay lengths: 445mm for sizes S, M, and ML, and 455mm for sizes L and XL. In the previous generation, all four sizes used a 455mm chainstay.

UPDATED GEOMETRY WITH ADJUSTABLE SETTINGS VIA FLIP CHIP

Compared to the previous generation, the new Level features a 64° head angle (one degree slacker than the previous gen Level).

It also includes a flip chip on the lower shock mount, offering two positions: Standard and Low.

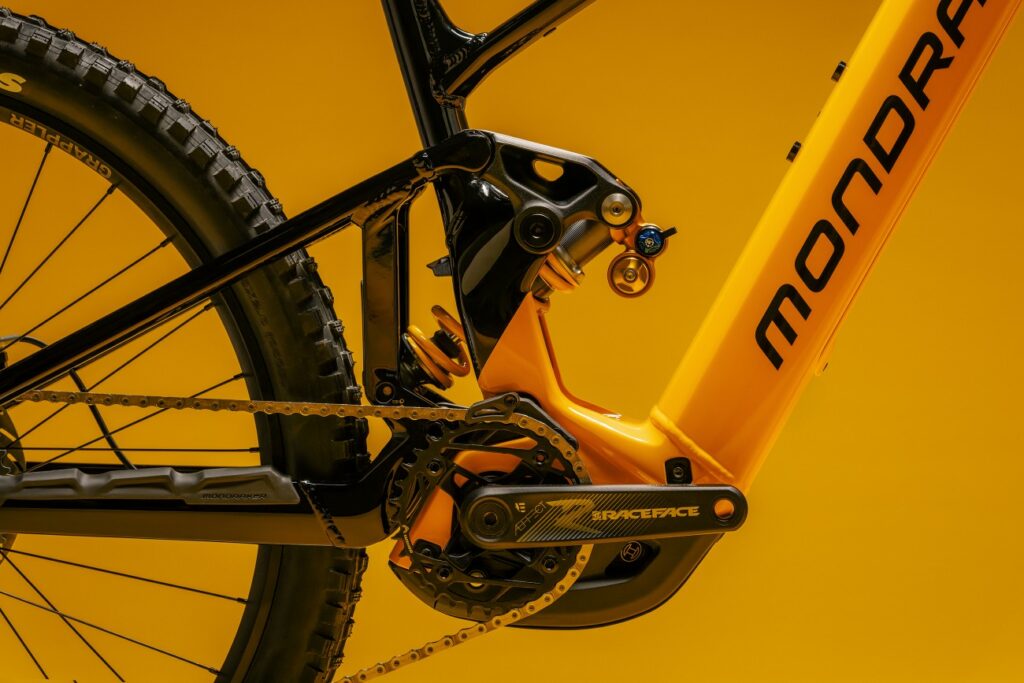

INTRODUCING THE UPDATED ZERO SUSPENSION SYSTEM

Level debuts the Updated Zero Suspension System, delivering increased sensitivity in the initial stroke, better impact absorption on big hits, and improved climbing traction.

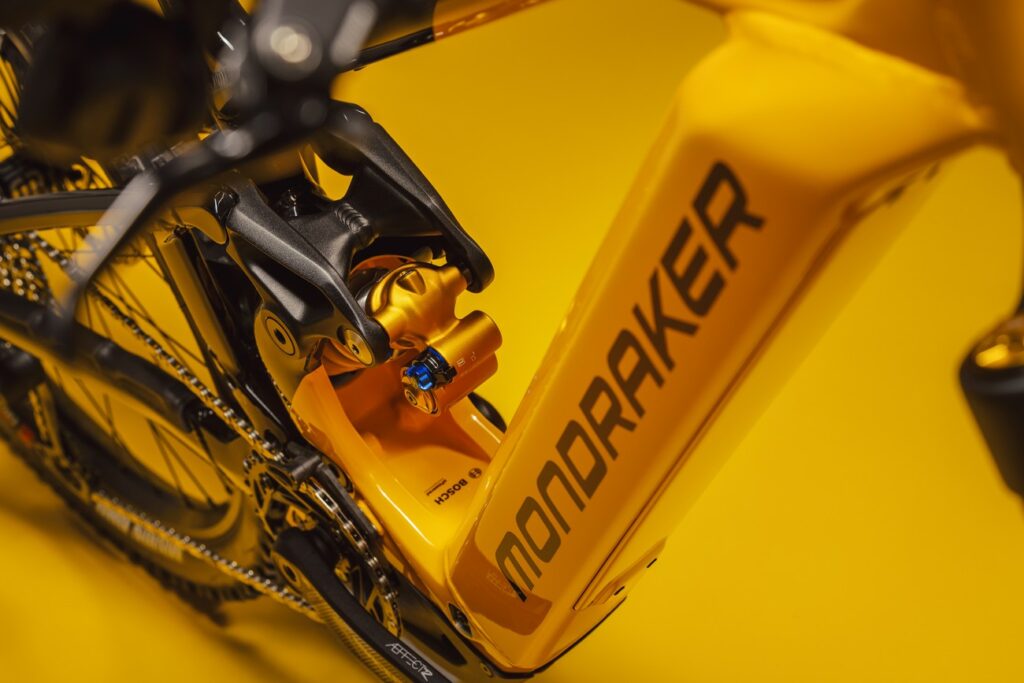

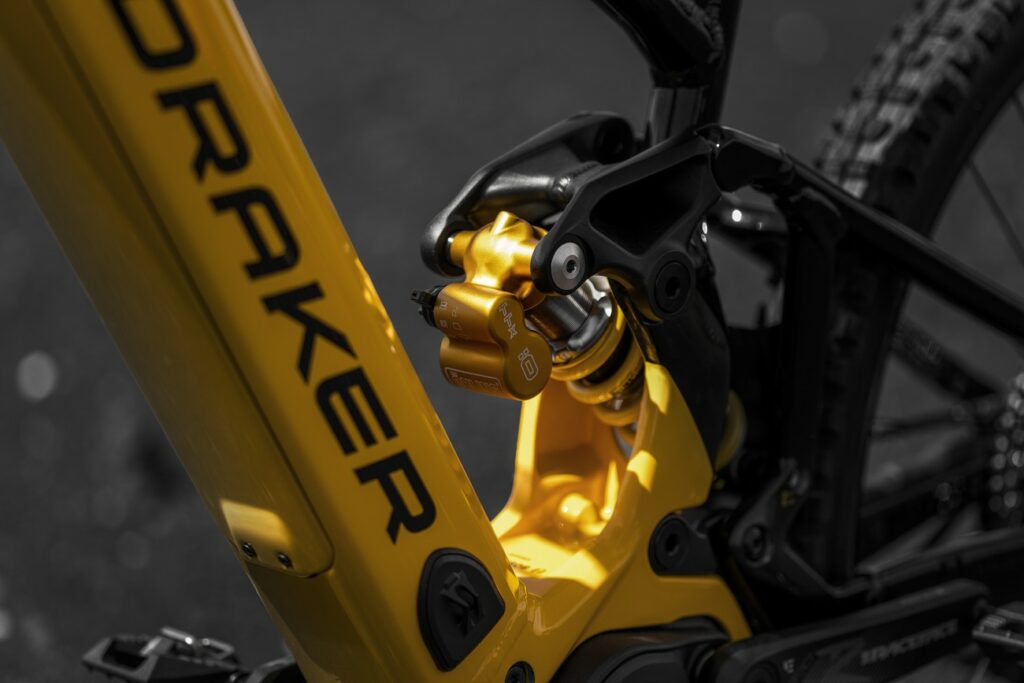

This evolution has brought about changes to the rear triangle, making it more compact, and to the shock position, which is lower and more laid down, improving stiffness and shifting weight.

THE LATEST BOSCH CX MOTOR, WITH OTA (OVER-THE-AIR) UPDATES

Level is equipped with the latest Bosch Performance Line CX Gen 5 motor featuring a more refined design architecture, reduced overall volume, and approximately 100 grams lighter weight than the previous generation.

This fifth-generation motor includes Bosch’s latest OTA (over-the-air) firmware update which will be available from July. With this update, peak output increases from the current 600W and 85Nm to 750W and 100Nm, while maximum pedal assist goes up to 400%.

The update also introduces a new eMTB+ mode, offering the same 750W, 100Nm, and 400% support as Race and Turbo modes, but with more punch and responsiveness compared to the standard eMTB mode.

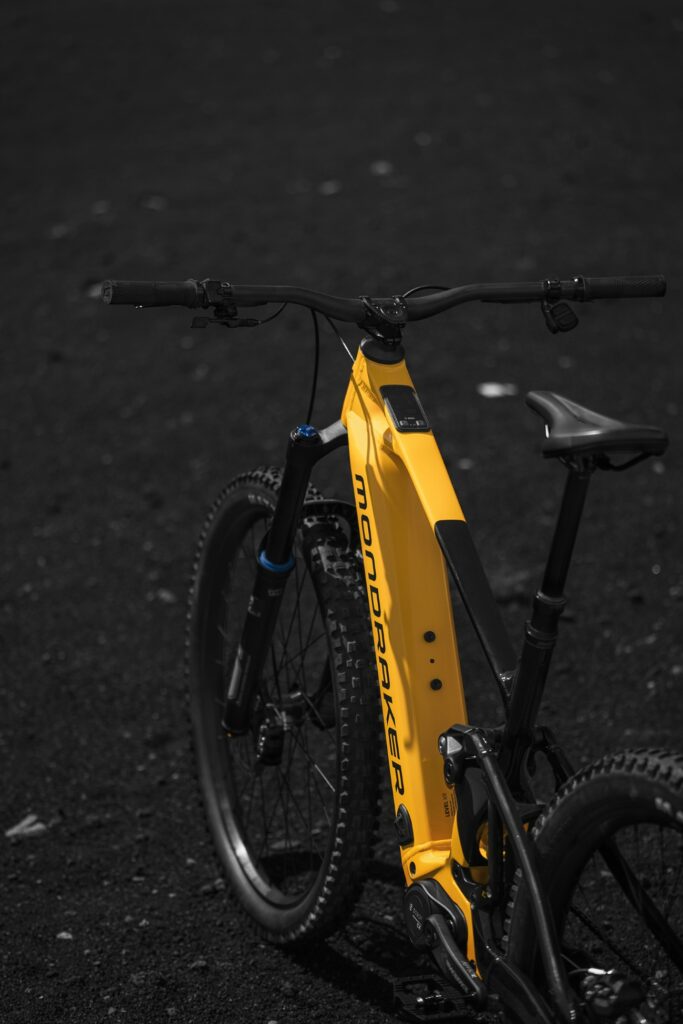

TOP TUBE INTEGRATED KIOX 400 DISPLAY

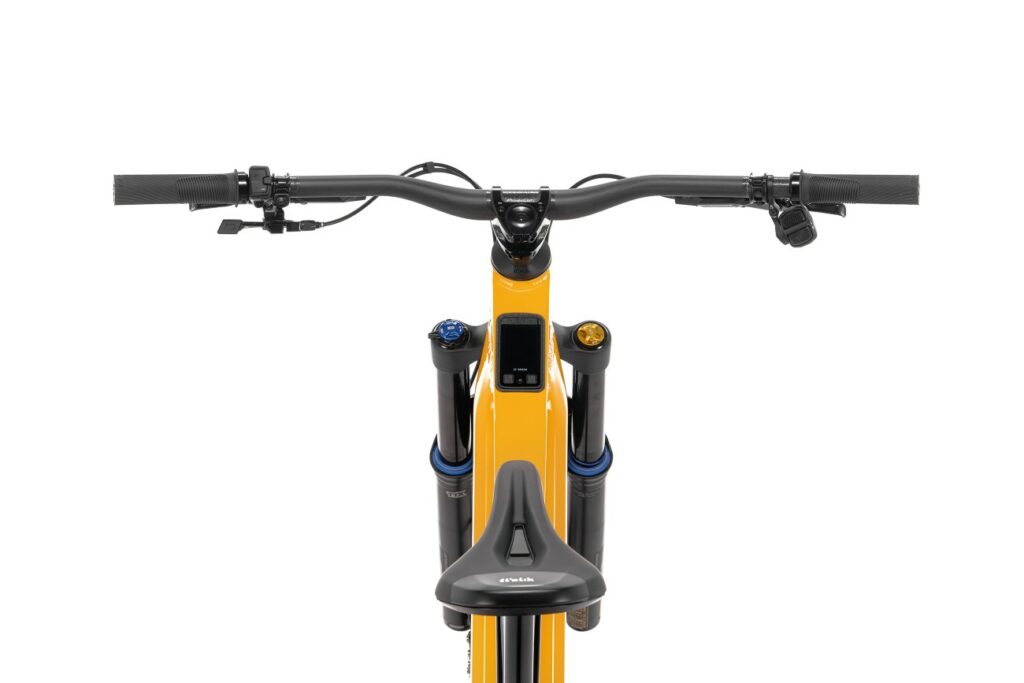

One of the standout features of the new Level is the new Kiox 400 Display, now seamlessly integrated into the top tube of the RR and XR builds.

This not only offers added protection from the elements but also gives riders an at-a-glance view of all their essential data, and the full-colour TFT screen automatically adjusts its brightness based on ambient light conditions.

One interesting feature many riders will appreciate is the fact that the new display is dynamic: on climbs, the display can show up to six data fields, while on descents it shifts to a simplified view showing nothing more than a large speed readout.

800Wh REMOVABLE BATTERIES + 250Wh POWERMORE EXTENDER

All three builds of the Level are equipped with Bosch’s latest 800Wh removable battery.

Fully redesigned and optimised using 21700 cell technology, they offer greater energy density and improved efficiency, all in a lighter, more compact package.

Combined with the new motor software and updated electronics, this results in significantly improved overall system efficiency compared to previous generations.
