The all-new Madone has landed in stock.
When creating Madone Gen 8, Trek combined their lightest & fastest road bikes – taking the greatest features from both to create something truly unique.
Trek’s one true ultimate race bike. Part Émonda. Part Madone. All-out podium-topping performance.
With the latest generation of the Madone, Trek’s fastest and lightest unite. Here’s our top four need-to-know features of the all-new Madone.
What’s New?
Best of both worlds
Madone Gen 8 replaces Madone Gen 7 and Émonda, but its legacy is far greater than any one bike.
Light as Émonda, fast as Madone. It’s the best of both worlds — and the only road race bike you need.
Light as Émonda
Entirely new 900 Series OCLV Carbon and an all-new innovative tube shaping shave weight from the Madone Gen 8.
This all helps to make Madone as weightless as the featherlight Émonda frameset.

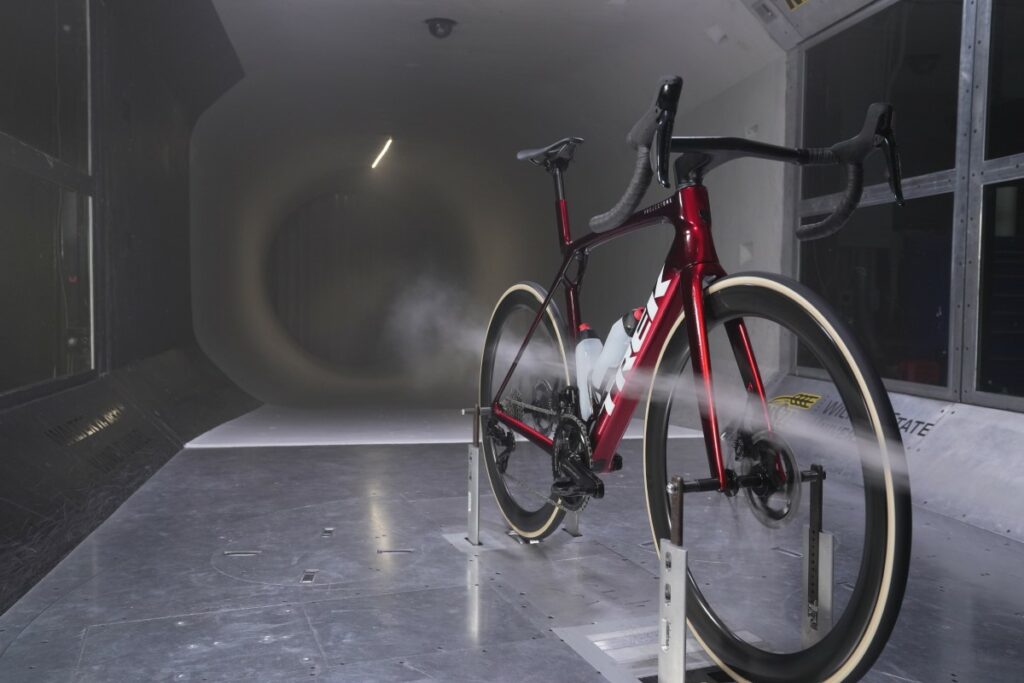

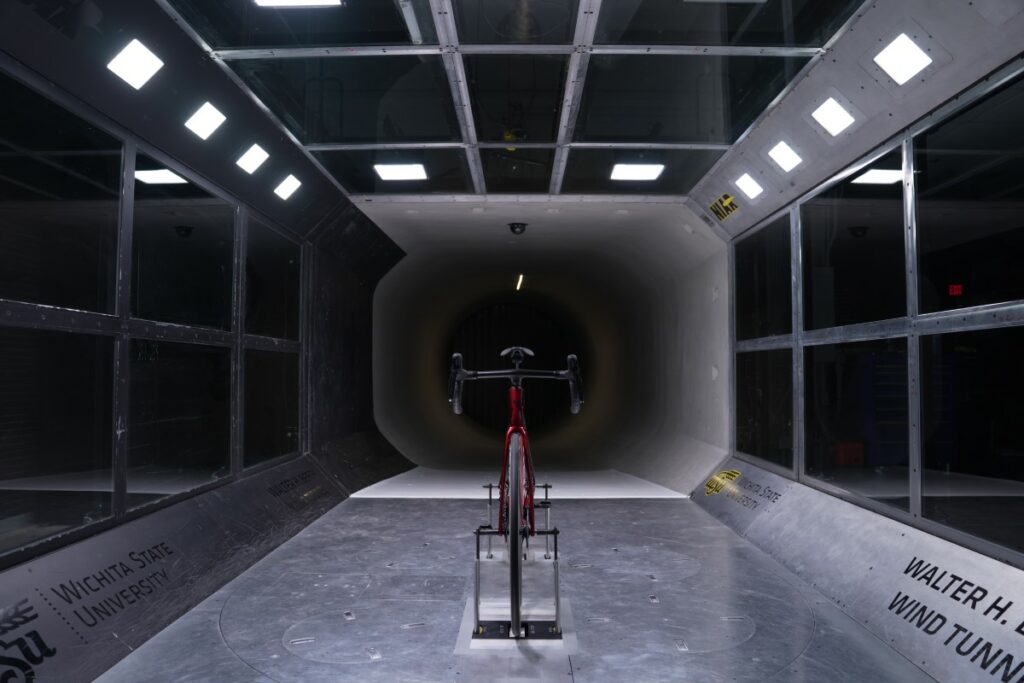

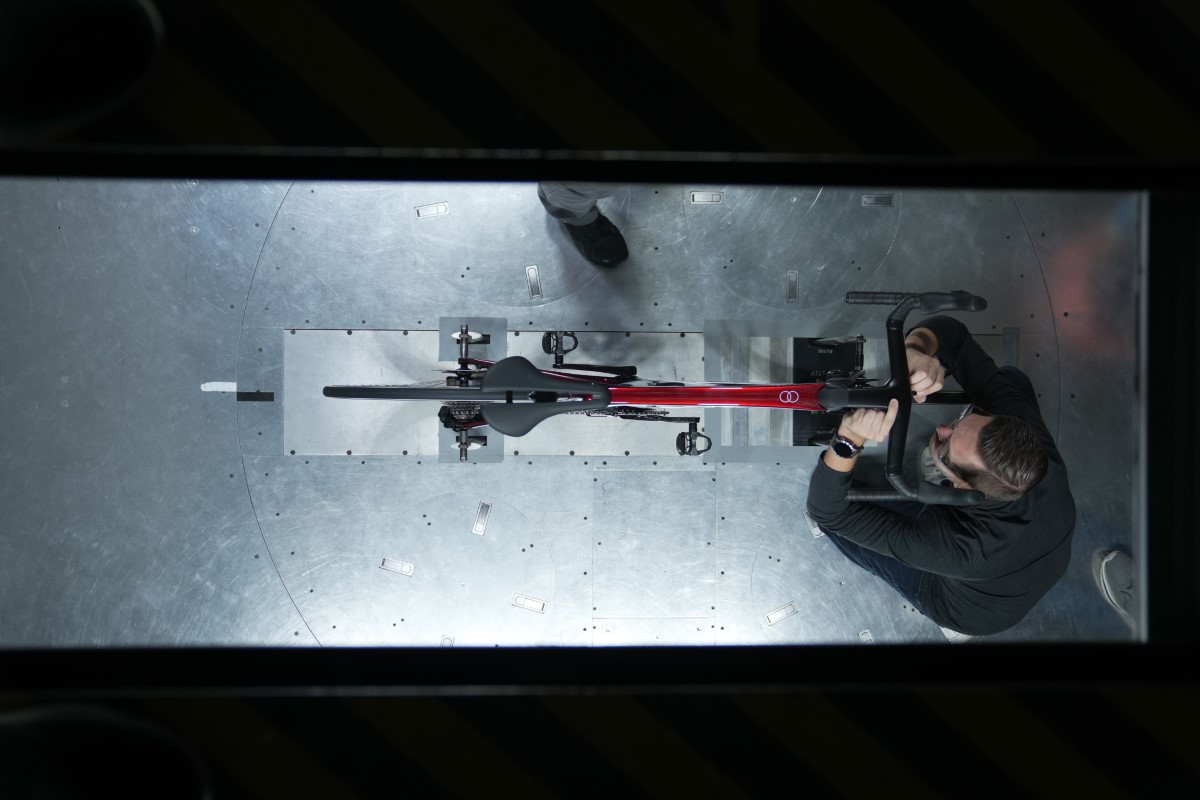

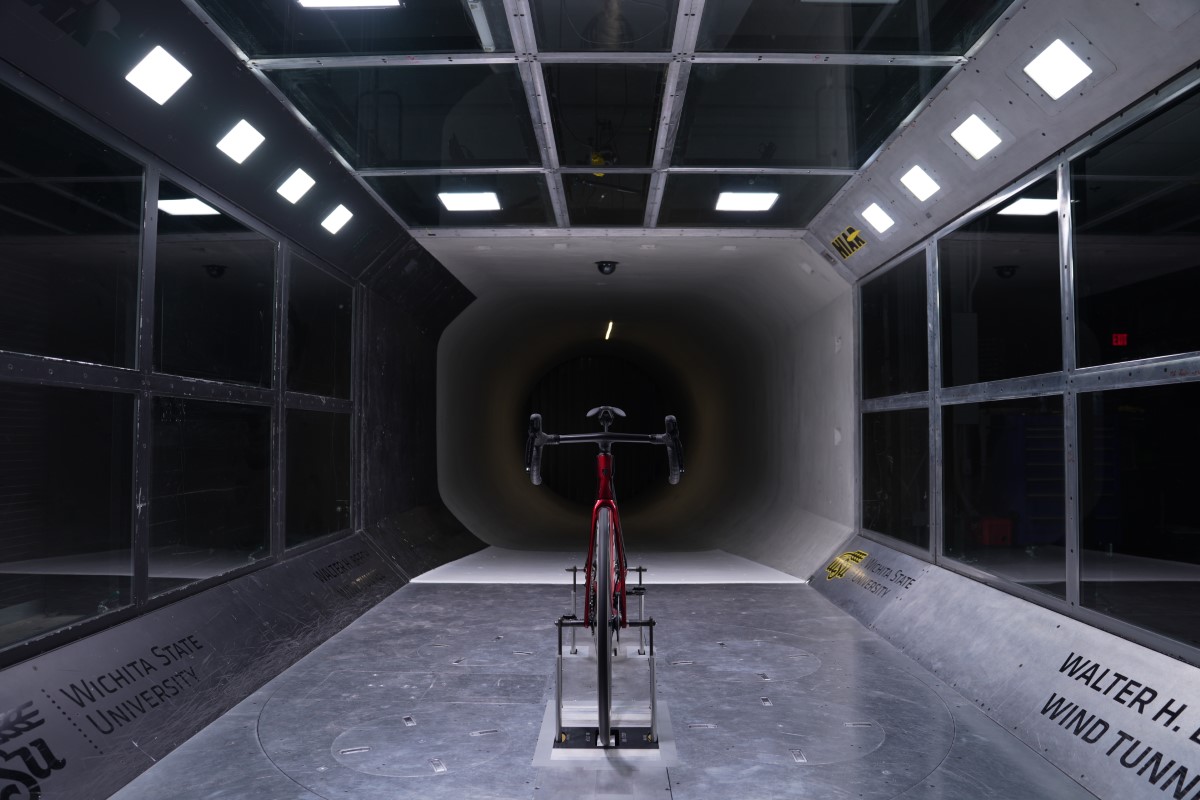

Faster than Gen 7

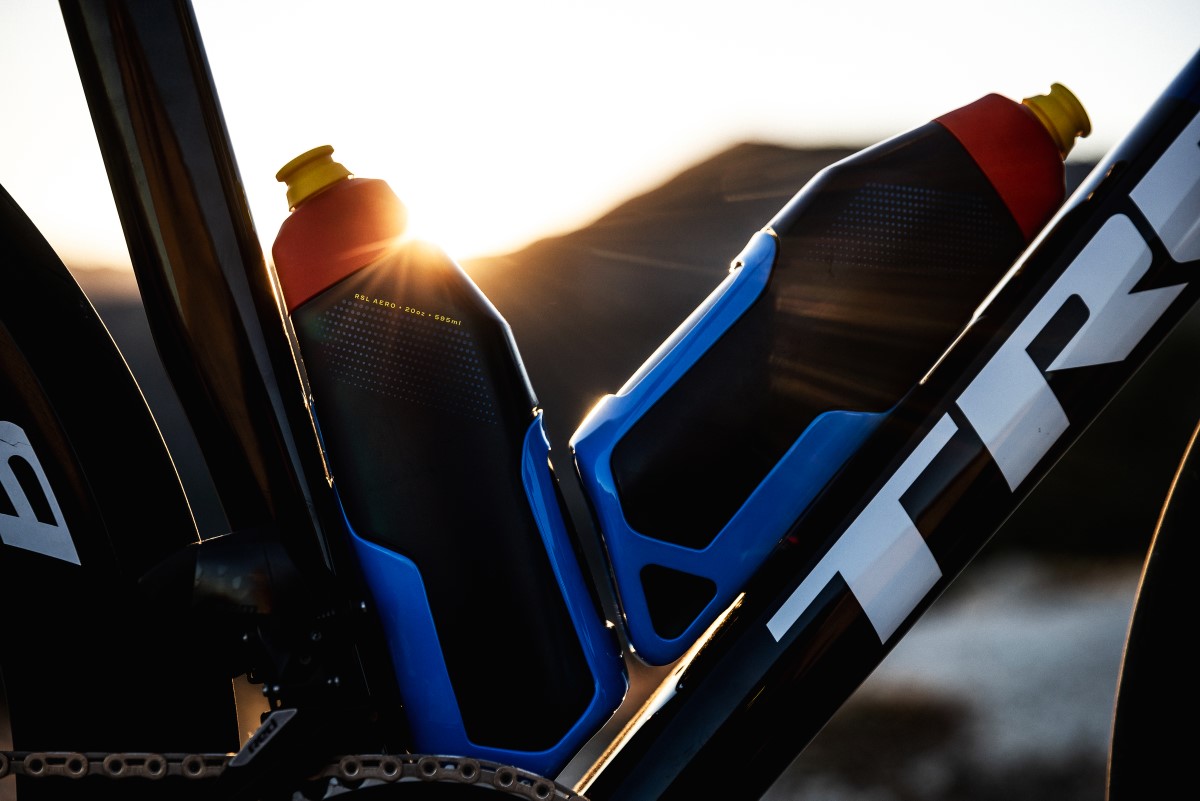

Madone Gen 8’s all-new Full System Foil aero tube shapes and aero bottles and cages (included with the SLR model) help create an ultra-fast rider system.
Range of price points
Madone now covers the complete range of carbon race price points from the SL to the SLR models.
Every rider can find the right road race bike for them.
The Models

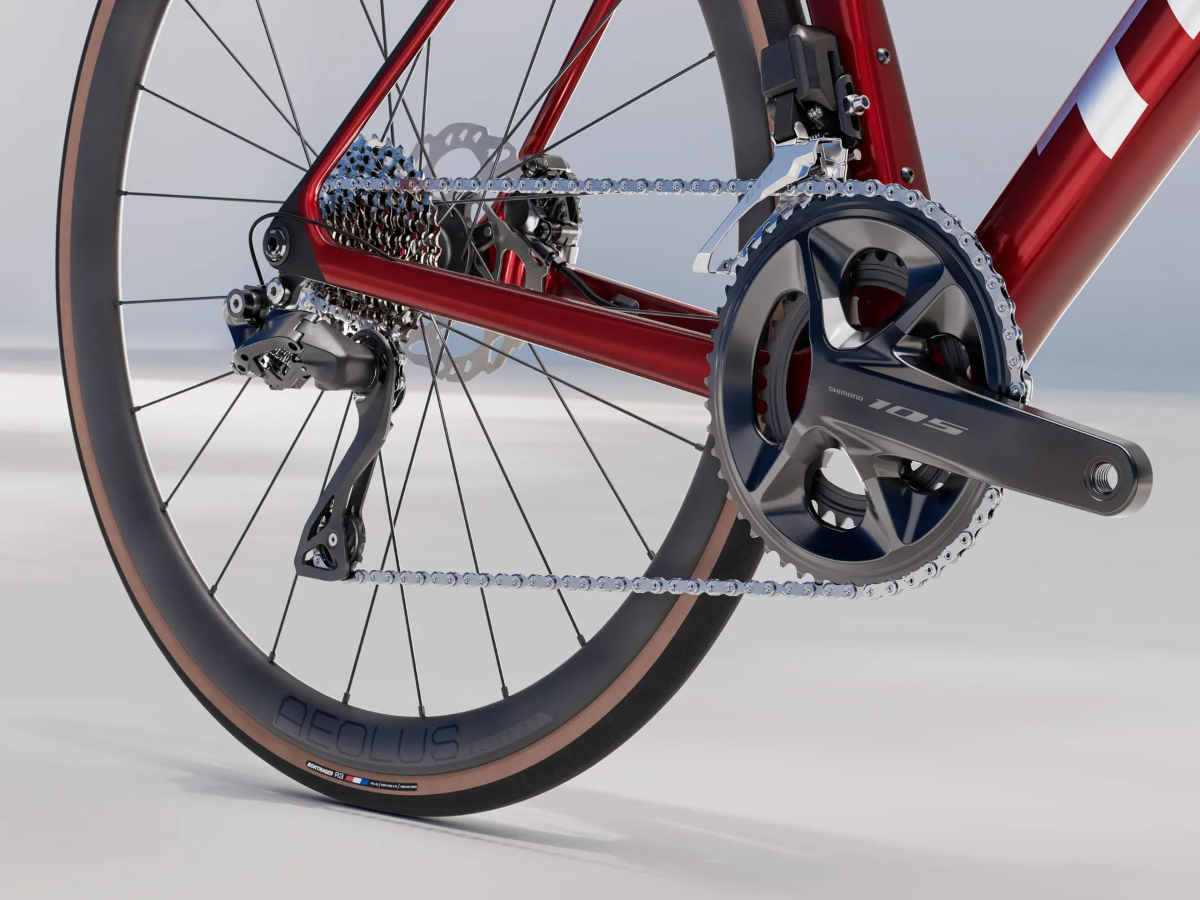

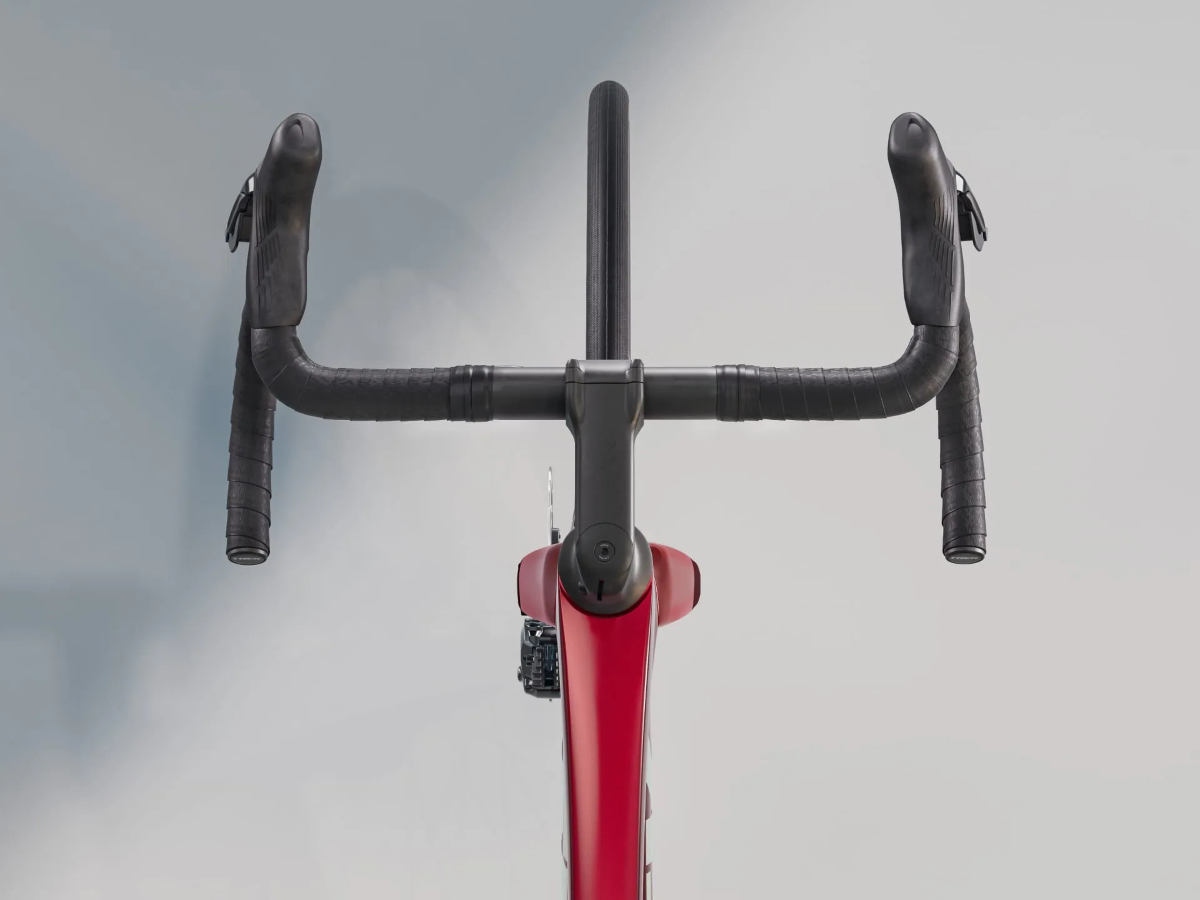

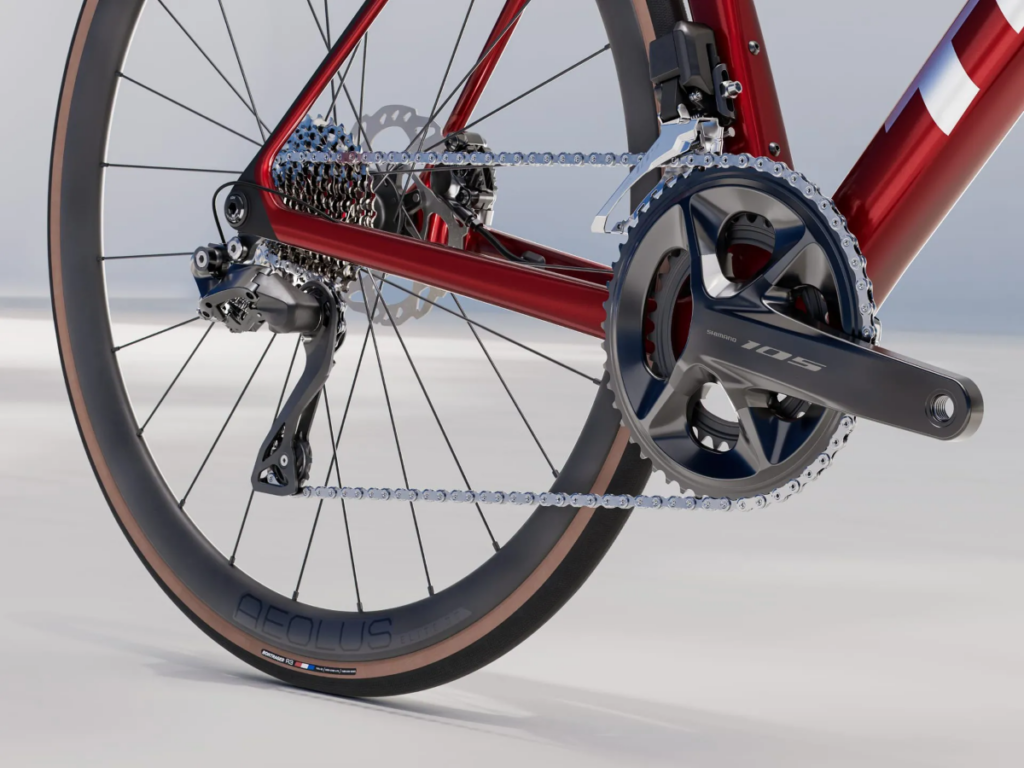

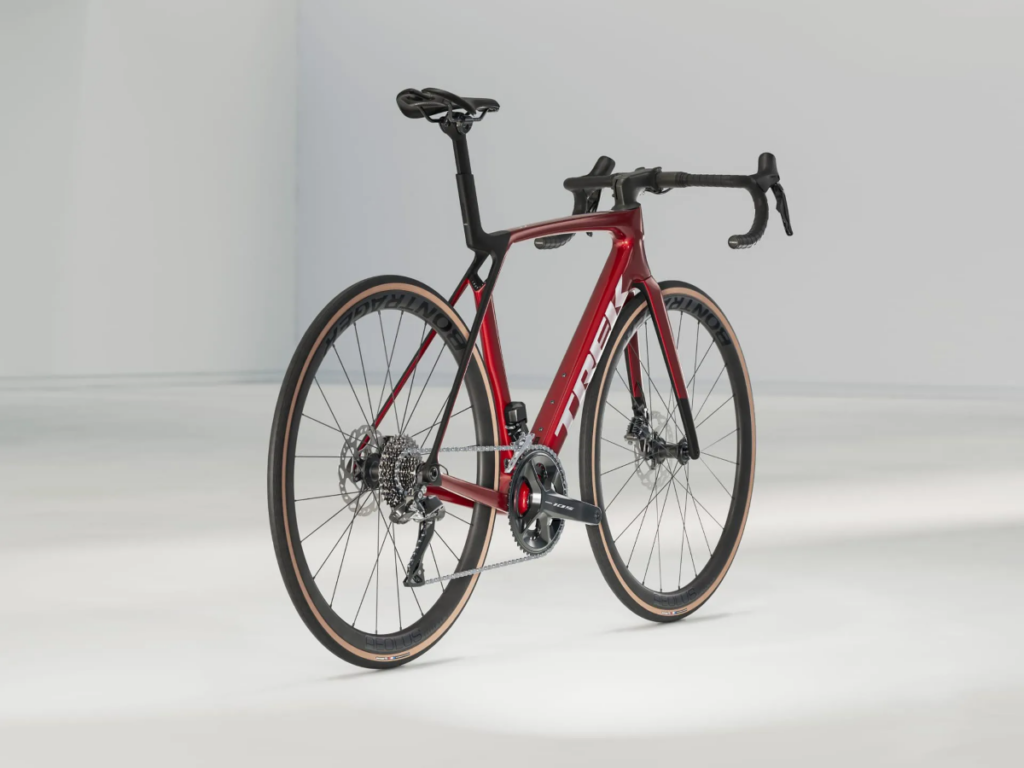

Madone SL 6
Ultimately lightweight & distinctly aero, the Madone SL 6 brings elite racing tech to a more accessible price point.
It boasts similar aero benefits to the Madone SLR, but with a more economical OCLV 500 Carbon lay-up and sleek two-piece cockpit with hidden cable routing.

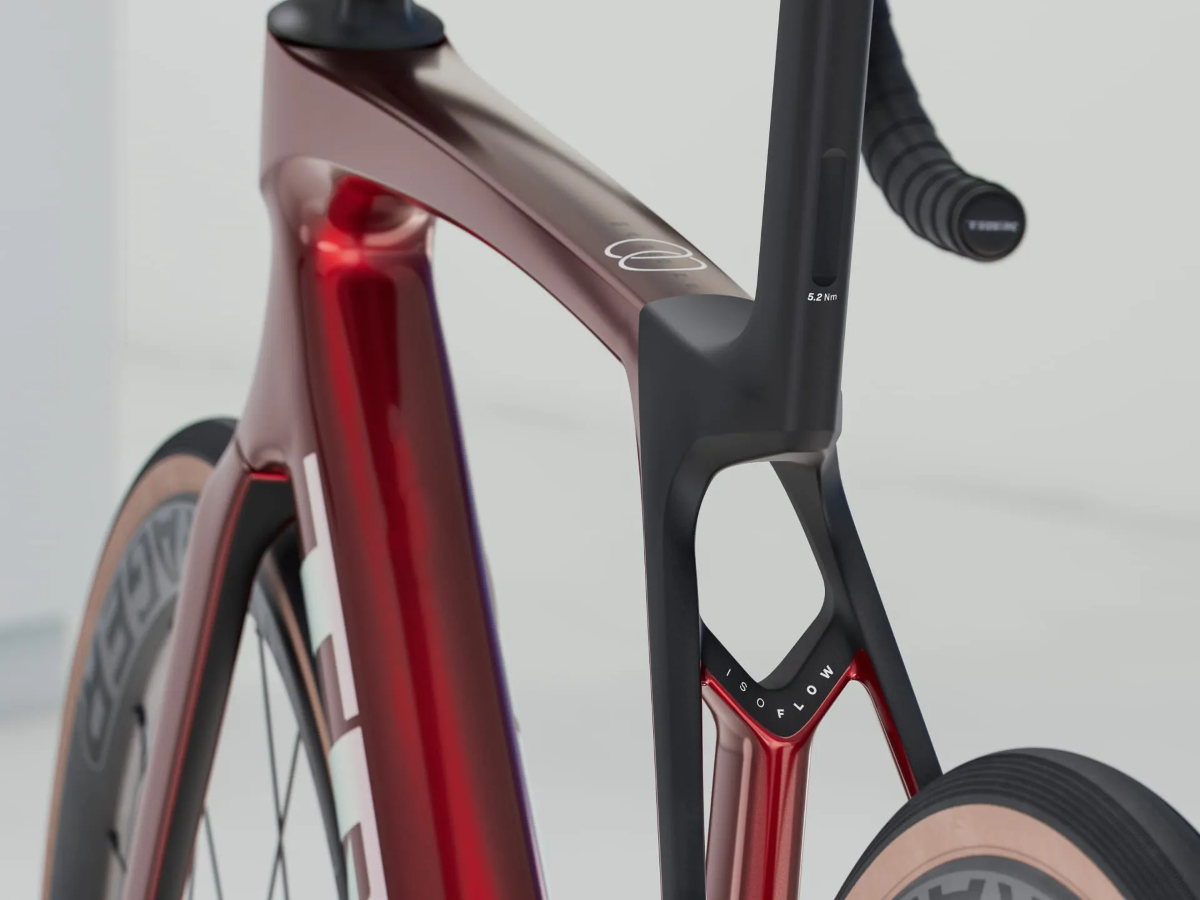

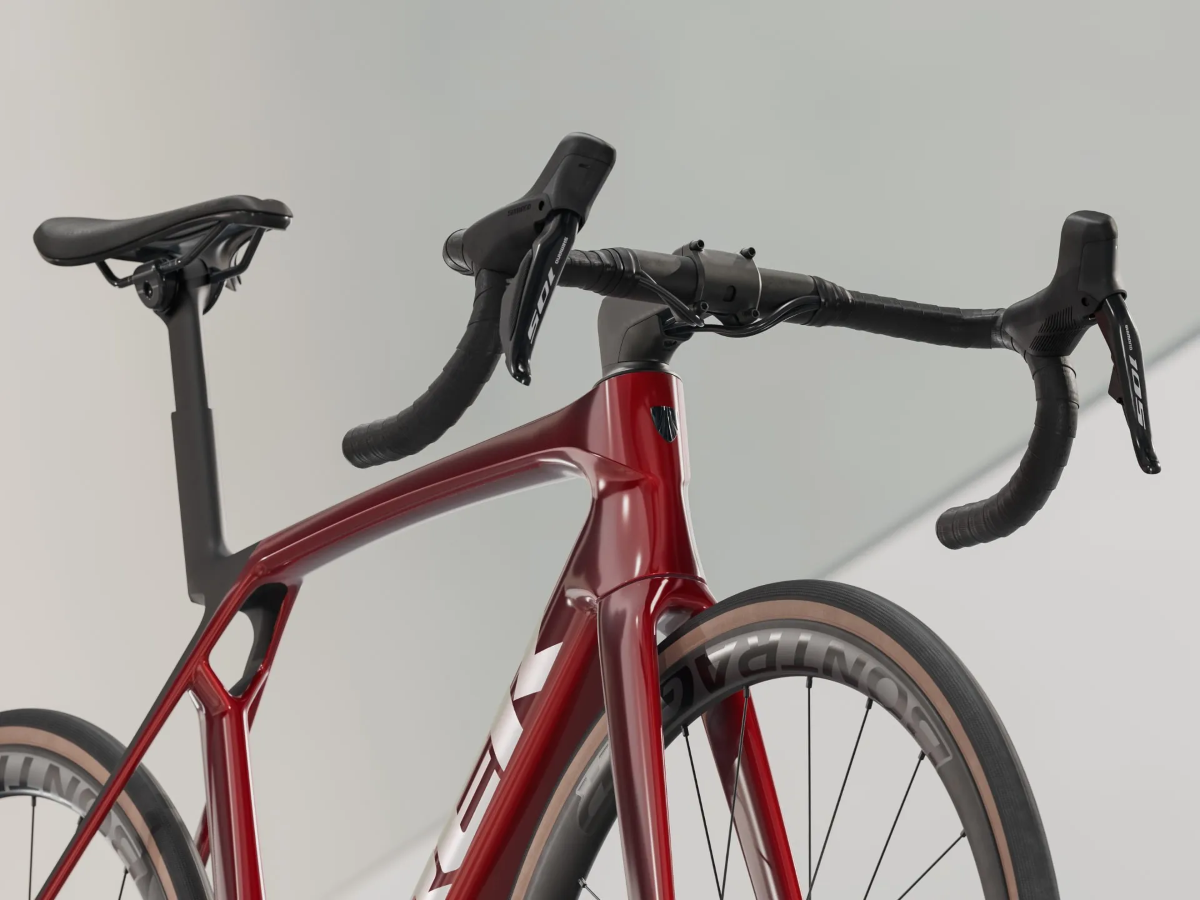

Madone SL 6 is forged with a built-to-race geometry that prioritizes comfort. It’s all topped off with a Shimano 105 Di2 electronic groupset and carbon wheels.
RRP £4,250.00
Click here to see the full specs!
| Frame | 500 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic or mechanical routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142×12 mm thru axle |
| Fork | Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle |
| Weight | ML – 8.16 kg / 17.99 lbs (with TLR sealant, no tubes) |
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb). |
| Charger | Charging cable included |
| Shifter | Shimano 105 R7170, 12-speed |
| Front derailleur | Shimano 105 R7150 Di2, braze-on, down swing |
| Rear derailleur | Shimano 105 R7150 Di2, 36T max cog |
| *Crank | Size: XS, S Shimano 105 R7100, 50/34, 165 mm length |
| Size: M Shimano 105 R7100, 50/34, 170 mm length | |
| Size: ML, L Shimano 105 R7100, 50/34, 172.5 mm length | |
| Size: XL Shimano 105 R7100, 50/34, 175 mm length | |
| Bottom bracket | Praxis, T47 threaded, internal bearing |
| Cassette | Shimano 105 7101, 11-34, 12-speed |
| Chain | Shimano SLX M7100, 12-speed |
| Max. chainring size | 1x: 54T, 2x: 56/43 |
| Wheel front | Bontrager Aeolus Elite 35, OCLV Carbon, Tubeless Ready, 35 mm rim depth, 100×12 mm thru axle |
| Wheel rear | Bontrager Aeolus Elite 35, OCLV Carbon, Tubeless Ready, 35 mm rim depth, Shimano 11/12-speed freehub, 142×12 mm thru axle |
| Skewer front | Bontrager Switch chamfered thru axle, removable lever |
| Hub rear | Bontrager Affinity Comp, Shimano 11/12 speed freehub, 142x12mm thru axle |
| Skewer rear | Bontrager Switch chamfered thru axle, removable lever |
| Rim | Bontrager Aeolus Elite 35, OCLV Carbon, Tubeless Ready, 35mm rim depth, 100x12mm thru axle |
| Tyre | Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 170 tpi, 700×28 mm |
| Tyre part | Bontrager TLR sealant, 180 ml/6 oz |
| Rim strip | Bontrager TLR |
| Max tyre size | 32 mm (as measured, see manual for details) |
| *Saddle | Size: XS, S Bontrager Aeolus Comp, steel rails, 155 mm width |
| Size: M, ML, L, XL Bontrager Aeolus Comp, steel rails, 145 mm width | |
| *Seatpost | Size: XS, S, M Madone aero carbon seat post, 0 mm offset, short length |
| Size: ML, L, XL Madone aero carbon seat post, 0 mm offset, long length | |
| *Handlebar | Size: XS Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 36 cm control width, 40 cm drop width |
| Size: S, M Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 38 cm control width, 42 cm drop width | |
| Size: ML, L Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 40 cm control width, 44 cm drop width | |
| Size: XL Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 42 cm control width, 46 cm drop width | |
| *Stem | Size: XS Trek RCS Pro, -7-degree, 80 mm length |
| Size: S, M Trek RCS Pro, -7-degree, 90 mm length | |
| Size: ML, L Trek RCS Pro, -7-degree, 100 mm length | |
| Size: XL Trek RCS Pro, -7-degree, 110 mm length | |
| Brake rotor | Shimano RT70, CentreLock, 160 mm |
| Rotor size | Max brake rotor sizes: 180 mm front, 160 mm rear |

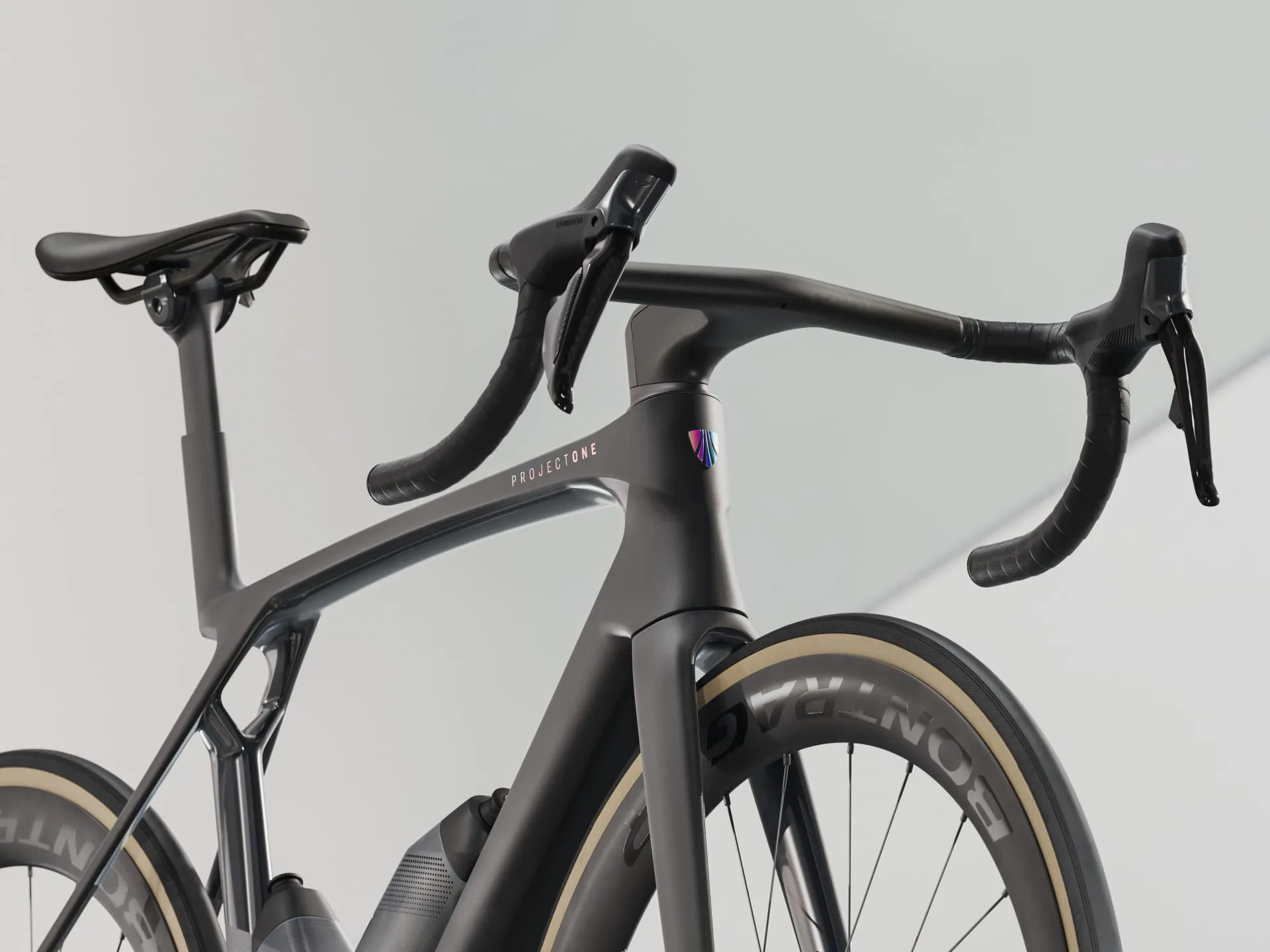

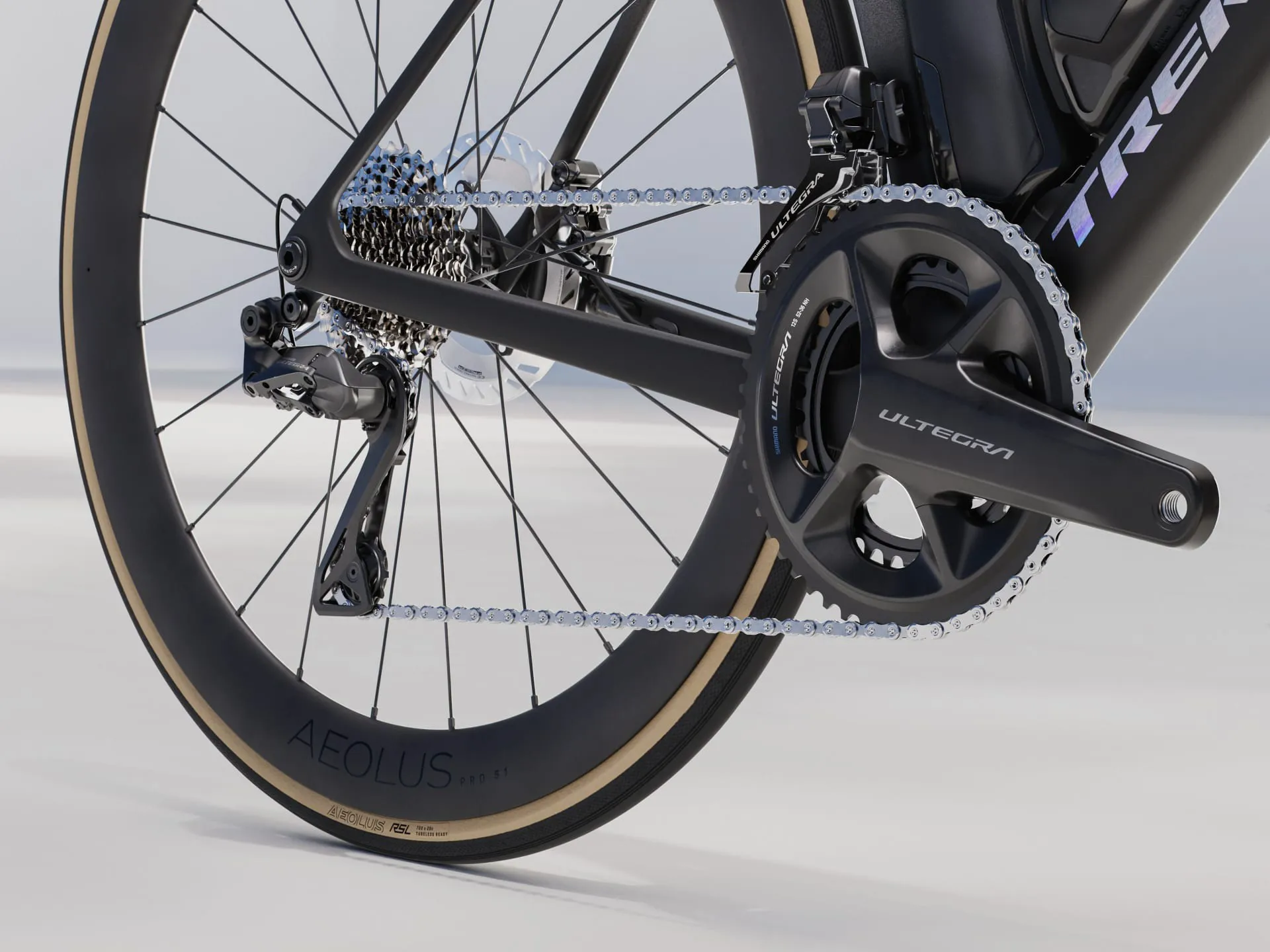

Madone SLR 7
An ultra-aero and featherlight bike that’s built to race.
Madone SLR 7’s 900 Series OCLV Carbon frame is not only aerodynamic but also ultra-light for flying up climbs.

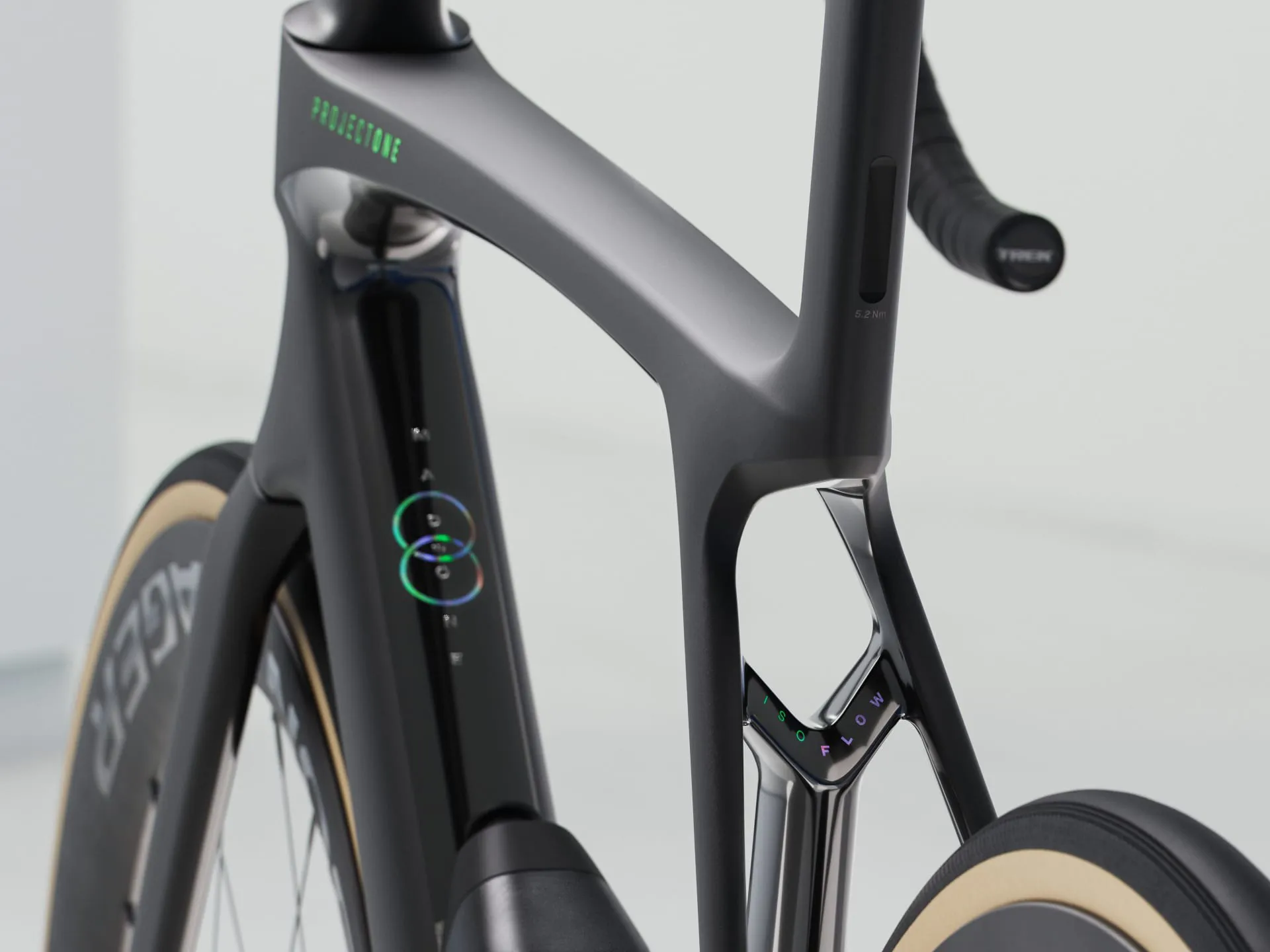

Lightweight IsoFlow frame technology means that the Madone doesn’t sacrifice comfort for speed. For that extra aero advantage, the Madone SLR comes with RSL Aero Bottles & Cages that further reduce drag.
RRP £8,000.00
Click here to see the full specs!
| Frame | 900 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic-only routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142×12 mm thru axle |
| Fork | Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle |
| Weight | ML – 7.31 kg / 16.12 lbs (with TLR sealant, no tubes) |
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb). |
| Battery | Shimano BT-DN300 |
| Charger | Charging cable included |

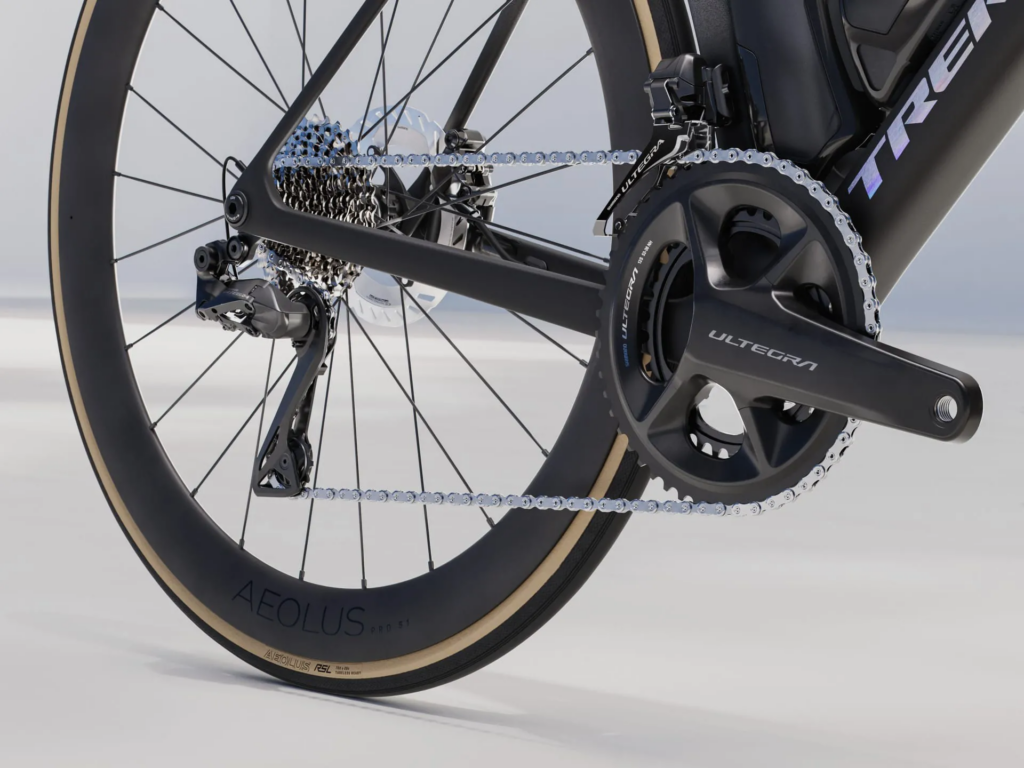

| Shifter | Shimano Ultegra R8170 Di2, 12-speed |
| Front derailleur | Shimano Ultegra R8150 Di2, braze-on, down swing |
| Rear derailleur | Shimano Ultegra R8150 Di2, 34T max cog |
| *Crank | Size: XS, S Shimano Ultegra R8100, 52/36, 165 mm length |
| Size: M Shimano Ultegra R8100, 52/36, 170 mm length | |
| Size: ML, L Shimano Ultegra R8100, 52/36, 172.5 mm length | |
| Size: XL Shimano Ultegra R8100, 52/36, 175 mm length | |
| Bottom bracket | Praxis, T47 threaded, internal bearing |
| Cassette | Shimano Ultegra R8101, 11-30, 12-speed |
| Chain | Shimano Ultegra/XT M8100, 12-speed |
| Max. chainring size | 1x: 54T, 2x: 56/43 |
| Wheel front | Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 100×12 mm thru axle |
| Wheel rear | Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, Shimano 11/12-speed freehub, 142×12 mm thru axle |
| Skewer front | Bontrager Switch chamfered thru axle, removable lever |
| Skewer rear | Bontrager Switch chamfered thru axle, removable lever |
| Tyre | Pirelli P Zero Race, 120 tpi, tubeless-compatible, 700×28 mm |
| Tyre part | Bontrager TLR sealant, 180 ml/6 oz |
| Max tyre size | 32 mm (as measured, see manual for details) |
| *Saddle | Size: XS, S Bontrager Aeolus P2 Pro, carbon rails, 155 mm width |
| Size: M, ML, L, XL Bontrager Aeolus Pro, carbon rails, 145 mm width | |
| *Seatpost | Size: XS, S, M Madone aero carbon seat post, 0 mm offset, short length |
| Size: ML, L, XL Madone aero carbon seat post, 0 mm offset, long length | |

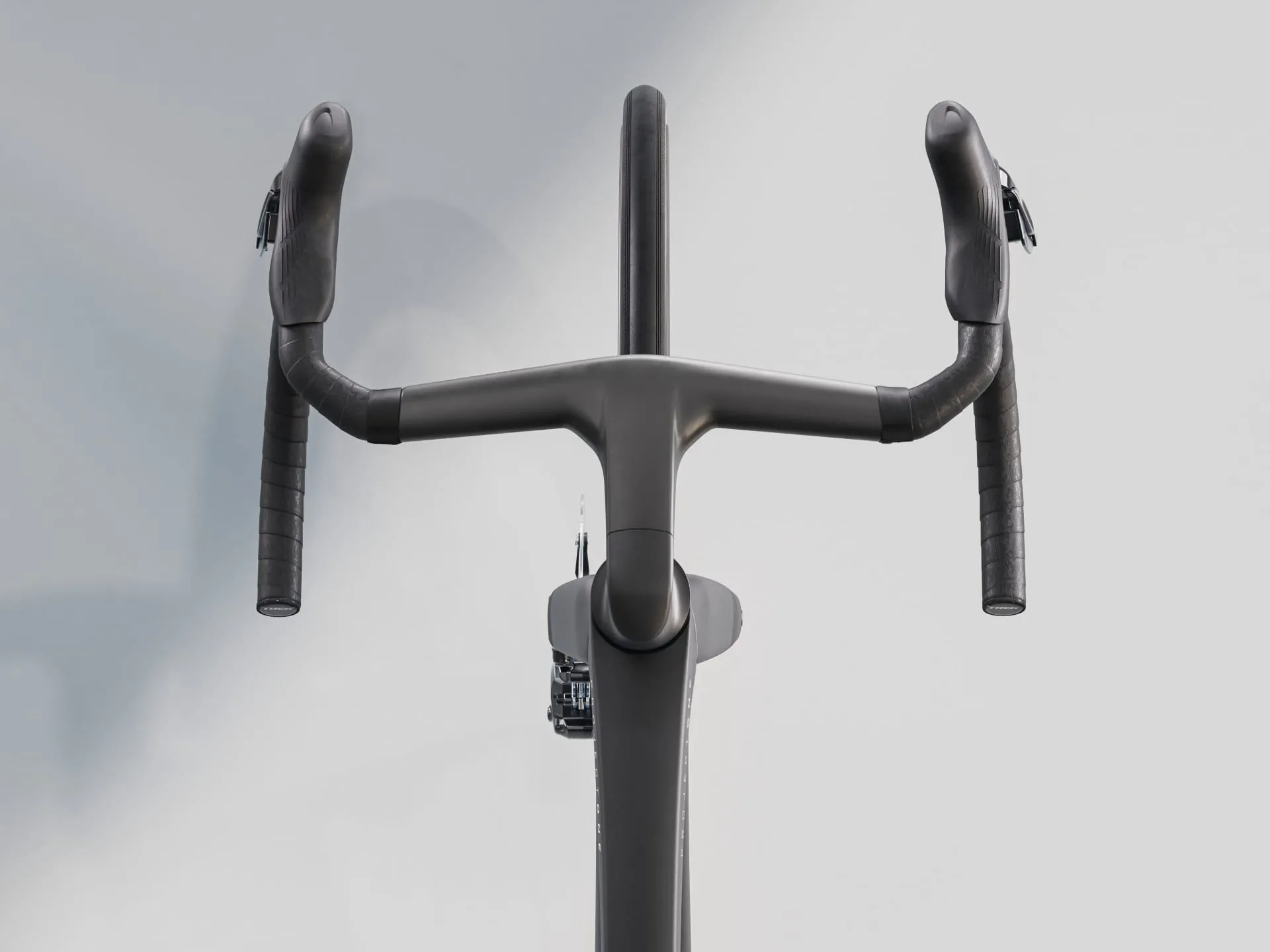

| *Handlebar/stem (integrated) | Size: XS Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 35 cm control width, 38 cm drop width, 80 mm stem length |
| Size: S Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 37 cm control width, 40 cm drop width, 90 mm stem length | |
| Size: M Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 39 cm control width, 42 cm drop width, 90 mm stem length | |
| Size: ML, L Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 39 cm control width, 42 cm drop width, 100 mm stem length | |
| Size: XL Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 41 cm control width, 44 cm drop width, 110 mm stem length | |
| Brake rotor | Shimano CL800, CentreLock, 160 mm |
| Rotor size | Max brake rotor sizes: 180 mm front, 160 mm rear |

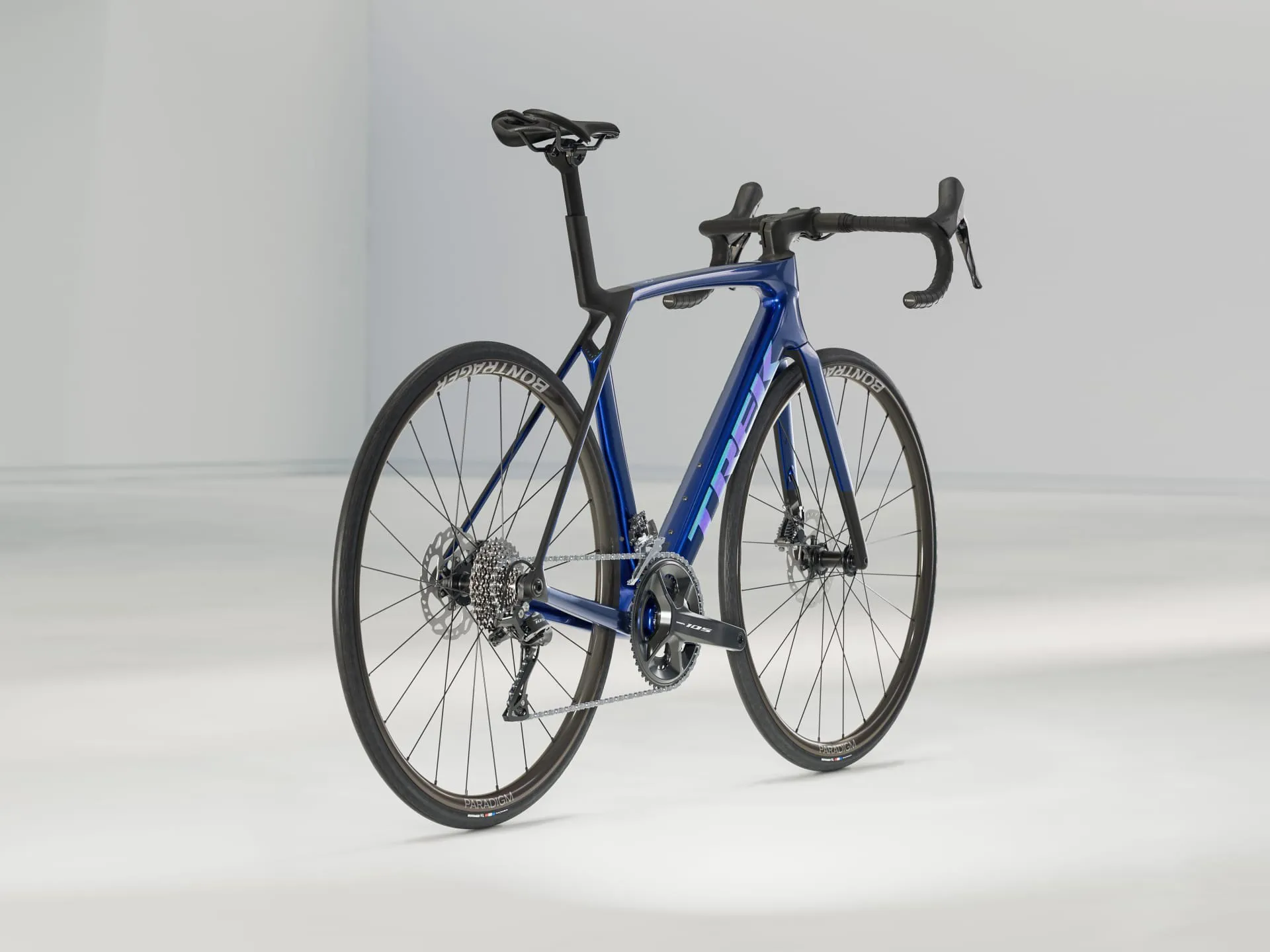

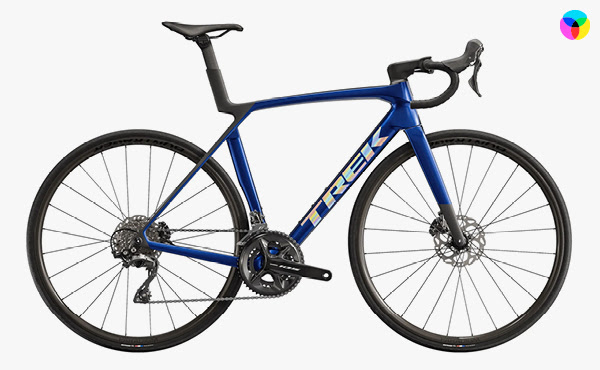

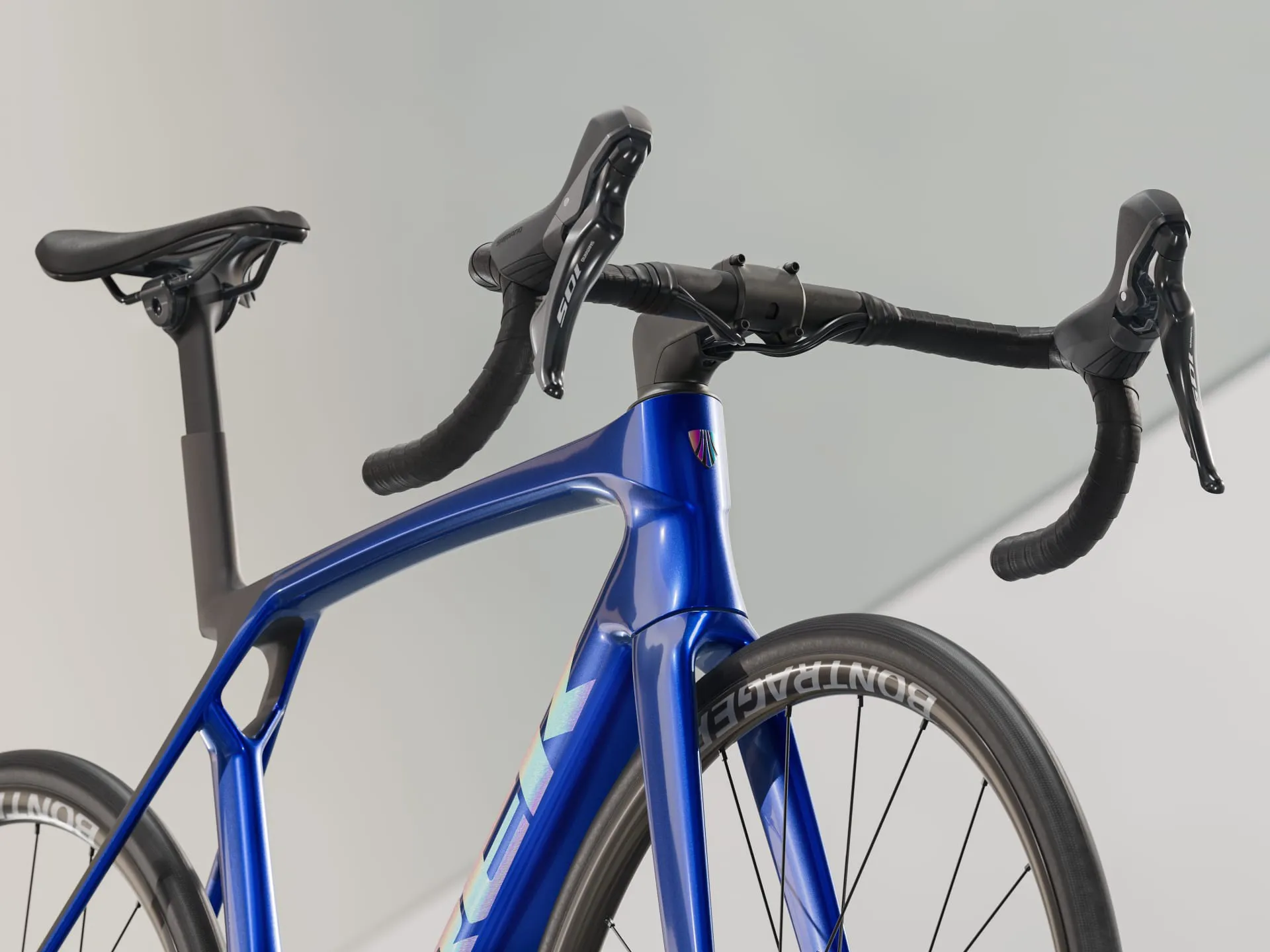

Madone SL 5
The Madone SL 5 is a lightweight aero road bike that boasts premium features, despite its lower price.
It’s built to race, with geometry that keeps you quick on the sprints yet in control on fast descents.

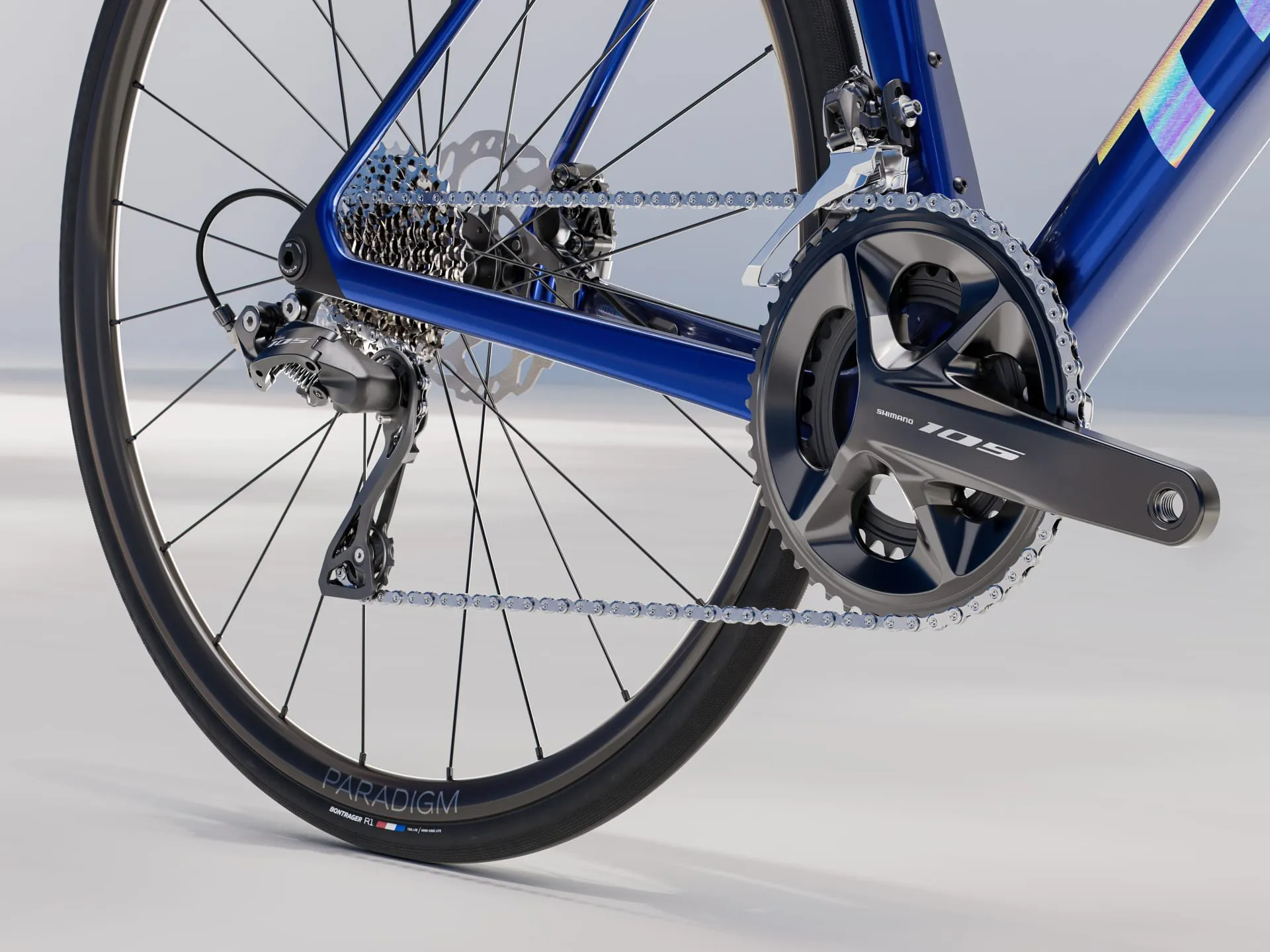

A Shimano 105 groupset keeps the price down while still delivering clean mechanical shifting you can trust.
RRP £3,250.00
Click here to see the full specs!
| Frame | 500 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic or mechanical routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142×12 mm thru axle |
| Fork | Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle |
| Weight | |
| Weight | ML – 8.70 kg / 19.19 lbs (with tubes) |
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb). |
| Drivetrain | |
| Shifter | Shimano 105 R7120, 12-speed |
| Rear Derailleur | Shimano 105 R7100, braze-on, down swing |
| Rear derailleur | Shimano 105 R7100, 36T max cog |
| *Crank | Size: XS, S Shimano 105 R7100, 50/34, 165 mm length |
| Size: M Shimano 105 R7100, 50/34, 170 mm length | |
| Size: ML, L Shimano 105 R7100, 50/34, 172.5 mm length | |
| Size: XL Shimano 105 R7100, 50/34, 175 mm length | |
| Bottom bracket | Praxis, T47 threaded, internal bearing |
| Cassette | Shimano 105 7101, 11-34, 12-speed |
| Chain | Shimano SLX M7100, 12-speed |
| Max. chainring size | 1x: 54T, 2x: 56/43 |
| Wheels | |
| Wheel front | Bontrager Paradigm SL, Tubeless Ready, 21 mm rim width, 100×12 mm thru axle |
| Wheel rear | Bontrager Paradigm SL, Tubeless Ready, 21 mm rim width, 142×12 mm thru axle |
| Hub front | Bontrager alloy, sealed bearing, CenterLock disc, 100×12 mm thru axle |
| Skewer front | Bontrager Switch chamfered thru axle, removable lever |
| Hub rear | Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142×12 mm thru axle |
| Skewer rear | Bontrager Switch chamfered thru axle, removable lever |
| Rim | Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve |
| Spokes | 14 g stainless steel, black |
| Tyre | Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700×28 mm |
| Max tyre size | 32 mm (as measured, see manual for details) |
| Components | |
| *Saddle | Size: XS, S Bontrager Aeolus Comp, steel rails, 155 mm width |
| Size: M, ML, L, XL Bontrager Aeolus Comp, steel rails, 145 mm width | |
| *Seatpost | Size: XS, S, M Madone aero carbon seat post, 0 mm offset, short length |
| Size: ML, L, XL Madone aero carbon seat post, 0 mm offset, long length | |
| *Handlebar | Size: XS Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 36 cm control width, 40 cm drop width |
| Size: S, M Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 38 cm control width, 42 cm drop width | |
| Size: ML, L Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 40 cm control width, 44 cm drop width | |
| Size: XL Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 42 cm control width, 46 cm drop width | |
| *Stem | Size: XS Trek RCS Pro, -7-degree, 80 mm length |
| Size: S, M Trek RCS Pro, -7-degree, 90 mm length | |
| Size: ML, L Trek RCS Pro, -7-degree, 100 mm length | |
| Size: XL Trek RCS Pro, -7-degree, 110 mm length | |
| Brake rotor | Shimano RT70, CentreLock, 160 mm |
| Rotor size | Max brake rotor sizes: 180 mm front, 160 mm rear |
The all-new Trek Madone is available to order now, online & in-store!
Stop by your local store for more information or shop the entire collection here.
